9m Mining Kubota Hydraulic Mobile Diesel Industrial Light Tower
Fujian Robust Power Co., Ltd.- Fuel Capacity：2.0L,Hr(100 Litres,Tank)
- Engine Speed：1500rpm,50Hz
- Power Generation：7.2kw Continuous (DC)
- Voltage：110V-240V
- Light Power：4*1000W Metal Halide Lamp
- IP Grade：IP54
Base Info
- Model NO.：RPLT-6800
- Lumen Output：4*110000
- Guarantee：2000h
- Control System：Gu3303 Digital Controller
- Delivery Time：Within 35 Days After Receiving Deposit
- Transport Package：Plywood Tray,Plywood Cases,Cartons
- Specification：4500*1350*1700MM
- Trademark：Robust Power
- Origin：China
- HS Code：94054090
- Production Capacity：250pieces,Month
Description
LightingType of lights LED Lamp/Metal Halide Lamp Lighting panels per unit 4*480W LED lamps
4*1000W Metal Halide Lamp Optional color temperature 2100K-5700K Housing Material Galvanization Reflector Housing Longevity 3 years/2000 Hrs Lumen Output 4*57600lm/ 4*110,000lm ( total ) Connection Protection Index IP54 Mast Mast type Telescopic Mast section 6 Mast extension 8m Rotation 360 degree Engine Brand Kubota, 3 cylinder, in-line, water cooled Model D1105-BG Diesel Fuel Consumption 2.0L/hr Fuel capacity 100L Maximum Working Hours 50H Control system GU3303 Digital controller Engine Shutdown Protection Low oil pressure, over speed, over current,
high temperature detection, low fuel level Alternator Type Stamford PI044F/4-pole, Brushless, excitation Prime Power 6.7KW/50Hz 8.4KW/60Hz Trailer Stabilier Supports 4*Manual 4*Hydraulic Tow Hitch Ring/ball hitch Tire Size 13 inch Brakes Manual Packing
Dimension & Weight Net weight 890kg Dimention 2650X1400X3250 MM
4*1000W Metal Halide Lamp
high temperature detection, low fuel level
Dimension & Weight

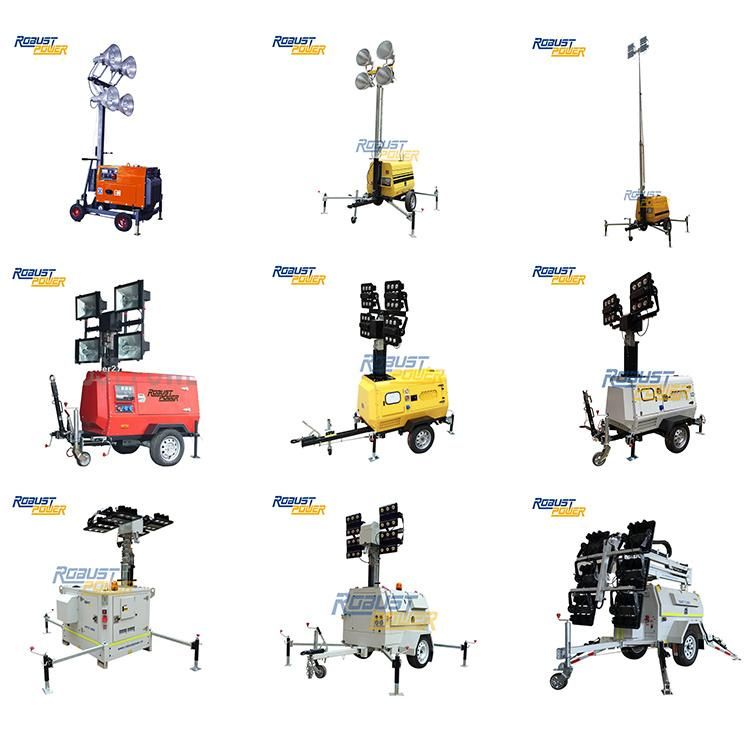

Robust Power Models:
| No. | Model | Mast | Power of Lamps | Engine Model |
| 1 | RPLT1600 | 4.8M Manual | 4*400W Metal Halide Lamp | RP186FA |
| 2 | RPLT1600 | 4.8M Manual | 4*160W LED | RP186FA |
| 3 | RPLT1600 | 4.8M Manual | 2*1000W Metal Halide Lamp | RP186FA |
| 4 | RPLT6000 | 9M Manual | 4*1000W Metal Halide Lamp | Kubota D1105 (Japan) |
| 5 | RPLT6000 | 9M Manual | 4*240W LED | Kubota D905 (Japan) |
| 6 | RPLT6800 | 8.6M Hydraulic | 4*1000W Metal Halide Lamp | Kubota D1105 (Japan) |
| 7 | RPLT6800 | 8.6M Hydraulic | 4*1500W Metal Halide Lamp | Kubota D1105 (Japan) |
| 8 | RPLT6800 | 8.6M Hydraulic | 4*480W LED | Kubota D905 (Japan) |
| 9 | RPLT3800 | 7M Hydraulic | 4*480W LED | Kubota Z482 (Japan) |
| 10 | RPLT6900 | 8.5M Hydraulic | 4*480W LED | Kubota D1105 (Japan) |
| 11 | RPLT7200 | 10M Hydraulic | 6*480W LED | Kubota D1105 (Japan) |
| 12 | RPLT7200 | 10M Hydraulic | 4*720W LED | Kubota D1105 (Japan) |
| 13 | RPLT7600 | 9M Hydraulic | 6*480W LED | Kubota D1105 (Japan) |
| 14 | RPLT7600 | 9M Hydraulic | 4*720W LED | Kubota D1105 (Japan) |
