• Model NO.：RB-STC-120W
• Application：Highway, Square, Garden
• IP Rating：IP65
• Certification：CE, RoHS, UL, EMC
• Voltage：220V
• Warranty：5years
• Transport Package：1piece One Carton
• Specification：CE, ROHS, UL
• Trademark：Rayborn
• Origin：China
• HS Code：940540
• Production Capacity：40000PCS,Month

Item No.:RB-STC-120WInput Voltage:AC 100~277VFreqency Range:50Hz~60HzDriver:Meanwell HLGLed Chip:CREE XpePower Factor:>0.96Power Efficiency:>90%LED Power120WLED QTY:72pcsLED Working Voltage:DC 30~36VSystem Consumption:123WLED Luminous FluxWarm White11500LMPure White11800LMCool White12061LMViewing Angle:140/80 degreeCenter IlluminanceHeight 10M25.6LUXHeight 20M6.4LUXHeight 30M2.9LUXIlluminance AreaHeight 10MDia.1746CM  points visibleHeight 20MDia.3492CM points visibleHeight 30MDia.5238CM points visibleIlluminance Uniformity:>0.6Color TemperatureWarm White3000K~3500KPure White5000K~5700KCool White6000K~6500KColor Rendering IndexRa>80Light Distribution:LED points visibleLight Design:LED+ secondary light distribution lensLED Junction Temperature:≤115ºCWorking Temperature:-30ºC~55ºCIP Grade:IP65Working Life-span:50000 HPower Line:1.0 mthree lineConnect WireBrownLBlueNYellow / GreenGCertificateCE/UL/ROHSProducs Size:587*292*98mm

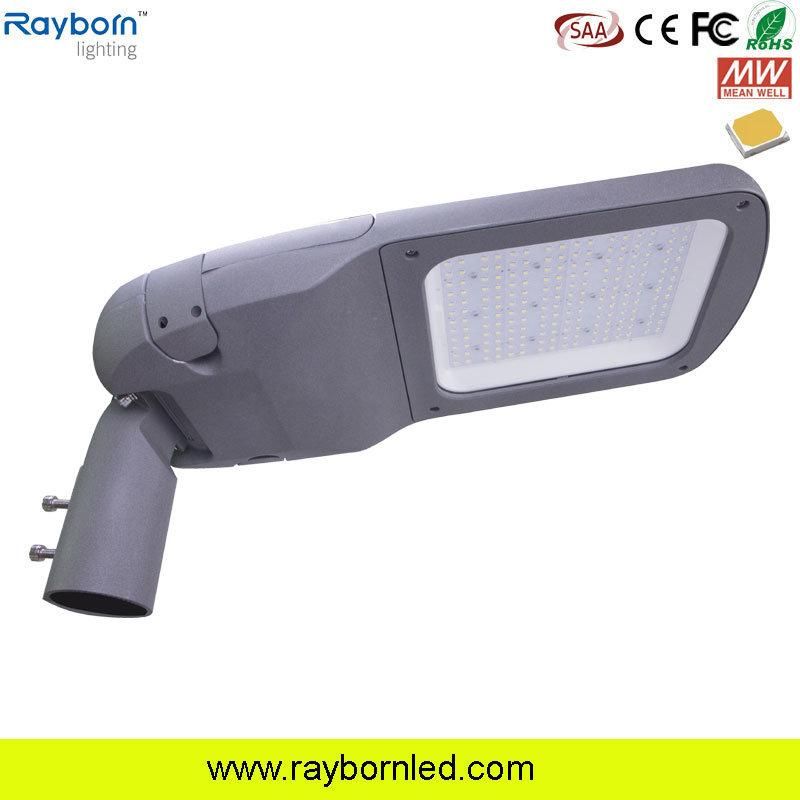

High Power LED Street Lamp Lighting Features:

1. Higher efficiency and energy-saving compared to conventional fluorescents with equal bright.

2. No RF interference, no buzzing noise, no UV radiation.

3. No fluorescent flickering.

4. No hazard of mercury or lead entering the environment.

5. Maintenance free, easy installation.

6. Solid- state, high shock/ vibration resistant

7. Adopting low- pressure constant current power supply, no glare,

8. Milky glass cover or PC cover with transmission rate at 92%.

9. Good quality and good heat dissipation.

Applications:

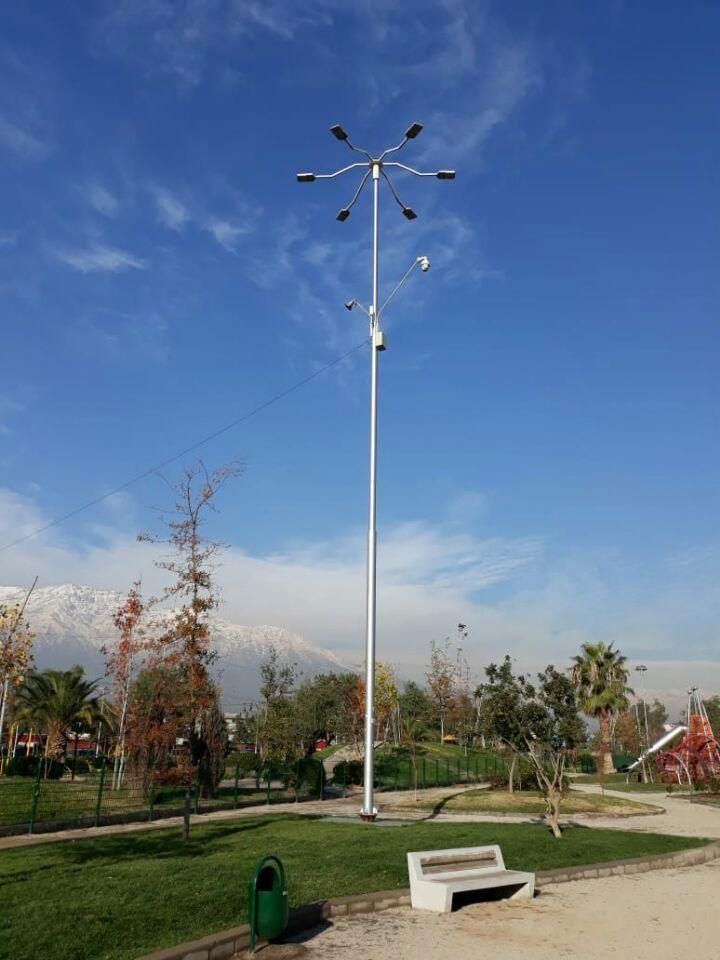

High way, city main street, slip street, fast lane, residential street, municipal roads,
Gas stations, parking lot, , parks, yards, inhabitancy area, factories and some other places where need lighting
