5kw Silent Genset Vehicle-Mounted Diesel Generator Trailer Light Tower
Fujian Robust Power Co., Ltd.- Fuel Capacity：0.7L,Hr(15 Litres,Tank)
- Engine Speed：3000rpm,3600rpm
- Power Generation：4.5kw or 5.0kw Continuous (AC)
- Voltage：220,230,240V for Option
- Light Power：4*160W LED Lamp
- IP Grade：IP54
Base Info
- Model NO.：RPLT-1800
- Lumen Output：4*17,600lm
- Guarantee：3 Years
- Delivery Time：Within 35 Days After Receiving Your Deposit
- Transport Package：Plywood Tray,Plywood Cases,Cartons
- Specification：1740*1320*2700mm
- Trademark：Robuster Lighting
- Origin：China
- HS Code：9405409000
- Production Capacity：250pieces,Month
Description
Basic Info.
Model NO. RPLT-1800 Lumen Output 4*17,600lm Guarantee 3 Years Delivery Time Within 35 Days After Receiving Your Deposit Transport Package Plywood Tray/Plywood Cases/Cartons Specification 1740*1320*2700mm Trademark Robuster Lighting Origin China HS Code 9405409000 Production Capacity 250pieces/MonthProduct Description

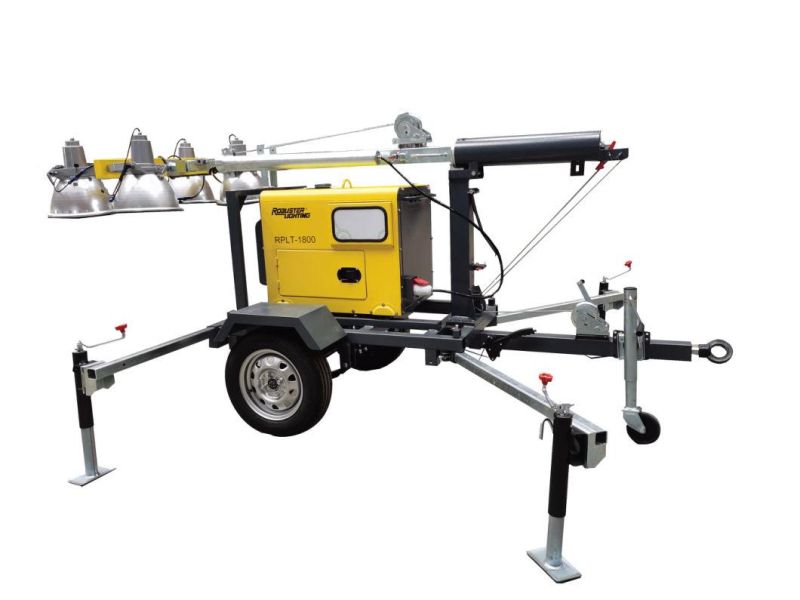

5kw Silent Genset Vehicle-Mounted Towbar Generator Light Tower
Key Features Include:
Compact and economical
4x160W LED Lamps
6m Telescopic, 3 stages mast
Mast with self-locking mechanism
165/70 R13 wheel-mounted
Can be towed by vehicle
Technical Data:
| Light | |
| Housing Material | Aluminium die cast |
| Type of lights | LED Lamp/Metal Halide Lamp/Moon Light |
| Power of lights | 4*160W LED lamps |
| Lumen Output | 4*17600lm ( total ) |
| Voltage | AC 110V-240V |
| Frequency | 50/60Hz |
| Longevity | 3 years |
| Waterproof grade | IP54 |
| Color temperature | 2100K-5700K |
| Mast | |
| Material of mast | Galvanized iron |
| Mast lifting type | Manual mast |
| Mast section | 3-section telescopic |
| Max. height of mast | 6meters |
| Mast rotation system | Winch(Mechanical) |
| Engine | |
| Engine model | RP186FA Single cylinder, 4-stroke, air cooled |
| Start system | Electric (Battery start) |
| Engine speed | 3000rmp-3600rmp |
| Rated power | 4.5KW/50HZ, 5KW/60HZ |
| Insulation | H |
| Fuel tank capacity | 15L |
| Fuel consumption | 0.7L/hr |
| Maximum Working Hours | 18H |
| Waterproof grade | IP54 |
| Trailer | |
| Stabilizer Supports | 4*Manual |
| Tire Size | 165/70 R13 wheel |
| Brakes | Manual |
| Packing | |
| Net weight | 270 kg |
| Dimension | 1740X1320X2700 MM |
Robust Power Models:
| No. | Model | Mast | Power of Lamps | Engine Model |
| 1 | RPLT1600 | 4.8M Manual | 4*400W Metal Halide Lamp | RP186FA |
| 2 | RPLT1600 | 4.8M Manual | 4*160W LED | RP186FA |
| 3 | RPLT1600 | 4.8M Manual | 2*1000W Metal Halide Lamp | RP186FA |
| 4 | RPLT6000 | 9M Manual | 4*1000W Metal Halide Lamp | Kubota D1105 (Japan) |
| 5 | RPLT6000 | 9M Manual | 4*240W LED | Kubota D905 (Japan) |
| 6 | RPLT6800 | 8.6M Hydraulic | 4*1000W Metal Halide Lamp | Kubota D1105 (Japan) |
| 7 | RPLT6800 | 8.6M Hydraulic | 4*1500W Metal Halide Lamp | Kubota D1105 (Japan) |
| 8 | RPLT6800 | 8.6M Hydraulic | 4*480W LED | Kubota D905 (Japan) |
| 9 | RPLT3800 | 7M Hydraulic | 4*480W LED | Kubota Z482 (Japan) |
| 10 | RPLT6900 | 8.5M Hydraulic | 4*480W LED | Kubota D1105 (Japan) |
| 11 | RPLT7200 | 10M Hydraulic | 6*480W LED | Kubota D1105 (Japan) |
| 12 | RPLT7200 | 10M Hydraulic | 4*720W LED | Kubota D1105 (Japan) |
| 13 | RPLT7600 | 9M Hydraulic | 6*480W LED | Kubota D1105 (Japan) |
| 14 | RPLT7600 | 9M Hydraulic | 4*720W LED | Kubota D1105 (Japan) |

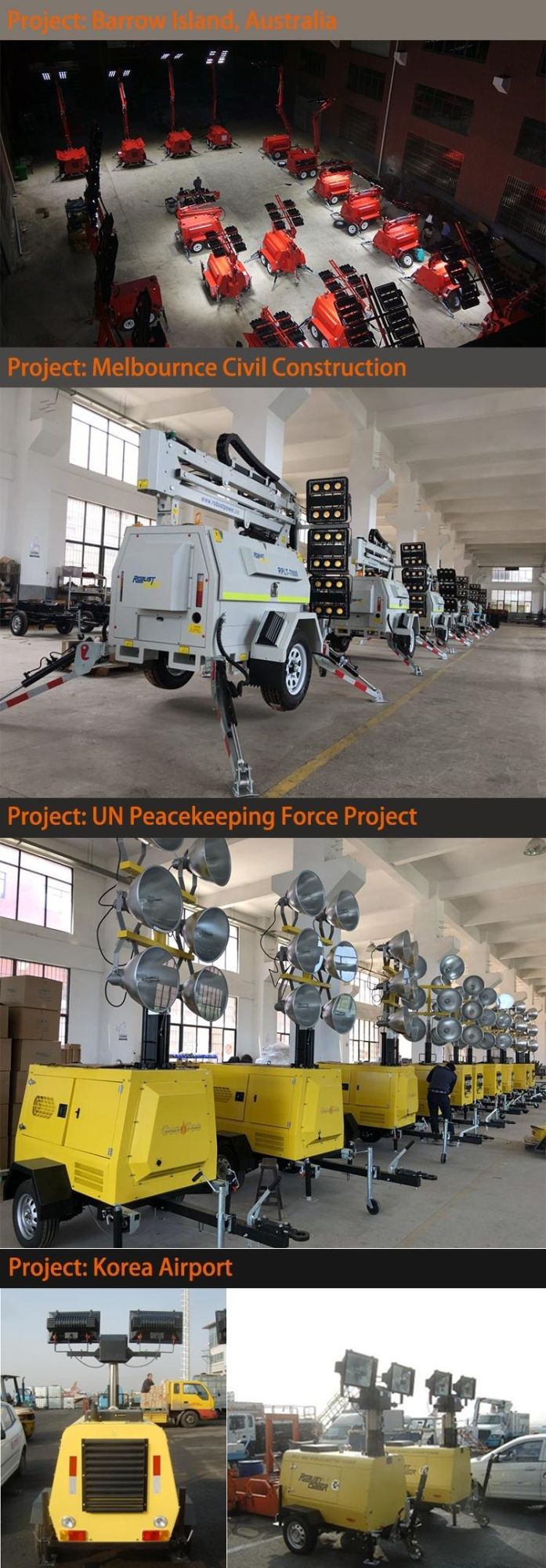

Project:
