• Model NO.：SMLN-30W
• Illumination Time：12h
• Cell Type：LiFePO4 Lithium
• Charging Time (H)：12
• Usage：Garden
• IP Rating：IP65
• Certification：CE, RoHS, IEC Soncap
• Voltage：12,24V
• With Light Source：With Light Source
• Pole Height：7m
• Lighting Time：12hrs Each Day
• Back up Days：3-5days
• Power Supply：Solar,Wind Power or Grid Power Hybrid Availabel
• Dim/Non-Dim：Both Can Do
• Approval：Ce,RoHS,Coc,IEC Soncap
• Input Voltage(V)：DC12,24V
• Lamp Luminous Efficiency(Lm/W)：180lm,W
• Working Temperature：-40ºC - 60ºC
• CRI (Ra>)：95
• Lamp Luminous Flux(Lm)：5400
• Working Lifetime(Hour)：10000
• Beam Angle：150*70°
• Working Mode：Full Power and Dim Mode
• Lighting Area：100m2
• Transport Package：Carton, Pallet
• Specification：SMLN-30W
• Trademark：Sunmaster
• Origin：Zhejiang, China
• HS Code：9405409000
• Production Capacity：200000

Basic Info.

Model NO. SMLN-30W Illumination Time 12h Cell Type LiFePO4 Lithium Charging Time (H) 12 Usage Garden IP Rating IP65 Certification CE, RoHS, IEC Soncap Voltage 12/24V With Light Source With Light Source Pole Height 7m Lighting Time 12hrs Each Day Back up Days 3-5days Power Supply Solar,Wind Power or Grid Power Hybrid Availabel Dim/Non-Dim Both Can Do Approval Ce/RoHS/Coc/IEC Soncap Input Voltage(V) DC12/24V Lamp Luminous Efficiency(Lm/W) 180lm/W Working Temperature -40ºC - 60ºC CRI (Ra>) 95 Lamp Luminous Flux(Lm) 5400 Working Lifetime(Hour) 10000 Beam Angle 150*70° Working Mode Full Power and Dim Mode Lighting Area 100m2 Transport Package Carton, Pallet Specification SMLN-30W Trademark Sunmaster Origin Zhejiang, China HS Code 9405409000 Production Capacity 200000

Product Description

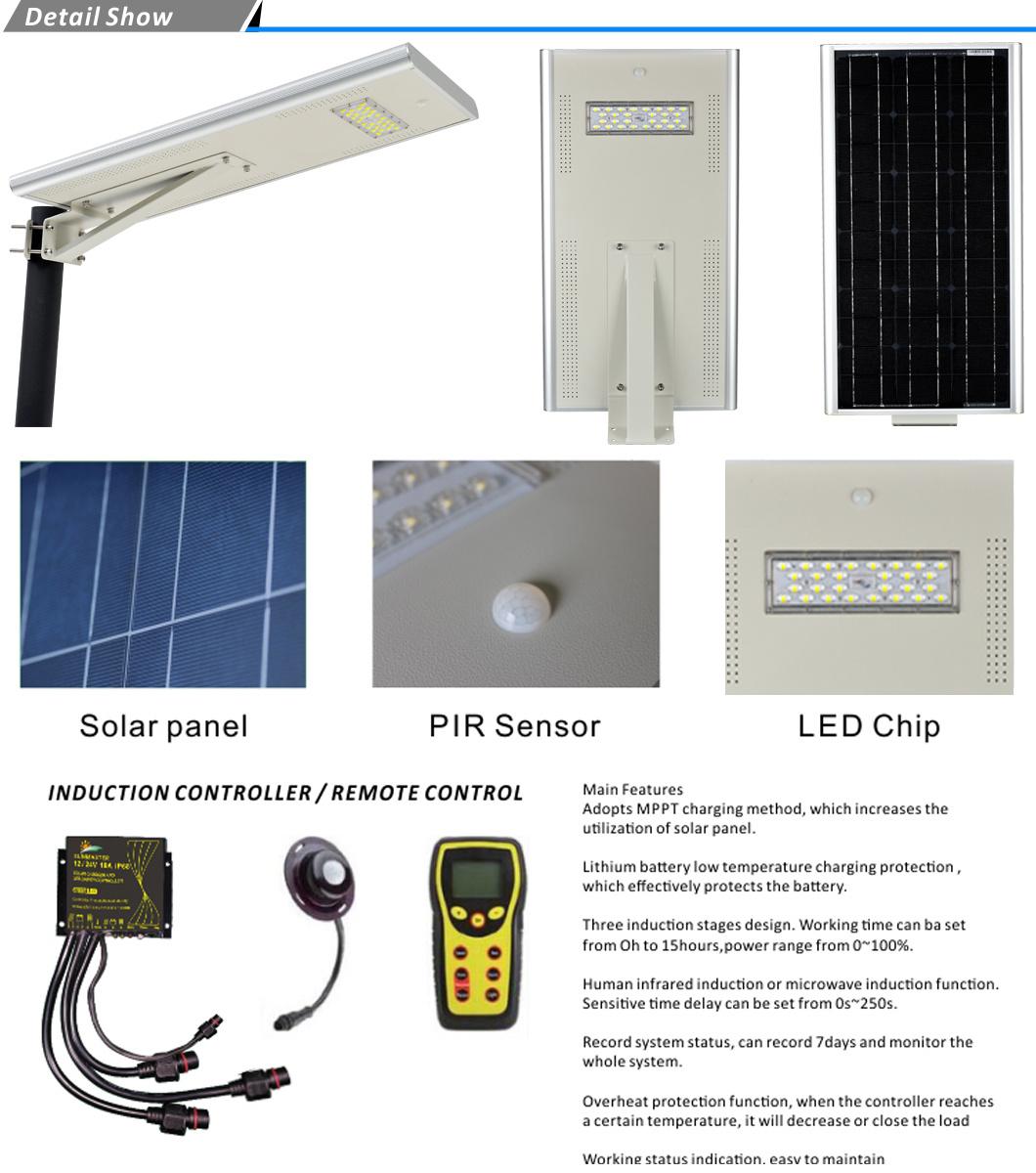

1.Excellent quality LED and human induction PIR more senstitive.
2.MPPT Superier controller efficiency more than 96%,time control,light on/off.
3.LiFePO4 battery,good safety performance,high capacity,long life,high and low temperateure protection.
4.Unique lens design,with excellent illumination and light transmittance.
5.IP67 Metal switch,more durable.

Model NO.	SMLN-30W	Battery Type:	LiFePO4 24Ah/12.8V
Power:	30W	Charging Time:	6-10 hours
Color Temperature:	6000-6500K	Discharging Time:	10-12 hours
Certificate:	CE/ROHS/IP65	Product Dimension:	886*450*140mm
Viewing Angle:	120	Packing Dimension:	940*510*200mm
Working temperature :	-20 ~ +70ºC	Product Weight	17KG
Lamp Efficiency:	170 lm/w	Material:	Aluminum Alloy
Led chip brand:	USA  Bridgelux LED chip	Install Height:	6-7 m
Solar Panel:	18V 60W Mono-crystalalline	Warranty:	3 years

Model NO.	SMLN-30W
Power:	30W
Color Temperature:	6000-6500K
Certificate:	CE/ROHS/IP65
Viewing Angle:	120
Working temperature :	,-20 ~ +70
Lamp Efficiency:	>100 lm/w
Led chip brand:	USA  Bridgelux LED chip
Solar Panel:	18V 60W Mono-crystalalline
Battery Type:	LiFePO4 12.8V 24AH
Charging Time:	6-10 hours
Discharging Time:	10-12 hours
Product Dimension:	1170*330*145
Packing Dimension:	1200*410*230
Product Weight	17KG
Material:	Aluminum Alloy
Install Height:	6-7 m
Warranty:	3 years
