• Model NO.：SMLN-15W
• Color Temperature：Warm White
• Power：6W-15W
• Technics：Die Cast
• Illumination Time：12h
• Cell Type：LiFePO4 Lithium
• Charging Time (H)：12
• Usage：Garden, Street
• IP Rating：IP65
• Certification：CE, RoHS, IEC Soncap
• Voltage：12,24V
• With Light Source：With Light Source
• Warranty(Year)：5 Years
• Input Voltage(V)：DC12,24V
• Lamp Luminous Efficiency(Lm/W)：180lm,W
• Working Temperature(ºC)：-40ºC - 60ºC
• CRI (Ra>)：85
• Working Lifetime(Hour)：50000
• Beam Angle：145*100°
• Working Mode：Full Power and PIR Sensor
• Lighting Time：Over 4 Nights
• Controller：PWM,MPPT Available
• Back up Days：4 Days
• Maintenance：9 Years Free Maintenance
• Mounting Height：4m
• Battery：9ah
• Solar Panel：30W
• Transport Package：Carton, Pallet
• Specification：630X405X75mm
• Trademark：SunMaster
• Origin：Zhejiang China
• HS Code：9405409000
• Production Capacity：20000,Year

Basic Info.

Model NO. SMLN-15W Color Temperature Warm White Power 6W-15W Technics Die Cast Illumination Time 12h Cell Type LiFePO4 Lithium Charging Time (H) 12 Usage Garden, Street IP Rating IP65 Certification CE, RoHS, IEC Soncap Voltage 12/24V With Light Source With Light Source Warranty(Year) 5 Years Input Voltage(V) DC12/24V Lamp Luminous Efficiency(Lm/W) 180lm/W Working Temperature(ºC) -40ºC - 60ºC CRI (Ra>) 85 Working Lifetime(Hour) 50000 Beam Angle 145*100° Working Mode Full Power and PIR Sensor Lighting Time Over 4 Nights Controller PWM/MPPT Available Back up Days 4 Days Maintenance 9 Years Free Maintenance Mounting Height 4m Battery 9ah Solar Panel 30W Transport Package Carton, Pallet Specification 630X405X75mm Trademark SunMaster Origin Zhejiang China HS Code 9405409000 Production Capacity 20000/Year

Product Description

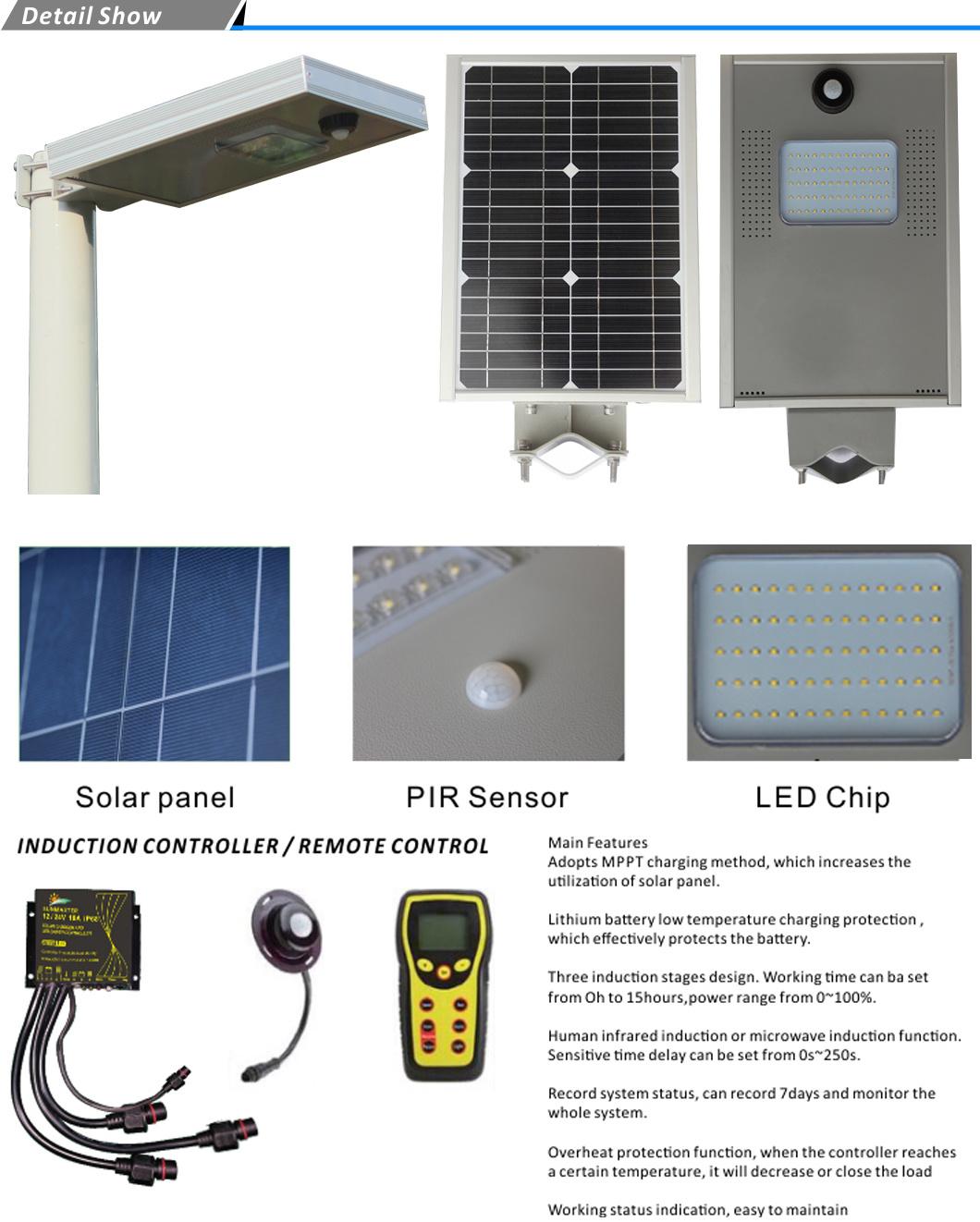

1.Remote control-Simple operation, change to different modes easily.
2.Wireless application-Integrated solar panel, LED, lithium battery, micro-controller and other accessories into one system, simple and stylish.
3.Micro-computer controlled-Combine motion sensor system, light control system and time control system.
4.Easy installation-No trench  required, no cables connection required, easy installation in 2 minutes.
5.Lithium battery-Adopt LiFe Po4 lithium battery to replace  gel battery, longer lifetime.
6.Modular design-All components are modular design and easy for expand.
7.Long time working- 12-14 hours each night,3-5 rainy days.
8.Compact design save the trasportation cost

Model NO.	SMLN-15W	Battery Type:	LiFePO4 12Ah/12.8V
Power:	15W	Charging Time:	6-10 hours
Color Temperature:	2700K-6500K	Discharging Time:	10-12 hours
Certificate:	CE/ROHS/IP65	Product Dimension:	630*405*75mm
Viewing Angle:	120	Packing Dimension:	670*450*120mm
Working temperature :	,-20 ~ +70ºC	Product Weight	8KG
Lamp Efficiency:	170 lm/w	Material:	Aluminum Alloy
Led chip brand:	USA  Bridgelux LED chip	Install Height:	3-4 m
Solar Panel:	18V 30W Mono-crystalalline	Warranty:	3 years
