• Model NO.：SG75-4600X
• Working Temperature：-20~65 Degree Celsius
• Transport Package：Carton Box
• Specification：Max Lifting To 7.5*2.0*5.5M
• Trademark：SENKEN
• Origin：China
• Production Capacity：5000PCS,Month

Basic Info.

Model NO. SG75-4600X Working Temperature -20~65 Degree Celsius Transport Package Carton Box Specification Max Lifting To 7.5*2.0*5.5M Trademark SENKEN Origin China Production Capacity 5000PCS/Month

Product Description

Senken Pneumatic headlight miners High Light Tower Special Light ——SENKEN SG75-4600X Telescoping Mast Light Tower

Introduction:

To fixed the mast by drilling a hole at the roof, and lift the tripod head up to 7.5m, the SG professional telescoping Mast Light tower is suitable for communications command vehicles, emergency lighting vehicles, rescue vehicles, fire vehicles and other large special vehicles equipment.

Different with our other lighting system, this model use the most advanced high-power COB-LED as the main light
source, each lamp 600W power each, total 2400W, high power and brightness.

Equipped with 7 .5 meter telescopic mast, control box, wired controller and wireless remote controller, with automatic reset, easy to operate, can be quickly enabled to provide high brightness lighting.

The mast can also use our SG series mast, and can mount 2pcs, 4pcs or 6pcs lamps for one set light tower.

Features:

1. Using the industry initiative heat pipe radiator (Install high-speed silent waterproof fan)
2. Product size is small, light weight, suitable for vehicle installation;
3. High brightness, energy saving, long life;
4. Quick start reaction, start without interference
5. Safety low voltage, green non-pollution;

Main Parameters:


System working voltage	DC12V/DC24V
Lamp working voltage	AC220V
Lamp power	600W*4
Lamp working current	≤15A (max)
Rotating working current	≤2A (max)
Horizontal rotation angle	380°
Vertical rotation angle	330°
Horizontal, vertical rotation speed	4r/min
Luminous flux	250000lm
Lamp life	20000H
Equipment working environment temperature	-20° ~ 65°
Light switch mode	Two sets of lighting separate control
Light source type	LED
Control method	Wired and wireless control
Remote control distance	≥30 meters, using three AAA batteries
Protocol control method	RS485 Control Interface (built-in)
Lifting power	pneumatic
Lifter raised height	7.5M
Lifting closing height	2.0M
Lifter height difference	5.5M

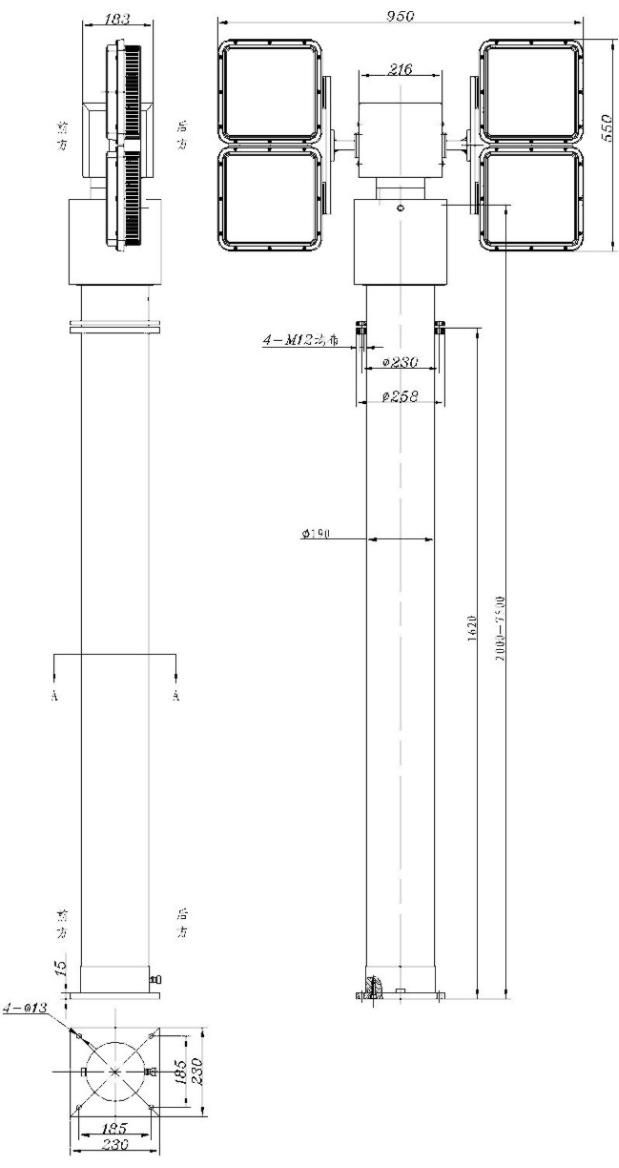

Dimensions:

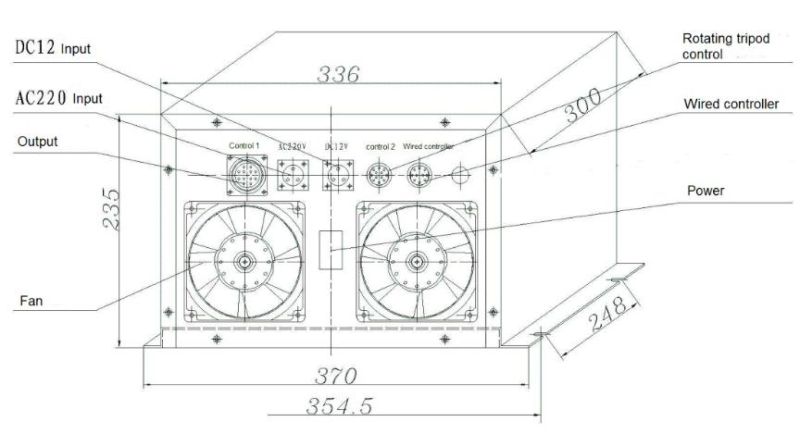

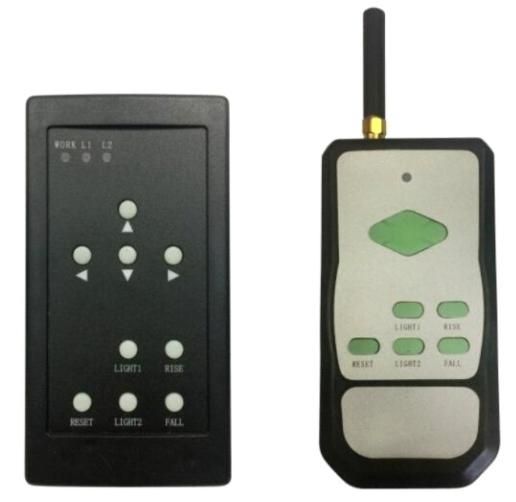

Wire And Remote Controller:
