• Model NO.：SNSTY-240
• Cell Type：Lithium Battery
• Charging Time (H)：7hours
• Usage：Garden, Street
• IP Rating：IP65
• Certification：CE, RoHS
• Voltage：12,24V
• With Light Source：With Light Source
• Product/Packing Size：1150*330*140mm,1190*400*220mm
• Product/Packing Weight：16kg,17.8kg
• Carton Size：1190*400*220mm
• Qty/CTN：1 Sets,CTN
• Gw for Carton：17.80kg
• Loading Qty for 20gp：270PCS
• Loading Qty for 40gp：550PCS
• Keyword：20 Watt Solar LED Street Light All in One Design
• Certificate：Ce
• Warranty：3 Years
• Transport Package：Strong Carton
• Specification：18W LED 40W Solar Panel
• Trademark：SINOLTECH
• Origin：China
• HS Code：9405409000
• Production Capacity：China

Basic Info.

Model NO. SNSTY-240 Cell Type Lithium Battery Charging Time (H) 7hours Usage Garden, Street IP Rating IP65 Certification CE, RoHS Voltage 12/24V With Light Source With Light Source Product/Packing Size 1150*330*140mm/1190*400*220mm Product/Packing Weight 16kg/17.8kg Carton Size 1190*400*220mm Qty/CTN 1 Sets/CTN Gw for Carton 17.80kg Loading Qty for 20gp 270PCS Loading Qty for 40gp 550PCS Keyword 20 Watt Solar LED Street Light All in One Design Certificate Ce Warranty 3 Years Transport Package Strong Carton Specification 18W LED 40W Solar Panel Trademark SINOLTECH Origin China HS Code 9405409000 Production Capacity China

Product Description

40W All in One LED Integrated Solar Street Lighting

SINOLTECH service include:
OEM and ODM service;
Dialux report;
Instruction(or video) if you don't know how to install;
If not work, exchange spare part or new product, free of charge under warranty 3 years;
Cellular phone programming service available for 20W~120W.

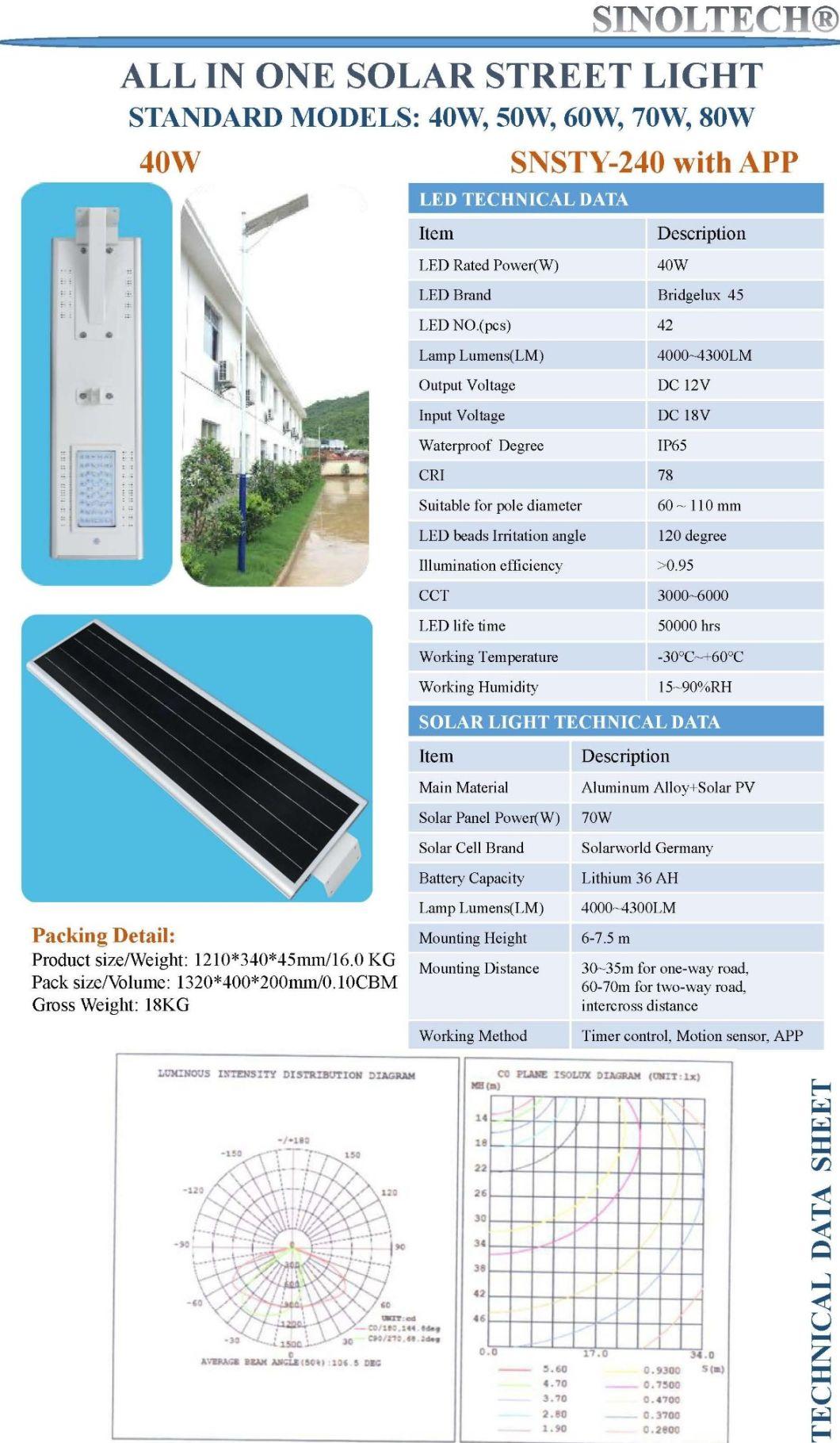

Specification Data:



Main component:
The integrated solar street light is composed of built-in: high efficiency solar module/panel, high capacity LiFePO4 battery, controller with micro-computer MPPT function, Bridgelux Led and infrared body sensor.(light pole is not included)

We offer 3 years product warranty for integrated solar garden/street light(including components), starting from the date of sales.

Defect component will be replaced free of charge under the condition that this defect is not caused by any human factors, including but not limited to: rough operation during transportation and installation, improper way of mounting.

Regarding the products which have exceeded warranty period, we will provide replaced components at cost price.
Replacement parts include: LED lamp, Solar controller, Battery, Sensor, Solar panel, Screws & Cable, etc.

Features:
a. Integrated design, integrated light source, the new high-capacity lithium batteries,
integrated solar modules and automatic controller,motion sensor.
b. Easy to install and maintain, without cables,without equipped with special poles, functional components of a modular design, installation, maintenance,more convenient and   more quick.
c. Using solar power systems, pure green energy, inexhaustible,optimal energy for environment.
d. High-capacity lithium-ion batteries, high energy, long life, light weight, green environmental production, does not produce any harmful substances.
e. Using LED light source, no diffuse effect, with a high light efficiency, coupled with a unique secondary optical design, exposure to the wider region, to improve the efficiency of light once again. And the LED light source has a long life, high luminous efficiency, light color uniform and other advantages, also the best blue green products.
f. Shell is made of aluminum material with light weight, corrosion resistance, abrasion
resistance and other characteristics, to ensure that products meet moist, hydroelectric
acid environment.
g. Control system uses industrial-grade components manufacturing, adapt to harsh environments, and ensure to bright all the night.

How to choose the best suitable products?
a. Installation height 7-10M: normally select SNSTY-230, SNSTY-240, SNSTY-250, SNSTY-260, LED power are 30W, 40W, 50W, 60W characteristics are high brightness, high power, a wide range of lighting.
Ideal for school sports, docks, ports and other places or width of 15-25 meters of road.
b. Installation height 5-7 M: normally select SNSTY-215, SNSTY-218, SNSTY-220, SNSTY-225, LED power are 15W, 20W, 25W characteristics are brightness, medium power, lighting range is suitable for rural, residential, parks. schools and other sidewalk or road width of 10-15M.
c. Installation 3-5M height: normally select SNSTY-208, SNSTY-212, LED power are 8W, 12W, characteristics are low power, cost-effective.suited for rural roads, roadway, residential,garden,or road width of 2-10M.

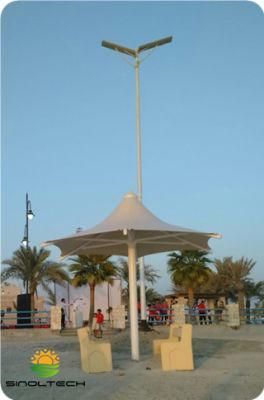

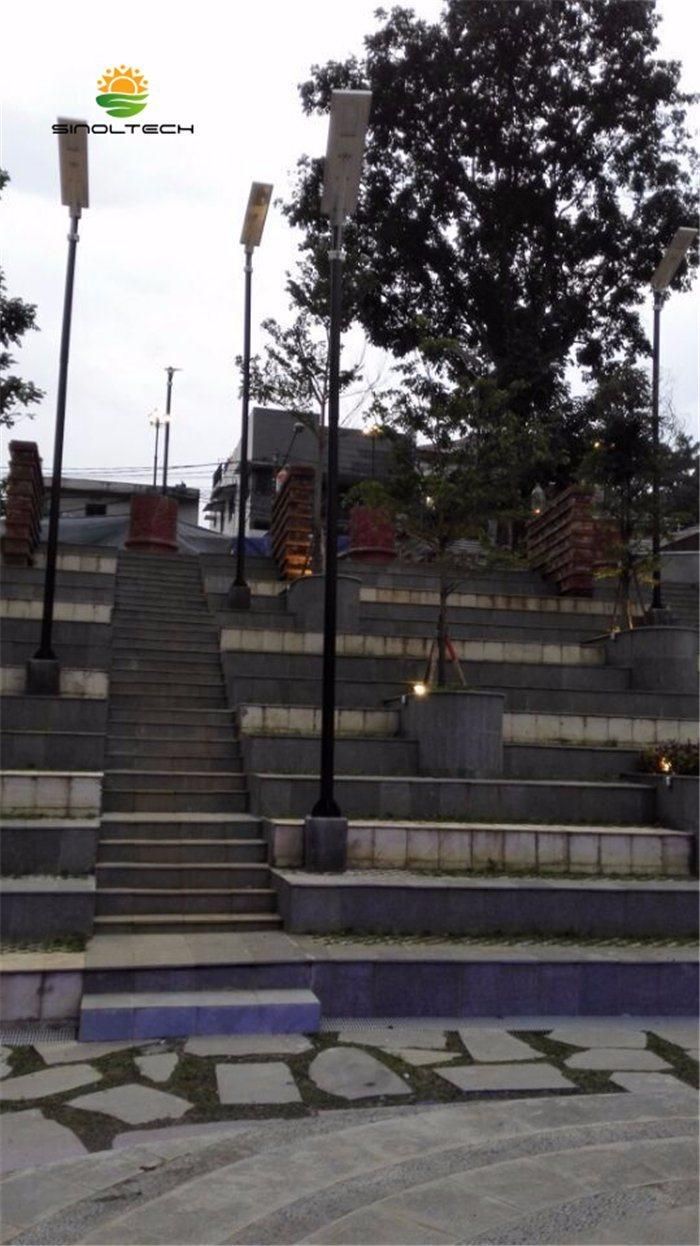

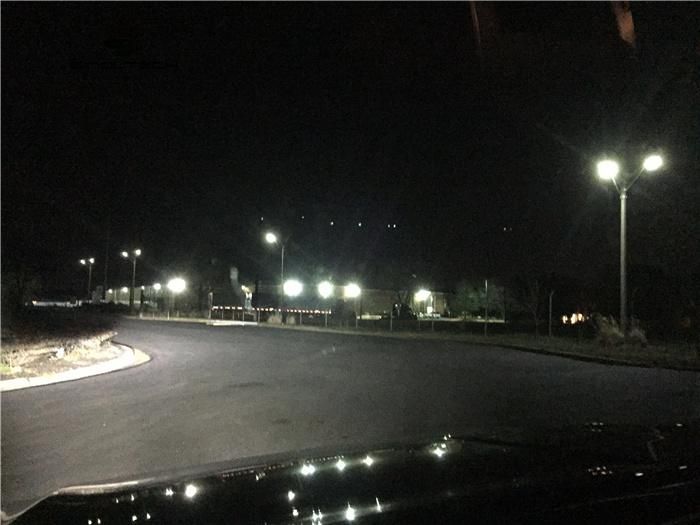

--Successful Cases

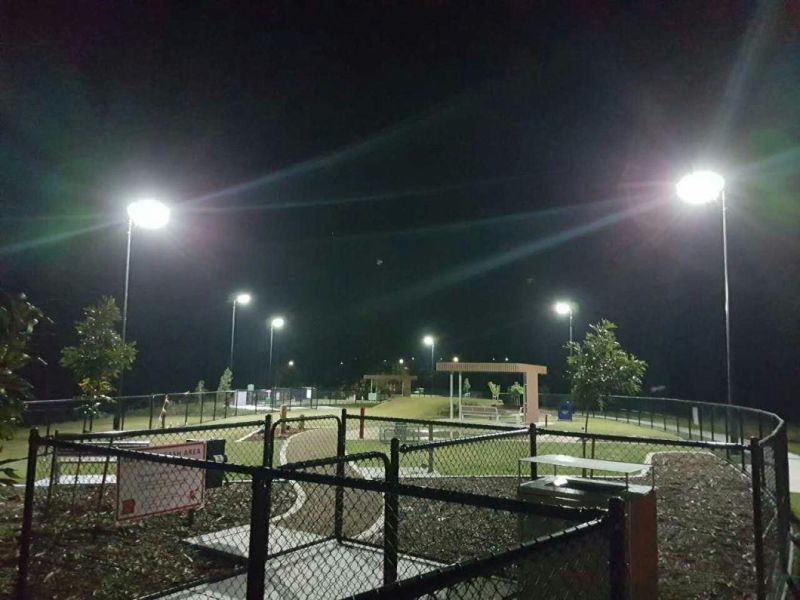

Solar LED Street Light All in one design for sports area:

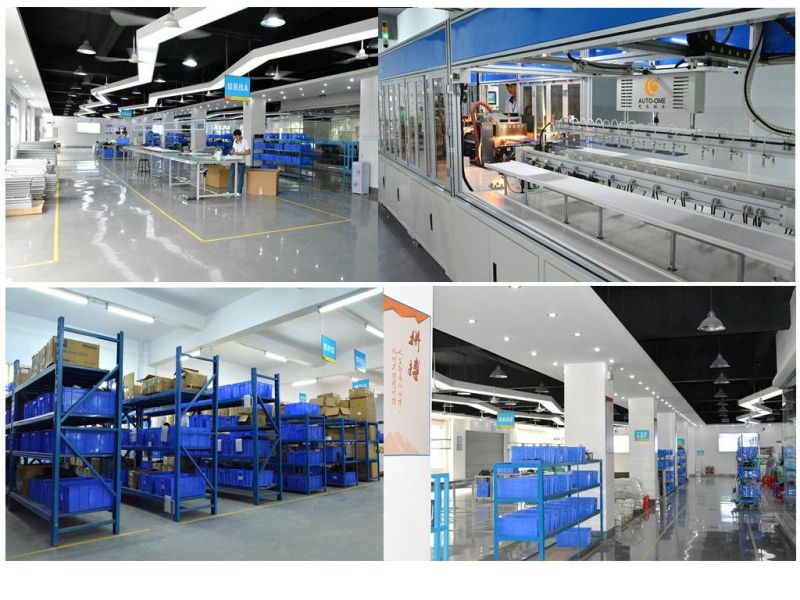

--WORSHOP:
