• Model NO.：RPLT-6800
• Lifetime：5000 Hours
• Mast Height：6-Sections Telescopic Mast 8m
• Operate for Elevation：Hydraulic,Manual
• Fuel Tank：100
• Transport Package：Plywood Pallet , Plywood Case , Cartons
• Specification：4500*1350*1700mm
• Trademark：Robust Power
• Origin：China
• HS Code：9405409000
• Production Capacity：100sets,Month

Series6800EngineKubota D1105-BG DieselEngine type3cylinders,in line, water cooledPrime power6.7kw/50hz  8.4kw/60hzEngine speed1500rpm    1800rpmEngine aspirationNaturalAlternatorStamford PI044F/4-Pole,Brushless,excitationVoltage120,220,230,240vInsulationHFuel tank capacity100LFuel consumption2.0l/hMaximum working hours50Control systemGU3303 Digital controllerEngine shutdown protectionLow oil press, over speed, over current,
high temperature detection, low fuel levelAuxiliary sockets2Total power of lamps4*1000wType of lampMetal halide lampHousing materialsGalvanization reflector housingLumen4*110000Lifetime of lamp5000 hoursWorking temperature≤85Connection protection indexIP54Mast type6-sections telescopic mast 8mTotal height8mRotation360 degreesOperate for elevationHydraulicTow hitchRing/ball hitchStabilize supports4*manual /hydraulicTire size13inchBrakesManualDry /net weight930/890 kgExtended dimension4500*1350*1700Shipping packageIron pallet 2100*1300*2400mm
Carton 520*520*400mmContainer load 20GP/40HQ6/12setColorWhite/yellow/optional

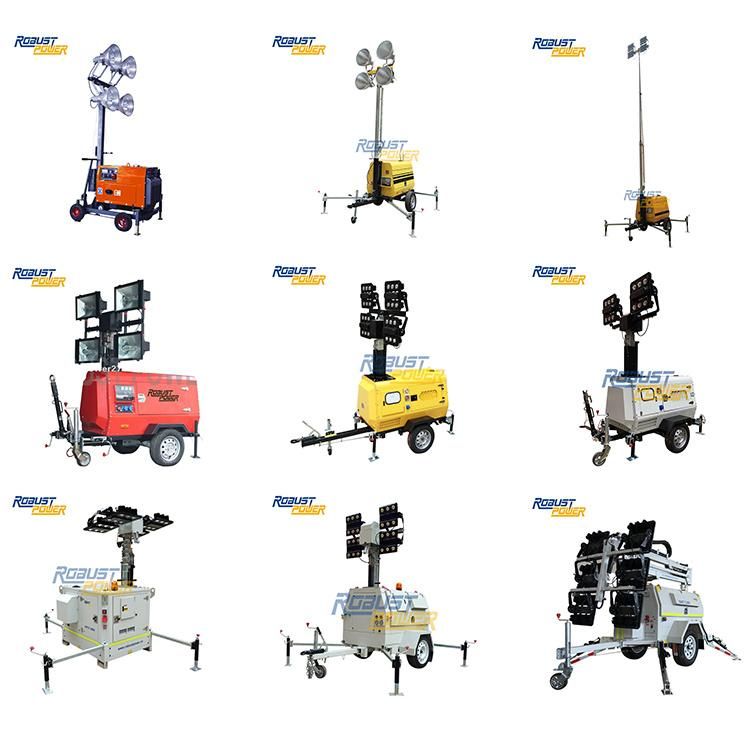

Robust Power Models:

No.	Model	Mast	Power of Lamps	Engine Model
1	RPLT1600	4.8M Manual	4*400W Metal Halide Lamp	RP186FA
2	RPLT1600	4.8M Manual	4*160W LED	RP186FA
3	RPLT1600	4.8M Manual	2*1000W Metal Halide Lamp	RP186FA
4	RPLT6000	9M Manual	4*1000W Metal Halide Lamp	Kubota D1105 (Japan)
5	RPLT6000	9M Manual	4*240W LED	Kubota D905 (Japan)
6	RPLT6800	8.6M Hydraulic	4*1000W Metal Halide Lamp	Kubota D1105 (Japan)
7	RPLT6800	8.6M Hydraulic	4*1500W Metal Halide Lamp	Kubota D1105 (Japan)
8	RPLT6800	8.6M Hydraulic	4*480W LED	Kubota D905 (Japan)
9	RPLT3800	7M Hydraulic	4*480W LED	Kubota Z482 (Japan)
10	RPLT6900	8.5M Hydraulic	4*480W LED	Kubota D1105 (Japan)
11	RPLT7200	10M Hydraulic	6*480W LED	Kubota D1105 (Japan)
12	RPLT7200	10M Hydraulic	4*720W LED	Kubota D1105 (Japan)
13	RPLT7600	9M Hydraulic	6*480W LED	Kubota D1105 (Japan)
14	RPLT7600	9M Hydraulic	4*720W LED	Kubota D1105 (Japan)
