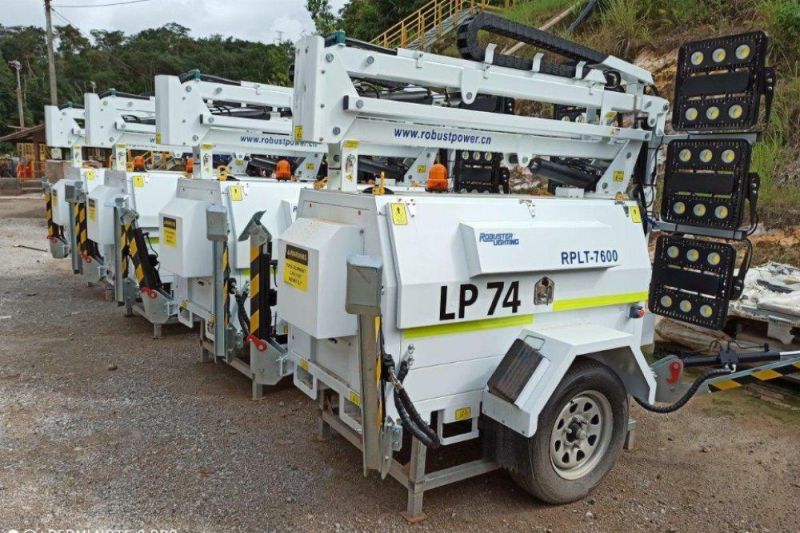

Australia Mine Standard 9m Industrial Mobile Construction Light Tower
Fujian Robust Power Co., Ltd.- Engine：Kubota D905
- Alternator：Sinocox
- Fuel Capacity：0.8L,Hr(150 Litres,Tank)
- Engine Speed：3000rpm,3600rpm
- Power Generation：5kw Continuous (DC)
- Voltage：110V-240V AC,48V DC
Base Info
- Model NO.：RPLT-7600
- Light Power：6*480W,4*720W SAA Certified Robust Power LED Lamps
- IP Grade：IP65
- Lumen Output：6X67,200lm,4X100,800lm
- Guarantee：3 Years
- Transport Package：Plywood Tray,Plywood Cases,Cartons
- Specification：4500*1350*1700mm
- Trademark：Robust Power
- Origin：China
- HS Code：94054090
- Production Capacity：250sets,Month
Description
Basic Info.
Model NO. RPLT-7600 Light Power 6*480W/4*720W SAA Certified Robust Power LED Lamps IP Grade IP65 Lumen Output 6X67,200lm/4X100,800lm Guarantee 3 Years Transport Package Plywood Tray/Plywood Cases/Cartons Specification 4500*1350*1700mm Trademark Robust Power Origin China HS Code 94054090 Production Capacity 250sets/MonthProduct Description

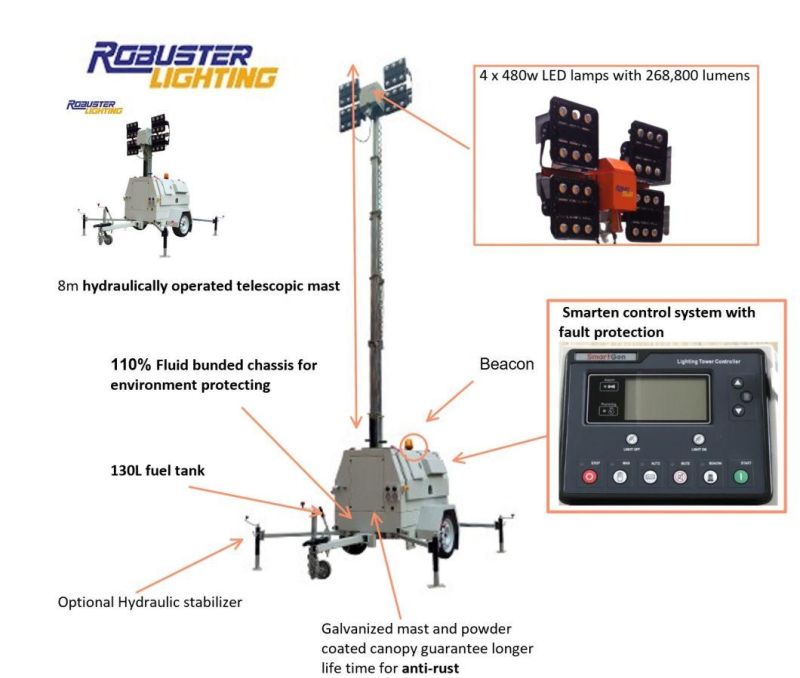

Australia Mine Standard 9M Industrial Mobile Light TowerKey Features Include:
9m hydraulical operated telescopic mast
320 mast rotation
Available in 4x720W or 6x480W LED lamps
Galvanized mast and powder coated canopy
Electronic controlled hydraulic system with sustaining valves and hydraulic locks
Fault protection
Heavy-duty, weather-protective enclosure
Fully bunded
Technical Data:
| Light | |
| Housing Material | Aluminium die cast |
| Type of lights | LED Lamp |
| Power of lights | 4*720W/6*480W SAA certified Robust Power LED lamps |
| Lumen Output | 4*93,600lm/6*62,400lm ( total ) |
| Voltage | AC 110V-240V, DC 48V |
| Frequency | 50/60Hz |
| Longevity | 3 years |
| Waterproof grade | IP65 |
| Color temperature | 2100K-5700K |
| Mast | |
| Material of mast | Galvanized iron |
| Mast lifting type | Hydraulic mast |
| Mast section | 3-section telescopic |
| Mast rotation system | 320° manual operation |
| Max. height of mast | 9meters |
| Engine | |
| Engine model | Kubota Z482 2 cylinder, vertical, liquid cooled |
| Start system | Electric (Battery start) |
| Alternator | Sinocox |
| Engine speed | 2200rmp |
| Rated power | 4kW continuous |
| Insulation | H |
| Fuel tank capacity | 150L |
| Fuel consumption | 0.8L/hr |
| Maximum Working Hours | 180H |
| Controller system | Digital control panel GU3303 |
| Waterproof grade | IP54 |
| Engine shutdown protection | Low oil pressure, over speed, over current, high-temperature detection, low fuel level |
| Trailer | |
| Stabiliser Supports | Optional 4*Hydraulic |
| Tow Hitch | Ring/ball hitch |
| Tire Size | 16 inch |
| Brakes | Manual |
| Packing | |
| Net weight | 1800/1700 kg |
| Dimention | 4500X1350X1700 MM |

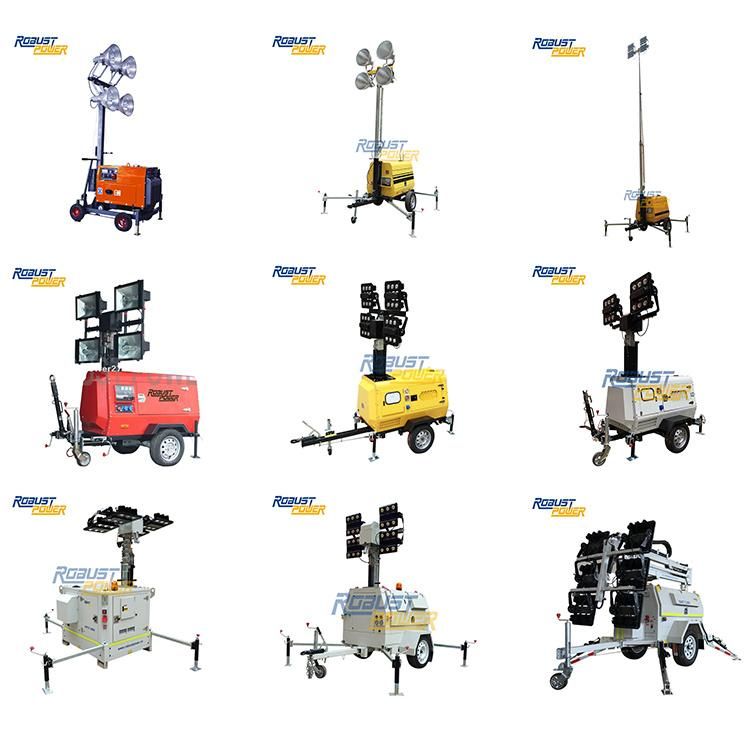

Robust Power Models:
| No. | Model | Mast | Power of Lamps | Engine Model |
| 1 | RPLT1600 | 4.8M Manual | 4*400W Metal Halide Lamp | RP186FA |
| 2 | RPLT1600 | 4.8M Manual | 4*160W LED | RP186FA |
| 3 | RPLT1600 | 4.8M Manual | 2*1000W Metal Halide Lamp | RP186FA |
| 4 | RPLT6000 | 9M Manual | 4*1000W Metal Halide Lamp | Kubota D1105 (Japan) |
| 5 | RPLT6000 | 9M Manual | 4*240W LED | Kubota D905 (Japan) |
| 6 | RPLT6800 | 8.6M Hydraulic | 4*1000W Metal Halide Lamp | Kubota D1105 (Japan) |
| 7 | RPLT6800 | 8.6M Hydraulic | 4*1500W Metal Halide Lamp | Kubota D1105 (Japan) |
| 8 | RPLT6800 | 8.6M Hydraulic | 4*480W LED | Kubota D905 (Japan) |
| 9 | RPLT3800 | 7M Hydraulic | 4*480W LED | Kubota Z482 (Japan) |
| 10 | RPLT6900 | 8.5M Hydraulic | 4*480W LED | Kubota D1105 (Japan) |
| 11 | RPLT7200 | 10M Hydraulic | 6*480W LED | Kubota D1105 (Japan) |
| 12 | RPLT7200 | 10M Hydraulic | 4*720W LED | Kubota D1105 (Japan) |
| 13 | RPLT7600 | 9M Hydraulic | 6*480W LED | Kubota D1105 (Japan) |
| 14 | RPLT7600 | 9M Hydraulic | 4*720W LED | Kubota D1105 (Japan) |
