• Model NO.：SNF-240
• Illumination Time：8h
• Cell Type：Lithium Battery
• Charging Time (H)：7hours
• Usage：Garden, Street
• IP Rating：IP65
• Certification：CE, RoHS
• Voltage：12,24V
• Type：Integrated LED Street Lights
• Model No.：Snf-240
• Brand：Sinoltech
• Solar Panel Power：70W
• LED Power：40W
• Battery Type：Lithium
• Battery Life Time：5-6 Years
• LED Luminance：4000-4300lm
• Install Height：5-6m
• Working Temp.：-30~+60c
• Transport Package：Strong Carton
• Specification：30W LED 60W Solar Panel
• Trademark：SINOLTECH
• Origin：China
• HS Code：9405409000
• Production Capacity：China

Basic Info.

Model NO. SNF-240 Illumination Time 8h Cell Type Lithium Battery Charging Time (H) 7hours Usage Garden, Street IP Rating IP65 Certification CE, RoHS Voltage 12/24V Type Integrated LED Street Lights Model No. Snf-240 Brand Sinoltech Solar Panel Power 70W LED Power 40W Battery Type Lithium Battery Life Time 5-6 Years LED Luminance 4000-4300lm Install Height 5-6m Working Temp. -30~+60c Transport Package Strong Carton Specification 30W LED 60W Solar Panel Trademark SINOLTECH Origin China HS Code 9405409000 Production Capacity China

Product Description

APP Control All in One Solar PV Panel Integrated LED Street Lights (SNF-240)

INTEGRITY . HIGH BRIGHTNESS  . EASY-INSTALLALL-IN-ONE SOLAR LIGHT SERIES

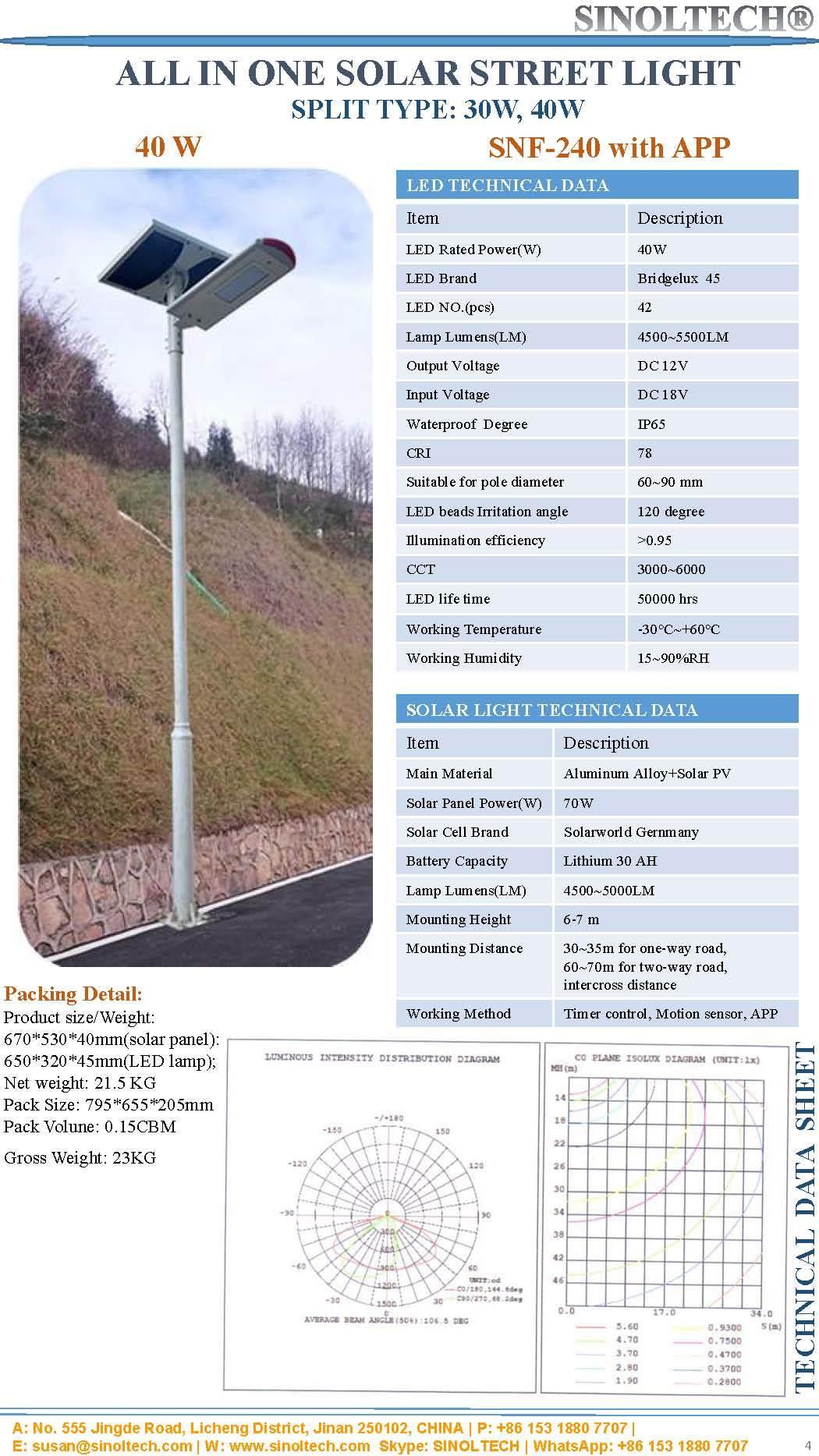

Specification Data Sheet:



General Introduction:
The integrated solar street light is an intelligent outdoor lighting system that integrates the best energy saving parts---solar panel, led lamp ,sensor,
controller and lithium battery all in one box.
During the day the highly efficient solar panel collects energy from the sun and stores the power in the advanced lithium battery.
At night the powerful Led would automatically be turned on providing light.
When motion is detected, the Led would increase in brightness to provide an abundance of extra lighting for anyone in the area.
After 20 seconds or when motion is no longer detected, the light drops down in brightness to conserve power.
This intelligent feature allows the solar powered street light to save power when no one is in range or utilizing
the light, meaning a much longer run time than you would expect from a similar size solar lighting.

Features:
a. Integrated design, integrated light source, the new high-capacity lithium batteries,
integrated solar modules and automatic controller,motion sensor.
b. Easy to install and maintain, without cables,without equipped with special poles, functional components of a modular design, installation, maintenance,more convenient and   more quick.
c. Using solar power systems, pure green energy, inexhaustible,optimal energy for environment.
d. High-capacity lithium-ion batteries, high energy, long life, light weight, green environmental production, does not produce any harmful substances.
e. Using LED light source, no diffuse effect, with a high light efficiency, coupled with a unique secondary optical design, exposure to the wider region, to improve the efficiency of light once again. And the LED light source has a long life, high luminous efficiency, light color uniform and other advantages, also the best blue green products.
f. Shell is made of aluminum material with light weight, corrosion resistance, abrasion
resistance and other characteristics, to ensure that products meet moist, hydroelectric
acid environment.
g. Control system uses industrial-grade components manufacturing, adapt to harsh environments, and ensure to bright all the night.

How to choose the best suitable products?
a. Installation height 7-10M: normally select SNSTY-230, SNSTY-240, SNSTY-250, SNSTY-260, LED power are 30W, 40W, 50W, 60W characteristics are high brightness, high power, a wide range of lighting.
Ideal for school sports, docks, ports and other places or width of 15-25 meters of road.
b. Installation height 5-7 M: normally select SNSTY-215, SNSTY-218, SNSTY-220, SNSTY-225, LED power are 15W, 20W, 25W characteristics are brightness, medium power, lighting range is suitable for rural, residential, parks. schools and other sidewalk or road width of 10-15M.
c. Installation 3-5M height: normally select SNSTY-208, SNSTY-212, LED power are 8W, 12W, characteristics are low power, cost-effective.suited for rural roads, roadway, residential,garden,or road width of 2-10M.

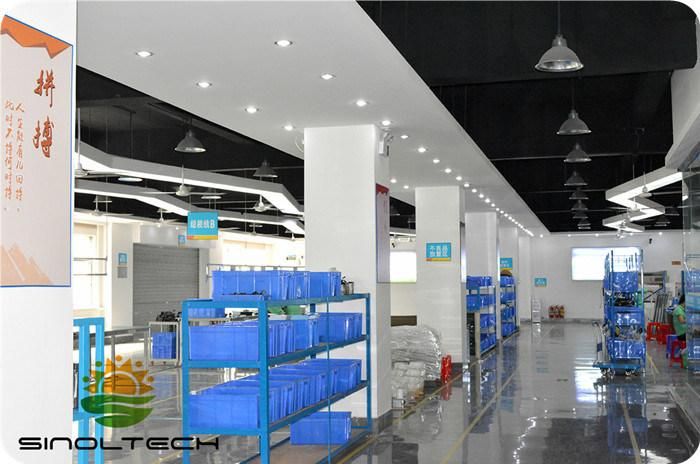

Workshop & Equipment:

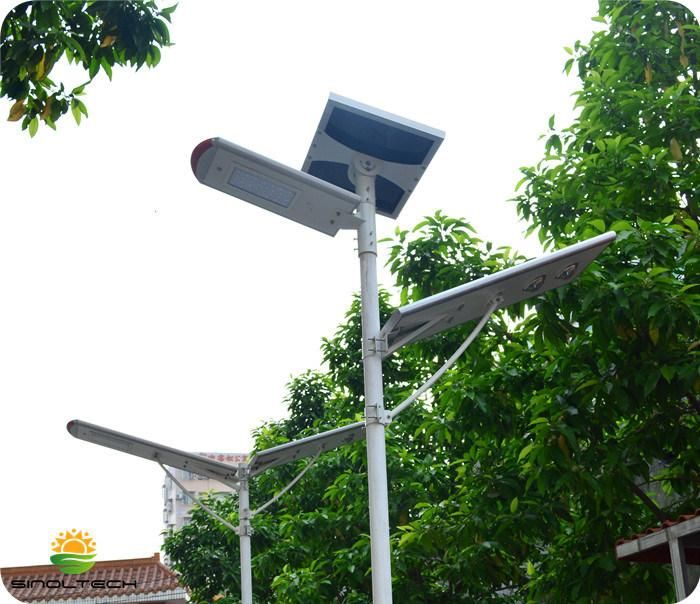

Project & Cases:
