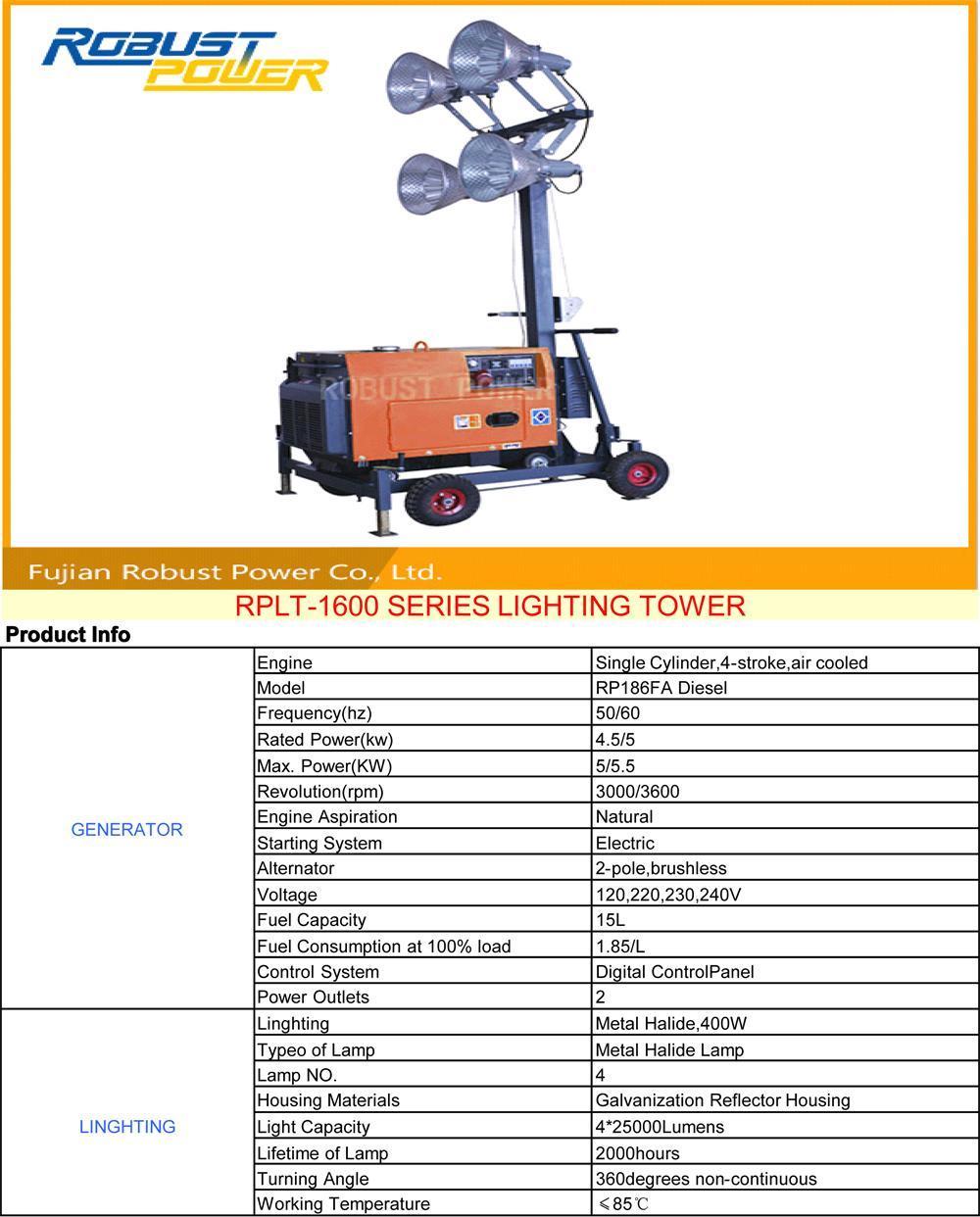

Single Cylinder Air Cooled Mobile Generator Light Tower
Fujian Robust Power Co., Ltd.- Type of Lamp：Metal Halide,400W
- Lamp No.：4
- Tire Size：25cm
- Brakes：Manual
- Transport Package：Plywood Pallet,Plwood Case,Cartons
- Specification：ISO9001: 2000, CE
Base Info
- Model NO.：RPLT-1600
- Trademark：Robust Power
- Origin：China
- HS Code：9405409000
- Production Capacity：250set,Month
Description
Basic Info.
Model NO. RPLT-1600 Trademark Robust Power Origin China HS Code 9405409000 Production Capacity 250set/MonthProduct Description
Air-cooled Telescopic mobile Light Towe(RPLT-1600B) use RPD-6500I air-cooled diesel generator set.1. 4.8m(Mechanical)
2. 4x400W
3. Rated power: 4.5kW/50Hz/ 5.0KW/60Hz
4. 15L fuel tank
| Model | RPLT-1600B(silent type) |
| Weight (kgs) | 400 |
| Length (mm) | 1200 |
| Height (mm) | 2300 |
| Width (mm) | 840 |
| Max.tower height (mm) | 4800 |
| Rated Frequency(Hz) | 50/60 |
| Rated Power(KW) | 4.5/5 |
| Max. Power(KW) | 5/5.5 |
| Rated Voltage(V) | 220V/110V 230V/115 240V/120V |
| Lube oil brand | SAE10W30(above CC grade) |
| Fuel consumption(L/h) | 1.3 |
| Fuel tank capacity(L) | 15 |
| Continuous running time(Hr) | 11.5 |
| Light watts and Light No. | 400W*4 |
| Total power of the lamps (W) | 1600 |
| Luminous flux (lm) | 4*25000 |
| Mast lifting methods | three options:manual lifting,electric lifting,hydraulic-pressured lifting |
| Lifting limit of the mast (mm) | 2300--4800 |
| Packing(L*W*H)(mm) | 1.Generator:910*530*740 2.Mast:2000*300*300 3.Light&Trailer:1200*900*600 |
