• Model NO.：RPLT-7200
• Alternator：48V DC Brushless Alternator,Self Excitation
• Power Generation：5kw,4kw Continuous(DC)
• Transport Package：Plywood Pallet,Plwood Case,Cartons
• Specification：2850*3400*9000mm
• Trademark：Robust Power
• Origin：China
• HS Code：9405409000
• Production Capacity：200set,Month

Technical Specifications of RPLT-7200 Led Mobile Light towerGenerator  setGenerator brandKubota D905 3-cylinder, water-cooled DieselPrime power50Hz  4KW / 60Hz 5KW          Intake systemNatural AspirationNo.of cylinders1Standby power for 50HZ(1500rpm)5.5KW/50HZ  6.5KW/60HZAlternator SINOCOX/StamfordAlternator TypeBrushless,self-excitationVoltage regulationAutomaticAlternator Prime power(pf:0.8)50Hz  4KW / 60Hz 5KW       VoltageDC48VFrequency50HZ / 60HZFuel tank capacity 270LPrime fuel consumption at 100% load1.0L/hLampTotal power of lamps6 × 480W LED lampLight capacity261000 lumen VoltageDC48V Frequency50 / 60 HzLifetime of lamp3yearsWorking temperature≤85 °CConnection Protection indexIP65MastMaximum extention of mast 10mElevationFold HydraulicSupport leg4 x Hydraulic Support LegsHydraulic System8 elementsRaising/lowing mastButton(Hydraulic)Stages4Turning anglePlus or minus 45 degrees non-continuousTrailer  Road trailer with hitch ballRing/ball hitchConstructionSingle axisTire size16 inchPacking Dimension & WeightStorage2350mm × 1950mm × 2200mmWorking2850mm ×3400mm ×9000mmWeight1560kgs

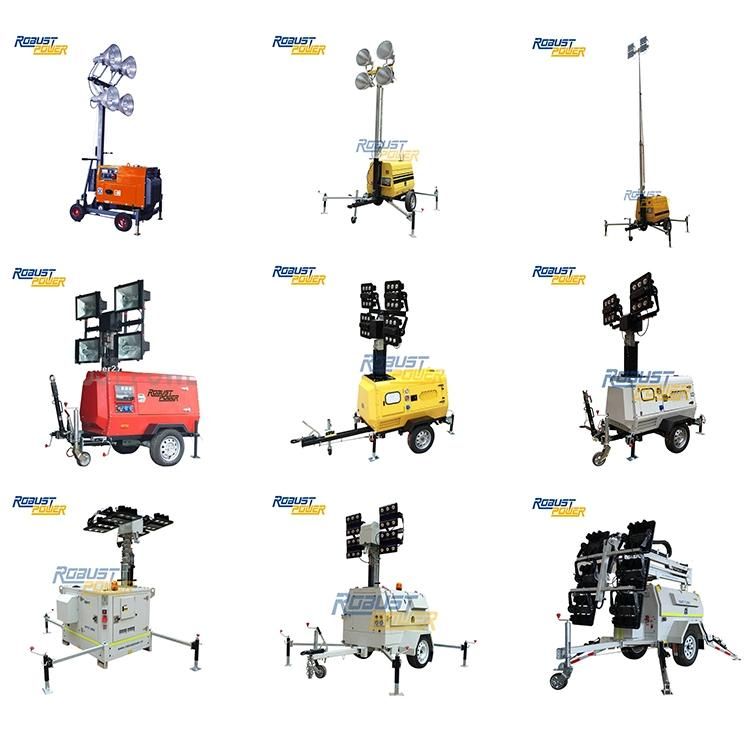

Robust Power Models:

No.	Model	Mast	Power of Lamps	Engine Model
1	RPLT1600	4.8M Manual	4*400W Metal Halide Lamp	RP186FA
2	RPLT1600	4.8M Manual	4*160W LED	RP186FA
3	RPLT1600	4.8M Manual	2*1000W Metal Halide Lamp	RP186FA
4	RPLT6000	9M Manual	4*1000W Metal Halide Lamp	Kubota D1105 (Japan)
5	RPLT6000	9M Manual	4*240W LED	Kubota D905 (Japan)
6	RPLT6800	8.6M Hydraulic	4*1000W Metal Halide Lamp	Kubota D1105 (Japan)
7	RPLT6800	8.6M Hydraulic	4*1500W Metal Halide Lamp	Kubota D1105 (Japan)
8	RPLT6800	8.6M Hydraulic	4*480W LED	Kubota D905 (Japan)
9	RPLT3800	7M Hydraulic	4*480W LED	Kubota Z482 (Japan)
10	RPLT6900	8.5M Hydraulic	4*480W LED	Kubota D1105 (Japan)
11	RPLT7200	10M Hydraulic	6*480W LED	Kubota D1105 (Japan)
12	RPLT7200	10M Hydraulic	4*720W LED	Kubota D1105 (Japan)

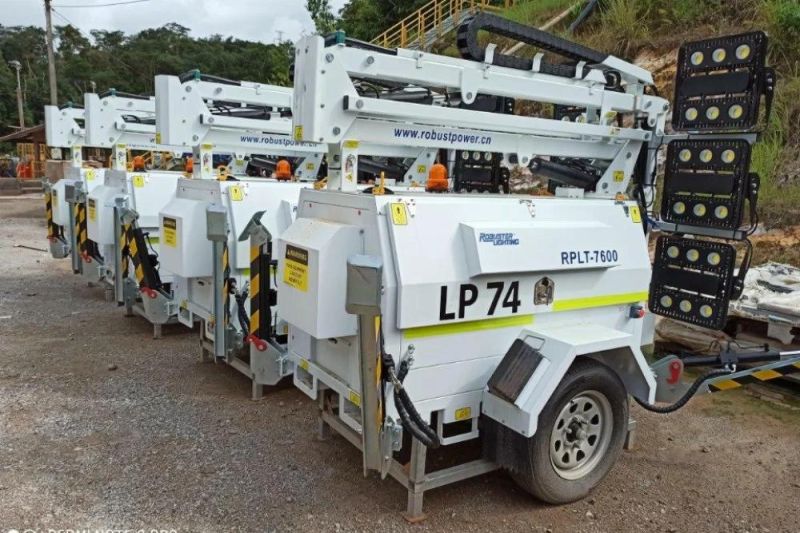

13	RPLT7600	9M Hydraulic	6*480W LED	Kubota D1105 (Japan)
14	RPLT7600	9M Hydraulic	4*720W LED	Kubota D1105 (Japan)
