• Model NO.：SNSTY-260
• Cell Type：Lithium Battery
• Charging Time (H)：7hours
• Usage：Garden, Street
• IP Rating：IP65
• Certification：CE, RoHS
• Voltage：12,24V
• Product/Packing Size：1080*450*153mm,1180*510*200mm
• Product/Packing Weight：20kg,23kg
• Carton Size：1180*510*200mm
• Qty/CTN：1 Sets,CTN
• Gw for Carton：23kg
• Loading Qty for 20gp：230PCS
• Loading Qty for 40gp：470PCS
• Product Name：60W All in One Solar Powered LED Street Light
• Product Model：Snsty-260
• Transport Package：Strong Carton
• Specification：60W LED 80W Solar Panel
• Trademark：SINOLTECH
• Origin：China
• HS Code：9405409000
• Production Capacity：China

Basic Info.

Model NO. SNSTY-260 Cell Type Lithium Battery Charging Time (H) 7hours Usage Garden, Street IP Rating IP65 Certification CE, RoHS Voltage 12/24V Product/Packing Size 1080*450*153mm/1180*510*200mm Product/Packing Weight 20kg/23kg Carton Size 1180*510*200mm Qty/CTN 1 Sets/CTN Gw for Carton 23kg Loading Qty for 20gp 230PCS Loading Qty for 40gp 470PCS Product Name 60W All in One Solar Powered LED Street Light Product Model Snsty-260 Transport Package Strong Carton Specification 60W LED 80W Solar Panel Trademark SINOLTECH Origin China HS Code 9405409000 Production Capacity China

Product Description

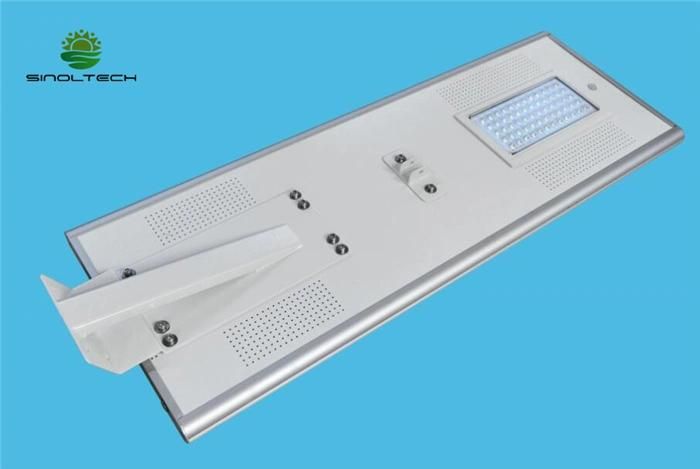

60W All in one Solar Powered LED Street Light (SNSTY-260)

Product Description:
Our solar powered LED street light which integrates the green-energy parts solar Panel, LED lamp and the Li-Fe battery into a single product, is with human intelligence induction system to gain the solution of low-energy, long-time,high-luminance and free maintenance. And the same time, it's convenient in the
Shipment and installation.

Purpose:
To be installed in the garden, residential area, courtyard, road, mine area or parking area or provide the light in roads where it's necessary, the battery provide the energy for lighting, and the solar panel charge for the battery.

Product parts:

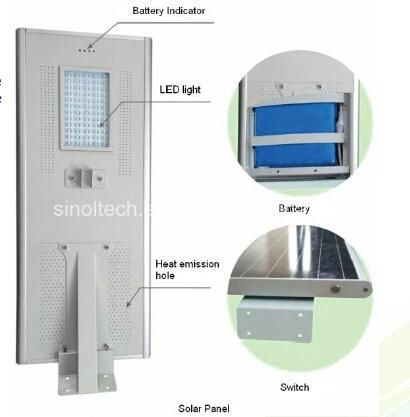

The "All-in-one" solar powered LED street light is made up with the integrated parts (solar panel, Li-Fe battery, LED, MPPT controller and human intelligence induction system) and the light pole.

Working characters:
The solar panel converts sunlight into electricity and stored in Li-Fe battery via controller, the LED light will work in night automatically by light sensor control, and provide light for the darkness area, the human intelligence induction system can save the energy when the lighting is not necessary.

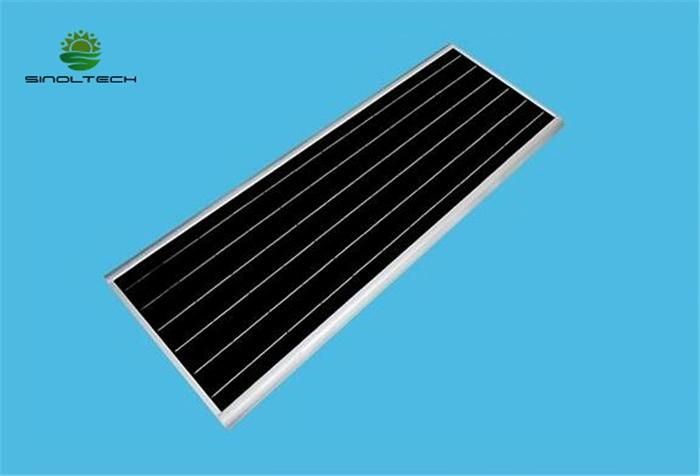

Solar Panel	Max Power	18V80W(High efficiency monocrystalline silicon)
	Life time	25 years
Battery	Type	Lithium battery
	Life time	5 years
LED Lamp	Max power	12V 60W
(With sensor)	Led chip brand	Bridgelux from USA with high brightness
	Lumen(LM)	6000-6600LM
	Life time	50000hours
	Viewing angle	120 degree
Charge time	By sun	7 hours
Discharge time	Saving power	more than 24 hours
	Full power	more than 10 hours
Working temp.	range(C)	-20C~+60C
Color temp.	range(k)	6500k-7000k
Mounting height	range(m)	7-8m
Space between light	range(m)	25-30m
Main lamp materials		Aluminum alloy
Certificate		CE/ROHS/IP65
Warranty period		2 years
