• Model NO.：SNSTY-240
• Application：Highway, Square, Garden
• IP Rating：IP65
• Certification：CE, RoHS
• Voltage：12V DC
• Keyword：Integrated All in One Solar Street Light
• Model No.：Snsty-240
• LED Power：40W
• Solar PV Power：70W
• Lithium Battery：36ah
• Working Mode：Timer+Motion Sensor+APP
• Mounting Height：6-7.5m
• Mounting Distance：30-35m
• CCT：3000-6000K
• Product Size/Weight：1210*340*45mm,16.0 Kg
• Transport Package：Strong Carton
• Specification：ISO 9001
• Trademark：SINOLTECH
• Origin：China
• HS Code：9405500000
• Production Capacity：10000PCS,Month

Basic Info.

Model NO. SNSTY-240 Application Highway, Square, Garden IP Rating IP65 Certification CE, RoHS Voltage 12V DC Keyword Integrated All in One Solar Street Light Model No. Snsty-240 LED Power 40W Solar PV Power 70W Lithium Battery 36ah Working Mode Timer+Motion Sensor+APP Mounting Height 6-7.5m Mounting Distance 30-35m CCT 3000-6000K Product Size/Weight 1210*340*45mm/16.0 Kg Transport Package Strong Carton Specification ISO 9001 Trademark SINOLTECH Origin China HS Code 9405500000 Production Capacity 10000PCS/Month

Product Description

4300 Lumens 40W LED Integrated All in one Solar Street Light with 5 years warranty (SNSTY-240)

Our integrated solar street light which integrates the green-energy parts solarpanel, LED lamp and the Li-Fe battery into a single product, is with human intelligence induction system to gain the solution of low-energy, long-time, high-luminance and free maintenance. And the same time, it's convenient in the shipment and installation.

---Purpose:
To be installed in the garden, residential area, courtyard, road, mine area or Parking area or provide the light in roads where it's necessary, the battery provide The energy for lighting, and the solar panel charge for the battery.

Product parts:
The product is made up with the integrated parts (solar panel, Li-Fe battery, LED, MPPT controller and human intelligence induction system) and the light pole.

Working characters:
The solar panel converts sunlight into electricity and stored in Li-Fe battery via Controller, the LED light will work in night automatically by light sensor control,
And provide light for the darkness area, the human intelligence induction system can save the energy when the lighting is not necessary.

---Advantage:
1) Integrity design, no calbing, easy to install
Suitable for any kinds of pole material, such as iron, wood, bamboo, plastic, etc, reducing construction cost.
2) Adopting solar panel as power source, LED lamp as light source, perfect combination for energy saving.
3) Adopting lithium iron phosphate battery as power back-up, with high capacity, long service life over 5 years,
Excellent high temperature peformance.
4) Waterproof design
5) Adopting aluminum alloy as main body material, with feaures of rust-proof, corrosion-proof.
6) Motion sensor design, segmented power control function, during late half night, brightness reduce in order to save Energy and increase practicality.

---General specification:

Solar Panel	Max Power	18V 70W(High efficiency monocrystalline silicon)
	Life time	25 years
Battery	Type	Lithium battery 36AH
	Life time	5 years
LED Lamp	Max power	12V 40W
(With sensor)	LED chip brand	Bridgelux from USA with high brightness
	Lumen(LM)	4000-4400LM
	Life time	50000hours
	Viewing angle	120 degree
Charge time	By sun	6 hours
Discharge time	Saving power	More than 24 hours
	Full power	More than 10 hours
Working temp.	Range(C)	-20C~+60C
Color temp.	Range(K)	6000K
Mounting height	Range(m)	6-7m
Space between light	Range(m)	18-20m
Main lamp materials		Aluminum alloy
Certificate		CE/RoHS/IP65

---Spefication Data:

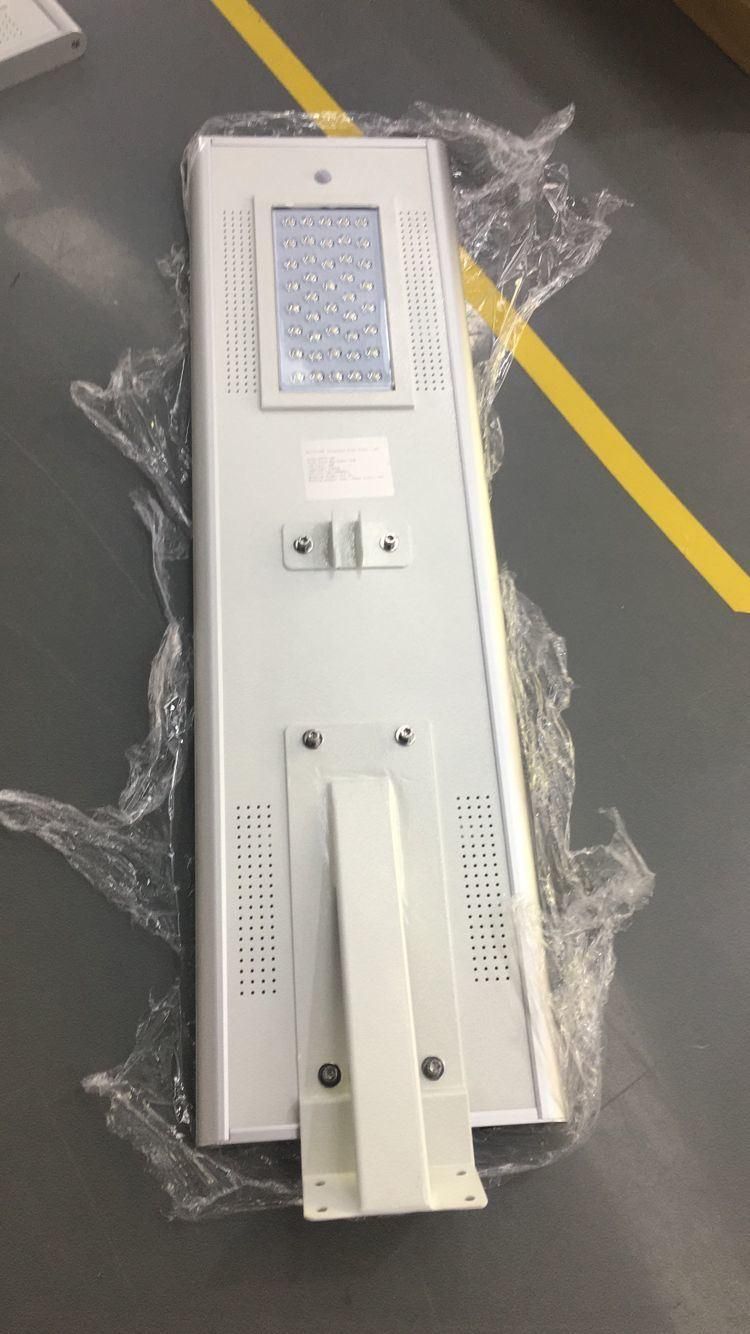

---Products display:

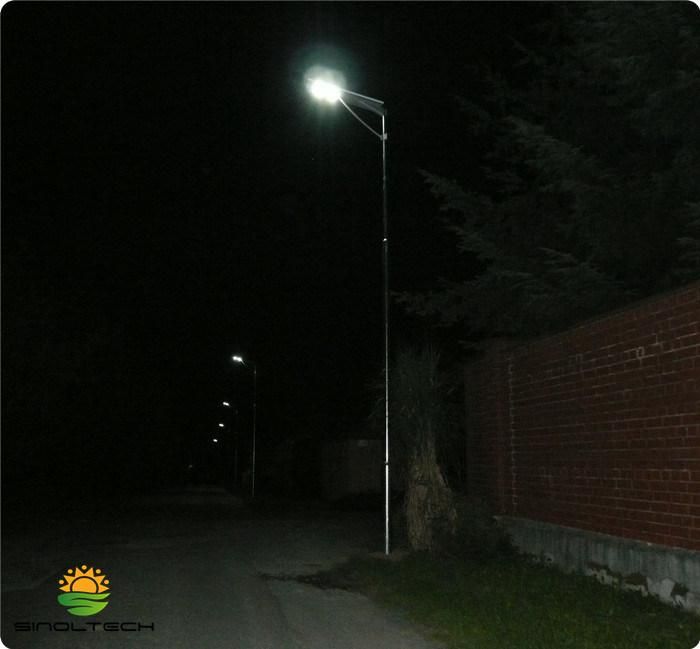

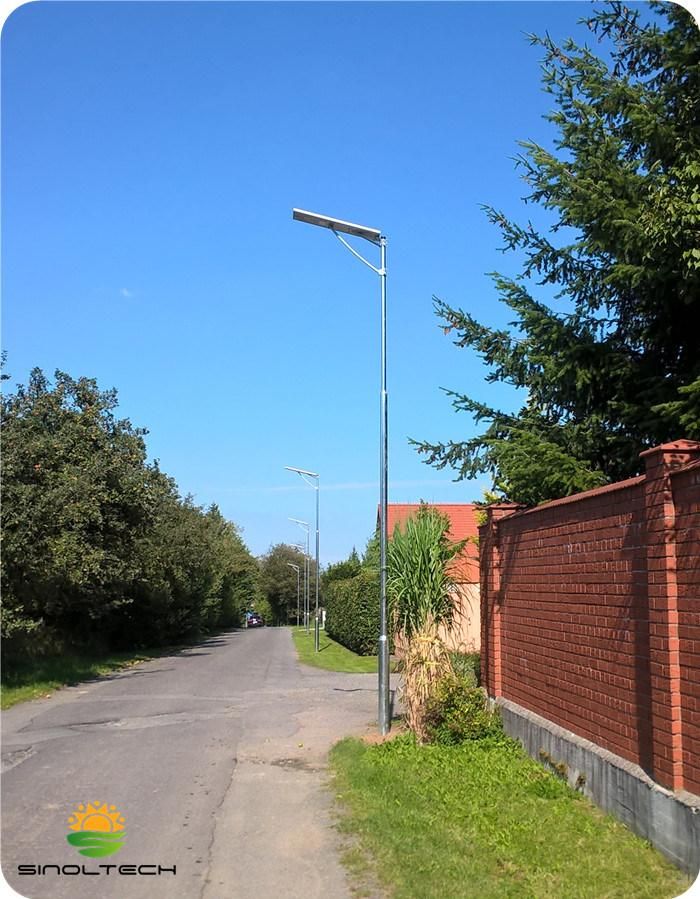

---Successful cases:
