• Model NO.：SNSTY-280
• Illumination Time：12h
• Cell Type：Lithium Battery
• Charging Time (H)：12
• Usage：Garden, Street
• IP Rating：IP65
• Certification：CE, RoHS
• Voltage：12,24V
• With Light Source：With Light Source
• Keyword：All in One Integrated Solar Powered Street Light
• LED Power：80W
• Solar PV Power：100W
• Lithium Battery：60ah
• Lumen：8500-9000lm
• Mounting Height：8-9m
• Mounting Distance：35-40m
• CCT：3000-6000K
• Waterproof Degree：IP65

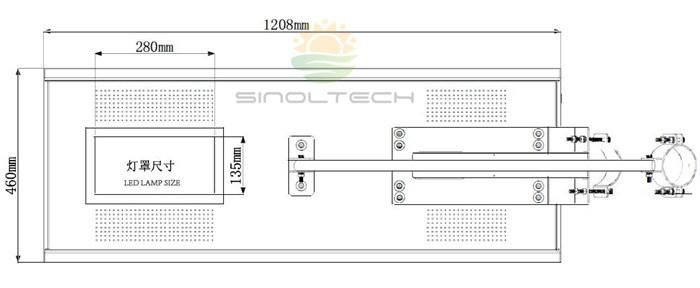

• Product Size/Weight：1210*460*45mm,21.0 Kg
• Transport Package：Strong Carton
• Specification：80W LED 100W Solar Panel
• Trademark：SINOLTECH
• Origin：China
• HS Code：9405409000
• Production Capacity：5000 Units,Month

Basic Info.

Model NO. SNSTY-280 Illumination Time 12h Cell Type Lithium Battery Charging Time (H) 12 Usage Garden, Street IP Rating IP65 Certification CE, RoHS Voltage 12/24V With Light Source With Light Source Keyword All in One Integrated Solar Powered Street Light LED Power 80W Solar PV Power 100W Lithium Battery 60ah Lumen 8500-9000lm Mounting Height 8-9m Mounting Distance 35-40m CCT 3000-6000K Waterproof Degree IP65 Product Size/Weight 1210*460*45mm/21.0 Kg Transport Package Strong Carton Specification 80W LED 100W Solar Panel Trademark SINOLTECH Origin China HS Code 9405409000 Production Capacity 5000 Units/Month

Product Description

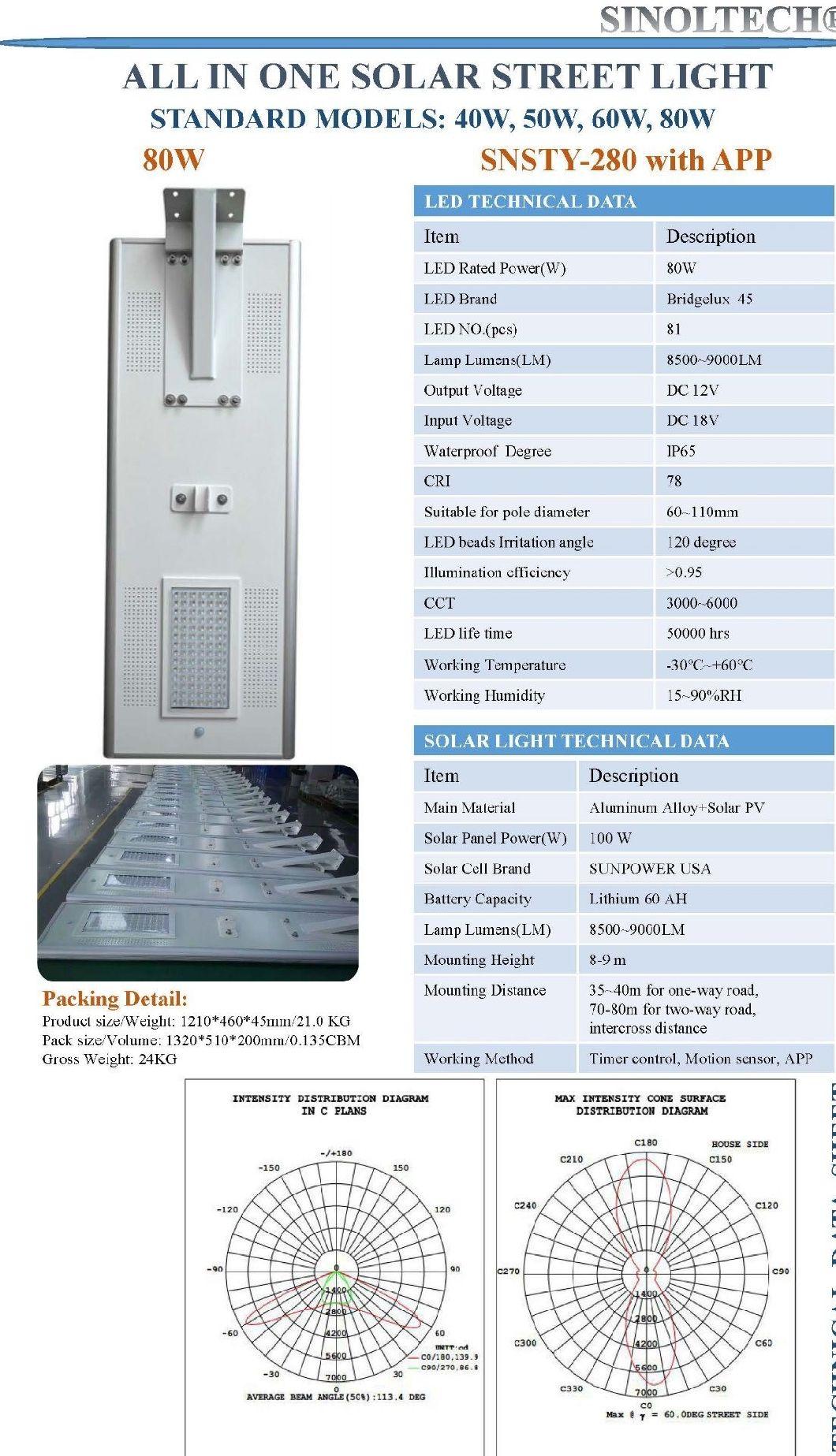

APP control 80W ALL IN ONE Integrated Solar Powered Street Lighting (SNSTY-280)

Item No. SNSTY-280
1. Materials: Aluminum alloy case
2. Solar panel: Sunpower solar 18V 100W
3. LED: 12V 80W Bridgelux 8200 Lumens,2700K-7000K
4. Solar controler: MPPT
5. Lithium battery: 12V 60Ah
6. Motion sensor: PIR
7. Carton Size: 132X52X21cm
8. N.W/G.W: 21kgs/24kgs
9. Install height: 8-10m
10. Solar charging time: 6-7 hours by brightsunlight
11. Lighting time: Controller auto adjust
3/5/7/10overcast backup days
12. Work Temperature: -30C to 60C

Our products & Services:
We offer customized solution to meet clients' different project and budget requirement:
1. Customized shell material:
High quality Aluminum alloy frame, light weight, anti-corrosion and visual good looking;
Galvanized iron frame, lower cost to reduce total budget, 3 -years corrosion resistance guarantee. Accept customized shell color.
2. Customized working method
Motion sensor, LED full power lighting when there is people/vehicle passing-by, LED 1/3 power
Lighting when there is no people/vehicle passing. Induction time: 60s, sensing distance: 9-10m.

Timing control: Customize time period for different working power.
Recommended"3+4+5", first 3 hrs full power lighting, second 4 hrs 1/2 power lighting, last 5 hrs 1/3 power lighting.

3. Customized brand of components:
Solar panel: USA SUNPOWER brand solar panel(19-23% efficiency) or normal monocrystalline solar panel(17-18% efficiency).
LED lamp: High quality USA bridgelux LED chip or TAIWAN EPISTAR LED chip
Customzied color temperature (3500-7000K) upon request.

Lithium battery with 5 years life time guarantee, accept customized capacity to increase lighting time or reduce product cost.

4. Accept OEM logo printing.

5. Extra AC charge function, Remote control function.

Main feature:
1)Integrity design, no cabling, easy to install, various mounting methods (pole or fence)
Pole material could be iron, wood, bamboo, plastic etc, low construction cost.
2)Adopting solar panel as power source, LED as light source, a perfect combination for energy saving.
3)Adopting high capacity long service life Lithium lron Phosphate Battery, theory life time over 5 years, excellent high temperature performance, long life time can ensure the service life of wholeproduct.
4)Waterproof structure, safe and reliable.
5)Adopting aluminum alloy as main body material, with excellent rust-proof and corrosion-proof function.
6)With segmented power control function, during late half night, brightness reduce in order to save energy and increase practicality.

Advantage:
This product is composed of high efficiency monocrystalline silicone solar panel, 5 years exta long service life lithium battery( same with the drive batteries of hybrid cars), high light efficiency LED lamp and intelligent controller, PIR motion sensor module, theft-resistant mounting bracket.
The most advantage of all in one solar light is easy installation, light-weight, under general normal condition, only 1 or 2 workers using a wrench could finish the installation within 5 minutes.

Solar Panel	Max Power	18V100W(Sunpower solar cell)
	Life time	25 years
Battery	Type	Lithium battery 60AH
	Life time	5 years
LED Lamp	Max power	12V80W
(With sensor)	Led chip brand	Bridgelux
	Lumen(LM)	8200LM
	Life time	50000hours
	Viewing angle	120 degree
Charge time	By sun	11-12 hours
Discharge time	Full power	9 hours
	Half power	18 hours
Working temp.	range(C)	-30C~+60C
Color temp.	range(k)	6000-6500k(2700-7000K customized)
Mounting height	range(m)	8-10m
Space between light	range(m)	20-25m
Main lamp materials		Aluminum alloy
Certificate		CE/ROHS/IP65
Warranty period		3 years
