• Model NO.：SNSTY-215
• Illumination Time：8h
• Cell Type：Lithium Battery
• Charging Time (H)：8
• Usage：Garden, Street
• IP Rating：IP65
• Certification：CE, RoHS
• Voltage：12,24V
• With Light Source：With Light Source
• Keyword 1：15W LED 30W PV Integrated Solar Garden Lighting
• Keyword 2：Solar Garden Light
• Keyword 3：Solar Garden Lighting
• Keyword 4：Solar LED Garden Lamp
• Model No.：Snsty-215
• Solar Panel Power：25W
• Product Name：Integrated Solar Garden Lighting
• LED Power：15W
• Lighting Time：Controller Auto Adjust 3,5,7,10 Backup Days
• Lithium Battery Capacity：10ah 12V
• Transport Package：Strong Carton
• Specification：15W LED 30W Solar Panel
• Trademark：SINOLTECH
• Origin：China
• HS Code：9405409000
• Production Capacity：China

Basic Info.

Model NO. SNSTY-215 Illumination Time 8h Cell Type Lithium Battery Charging Time (H) 8 Usage Garden, Street IP Rating IP65 Certification CE, RoHS Voltage 12/24V With Light Source With Light Source Keyword 1 15W LED 30W PV Integrated Solar Garden Lighting Keyword 2 Solar Garden Light Keyword 3 Solar Garden Lighting Keyword 4 Solar LED Garden Lamp Model No. Snsty-215 Solar Panel Power 25W Product Name Integrated Solar Garden Lighting LED Power 15W Lighting Time Controller Auto Adjust 3/5/7/10 Backup Days Lithium Battery Capacity 10ah 12V Transport Package Strong Carton Specification 15W LED 30W Solar Panel Trademark SINOLTECH Origin China HS Code 9405409000 Production Capacity China

Product Description

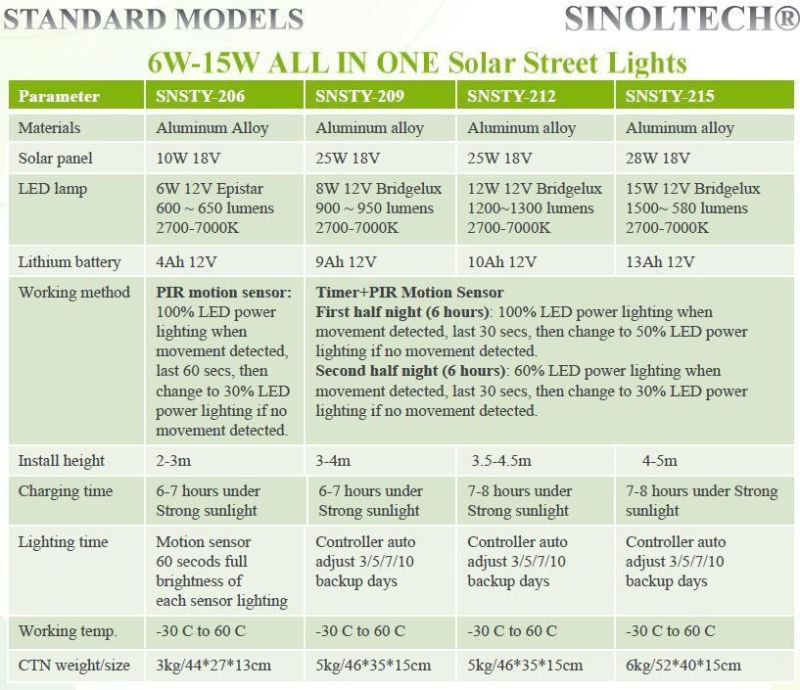

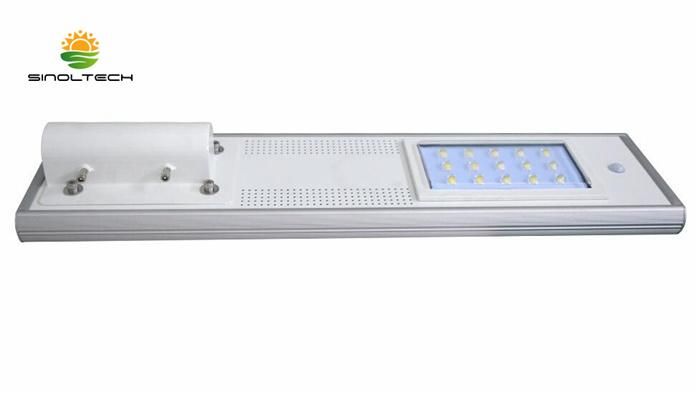

15W LED 30W PV Integrated Solar Garden Lighting (SNSTY-215)

Working Mode:
Timer+PIR Motion Sensor
First half night (6 hours): 100% LED power lighting when movement detected, last 30 secs, then
change to 50% LED power lighting if no movement detected.
Second half night (6 hours): 60% LED power lighting when movement detected, last 30 secs, then
change to 30% LED power lighting if no movement detected.

Material List:

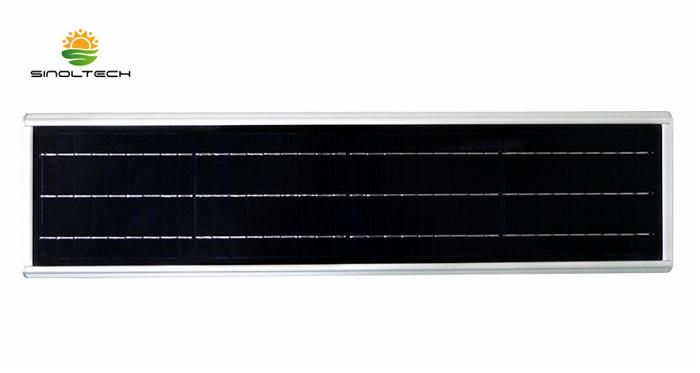

SOLAR PV MODULE
Adopting high quality SOLARWORLD cell Germany or SUNPOWER cell USA, efficiency up to 17%-19%.
Top A grade cell, with 5 years warranty, 25 years guarantee.
SOLAR CONTROLLER
MPPT technology, with a wide range function of light sensing, timer, motion sensing, APP etc.
Discharging efficiency from lithium battery to LED lamp ≥97%.
Metal frame, IP68 waterproof degree.
Warranty 5 years, life span 10 years.
LITHIUM BATTERY
Adopting A class lithium battery (LiCoO2), compact & light weight, cycling life time over 2000 times.
Warranty 5 years, life time 5-8 years.

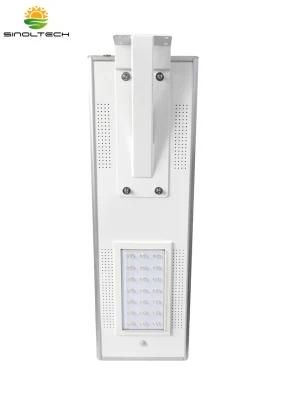

LED LAMP
Adopting USA Bridgelux chip, including lens, low power consumption, with the protection of acrylic cover,
life time can reach 50000 hrs, warranty 5 years.
SENSOR
Optional PIR and Microwave sensor, according to client's request.
ALUMINUM ALLOY FRAME
Anti corrosion and rustproof aluminum alloy frame, warranty 5 years, life time over 10 years.

Lighting Principle:
LIGHT CONTROL
LED lamp automatic ON when sunset, automatic OFF when sunrise.
In daytime, solar panel output voltage to battery, charging battery>5V, LED lamp stays OFF.
At night, sunlight is weak, charging battery<5V, LED lamp stays ON.
SENSOR
After LED lighting, when people passes by, the luminance of LED increases, when people leaves, the
luminance of LED reduces.
CELLPHONE APP
Suitable for SNSTY series models above 20W, lamp and software connected by bluetooth.
APP main settings include:
1. ON and OFF
2. Setting rainy days in order to adjust the luminance of LED
3. Default setting
4. Power saving checking
5. Troubleshooting
6. Timer setting
etc

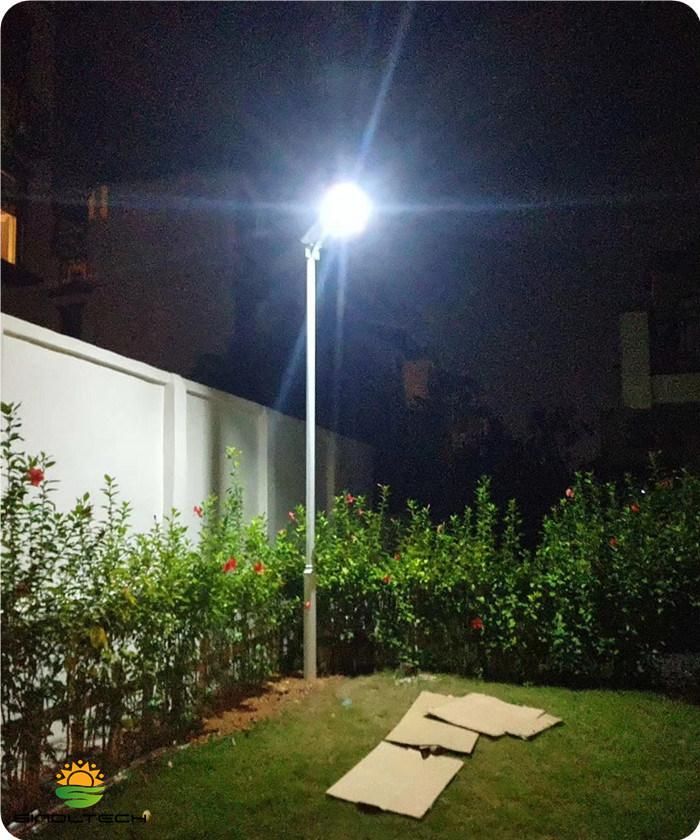

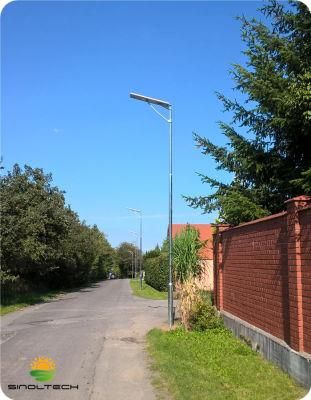

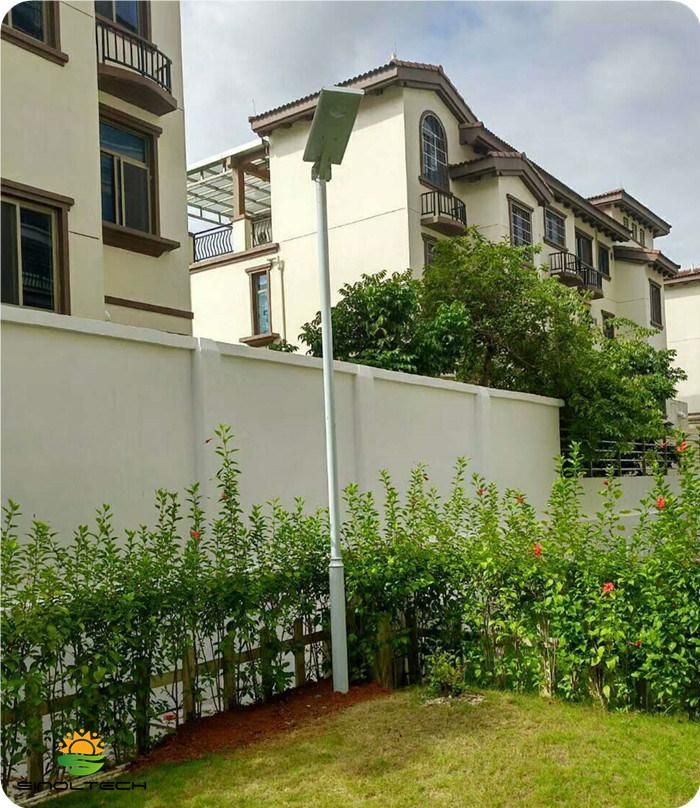

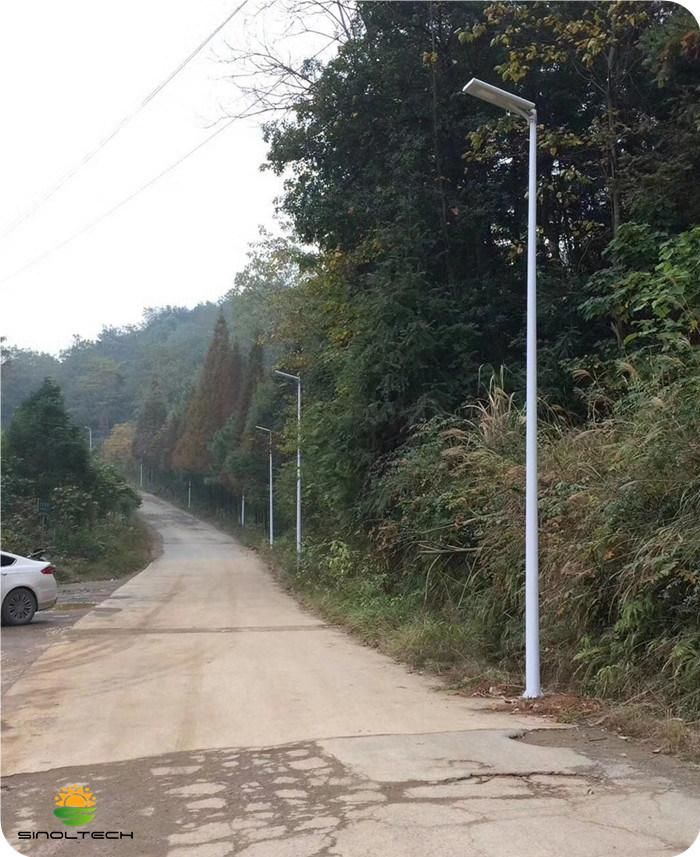

PROJECT PHOTOS:
