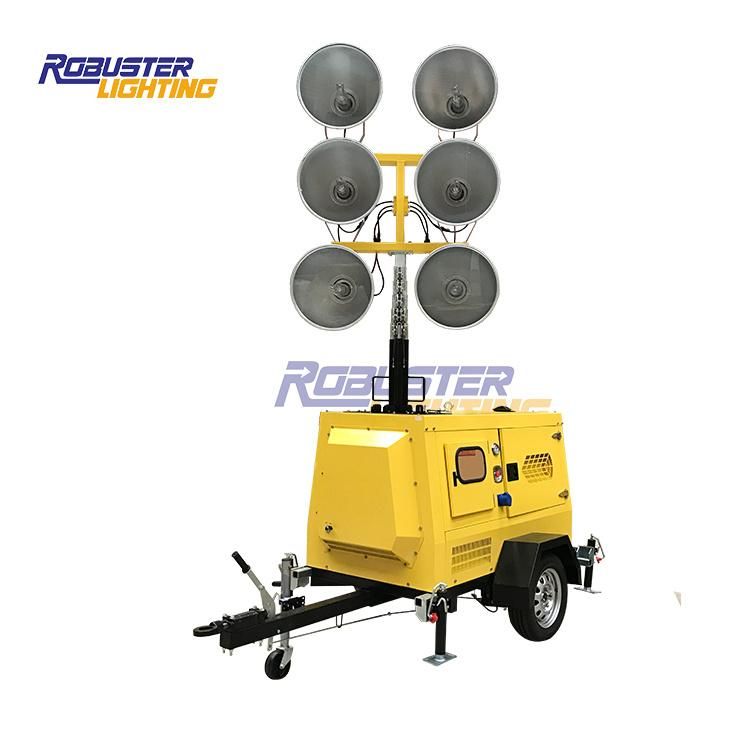

9m Hydraulic Telescopic Mast Towable Trailer Mounted Light Tower
Fujian Robust Power Co., Ltd.- Engine：Kubota D1703-Bg
- Alternator：Sinocox
- Engine Speed：1500rpm,1800rpm
- Power Generation：13kw or 14.5kw Continuous (DC)
- Voltage：110V, 120V, 220V, 230V, 240V, 250V
- Light Power：6*1000W Mhi
Base Info
- Model NO.：RPLT6700
- Lumen Output：6*110,000lm
- Guarantee：2000h
- IP Grade：IP54
- Delivery Time：Within 35 Days After Receiving Deposit
- Transport Package：Plywood Tray,Plywood Cases,Cartons
- Specification：4500*1350*1700mm
- Trademark：Robust Power
- Origin：China
- HS Code：9405409000
- Production Capacity：250sets,Month
Description
Basic Info.
Model NO. RPLT6700 Lumen Output 6*110,000lm Guarantee 2000h IP Grade IP54 Delivery Time Within 35 Days After Receiving Deposit Transport Package Plywood Tray/Plywood Cases/Cartons Specification 4500*1350*1700mm Trademark Robust Power Origin China HS Code 9405409000 Production Capacity 250sets/MonthProduct Description
9M Hydraulic Telescopic Mast Towable Trailer Mounted Light TowersKey Features Include:
8m hydraulically operated telescopic mast
360 mast rotation
Available in 4*1000W or 4*1500W metal halide lamps, 2*480W or 4*480W LED light
Galvanized mast and powder coated canopy
Electronic controlled hydraulic system with sustaining valves and hydraulic locks
Fault protection
Heavy-duty, weather-protective enclosure
Fully bunded
Technical Data:
| Light | |
| Housing Material | Aluminium die cast |
| Type of lights | LED Lamp/Metal Halide Lamp |
| Power of lights | 6*1000W Metal Halide Lamp |
| Lumen Output | 6*110,000lm ( total ) |
| Voltage | AC 110-240V |
| Frequency | 50/60Hz |
| Longevity | 2000 Hrs |
| Waterproof grade | IP54 |
| Color temperature | 2100K-5700K |
| Mast | |
| Material of mast | Galvanized iron |
| Mast lifting type | Hydraulic mast |
| Mast section | 6-section telescopic |
| Mast rotation system | 358° manual operation |
| Max. height of mast | 8.6meters |
| Engine | |
| Engine model | Kubota D1703-BG 3 cylinder, in-line, water cooled |
| Start system | Electric (Battery start) |
| Alternator | Sinocox |
| Engine speed | 50hz/1500rpm, 60hz/1800rpm |
| Rated power | 50hz/7.2kw, 60hz/8.0kw |
| Insulation | H |
| Fuel tank capacity | 100L |
| Fuel consumption | 2.0L/hr |
| Maximum Working Hours | 50H |
| Controller system | Digital control panel |
| Waterproof grade | IP54 |
| Engine shutdown protection | Low oil pressure, over speed, over current, high-temperature detection, low fuel level |
| Trailer | |
| Stabiliser Supports | Optional 4*Manual or 4*Hydraulic |
| Tow Hitch | Ring/ball hitch |
| Tire Size | 13 inch |
| Brakes | Manual |
| Packing | |
| Net weight | 930/890 kg |
| Dimension | 4500X1350X1700 MM |

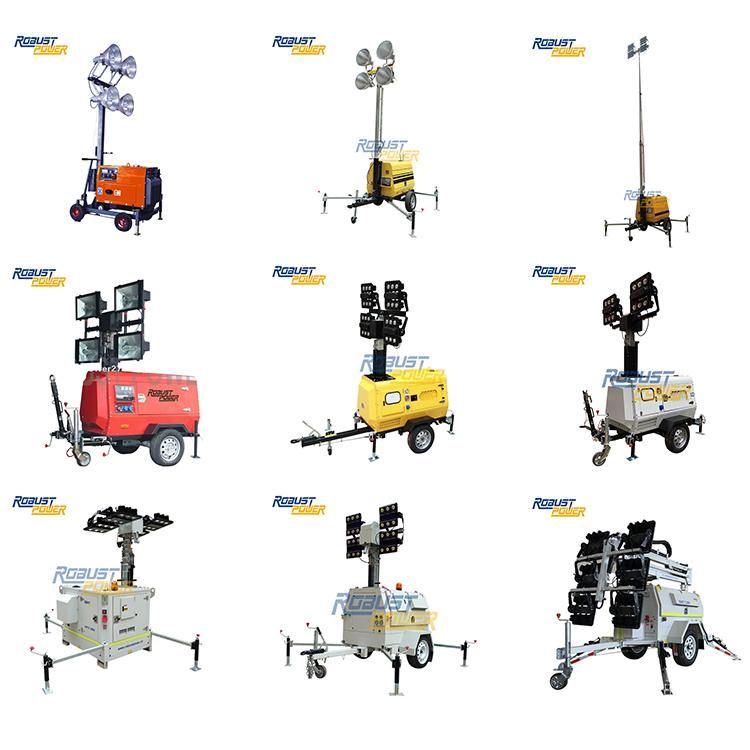

Robust Power Models:
| No. | Model | Mast | Power of Lamps | Engine Model |
| 1 | RPLT1600 | 4.8M Manual | 4*400W Metal Halide Lamp | RP186FA |
| 2 | RPLT1600 | 4.8M Manual | 4*160W LED | RP186FA |
| 3 | RPLT1600 | 4.8M Manual | 2*1000W Metal Halide Lamp | RP186FA |
| 4 | RPLT6000 | 9M Manual | 4*1000W Metal Halide Lamp | Kubota D1105 (Japan) |
| 5 | RPLT6000 | 9M Manual | 4*240W LED | Kubota D905 (Japan) |
| 6 | RPLT6800 | 8.6M Hydraulic | 4*1000W Metal Halide Lamp | Kubota D1105 (Japan) |
| 7 | RPLT6800 | 8.6M Hydraulic | 4*1500W Metal Halide Lamp | Kubota D1105 (Japan) |
| 8 | RPLT6800 | 8.6M Hydraulic | 4*480W LED | Kubota D905 (Japan) |
| 9 | RPLT3800 | 7M Hydraulic | 4*480W LED | Kubota Z482 (Japan) |
| 10 | RPLT6900 | 8.5M Hydraulic | 4*480W LED | Kubota D1105 (Japan) |
| 11 | RPLT7200 | 10M Hydraulic | 6*480W LED | Kubota D1105 (Japan) |
| 12 | RPLT7200 | 10M Hydraulic | 4*720W LED | Kubota D1105 (Japan) |
| 13 | RPLT7600 | 9M Hydraulic | 6*480W LED | Kubota D1105 (Japan) |
| 14 | RPLT7600 | 9M Hydraulic | 4*720W LED | Kubota D1105 (Japan) |
