Outdoor Split Semi Integrated Solar Street Lights
Qingdao Commercial Energy Electronics Co., Ltd.- Light Source：LED Lamp
- Lamp Body Material：Aluminum Alloy
- Light Type：Solar
- Color Temperature：Cool White
- Power：60W
- Technics：Painted Matte
Base Info
- Model NO.：NY-60W
- Illumination Time：8h
- Cell Type：Lithium Battery
- Charging Time (H)：8
- Usage：Garden, Street
- IP Rating：IP65
- Certification：CE, RoHS
- Voltage：12,24V
- With Light Source：With Light Source
- LED Light：60W, 40LED
- Battery：432wh,12V Lithium Battery
- Solar Panel：80W,18V,Mono
- Controller：MPPT
- Work Mode：Constant Lighting , Motion Sensor
- Lumen：8400lm
- Material：Die-Casting Aluminum
- Installation Height：7-8m
- Spacing：25-30m
- N.G/G.W (Kg)：16,18
- Product Size(mm)：650X220X200, 670X676X45(Solar Panel)
- Carton Size(mm)：740*270*300, 730*736*80(Solar Panel)
- 20′/40′ Capacity：390 , 780 Units
- Transport Package：Carton
- Specification：650x220x200, 670x676x45(solar panel)
- Trademark：NEWSKY POWER
- Origin：China
- HS Code：94054090
- Production Capacity：50000PCS, Month
Description
Basic Info.
Model NO. NY-60W Illumination Time 8h Cell Type Lithium Battery Charging Time (H) 8 Usage Garden, Street IP Rating IP65 Certification CE, RoHS Voltage 12/24V With Light Source With Light Source LED Light 60W, 40LED Battery 432wh/12V Lithium Battery Solar Panel 80W/18V,Mono Controller MPPT Work Mode Constant Lighting / Motion Sensor Lumen 8400lm Material Die-Casting Aluminum Installation Height 7-8m Spacing 25-30m N.G/G.W (Kg) 16/18 Product Size(mm) 650X220X200, 670X676X45(Solar Panel) Carton Size(mm) 740*270*300, 730*736*80(Solar Panel) 20′/40′ Capacity 390 / 780 Units Transport Package Carton Specification 650x220x200, 670x676x45(solar panel) Trademark NEWSKY POWER Origin China HS Code 94054090 Production Capacity 50000PCS/ MonthProduct Description
Products show:

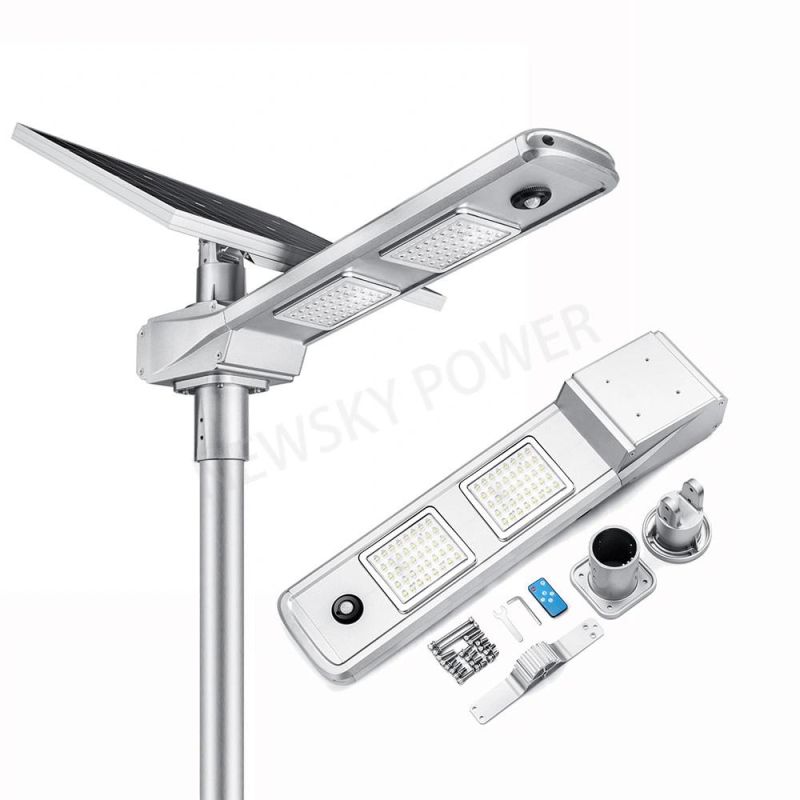

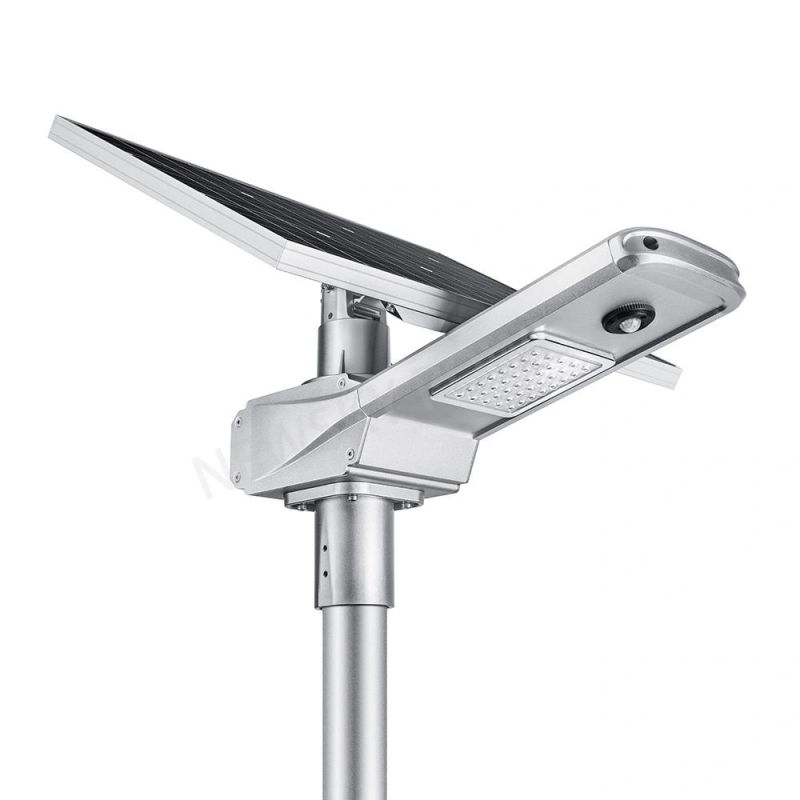

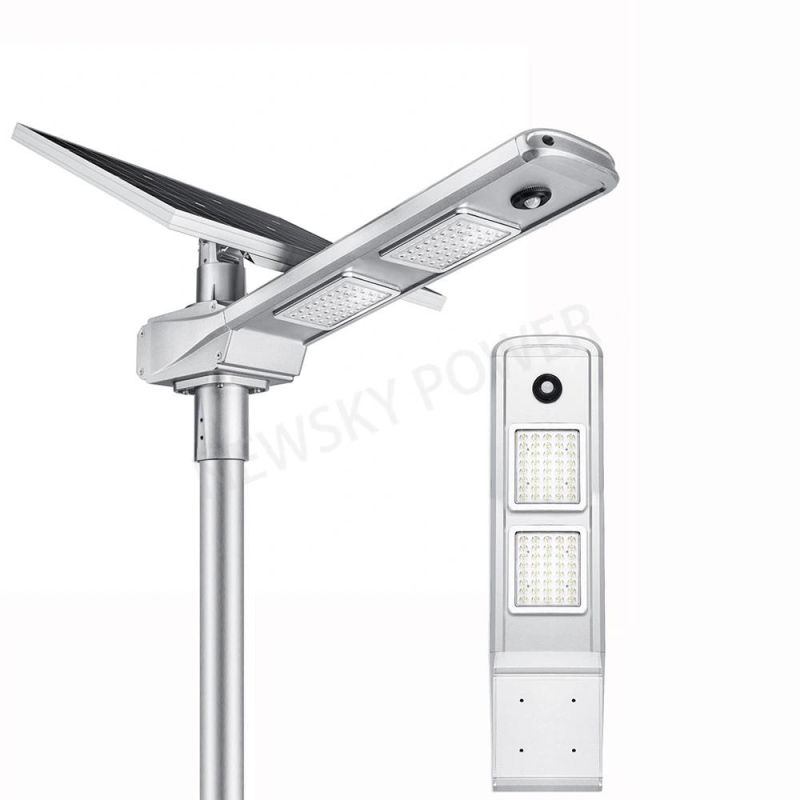

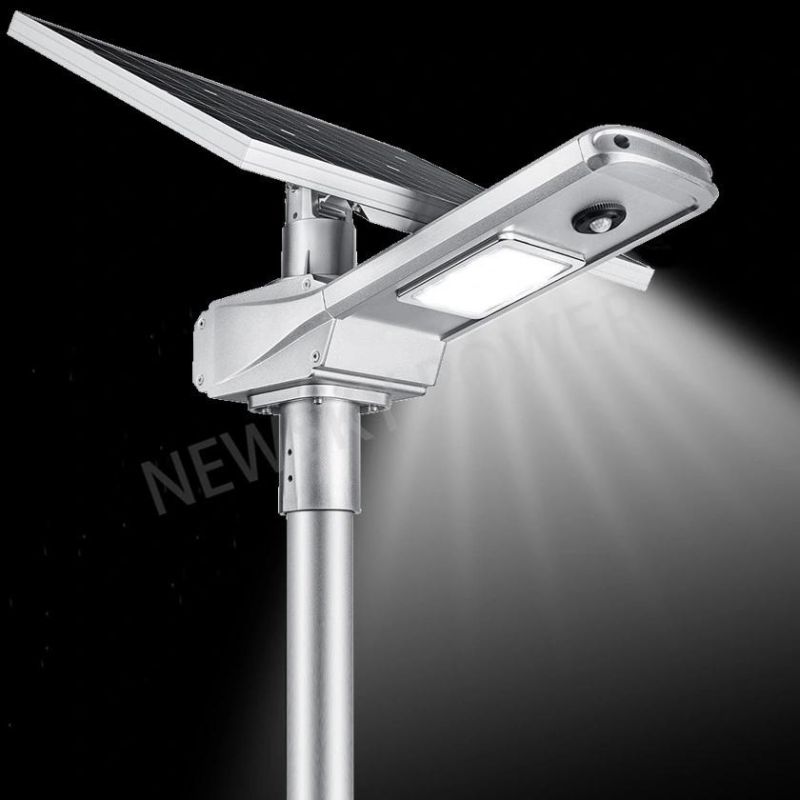

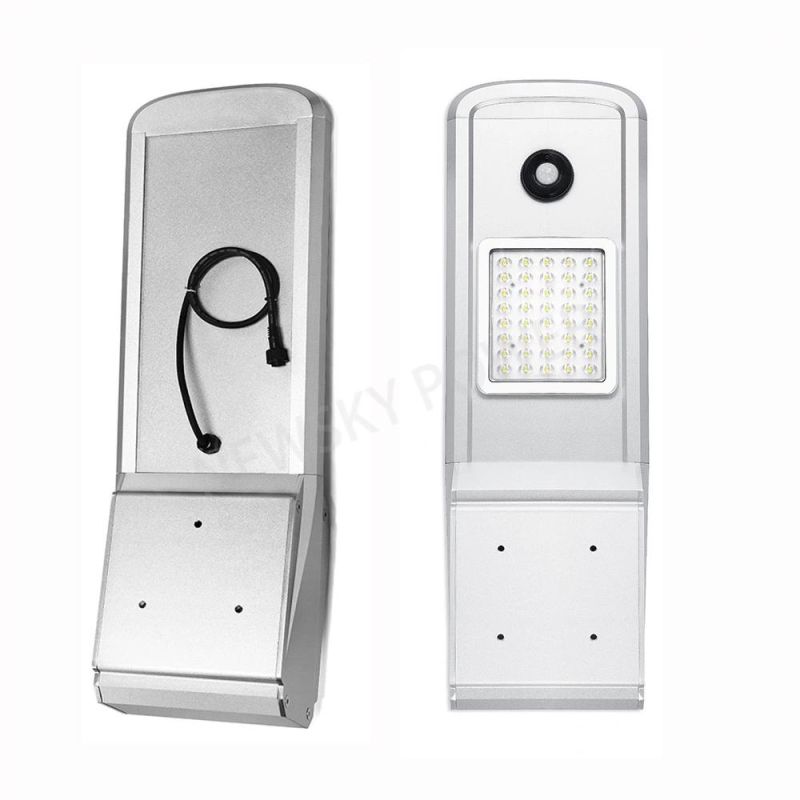

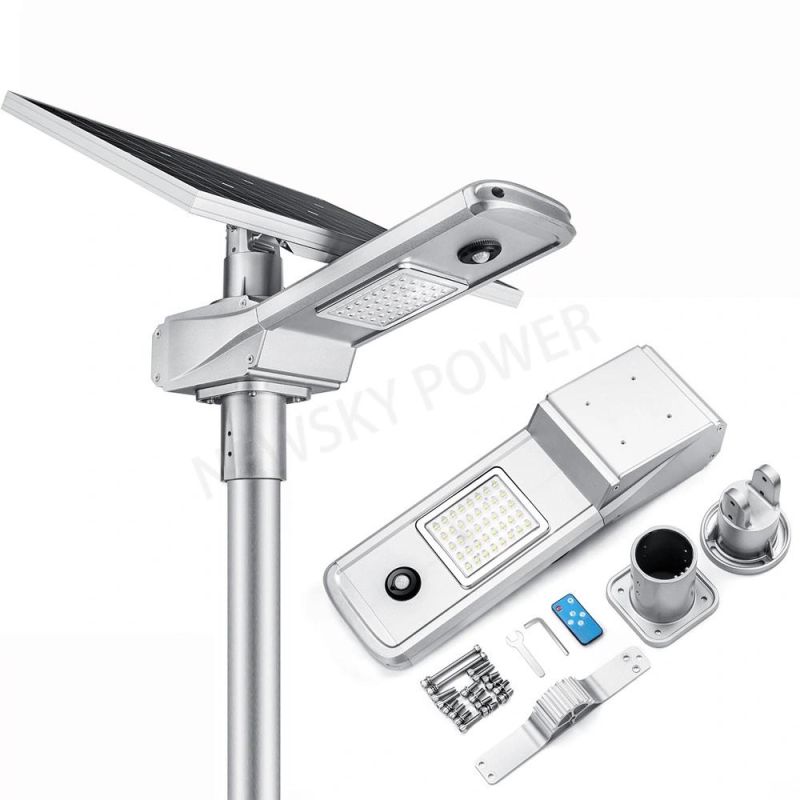

Outdoor commercial Split solar powered led street lights lamp
- Unique Integration Design,Easy to transport, install and maintain.

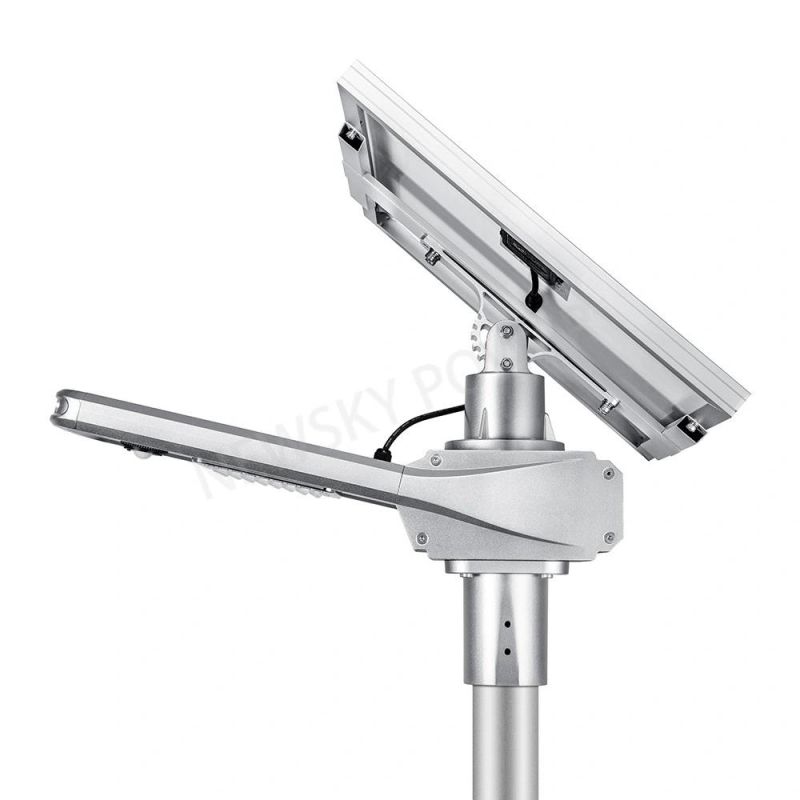

- Rotating Solar Panel, can be adjusted in vertical and horizontal direction.
- Charge and Discharge Management,Protect battery by software and hardware, supporting battery charge at 0v.
- Light Efficiency Management,Patent led chip with high efficiency, up to 140lm/w.
Control Mode Management, 6 work modes for choice. - Patent Bat-wing Lens,Lighting area much wider, the maximum of using the lighting all light the road.
- Battery Program Updated,Embedded single string control technology. More stable and longer lifespan.
- Enhanced analysis of heat dissipation and heat conduction by EFD.
The specification of solar street lights:
| LED light | 60W, Cree 40LED |
| Battery | 432WH/12V Lithium battery |
| Solar panel | 80W/18V,MONO |
| Controller | MPPT |
| Work mode | Constant lighting / Motion sensor |
| Lumen | 8400Lm |
| Material | Die-casting aluminum |
| Installation height | 7-8m |
| Spacing | 25-30m |
| N.G/G.W (kg) | 16/18 |
| Product size(mm) | 650x220x200, 670x676x45(solar panel) |
| Carton size(mm) | 740*270*300, 730*736*80(solar panel) |
| 20'/40' Capacity | 390 / 780 units |
