• Model NO.：SMLN-80W

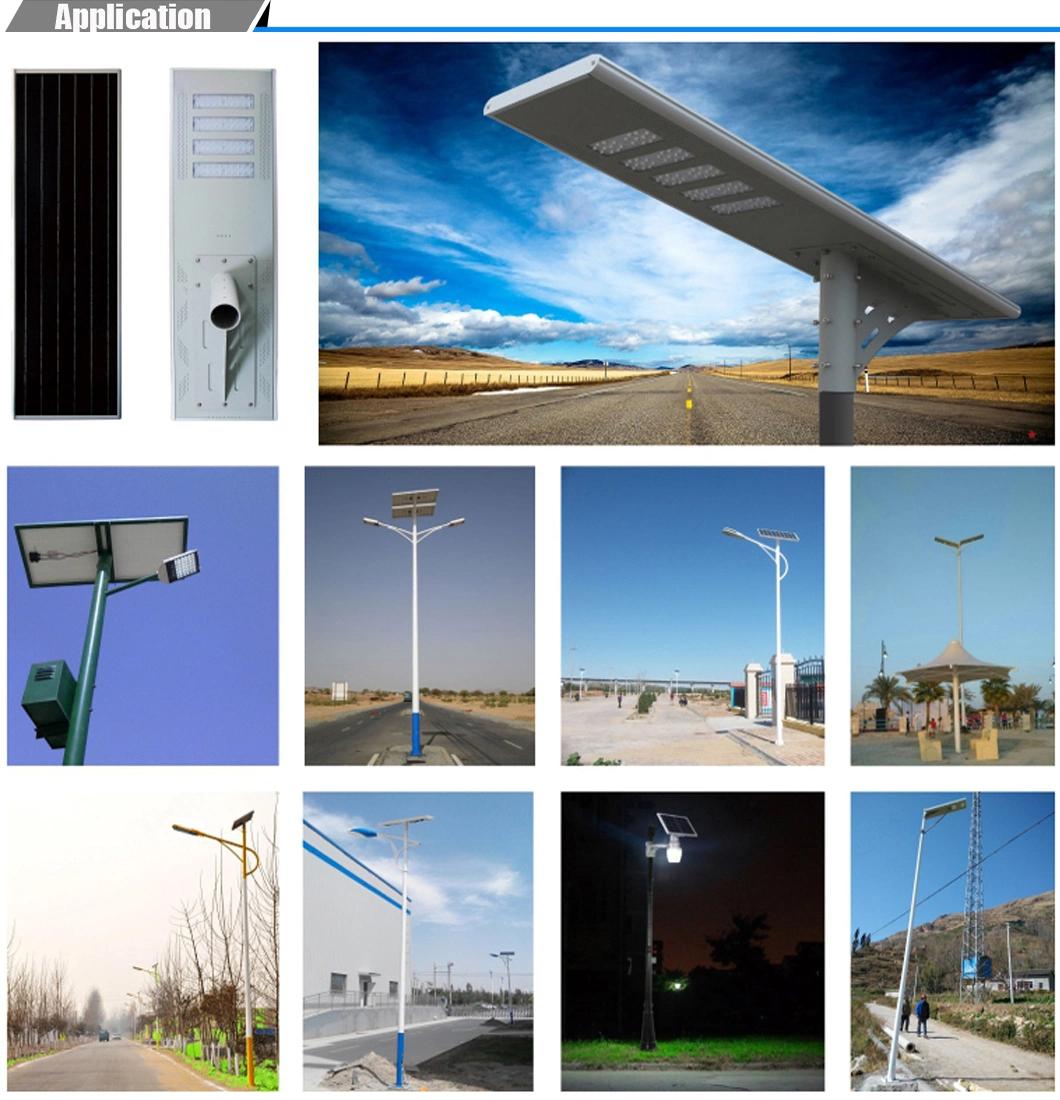

• Application：Highway, Square, Garden
• IP Rating：IP66
• Certification：CE, RoHS, ISO, FCC, EMC, GS, TUV
• Voltage：12V
• OEM/ODM/Customized：Available
• Warranty(Year)：5 Years
• Input Voltage(V)：DC12,24V
• Lamp Luminous Efficiency(Lm/W)：180lm,W
• Working Temperature(ºC)：-40ºC - 60ºC
• CRI (Ra>)：90
• Working Lifetime(Hour)：50000
• Beam Angle：150*70°
• Working Mode：Full Power and PIR Sensor
• Lighting Area：100m²
• Lighting Time：Over 5 Nights
• Controller：MPPT
• Back up Days：4 Days
• Maintenance：10 Years Free Maintenance
• Mounting Height：7m
• Transport Package：Carten
• Specification：1593X450X45mm
• Trademark：sunmaster
• Origin：Zhejiang, China
• HS Code：9405409000
• Production Capacity：1000PCS,Week

Basic Info.

Model NO. SMLN-80W Application Highway, Square, Garden IP Rating IP66 Certification CE, RoHS, ISO, FCC, EMC, GS, TUV Voltage 12V OEM/ODM/Customized Available Warranty(Year) 5 Years Input Voltage(V) DC12/24V Lamp Luminous Efficiency(Lm/W) 180lm/W Working Temperature(ºC) -40ºC - 60ºC CRI (Ra>) 90 Working Lifetime(Hour) 50000 Beam Angle 150*70° Working Mode Full Power and PIR Sensor Lighting Area 100m² Lighting Time Over 5 Nights Controller MPPT Back up Days 4 Days Maintenance 10 Years Free Maintenance Mounting Height 7m Transport Package Carten Specification 1593X450X45mm Trademark sunmaster Origin Zhejiang, China HS Code 9405409000 Production Capacity 1000PCS/Week

Product Description

1.Pre-assembled solar power street light ,easy installation.

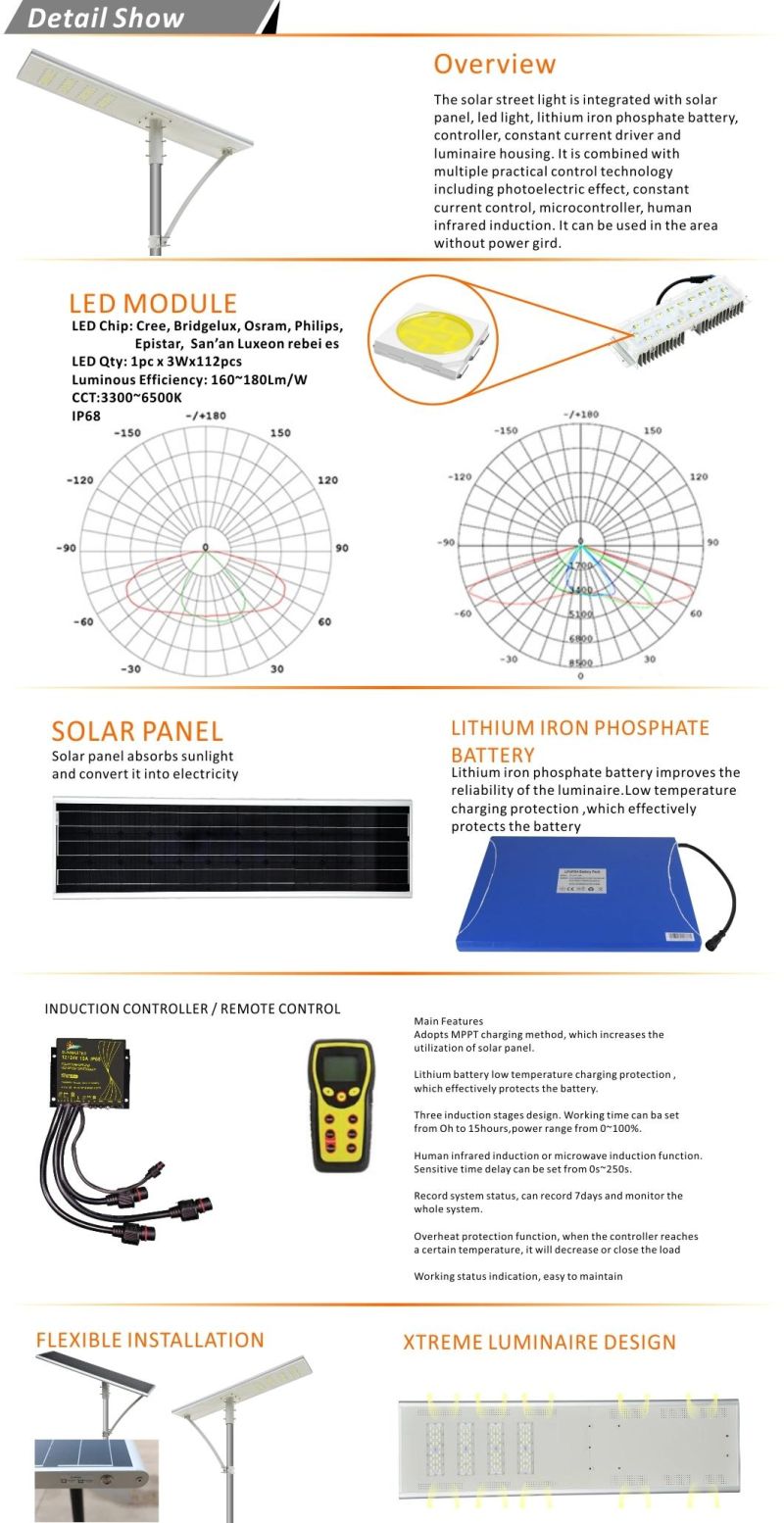

2.The solar lighting system consists of LED street lamp,solar panel,lithium battery,solar controller and lamp housing,OEM and customized production available
3.High efficiency monocrystalline solar cells to achieve more efficient photoelectric conversion.
4.Light pole made of hot dip galvanized steel,anti corossion,solid and reliable.

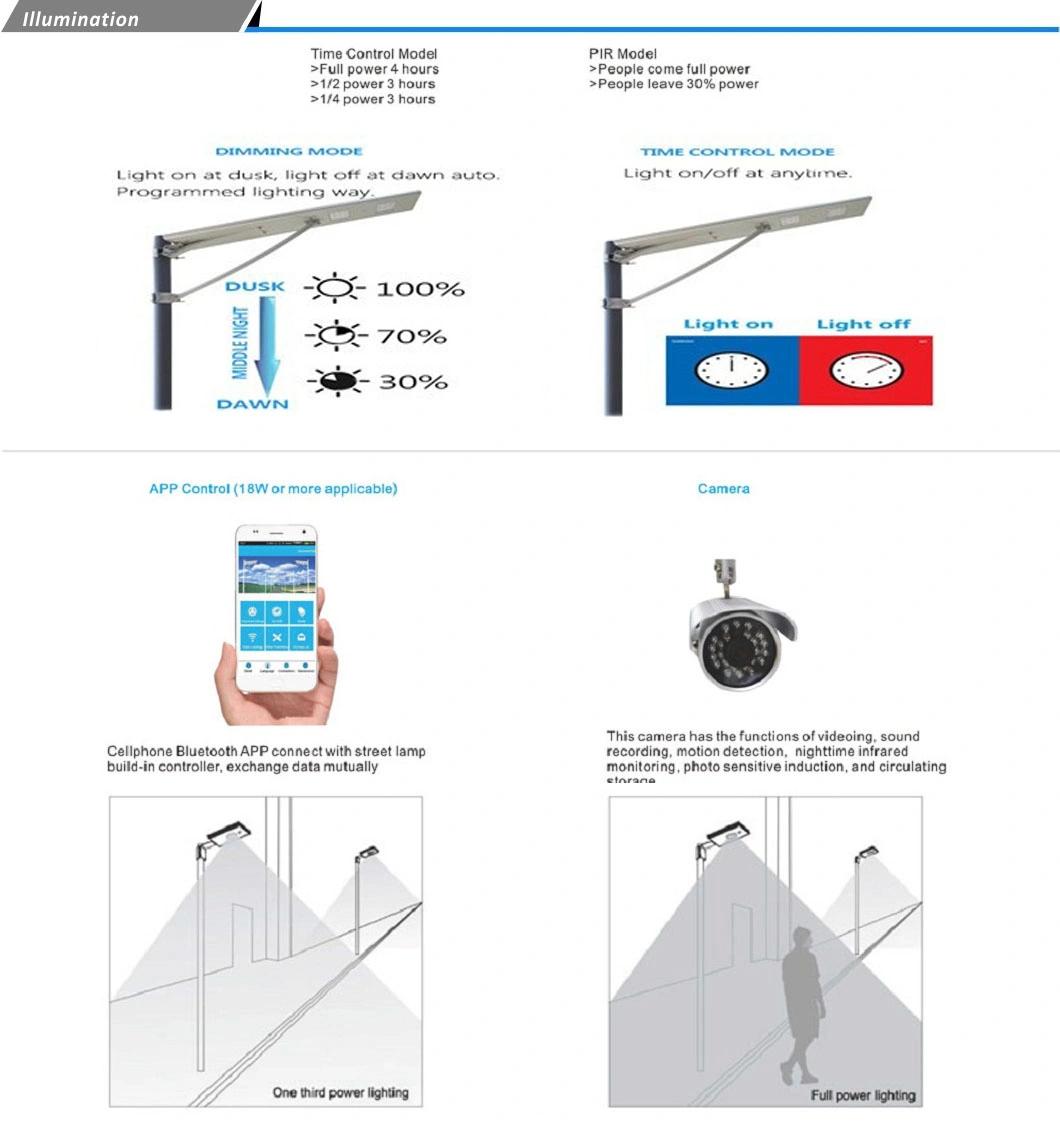

5.Intelligent light-control and time-control with motion sensor option.

Model NO.	SMLN-80W	Battery Type:	LiFePO4 26Ah/25.6V
Power:	80W	Charging Time:	6-10 hours
Color Temperature:	6000-6500K	Discharging Time:	10-12 hours
Certificate:	CE/ROHS/IP65	Product Dimension:	1593*450*45mm
Viewing Angle:	120	Packing Dimension:	1640*505*150mm
Working temperature :	,-20 ~ +70	Product Weight	24.2kg
Lamp Efficiency:	170 lm/w	Material:	Aluminum Alloy
Led chip brand:	USA  Bridgelux LED chip	Install Height:	9-12m
Solar Panel:	18V 120W Mono-crystalalline	Warranty:	3 years
