• Model NO.：SMLN-70W

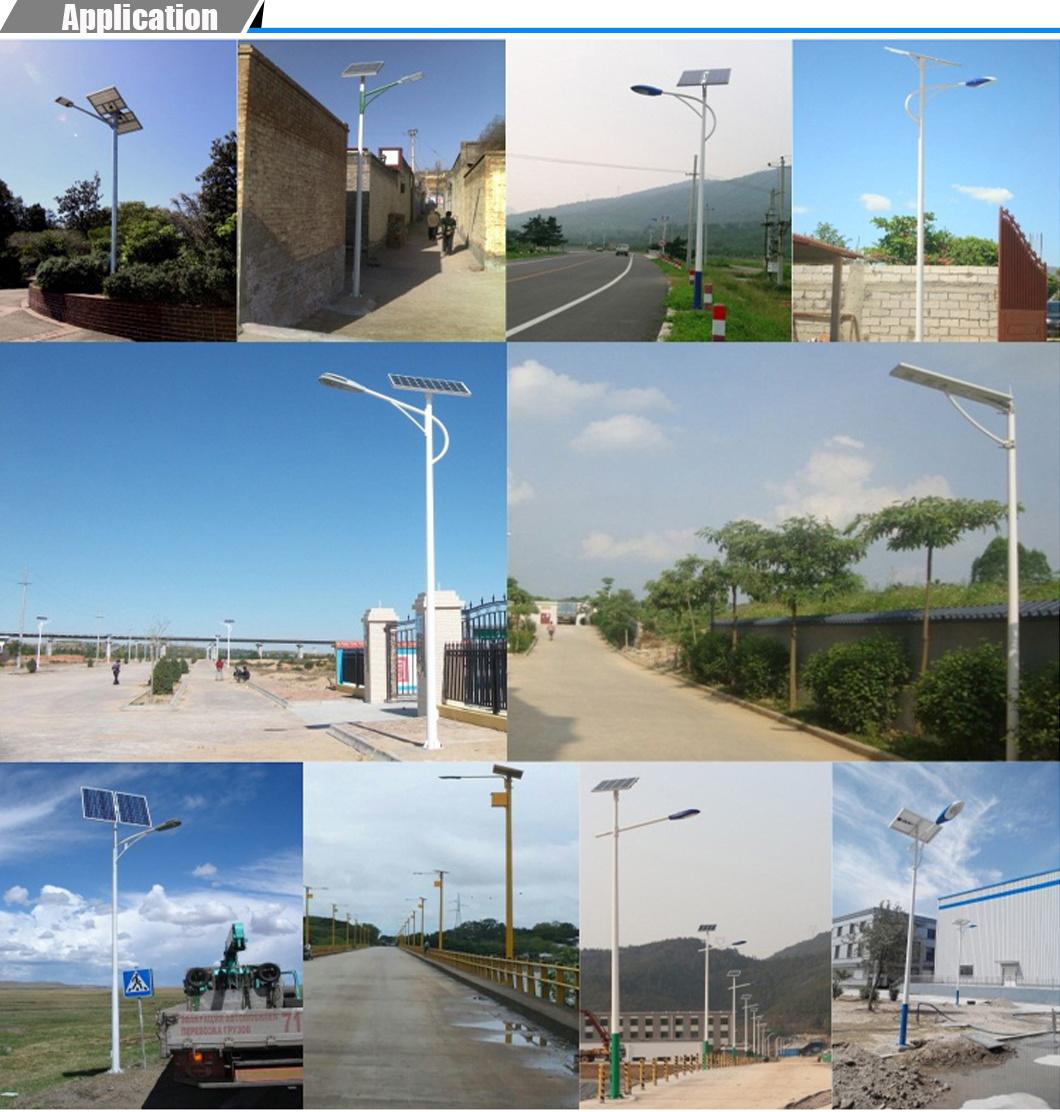

• Application：Highway, Square, Garden
• IP Rating：IP66
• Certification：CE, RoHS, ISO, FCC, EMC, GS
• Voltage：12V
• Approval：Ce,RoHS,Coc,IEC Soncap
• OEM/ODM/Customized：Available
• Warranty(Year)：5 Years
• Input Voltage(V)：DC12,24V
• Lamp Luminous Efficiency(Lm/W)：180lm,W
• Working Temperature(ºC)：-40ºC - 60ºC
• CRI (Ra>)：70
• Working Lifetime(Hour)：50000
• Beam Angle：145*100°

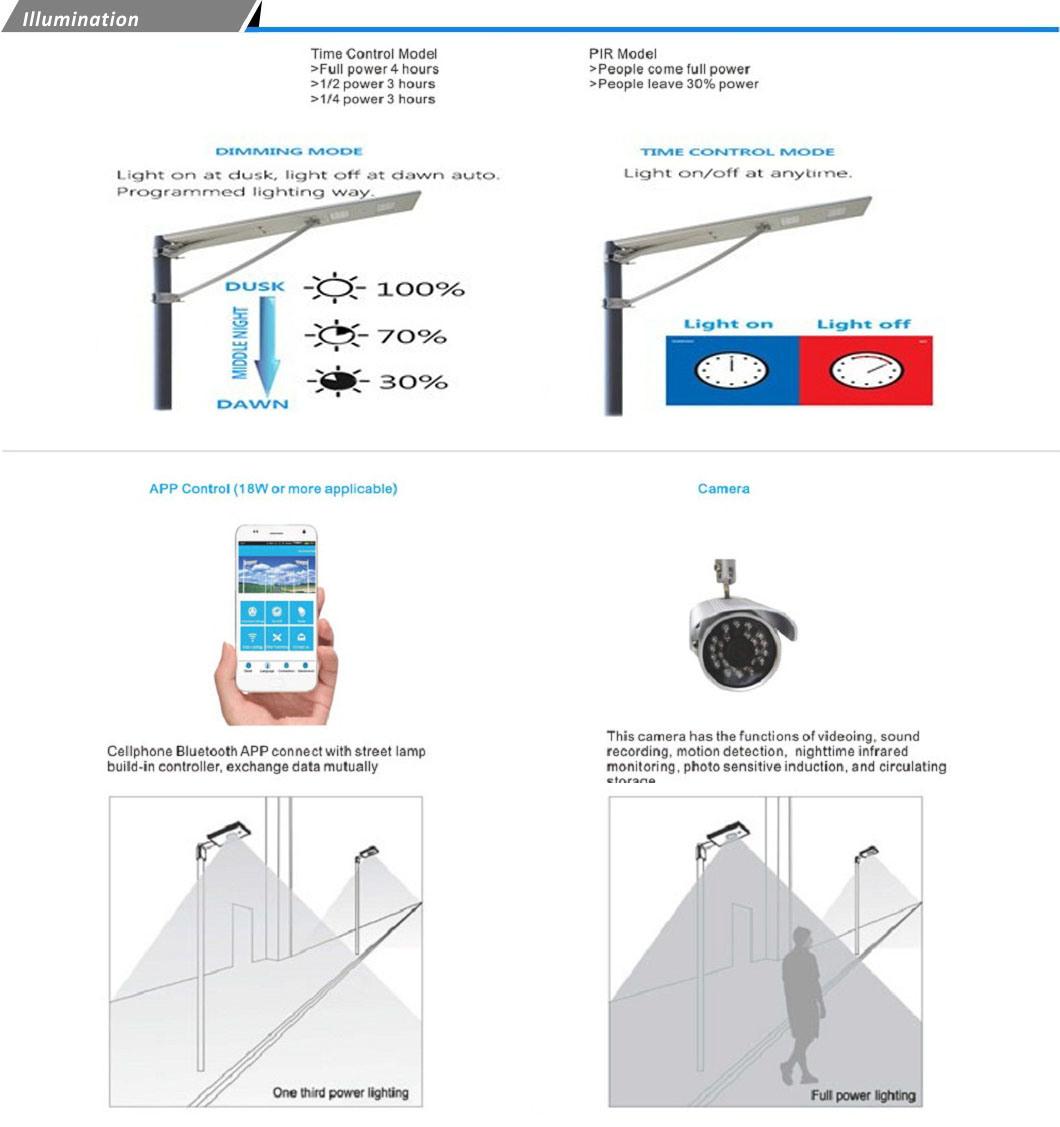

• Working Mode：Full Power and PIR Sensor
• Lighting Area：100m²
• Lighting Time：12 Hours
• Controller：Available
• Back up Days：3 Days
• Maintenance：9 Years Free Maintenance
• Transport Package：Carten
• Specification：1144X450X140mm
• Trademark：sunmaster
• Origin：Zhejiang, China
• HS Code：9405409000
• Production Capacity：1000PCS,Week

Basic Info.

Model NO. SMLN-70W Application Highway, Square, Garden IP Rating IP66 Certification CE, RoHS, ISO, FCC, EMC, GS Voltage 12V Approval Ce/RoHS/Coc/IEC Soncap OEM/ODM/Customized Available Warranty(Year) 5 Years Input Voltage(V) DC12/24V Lamp Luminous Efficiency(Lm/W) 180lm/W Working Temperature(ºC) -40ºC - 60ºC CRI (Ra>) 70 Working Lifetime(Hour) 50000 Beam Angle 145*100° Working Mode Full Power and PIR Sensor Lighting Area 100m² Lighting Time 12 Hours Controller Available Back up Days 3 Days Maintenance 9 Years Free Maintenance Transport Package Carten Specification 1144X450X140mm Trademark sunmaster Origin Zhejiang, China HS Code 9405409000 Production Capacity 1000PCS/Week

Product Description

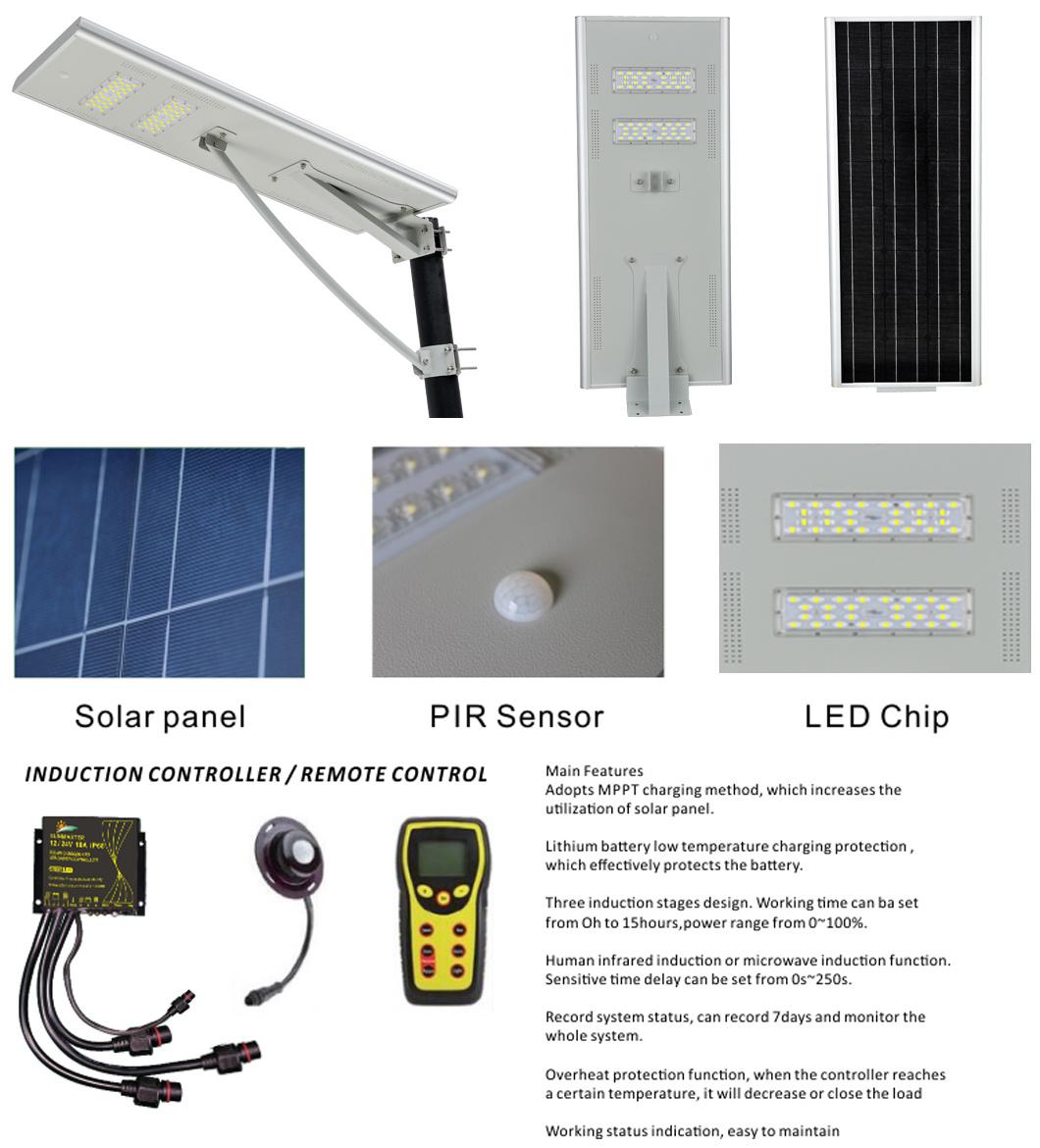

1.Super bright LED lamp,patent Integrated Design,IP66 Aluminum alloy case,plug and play waterproof connectors.
2. Mono crystalalline solar panel and LiFeP04 Lithium battery,easy installation.
3.lighting control and  time control with Intelligent  smart system.
4. to 5 days backup without sunshine.
5.Expandable components

Model NO.	SMLN-70W	Battery Type:	LiFePO4 45Ah/12.8V
Power:	70W	Charging Time:	6-10 hours
Color Temperature:	6000-6500K	Discharging Time:	10-12 hours
Certificate:	CE/ROHS/IP65	Product Dimension:	1144*450*470mm
Viewing Angle:	120	Packing Dimension:	1180*510*200mm
Working temperature :	,-20 ~ +70	Product Weight	22.2kg
Lamp Efficiency:	170 lm/w	Material:	Aluminum Alloy
Led chip brand:	USA  Bridgelux LED chip	Install Height:	7-9 m
Solar Panel:	18V 100W Mono-crystalalline	Warranty:	3 years
