• Model NO.：STL12-100W
• Illumination Time：12h
• Cell Type：Gel Battery
• Charging Time (H)：10
• Usage：Street
• IP Rating：IP67
• Certification：CE, RoHS
• Voltage：12,24V
• With Light Source：With Light Source
• Power Supply：Solar, Wind Power or Grid Power Hybrid Availabel
• Dim/Non-Dim：Both Can Do
• Approval：Ce,RoHS,Coc,IEC Soncap
• OEM/ODM/Customized：Available
• Warranty(Year)：10 Years
• Input Voltage(V)：DC12,24V
• Lamp Luminous Efficiency(Lm/W)：180lm,W
• Working Temperature(ºC)：′-40ºC - 60ºC
• CRI (Ra>)：75,80,85,90
• Mounting Height：3m 4m 5m 6m 7m
• LED Chip Brand：USA Bridgelux 210lm,W
• Lamp Luminous Flux(Lm)：180
• Distance Between Poles：10-15m
• Pole Height：7m From 5m To12m
• Controller：Automatic
• Transport Package：Carton,Plywood Box,Pallet,Bubblefilm,Woven Fabric
• Specification：A Grade
• Trademark：sunmaster
• Origin：Zhejiang, China
• HS Code：9405409000
• Production Capacity：3, 000PCS,Month

Basic Info.

Model NO. STL12-100W Illumination Time 12h Cell Type Gel Battery Charging Time (H) 10 Usage Street IP Rating IP67 Certification CE, RoHS Voltage 12/24V With Light Source With Light Source Power Supply Solar, Wind Power or Grid Power Hybrid Availabel Dim/Non-Dim Both Can Do Approval Ce/RoHS/Coc/IEC Soncap OEM/ODM/Customized Available Warranty(Year) 10 Years Input Voltage(V) DC12/24V Lamp Luminous Efficiency(Lm/W) 180lm/W Working Temperature(ºC) ′-40ºC - 60ºC CRI (Ra>) 75/80/85/90 Mounting Height 3m 4m 5m 6m 7m LED Chip Brand USA Bridgelux 210lm/W Lamp Luminous Flux(Lm) 180 Distance Between Poles 10-15m Pole Height 7m From 5m To12m Controller Automatic Transport Package Carton,Plywood Box,Pallet,Bubblefilm,Woven Fabric Specification A Grade Trademark sunmaster Origin Zhejiang, China HS Code 9405409000 Production Capacity 3, 000PCS/Month

Product Description

1.Support more than 10 rainy days with the best technology
2.210lm/W super bright led chip
3.3 Lighting Mode for choosing, motion sensor for energy saving.
4.Detachable design of battery pack and led chip,easy to maintenance.
5.Waterproof IP65.
6.Turn on at dusk and tun off at dawn automatically

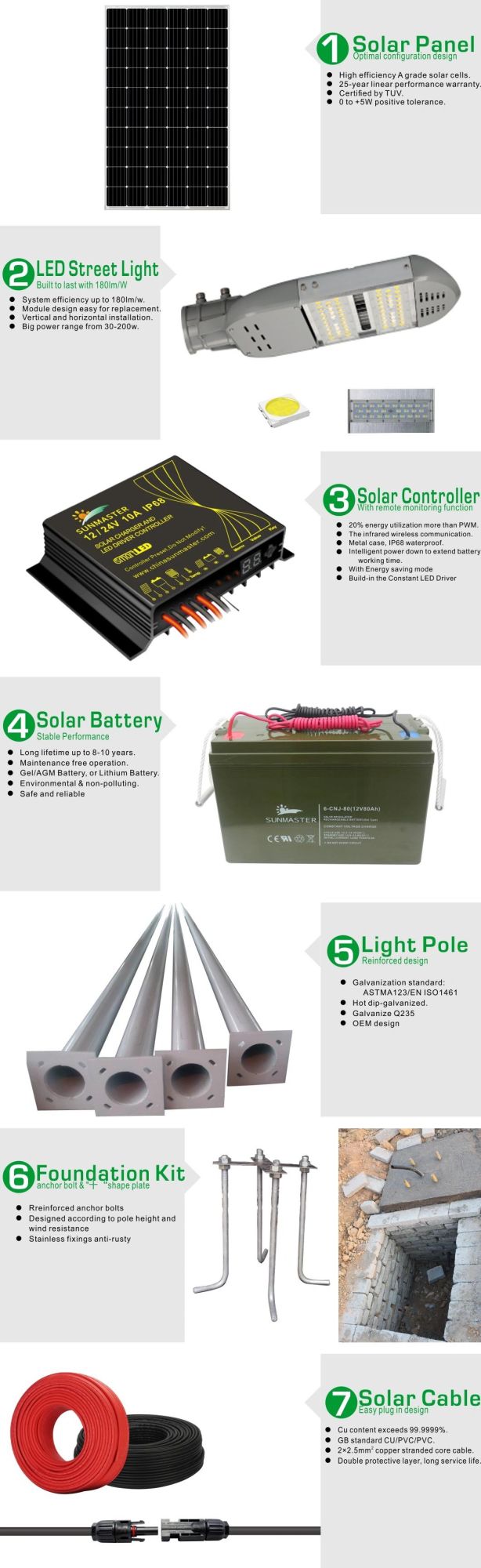

Specification

Lighting Time	10-14hrs/day(adjustable),3-7 rainy days back-up
Solar Panel	Poly solar panel 100W(optional)*1pcs,high efficiency,life span >25years 80% rated output power
Gel Battery	Capacity 80Ah/12v(optional)*1pcs,free maintenance,better weather-ability(-20ºC to +55ºC) Deep cycle 3500 times @ 30% DOD,low self discharge rate,life span>8 years
Solar Controller	MPPT/PWM,intelligent output power control,light on/off+time off,remote control,waterproof IP68 over-charge/discharge/over heat/over load/short circuit/anti-reverse protections,life span:>10 years
LED Lamp	LED power 40w,USA Bridgelux LED chip efficiency 200lm/w,Whole LED lamp efficiency 180lm/w, IP65 or higher,CRI>70Ra,C.T. 3000-6500k(optional),life span>100,000hrs
Light Pole	Q235 steel material,hot-dip galvanized and powder coating,equipped with lamp arm/solar panel mounting bracket/flange/fittings/foundation kit,wind resistance>150km/h,life span>20 years

Solar Battery Installtion Position

Working Mode

Product Benefits

Recommended configurations

Lamp	Pole	Solar Panel	GEL Battery	Lighting Space	Controller	Working Hours	Backup
20w	3-4m	50w*1pcs	40Ah*1pcs	>12m	MPPT	10-14 hours	3-5days
30w	4-5m	80w*1pcs	60Ah*1pcs	>14m	MPPT	10-14 hours	3-5days
40w	5-6m	100w*1pcs	80Ah*1pcs	>15m	MPPT	10-14hours	3-5 days
50w	6-7m	120w*1pcs	50Ah*2pcs	>17m	MPPT	10-14 hours	3-5days
60w	7-8m	150w*1pcs	60Ah*2pcs	>20m	MPPT	10-14 hours	3-5 days
70w	7-8m	180w*1pcs	70Ah*2pcs	>22m	MPPT	10-14 hours	3-5 days
80w	8-9m	200w*1pcs	80Ah*2pcs	>24m	MPPT	10-14 hours	3-5 days
90w	8-9m	120w*2pcs	90Ah*2pcs	>24m	MPPT	10-14 hours	3-5 days
100w	9-10m	130w*2pcs	100Ah*2pcs	>27m	MPPT	10-14 hours	3-5 days
120w	10-11m	150w*2pcs	120Ah*2pcs	>30m	MPPT	10-14 hours	3-5 days
140w	11-12m	180w*2pcs	140Ah*2pcs	>33m	MPPT	10-14 hours	3-5 days
150w	11-12m	200w*2pcs	150Ah*2pcs	>33m	MPPT	10-14 hours	3-5 days
180w	12-13m	250w*2pcs	180Ah*2pcs	>35m	MPPT	10-14 hours	3-5 days
200w	12-13m	280w*2pcs	200Ah*2pcs	>35m	MPPT	10-14 hours	3-5 days

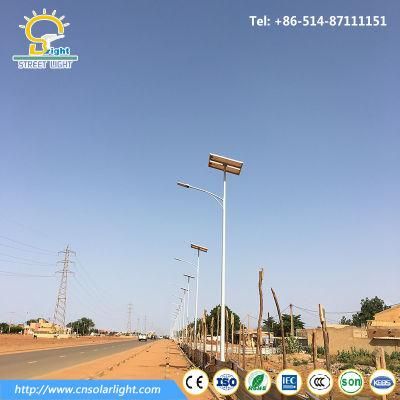

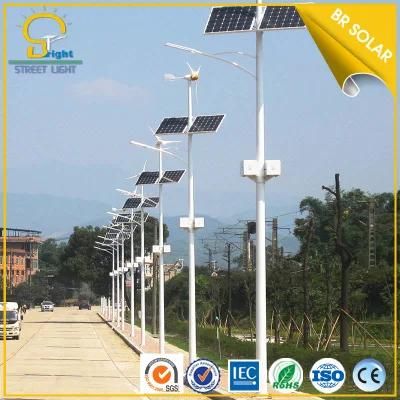

Project Case
