• Model NO.：STL12-42W
• Illumination Time：12h
• Cell Type：Gel Battery
• Charging Time (H)：10
• Usage：Street
• IP Rating：IP67
• Certification：CE, RoHS
• Voltage：12,24V
• With Light Source：With Light Source
• OEM/ODM/Customized：Available
• Warranty(Year)：10 Years
• Input Voltage(V)：DC12,24V
• Lamp Luminous Efficiency(Lm/W)：180lm,W
• Working Temperature(ºC)：-40ºC - 60ºC
• CRI (Ra>)：75,80,85,90
• Working Lifetime(Hour)：10000
• Solar Panel：110W*2PCS
• Battery：Lead Battery
• Working Mode：Full Power and Motion Sensor
• Pole：Q235
• Lighting Area：100m2
• Lighting Time：12 Hours
• LED Chip Brand：USA Bridgelux 210lm,W
• Controller：Automatic
• Transport Package：Carton,Plywood Box,Pallet,Bubble Film,Woven Fabric
• Specification：A Grade
• Trademark：sunmaster
• Origin：Zhejiang, China
• HS Code：9405409000
• Production Capacity：3, 000PCS,Month

Basic Info.

Model NO. STL12-42W Illumination Time 12h Cell Type Gel Battery Charging Time (H) 10 Usage Street IP Rating IP67 Certification CE, RoHS Voltage 12/24V With Light Source With Light Source OEM/ODM/Customized Available Warranty(Year) 10 Years Input Voltage(V) DC12/24V Lamp Luminous Efficiency(Lm/W) 180lm/W Working Temperature(ºC) -40ºC - 60ºC CRI (Ra>) 75/80/85/90 Working Lifetime(Hour) 10000 Solar Panel 110W*2PCS Battery Lead Battery Working Mode Full Power and Motion Sensor Pole Q235 Lighting Area 100m2 Lighting Time 12 Hours LED Chip Brand USA Bridgelux 210lm/W Controller Automatic Transport Package Carton,Plywood Box,Pallet,Bubble Film,Woven Fabric Specification A Grade Trademark sunmaster Origin Zhejiang, China HS Code 9405409000 Production Capacity 3, 000PCS/Month

Product Description

1.Support more than 10 rainy days with the best technology
2.210lm/W super bright led chip
3. 3 Lighting Mode for choosing, motion sensor for energy saving.
4. Detachable design of battery pack and led chip,easy to maintenance.
5 Waterproof IP65.
6 Turn on at dusk and tun off at dawn automatically.

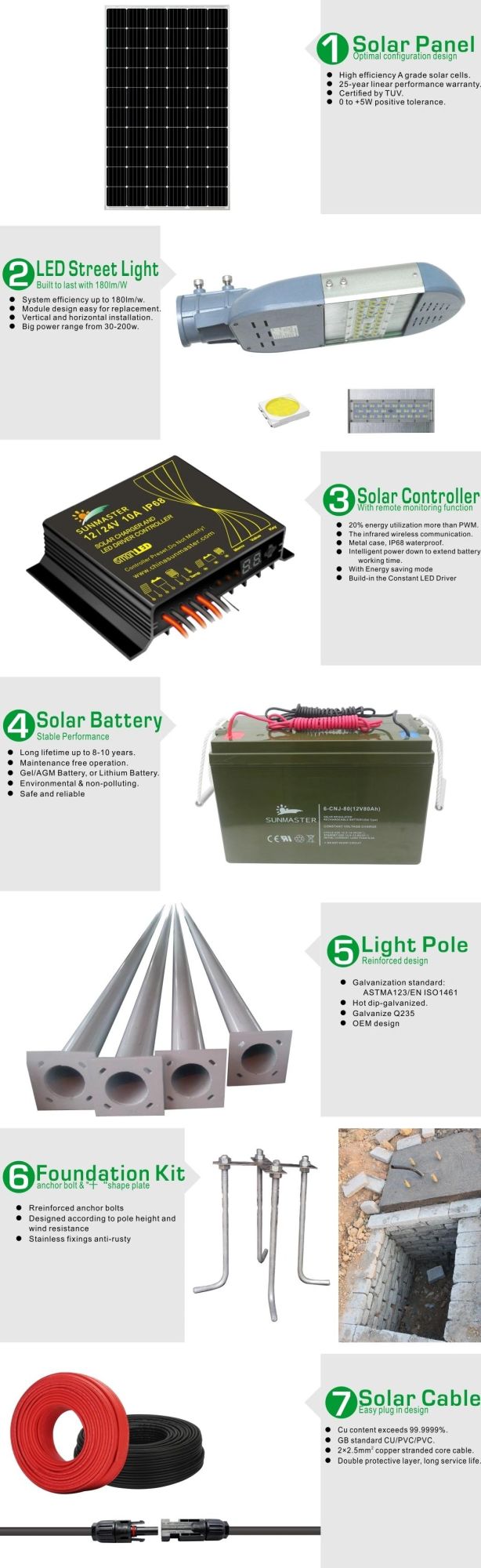

Specification

Lighting Time	10-14hrs/day(adjustable),3-7 rainy days back-up
Solar Panel	Poly solar panel 150W(optional)*2pcs,high efficiency,life span >25years 80% rated output power
Gel Battery	Capacity 120Ah/12v(optional)*2pcs,free maintenance,better weather-ability(-20ºC to +55ºC) Deep cycle 3500 times @ 30% DOD,low self discharge rate,life span>8 years
Solar Controller	MPPT/PWM,intelligent output power control,light on/off+time off,remote control,waterproof IP68 over-charge/discharge/over heat/over load/short circuit/anti-reverse protections,life span:>10 years
LED Lamp	LED power 120w,USA Bridgelux LED chip efficiency 200lm/w,Whole LED lamp efficiency 180lm/w, IP65 or higher,CRI>70Ra,C.T. 3000-6500k(optional),life span>100,000hrs
Light Pole	Q235 steel material,hot-dip galvanized and powder coating,equipped with lamp arm/solar panel mounting bracket/flange/fittings/foundation kit,wind resistance>150km/h,life span>20 years

Solar Battery Installtion Position

Working Mode

Product Benefits

Recommended configurations

Lamp	Pole	Solar Panel	GEL Battery	Lighting Space	Controller	Working Hours	Backup
20w	3-4m	50w*1pcs	40Ah*1pcs	>12m	MPPT	10-14 hours	3-5days
30w	4-5m	80w*1pcs	60Ah*1pcs	>14m	MPPT	10-14 hours	3-5days
40w	5-6m	100w*1pcs	80Ah*1pcs	>15m	MPPT	10-14hours	3-5 days
50w	6-7m	120w*1pcs	50Ah*2pcs	>17m	MPPT	10-14 hours	3-5days
60w	7-8m	150w*1pcs	60Ah*2pcs	>20m	MPPT	10-14 hours	3-5 days
70w	7-8m	180w*1pcs	70Ah*2pcs	>22m	MPPT	10-14 hours	3-5 days
80w	8-9m	200w*1pcs	80Ah*2pcs	>24m	MPPT	10-14 hours	3-5 days
90w	8-9m	120w*2pcs	90Ah*2pcs	>24m	MPPT	10-14 hours	3-5 days
100w	9-10m	130w*2pcs	100Ah*2pcs	>27m	MPPT	10-14 hours	3-5 days
120w	10-11m	150w*2pcs	120Ah*2pcs	>30m	MPPT	10-14 hours	3-5 days
140w	11-12m	180w*2pcs	140Ah*2pcs	>33m	MPPT	10-14 hours	3-5 days
150w	11-12m	200w*2pcs	150Ah*2pcs	>33m	MPPT	10-14 hours	3-5 days
180w	12-13m	250w*2pcs	180Ah*2pcs	>35m	MPPT	10-14 hours	3-5 days
200w	12-13m	280w*2pcs	200Ah*2pcs	>35m	MPPT	10-14 hours	3-5 days

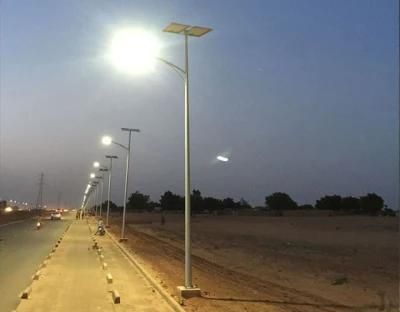

Project Case
