• Model NO.：RPLT-6800
• Operating Voltage：DC 48V
• Lamp Power：7-8kw
• Engine Brand：Kubota D1105-Bg 3 Cyclinders, in Line Water Cooled
• Prime Power：50Hz,60Hz
• Engine Speed：1500rpm,1800rpm
• Voltage：DC 48V
• Fuel Consumption：2.0L,Hr)(100litres,Tank
• Total Power of Lamps：4X1000W Metal Halide Lamps
• Control Panel：Gu3303 Digital Controller
• Transport Package：Plywood Pallet,Plwood Case,Cartons
• Specification：4500X1350X1700mm
• Trademark：Robust Power
• Origin：China
• HS Code：94054090
• Production Capacity：300set,Month

Technical specificationsGenerator EngineKubota D1105-BG DieselEngine Type 3 cylinders,in line,water cooledPrime Power6.7kW / 50Hz     8.4kW/60HzEngine AspirationNaturalAlternatorStamford PI044F/4pole,Brushless,excitationVoltage120,220,230,240VInsulationHFuel Tank Capicity(L)100 LFuel Consumption2.0 L/hMaximum Working Hours50hrsControl systemGU3303 Digital controllerEngine Shutdown ProtectionLow oil press,over speed,over current,high temperature  detection,low fuel levelAyxiliary Sockets2Lighting Total Power Of Lamps4x1000W or 4x1500WType Of LampMetal halide lampHousing MaterialsGalvanization Reflector HousingLumen4*110,000Lifetime Of Lamp5000 hoursWorking Temperature≤85°CConnection Protection IndexIP54Mast Type6-Sections Telescoping mast 8MTotal HeightTop 8MRotation360 degrees Operate For ElevationHydraulicTrailer  Tow HitchRing/ball hitchStabilier Supports4*Manual 4*HydraulicTire Size13 inchBrakesManualDIMENSION & WEIGHTDry/Net Weight930/890 kgExtended Dimension(LxWxH)4500*1350*1700mmShipping PackageIron Pallet 2100*1300*2400mm Carton 520*520*400mmContainer Load(20GP/40HQ)6/12 setsColorWhite/Yellow/Optional

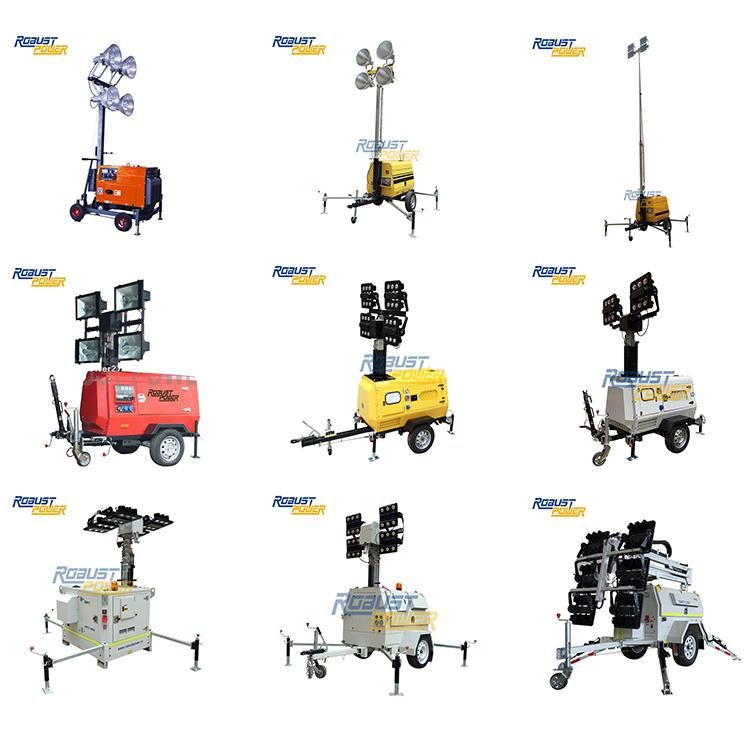

No.	Model	Mast	Power of Lamps	Engine Model
1	RPLT1600	4.8M Manual	4*400W Metal Halide Lamp	RP186FA
2	RPLT1600	4.8M Manual	4*160W LED	RP186FA
3	RPLT1600	4.8M Manual	2*1000W Metal Halide Lamp	RP186FA
4	RPLT6000	9M Manual	4*1000W Metal Halide Lamp	Kubota D1105 (Japan)
5	RPLT6000	9M Manual	4*240W LED	Kubota D905 (Japan)
6	RPLT6800	8.6M Hydraulic	4*1000W Metal Halide Lamp	Kubota D1105 (Japan)
7	RPLT6800	8.6M Hydraulic	4*1500W Metal Halide Lamp	Kubota D1105 (Japan)
8	RPLT6800	8.6M Hydraulic	4*480W LED	Kubota D905 (Japan)
9	RPLT3800	7M Hydraulic	4*480W LED	Kubota Z482 (Japan)
10	RPLT6900	8.5M Hydraulic	4*480W LED	Kubota D1105 (Japan)
11	RPLT7200	10M Hydraulic	6*480W LED	Kubota D1105 (Japan)
12	RPLT7200	10M Hydraulic	4*720W LED	Kubota D1105 (Japan)
13	RPLT7600	9M Hydraulic	6*480W LED	Kubota D1105 (Japan)
14	RPLT7600	9M Hydraulic	4*720W LED	Kubota D1105 (Japan)
