Australian 150m Lighting Coverage Radius Movable Heavy-Duty Light Tower

Fujian Robust Power Co., Ltd.
  • Tower Warranty:1 Year
  • Usage:Construction and Mining
  • Using Condition:Trailer Type
  • Frequency:50-60Hz
  • Certification:ISO,Ce,SAA
  • Genset Power:2.2kw

Base Info

  • Model NO.:RPLT-7200
  • Material:LED Lamps
  • Cooling Method:Water Cooled
  • Transport Package:Iron Pallet , Plywood Case , Cartons
  • Specification:3620*1660*2300mm
  • Trademark:Robust Power
  • Origin:China
  • HS Code:9405409000
  • Production Capacity:300sets,Month

Description

Australian 150m Lighting Coverage Radius Movable Heavy-Duty Light Tower
 Mast Maximum extension of mast:10MElevation:HydraulicRaising/lowing mast: HydraulicStages:4Turning angle:±135 degreeLamp Total power of lamp:6x480WType of lamp: LED Lighting capacity:6x261000lumenVoltage:48VDC Frequency: 50Hz/60HzLifetime of lamp:30000hoursWorking temperature:<45ºCConnection protection index:IP65Light coverage:5 to 7 acresGenerator Model:3 cylinder, liquid cooled or

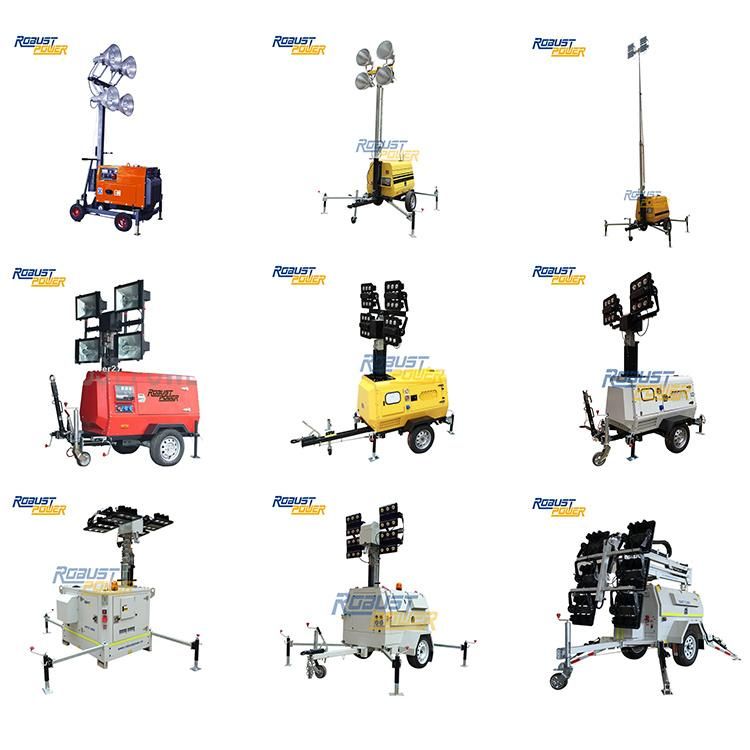

2 cylinder, liquid cooledPower Generation:5KW/4KW Continuous (DC)Engine model:Kubota D905 or Kubota Z482Engine speed:50Hz 1500rpm    60Hz 1800rpmEngine type:3 cylinder,in line,water-cooledEngine aspiration:NaturalAlternator:48DC,brushless,self excitation Fuel tank capacity:270LFuel Consumption:1.0 L/Hr or 0.9 L/HrTrailerHeavy duty manual stabiliser legs: 4 legs600mm fold away tow bar for transporting: yes Tire Size: 16inchDimension & weight Retracted Dimension:3100mm x 1852mm x 2440mmNet weight:1750Kg Unit price:USD$26215 FOB Fuzhou ChinaNo.ModelMastPower of LampsEngine Model1RPLT16004.8M Manual4*400W Metal Halide LampRP186FA2RPLT16004.8M Manual4*160W LEDRP186FA3RPLT16004.8M Manual2*1000W Metal Halide LampRP186FA4RPLT60009M Manual 4*1000W Metal Halide LampKubota D1105 (Japan)5RPLT60009M Manual 4*240W LED Kubota D905 (Japan)6RPLT68008.6M Hydraulic4*1000W Metal Halide LampKubota D1105 (Japan)7RPLT68008.6M Hydraulic4*1500W Metal Halide LampKubota D1105 (Japan)8RPLT68008.6M Hydraulic4*480W LED Kubota D905 (Japan)9RPLT38007M Hydraulic4*480W LED Kubota Z482 (Japan)10RPLT69008.5M Hydraulic4*480W LED Kubota D1105 (Japan)11RPLT720010M Hydraulic6*480W LED Kubota D1105 (Japan)12RPLT720010M Hydraulic4*720W LED Kubota D1105 (Japan)13RPLT76009M Hydraulic6*480W LED Kubota D1105 (Japan)14RPLT76009M Hydraulic4*720W LED Kubota D1105 (Japan)

Australian 150m Lighting Coverage Radius Movable Heavy-Duty Light TowerAustralian 150m Lighting Coverage Radius Movable Heavy-Duty Light TowerAustralian 150m Lighting Coverage Radius Movable Heavy-Duty Light Tower

Factory Introduction

Brief Introduction:

Fujian Robust Power Co., Ltd. was established in 2007. During 10 years, with a strong research and development team, strictly quality control system and high manufacturing capability, as well as in-depth knowledge of customer requirements, we become one of the favorite suppliers in the market.

Our main products include Mobile Lighting Tower, Generator Set, LED Light. All steps from raw materials to procurement, production, testing, sales and after-sales service are under a very strict quality monitoring system.

Our Company occupies an area of 23,000 square meters. Have more than 100 staffs. There are 3 advanced production lines in the working shop.

See below what we can offer:

1. Strong R&D team, package, and graphics design.

2. Certifications: ISO9002:2000,CE,SGS,SAA,anti-wind testing,46 patients.

                             Verified on site by world-leading inspection company, TüV Rheinland.

3. 10 QC staff and a line of advanced testing equipment to further ensure quality.

4. Production capacity: 300 unit products per month.

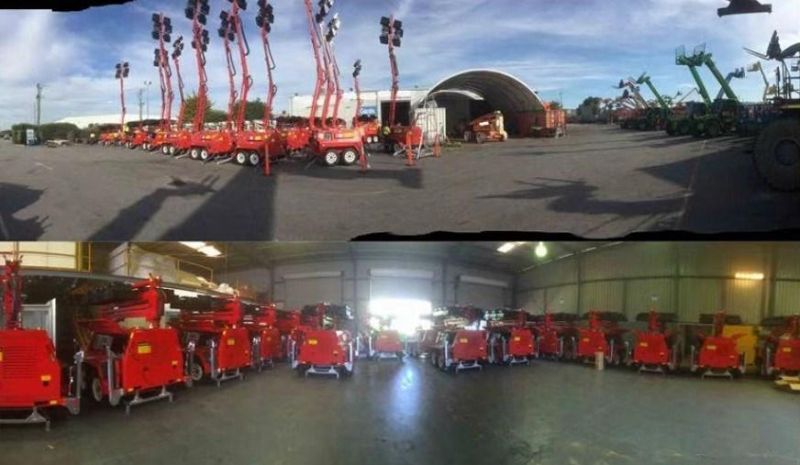

5. Australia branch: Set up a branch, stock and supply spare parts in Australia in 2004.

6. Responses within 12 hours for all your inquiries.
