• Model NO.：QC-floodlight-001-020
• Technics：Machine Production
• Usage：Garden, Street, Irport, Seaport, Plaza, Stadium
• IP Rating：IP65
• Certification：CE, RoHS
• Voltage：220V
• With Light Source：With Light Source
• Size：Customized
• Electric Lift System：Yes
• Section：2 or 3
• Joint Method：Inserting Mode or Flange
• Transport Package：Bulk in Felt by Container
• Specification：15m-45m
• Trademark：qichuang
• Origin：Jiangsu
• HS Code：9405409000
• Production Capacity：50000

Basic Info.

Model NO. QC-floodlight-001-020 Technics Machine Production Usage Garden, Street, Irport, Seaport, Plaza, Stadium IP Rating IP65 Certification CE, RoHS Voltage 220V With Light Source With Light Source Size Customized Electric Lift System Yes Section 2 or 3 Joint Method Inserting Mode or Flange Transport Package Bulk in Felt by Container Specification 15m-45m Trademark qichuang Origin Jiangsu HS Code 9405409000 Production Capacity 50000

Product Description

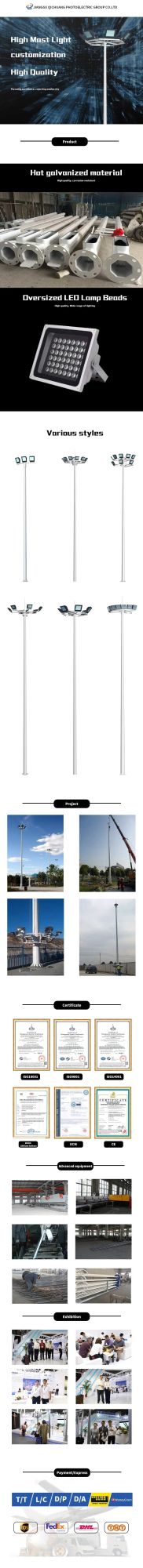

Hot dip Galvanized Steel Stadium High Mast Light Pole with Flood Light


Product Parameters
The pole is made of high quality material steel Q235 and the weld is smooth. Galvanization by inside and outside hot dip galvanizing. 15 years no rust.

height:4m wall thickness:2.5mm               diameter:φ60/φ120 material:steel Q235 Hot-dip galvanizing:80μm plastic spraying layer:100μm flange plate:240mm*240mm*14mm lumbar type hole:24mm*50mm lamp arm:φ48mm*2.0mm*1m Solar panel support:20mm*30mm*1.5mm	height:5m Wall thickness:2.5mm                diameter:φ60/φ140 material:steel Q235 Hot-dip galvanizing:80μm plastic spraying layer:100μm flange plate:260mm*260mm*14mm lumbar type hole:24mm*50mm lamp arm:φ48mm*2.0mm*1m Solar panel support:20mm*30mm*1.5mm
height:6m wall thickness:3mm                  diameter:φ60/φ180 material:steel Q235 Hot-dip galvanizing:80μm plastic spraying layer:100μm flange plate:260mm*260mm*16mm lumbar type hole:24mm*50mm lamp arm:φ60mm*2.0mm*1.2m Solar panel support:20mm*30mm*1.5mm	height:7m wall thickness:3mm                  diameter:φ60/φ180 material:steel Q235 Hot-dip galvanizing:80μm plastic spraying layer:100μm flange plate:280mm*280mm*16mm lumbar type hole:24mm*50mm lamp arm:φ60mm*2.0mm*1.2m Solar panel support:20mm*30mm*1.5mm
height:8m wall thickness:3.5mm                diameter:φ80/φ180 material:steel Q235 Hot-dip galvanizing:80μm plastic spraying layer:100μm flange plate:280mm*280mm*16mm lumbar type hole:24mm*50mm lamp arm:φ60mm*3.0mm*1.5m Solar panel support:20mm*30mm*1.5mm	height:9m wall thickness:4mm                  diameter:φ80/φ180 material:steel Q235 Hot-dip galvanizing:80μm plastic spraying layer:100μm flange plate:300mm*300mm*16mm lumbar type hole:24mm*50mm lamp arm:φ60mm*3.0mm*1.5m Solar panel support:20mm*30mm*1.5mm
height:10m wall thickness:4mm                  diameter:φ80/φ200 material:steel Q235 Hot-dip galvanizing:80μm plastic spraying layer:100μm flange plate:300mm*300mm*18mm lumbar type hole:24mm*50mm lamp arm:φ60mm*3.0mm*1.5m Solar panel support:20mm*30mm*1.5mm	height:11m wall thickness:4.5mm               diameter:φ80/φ210 material:steel Q235 Hot-dip galvanizing:80μm plastic spraying layer:100μm flange plate:350mm*350mm*18mm lumbar type hole:24mm*50mm lamp arm:φ60mm*3.0mm*1.8m Solar panel support:20mm*30mm*1.5mm
height:12m wall thickness:4.5mm                diameter:φ80/φ220 material:steel Q235 Hot-dip galvanizing:80μm plastic spraying layer:100μm flange plate:350mm*350mm*20mm lumbar type hole:24mm*50mm lamp arm:φ60mm*3.0mm*1.8m Solar panel support:20mm*30mm*1.5mm	height:13m wall thickness:4.5mm                diameter:φ90/φ240 material:steel Q235 Hot-dip galvanizing:80μm plastic spraying layer:100μm flange plate:400mm*400mm*20mm lumbar type hole:24mm*50mm lamp arm:φ60mm*3.0mm*1.8m Solar panel support:20mm*30mm*1.5mm
height:14m wall thickness:5.0mm               diameter:φ90/φ240 material:steel Q235 Hot-dip galvanizing:80μm plastic spraying layer:100μm flange plate:450mm*450mm*22mm lumbar type hole:24mm*50mm lamp arm:φ60mm*3.0mm*1.8m Solar panel support:20mm*30mm*1.5mm
