• Model NO.：SMLN-20W
• Color Temperature：Cool White
• Power：20W
• Technics：Die Cast
• Illumination Time：12h
• Cell Type：LiFePO4 Lithium
• Charging Time (H)：10

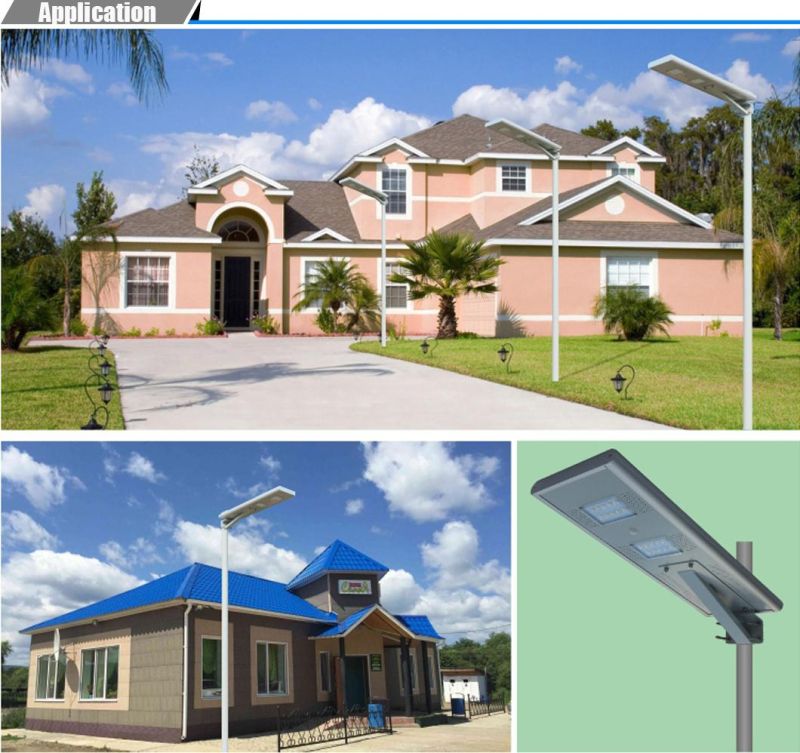

• Usage：Garden, Street, out Door Court,Road
• IP Rating：IP65
• Certification：CE, RoHS, IEC Soncap
• Voltage：12,24V
• With Light Source：With Light Source
• Lamp Luminous Flux(Lm)：3600
• Distance Between Poles：9-14m
• Pole Height：9m
• Solar Panel：Mono or Poly High Efficiency A Grade
• Dim/Non-Dim：Both Can Do
• Approval：Ce,RoHS,Coc,IEC Soncap
• LED Chip Brand：USA Bridgelux 210lm,W
• Mounting Height：6m
• Maintenance：8 Years Free Maintenance
• Back up Days：7 Days
• Controller：Light+ Time Control
• Lighting Time：Over 3 Nights
• OEM/ODM/Customized：Available
• Warranty(Year)：10 Years
• Input Voltage(V)：DC12,24V
• Transport Package：Carton, Pallet
• Specification：710X405X75mm
• Trademark：Sunmaster
• Origin：Zhejiang, China
• HS Code：9405409000
• Production Capacity：200000
• Package size per unit product：110.00cm * 50.00cm * 20.00cm
• Gross weight per unit product：3200.000kg

Basic Info.

Model NO. SMLN-20W Color Temperature Cool White Power 20W Technics Die Cast Illumination Time 12h Cell Type LiFePO4 Lithium Charging Time (H) 10 Usage Garden, Street, out Door Court,Road IP Rating IP65 Certification CE, RoHS, IEC Soncap Voltage 12/24V With Light Source With Light Source Lamp Luminous Flux(Lm) 3600 Distance Between Poles 9-14m Pole Height 9m Solar Panel Mono or Poly High Efficiency A Grade Dim/Non-Dim Both Can Do Approval Ce/RoHS/Coc/IEC Soncap LED Chip Brand USA Bridgelux 210lm/W Mounting Height 6m Maintenance 8 Years Free Maintenance Back up Days 7 Days Controller Light+ Time Control Lighting Time Over 3 Nights OEM/ODM/Customized Available Warranty(Year) 10 Years Input Voltage(V) DC12/24V Transport Package Carton, Pallet Specification 710X405X75mm Trademark Sunmaster Origin Zhejiang, China HS Code 9405409000 Production Capacity 200000

Packaging & Delivery

Package size per unit product 110.00cm * 50.00cm * 20.00cm Gross weight per unit product 3200.000kg

Product Description

1.3- 5 rainy /cloudy days backup

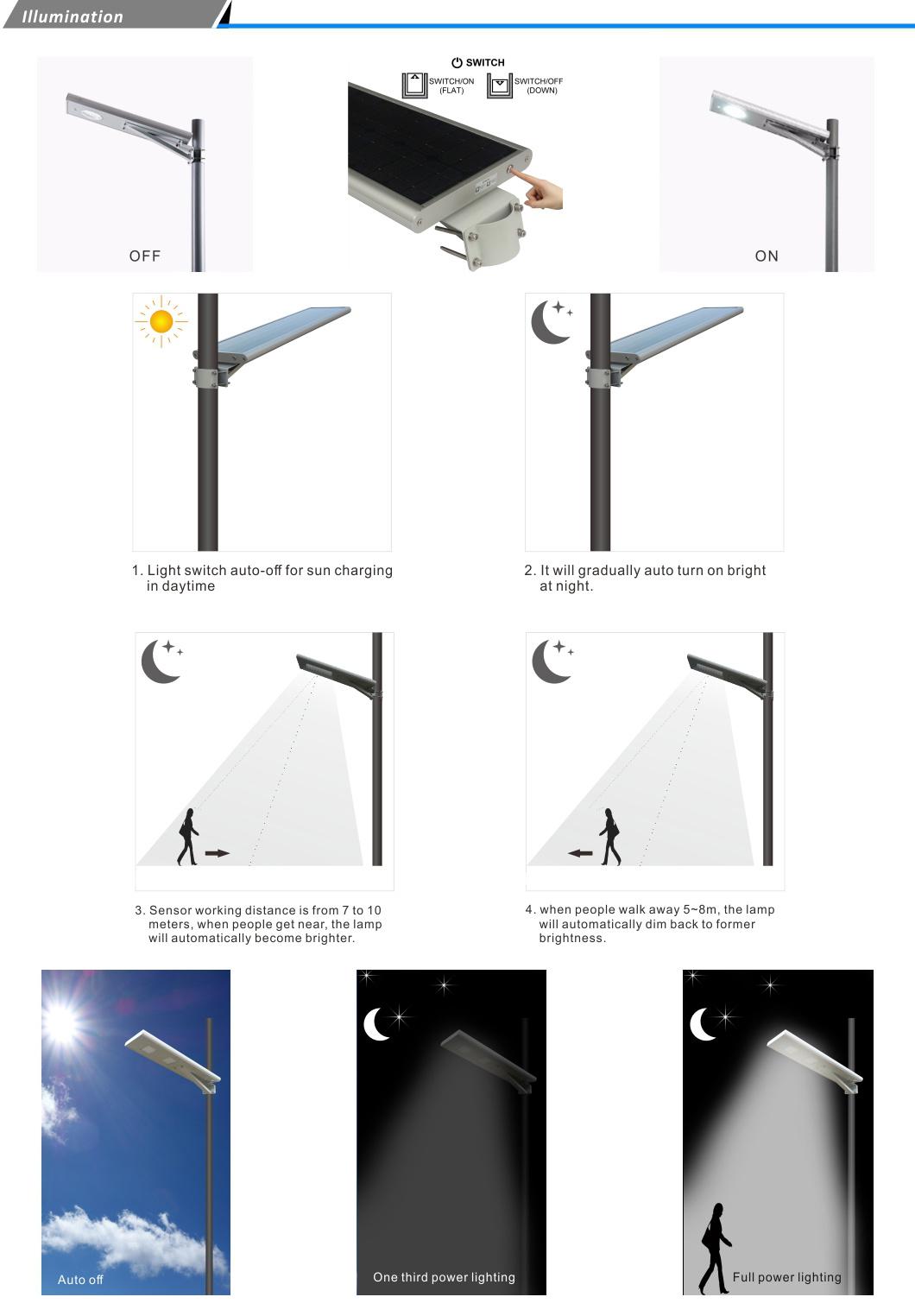

2.Dusk-to-Dawn 12 hours with dim energy saving mode
3.Lighting times can be individually adjusted with program switch.
4.Illuminance in operation depending on local site conditions (average daylight available) and customer-specific lighting times.

Model NO.	SMLN-20W	Battery Type:	LiFePO4 18Ah/12.8V
Power:	20W	Charging Time:	6-10 hours
Color Temperature:	6000-6500K	Discharging Time:	10-12 hours
Certificate:	CE/ROHS/IP65	Product Dimension:	710*405*75mm
Viewing Angle:	120	Packing Dimension:	750*450*120mm
Working temperature :	,-20 ~ +70ºC	Product Weight	12KG
Lamp Efficiency:	170 lm/w	Material:	Aluminum Alloy
Led chip brand:	USA  Bridgelux LED chip	Install Height:	5-6 m
Solar Panel:	18V 50W Mono-crystalalline	Warranty:	3 years
