• Model NO.：HW-SL45W LED
• Illumination Time：12h
• Cell Type：Gel Battery
• Charging Time (H)：10
• Usage：Garden, Street, Road
• IP Rating：IP65
• Certification：CE, RoHS
• Voltage：DC24V
• With Light Source：With Light Source
• LED Quantity：45PCS, 1W,PC
• LED Brightness：Not Less Than 120lm,W
• LED Chip Brand：Epistar, CREE or Bridgelux
• LED Colour Temperature：5500-6500k for Choice
• Solar Panel Type：Mono or Polycrystalline
• Solar Controller：IP68 Waterproof and Intelligent
• Proposed Light Pole：8-9 Meters
• Light Pole Material：Q235 Quality Steel
• Light Pole Treatment：Hot Dipped Galvanized & Coated
• Transport Package：Standard Package
• Specification：8-9M 45W LED
• Trademark：HWAWIN
• Origin：Jiangsu, China
• HS Code：94054090
• Production Capacity：2000 Units,Month

Basic Info.

Model NO. HW-SL45W LED Illumination Time 12h Cell Type Gel Battery Charging Time (H) 10 Usage Garden, Street, Road IP Rating IP65 Certification CE, RoHS Voltage DC24V With Light Source With Light Source LED Quantity 45PCS, 1W/PC LED Brightness Not Less Than 120lm/W LED Chip Brand Epistar, CREE or Bridgelux LED Colour Temperature 5500-6500k for Choice Solar Panel Type Mono or Polycrystalline Solar Controller IP68 Waterproof and Intelligent Proposed Light Pole 8-9 Meters Light Pole Material Q235 Quality Steel Light Pole Treatment Hot Dipped Galvanized & Coated Transport Package Standard Package Specification 8-9M 45W LED Trademark HWAWIN Origin Jiangsu, China HS Code 94054090 Production Capacity 2000 Units/Month

Product Description

Technical description of 8M 9M 45W 60W LED High Quality Highway Solar Street Light With CE RoHS FCC Certified

1. Super bright LED, 5500-6500K for choice, 120LM/W, IP65 cast aluminum lamp housing.
2. High efficiency polycrystalline solar pane, with aluminum frame, tempered glass and junction box.
3. Maintenance free gelled valve regulated sealed battery, deep cycle.
4. Intelligent solar controller, IP68 waterproof, with protection functions and energy saving modes etc.
5. IP 68 waterproof battery underground box (battery box on pole top is optional)
6. Cable to meet relevant solar lighting purpose
7. Optional light pole made of Q235 quality steel, hot dipped galvanized & plastic powder coated,
    rust proof. With light arm, flange base & anchor bolts, solar panel bracket and screws.

Configuration of 8M 9M 45W 60W LED High Quality Highway Solar Street Light With CE RoHS FCC Certified


LED lamp	45 Watts
Solar panel	2pcs*90Wp
Storage battery	2pcs*12V/100AH gel battery
Solar controller	12V/24V auto 10A with led driver
Battery box	24V/120AH
Applicable light pole	8-9 meters
Lighting time	10-12 hours
Backup days	3-4 backup overcast or rainy days
System voltage	DC24V
Design Mode	Full power
Warranty	2-3 years

Note: Above configuration is designed on averaged insolation 5.5 kWh/m2/day

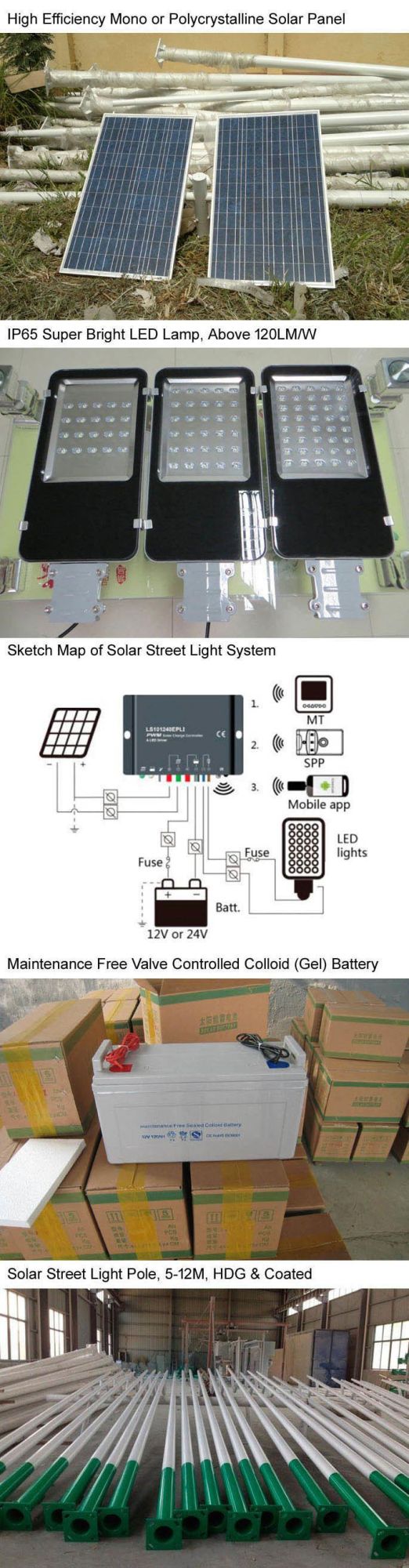

Main Parts of 8M 9M 45W 60W LED High Quality Highway Solar Street Light With CE RoHS FCC Certified

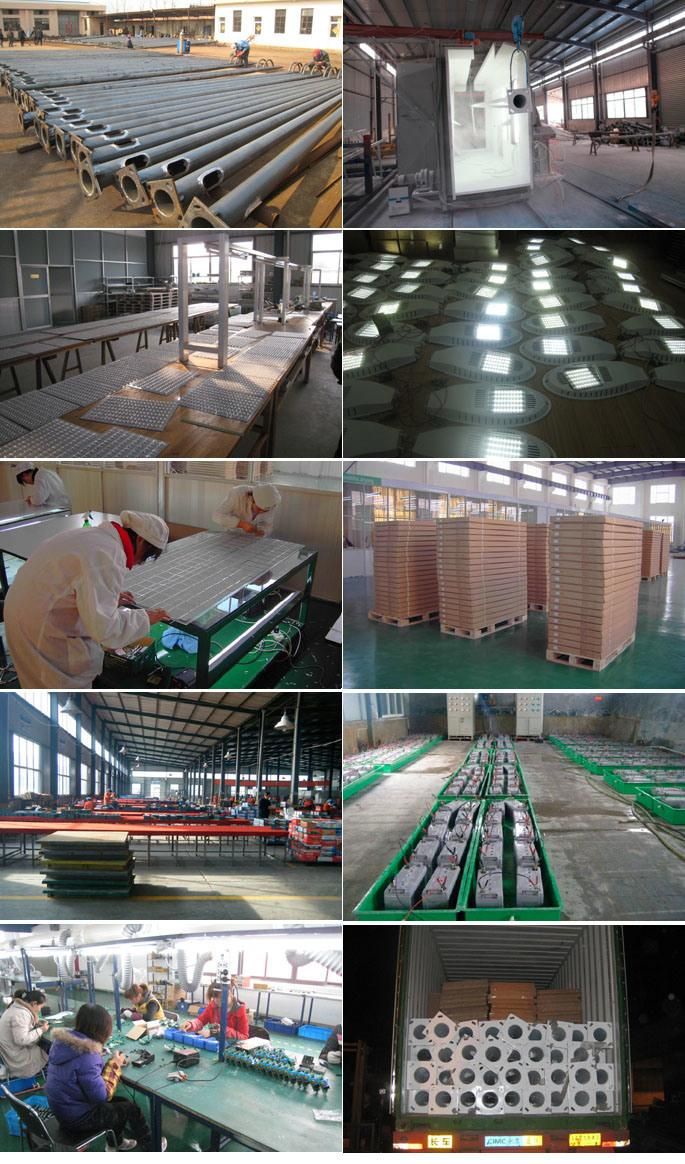

Production and shipment of 8M 9M 45W 60W LED High Quality Highway Solar Street Light With CE RoHS FCC Certified

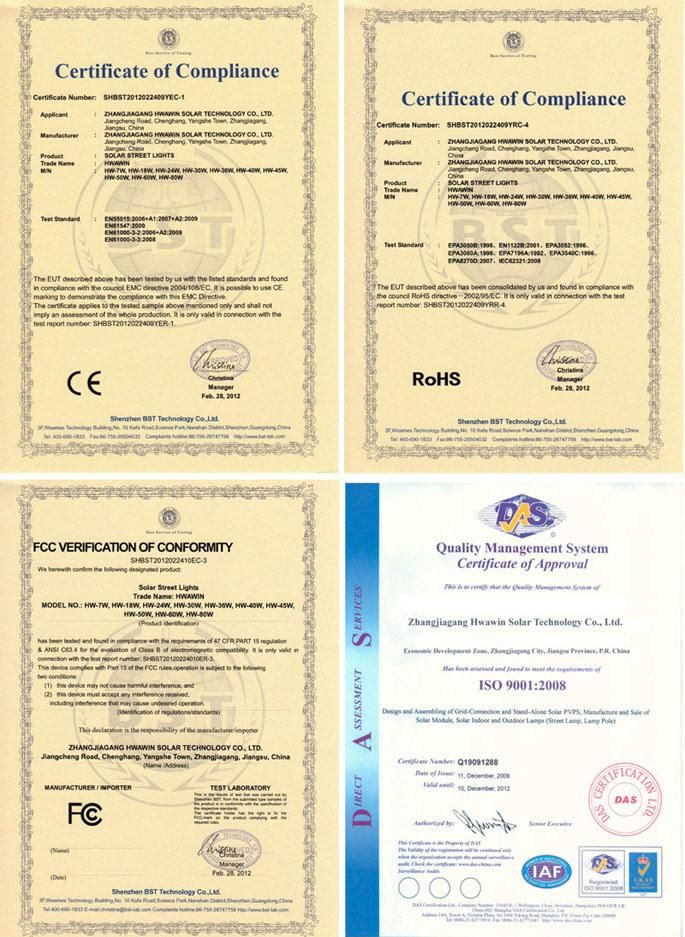

Certificates of 8M 9M 45W 60W LED High Quality Highway Solar Street Light With CE RoHS FCC Certified




In order to design and quote the solar street light exactly, please inform us below information:

1. The installation city
2. LED lamp power
3. Light pole height
4. Lighting hours per nigh
5. Backup rainy days
6. Quantity you need


Look forward to offering you the professional design and best price!
