• Model NO.：ISSL-BRZ-20W-031221C
• Illumination Time：>15 Hours
• Cell Type：LiFePO4 Lithium
• Charging Time (H)：5 Hours
• Usage：Garden, Street, Highway
• IP Rating：IP68
• Certification：CE, RoHS, SGS
• Voltage：12,24V
• With Light Source：With Light Source
• Transport Package：Customary Carton, OEM Acceptable
• Specification：700*292*55mm
• Trademark：ESAVIOR , ODM
• Origin：China (Mainland)
• HS Code：9405409000
• Production Capacity：50, 000 Sets,Year

BRZ  SeriesMODEL NO. ISSL-BRZ-20WSolar PanelPower18V/30Wp (Monocrystalline PV)Life-span25 yearsBatteriesCapacity/Type12.8V/12AH (153.60WH) / LiFePO4 LithiumLife-span8+ years (3,000 circles @ 60% DoD)ControllerTypeMPPT / IP68/IoT Online Monitoring as OptionalSensorMicrowave Radar (PIR & Timing as optional)LED Light SourceRated Power12V/20W (30LEDsx2 modules)Lumens(LM)1800-2000lmLife-span100,000 hoursViewing Angle140°  (Customized Angles  & IES Types Available)Full Charge TimeBy Solar5 hours  (STC: 1000W/, 25ºC )Discharge TimeDim Mode>75 hoursBright Mode>15 hoursWorking Temp.-30ºC~+80ºCColor Temp.Daylight White 5000K (full color temp. range 2700~6500K available)Mounting Height/Brackets4~5 m/ Clamp BracketSpace Between Lights12~15mMaterialsaluminium alloyCertificateCE / ROHS / IP66/TUV-SUD ISO9001/ ISO14001Warranty3 OR 5 yearsPacking & WeightLight Body Size:700*292*55mmNet Weight5.5kgCarton TypeCustomary Carton/ OEM AcceptableCarton size735*350*175mmQty/ctn2pcs per CTNGW. per Carton13.0 kgPCS per Container20' GP120040' HQ1700

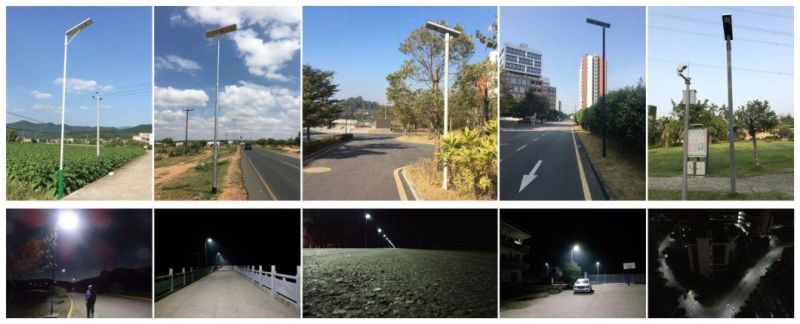

PROJECTS  SHOW


WHY ESAVIOR?

1. 10 years' experience in with global successful project reference on the Solar Lighting field.

2. 13 patents core technologies were awarded to our Solar Street Lights and IoT online Monitoring System for Solar Street Light.

3. ISO 9001/14001, IEC 60598/ IES TM-21 / IES RP-27.3-07 reports were awarded by TUV-SUD besides our existing CE/RoHs/IP66 certificates.

4. More than 90 countries' clients enjoy our solar street led lights, highly praised by UNDP, UNHCR, UNOPS, Red Cross, The World Bank and government.

5. Provides a modern manufacturing base which meets international global solar RD & Inspection Center, has the most advanced inspection equipment and faultless QA system.

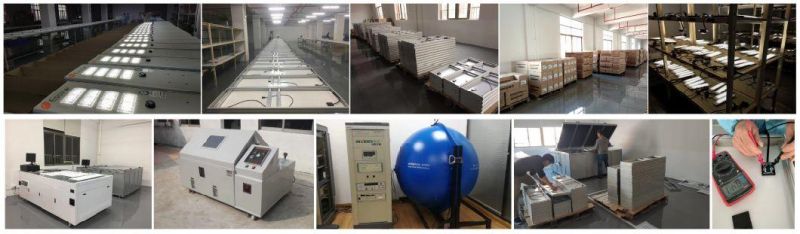

WORKSHOP SHOW







SOLAR STREET LIGHT RFQ:

Q1:Does the lamp light on automatically?

A:Yes, it will light on automatically at darkness no matter which mode except "OFF".

Q2:Can I order samples for solar street light?

A:Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.

Q3:What about the lead time?

A:3 workdays for sample, 7-15workdays for batch order(more than 100pcs).

Q4:Do you offer guarantee for the products?

A:Yes, we offer 3-5 years warranty to our products.

Q5:Can the lamp be used in strong wind environment?

A:Of course yes, as we take Aluminum-alloy holder, solid and firm, Zinc plated, anti- rust corrosion.

Q6:What's the difference between Motion sensor and PIR sensor?

A:Motion sensor also called radar sensor, works by emitting high frequency electric wave and detecting people movement.PIR sensor works by detecting environment temperature changing, which usually is 3-5 meters sensor distance.But motion sensor can reach 10 meters distance and be more accurate and sensitive.

Q7:How to deal with the faulty?

A:Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.05%.Secondly, during the guarantee period, we will send replacements with new order for small quantity.


Thank you for your attention!  Welcome to send us inquiry for more information!
