• Model NO.：RPLT6800
• Lumen Output：2*67,200lm
• Guarantee：3 Years
• IP Grade：IP65 for LED Lamp
• Delivery Time：Within 35 Days After Receiving Deposit
• Transport Package：Plywood Case,Carton,Plywood Tray
• Specification：4500*1350*1700mm
• Trademark：Robust Power
• Origin：China
• HS Code：9405409000
• Production Capacity：250sets,Month

Basic Info.

Model NO. RPLT6800 Lumen Output 2*67,200lm Guarantee 3 Years IP Grade IP65 for LED Lamp Delivery Time Within 35 Days After Receiving Deposit Transport Package Plywood Case/Carton/Plywood Tray Specification 4500*1350*1700mm Trademark Robust Power Origin China HS Code 9405409000 Production Capacity 250sets/Month

Product Description

Low Consumption Hydraulic Light Tower with 4.5kw Generator Set

Key Features Include:
8m hydraulically operated telescopic mast
360 mast rotation
Available in 4*1000W or 4*1500W metal halide lamps, 2*480W or 4*480W LED light
Galvanized mast and powder coated canopy
Electronic controlled hydraulic system with sustaining valves and hydraulic locks
 Fault protection
Heavy-duty, weather-protective enclosure
Fully bunded

Technical Data:


Light
Housing Material	Aluminium die cast
Type of lights	LED Lamp/Metal Halide Lamp
Power of lights	2*480W LED lamps 4*480W LED lamps 4*1000W Metal Halide Lamp 4*1500W Metal Halide Lamp
Lumen Output	2*67,200lm/4*67,200lm/ 4*110,000lm/4*165,000lm ( total )
Voltage	AC 110-240V
Frequency	50/60Hz
Longevity	3 years/2000 Hrs
Waterproof grade	IP65/IP54
Color temperature	2100K-5700K
Mast
Material of mast	Galvanized iron
Mast lifting type	Hydraulic mast
Mast section	6-section telescopic
Mast rotation system	358° manual operation
Max. height of mast	8.6meters
Engine
Engine model	Kubota D1105 3 cylinder, in-line, water cooled
Start system	Electric (Battery start)
Alternator	Sinocox
Engine speed	50hz/1500rpm, 60hz/1800rpm
Rated power	50hz/7.2kw,  60hz/8.0kw
Insulation	H
Fuel tank capacity	100L
Fuel consumption	2.0L/hr
Maximum Working Hours	50H
Controller system	Digital control panel
Waterproof grade	IP54
Engine shutdown protection	Low oil pressure, over speed, over current, high-temperature detection, low fuel level
Trailer
Stabiliser Supports	Optional 4*Manual or 4*Hydraulic
Tow Hitch	Ring/ball hitch
Tire Size	13 inch
Brakes	Manual
Packing
Net weight	930/890 kg
Dimension	4500X1350X1700 MM

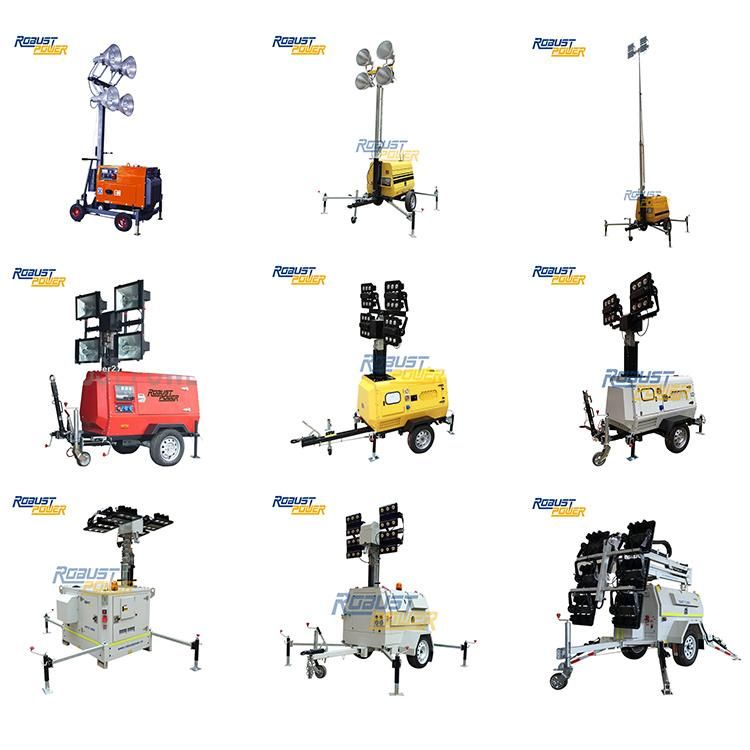

Robust Power Models:

No.	Model	Mast	Power of Lamps	Engine Model
1	RPLT1600	4.8M Manual	4*400W Metal Halide Lamp	RP186FA
2	RPLT1600	4.8M Manual	4*160W LED	RP186FA
3	RPLT1600	4.8M Manual	2*1000W Metal Halide Lamp	RP186FA
4	RPLT6000	9M Manual	4*1000W Metal Halide Lamp	Kubota D1105 (Japan)
5	RPLT6000	9M Manual	4*240W LED	Kubota D905 (Japan)
6	RPLT6800	8.6M Hydraulic	4*1000W Metal Halide Lamp	Kubota D1105 (Japan)
7	RPLT6800	8.6M Hydraulic	4*1500W Metal Halide Lamp	Kubota D1105 (Japan)
8	RPLT6800	8.6M Hydraulic	4*480W LED	Kubota D905 (Japan)
9	RPLT3800	7M Hydraulic	4*480W LED	Kubota Z482 (Japan)
10	RPLT6900	8.5M Hydraulic	4*480W LED	Kubota D1105 (Japan)
11	RPLT7200	10M Hydraulic	6*480W LED	Kubota D1105 (Japan)
12	RPLT7200	10M Hydraulic	4*720W LED	Kubota D1105 (Japan)
13	RPLT7600	9M Hydraulic	6*480W LED	Kubota D1105 (Japan)
14	RPLT7600	9M Hydraulic	4*720W LED	Kubota D1105 (Japan)

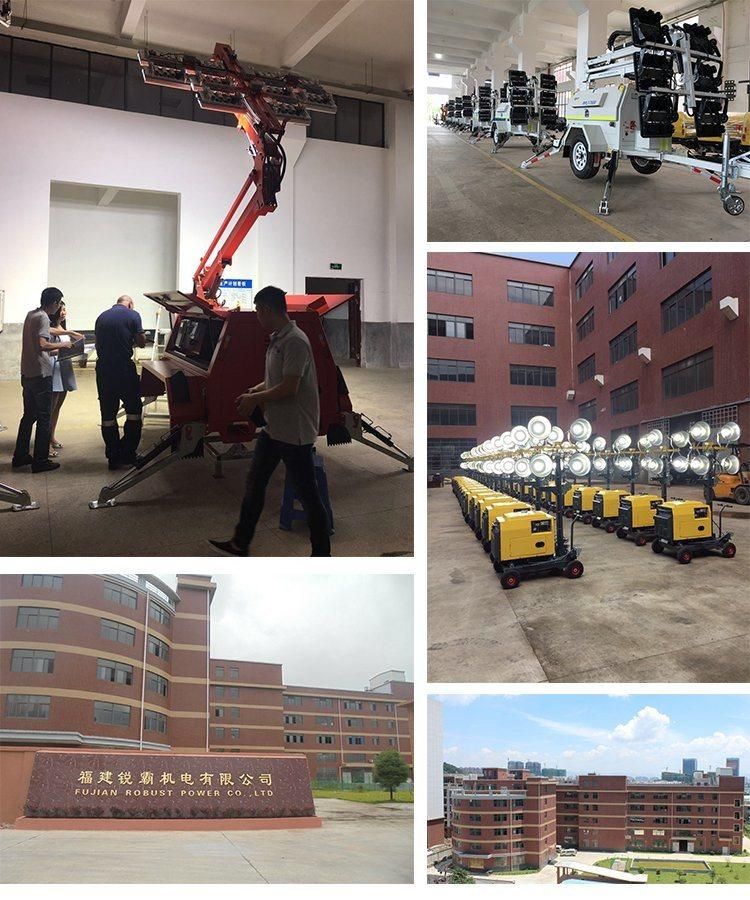

Factory Brief Introduction:

Fujian Robust Power Co., Ltd. was established in 2007. During 10 years, with a strong research and development team, strictly quality control system and high manufacturing capability, as well as in-depth knowledge of customer requirements, we become one of the favorite suppliers in the market.

Our main products include Mobile Lighting Tower, Generator Set, LED Light. All steps from raw materials to procurement, production, testing, sales and after-sales service are under a very strict quality monitoring system.

Our Company occupies an area of 23,000 square meters. Have more than 100 staffs. There are 3 advanced production lines in the working shop.

See below what we can offer:

1. Strong R&D team, package, and graphics design.

2. Certifications: ISO9002:2000,CE,SGS,SAA,anti-wind testing,46 patients.

                             Verified on site by world-leading inspection company, TüV Rheinland.

3. 10 QC staff and a line of advanced testing equipment to further ensure quality.

4. Production capacity: 300 unit products per month.

5. Australia branch: Set up a branch, stock and supply spare parts in Australia in 2004.

6. Responses within 12 hours for all your inquiries.

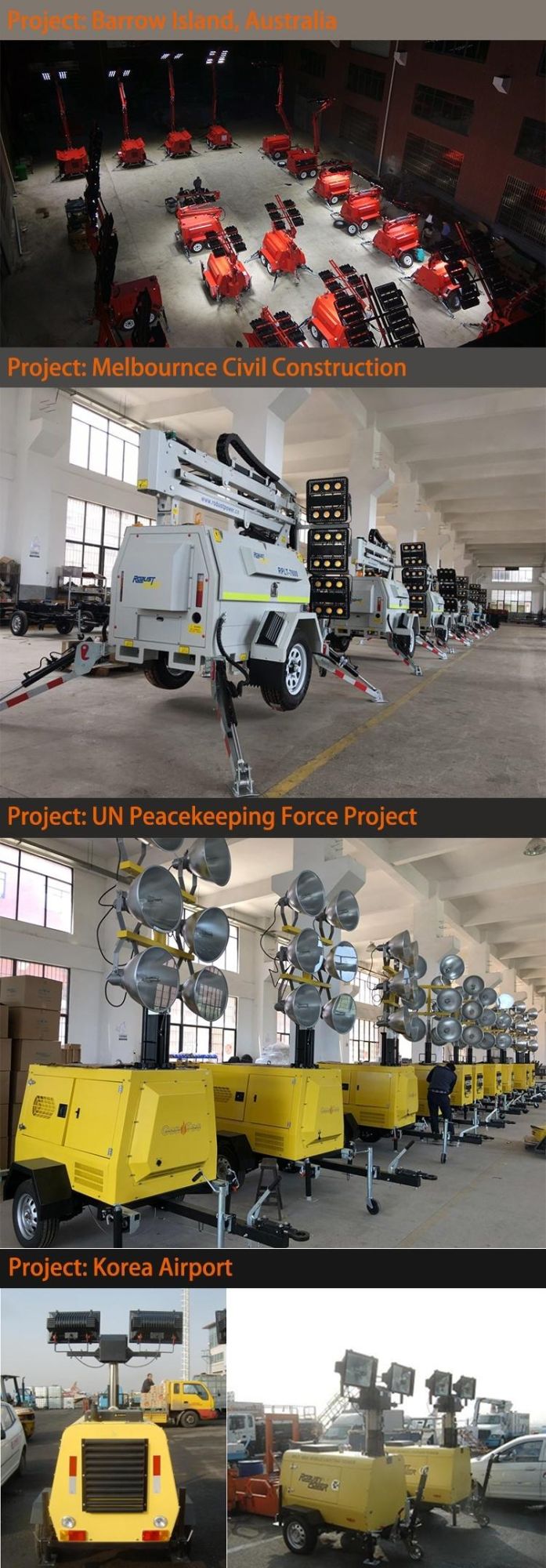

Light Tower Projects:



Exhibitions:

Certifications:

FAQ:
