Factory Euro Trailer 4*480W LED Flood Light Tower with Diesel Generator
Fujian Robust Power Co., Ltd.- Fuel Capacity：0.8L,Hr(150 Litres,Tank)
- Engine Speed：1500rpm,1800rpm
- Power Generation：7.2kw,50Hz, 8.0kw,60Hz; 5kw Continuous (DC)
- Voltage：110V, 120V, 220V, 230V, 240V, DC 48V for Optional
- Light Power：4*480W,4*720W SAA Certified Robust Power LED Lamps
- IP Grade：IP65 for LED Lamp
Base Info
- Model NO.：RPLT-6900
- Lumen Output：4*67,200lm,4*100,800lm
- Guarantee：3 Years
- Trailer：Al-Ko (German Brand)
- Delivery Time：Within 35 Days After Receiving Deposit
- Transport Package：Plywood Case,Carton,Plywood Tray
- Specification：4500X1350X1700 MM
- Trademark：Robust Power
- Origin：China
- HS Code：94054090
- Production Capacity：250 Set,Month
Description
Basic Info.
Model NO. RPLT-6900 Lumen Output 4*67,200lm/4*100,800lm Guarantee 3 Years Trailer Al-Ko (German Brand) Delivery Time Within 35 Days After Receiving Deposit Transport Package Plywood Case/Carton/Plywood Tray Specification 4500X1350X1700 MM Trademark Robust Power Origin China HS Code 94054090 Production Capacity 250 Set/MonthProduct Description

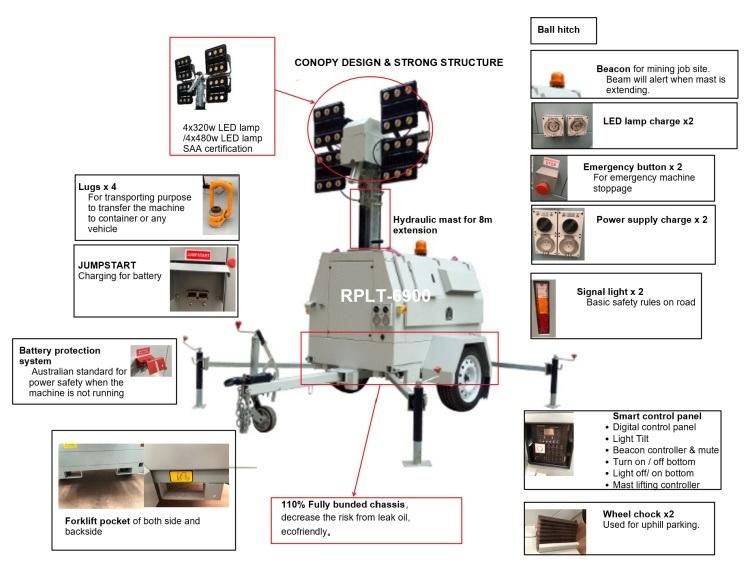

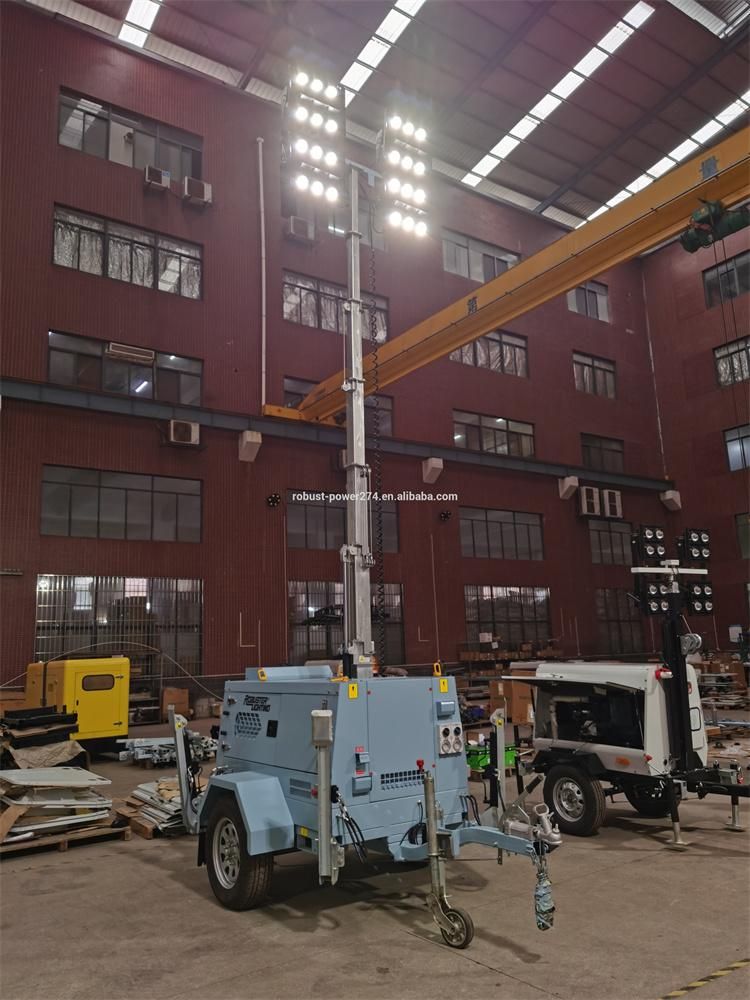

Factory Euro Trailer 250,000LM LED Flood Light TowerKey Features Include:
8m hydraulical operated telescopic mast
360-degree mast rotation
120L fuel tank
4 x 480W LED lamps producing 174,000 Lumens
Galvanized mast and powder coated canopy
Optional smartgen control system with sustaining valves and hydraulic locks
Fault protection
Heavy-duty, weather-protective enclosure
Available in color temperature 2100-5700K
Technical Data:
| Light | |
| Housing Material | Aluminium die cast |
| Type of lights | LED Lamp |
| Power of lights | 4*480W SAA certified Robust Power LED lamps |
| Lumen Output | 4*67,200lm ( total ) |
| Voltage | DC 48V |
| Longevity | 3 years |
| Waterproof grade | IP65 |
| Color temperature | 2100K-5700K |
| Mast | |
| Material of mast | Galvanized iron |
| Mast lifting type | Hydraulic mast |
| Mast section | 6-section telescopic |
| Mast rotation system | 340° manual operation |
| Max. height of mast | 8.6meters |
| Engine | |
| Engine model | Kubota Z482 2 cylinder, vertical, liquid cooled |
| Start system | Electric (Battery start) |
| Alternator | Sinocox |
| Engine speed | 2200rmp |
| Rated power | 4kW continuous |
| Insulation | H |
| Fuel tank capacity | 110L |
| Fuel consumption | 0.8L/hr |
| Maximum Working Hours | 50H |
| Controller system | Digital control panel |
| Waterproof grade | IP54 |
| Engine shutdown protection | Low oil pressure, over speed, over current, high-temperature detection, low fuel level |
| Trailer | |
| Stabilizer Supports | Optional 4*Hydraulic |
| Tow Hitch | Ring/ball hitch |
| Tire Size | 16 inch |
| Brakes | Manual |
| Packing | |
| Net weight | 930/890 kg |
| Dimension | 4500X1350X1700 MM |

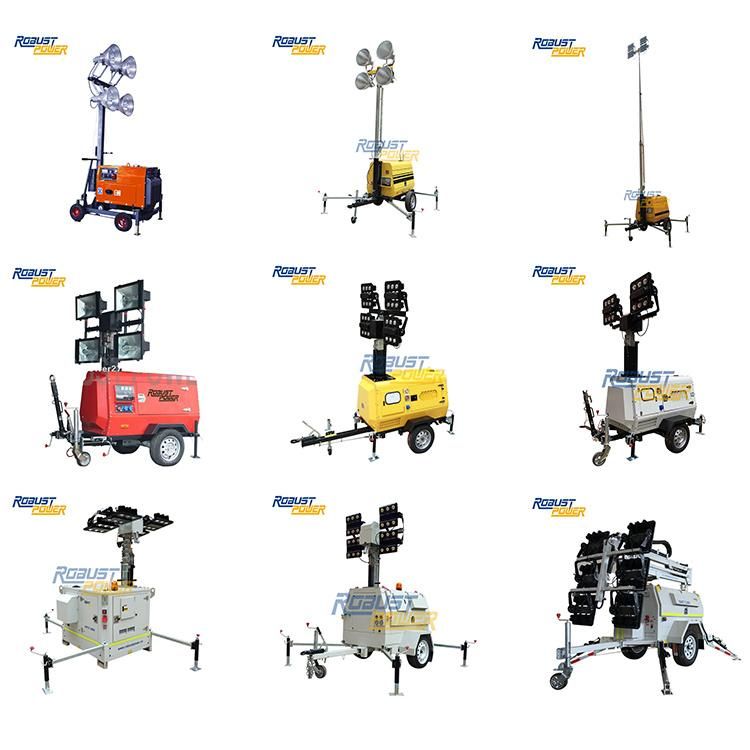

Robust Power Models:
| No. | Model | Mast | Power of Lamps | Engine Model |
| 1 | RPLT1600 | 4.8M Manual | 4*400W Metal Halide Lamp | RP186FA |
| 2 | RPLT1600 | 4.8M Manual | 4*160W LED | RP186FA |
| 3 | RPLT1600 | 4.8M Manual | 2*1000W Metal Halide Lamp | RP186FA |
| 4 | RPLT6000 | 9M Manual | 4*1000W Metal Halide Lamp | Kubota D1105 (Japan) |
| 5 | RPLT6000 | 9M Manual | 4*240W LED | Kubota D905 (Japan) |
| 6 | RPLT6800 | 8.6M Hydraulic | 4*1000W Metal Halide Lamp | Kubota D1105 (Japan) |
| 7 | RPLT6800 | 8.6M Hydraulic | 4*1500W Metal Halide Lamp | Kubota D1105 (Japan) |
| 8 | RPLT6800 | 8.6M Hydraulic | 4*480W LED | Kubota D905 (Japan) |
| 9 | RPLT3800 | 7M Hydraulic | 4*480W LED | Kubota Z482 (Japan) |
| 10 | RPLT6900 | 8.5M Hydraulic | 4*480W LED | Kubota D1105 (Japan) |
| 11 | RPLT7200 | 10M Hydraulic | 6*480W LED | Kubota D1105 (Japan) |
| 12 | RPLT7200 | 10M Hydraulic | 4*720W LED | Kubota D1105 (Japan) |
| 13 | RPLT7600 | 9M Hydraulic | 6*480W LED | Kubota D1105 (Japan) |
| 14 | RPLT7600 | 9M Hydraulic | 4*720W LED | Kubota D1105 (Japan) |
