• Model NO.：DX-0078
• Application：Highway, Square, Garden
• IP Rating：IP66
• Certification：CE, RoHS, CCC, UL, ISO, FCC, EMC, GS
• Voltage：DC 12V 24V
• Lamp Source：LED Lamp ,Sodium Light,Metal Halide Lamp
• Shape：Round ,Conical,Octagonal,Polygonal
• Height：3m 4m 5m 6m 7m 8m 9m 10m 11m 12m
• Place of Origin：Jiangsu, China (Mainlan
• Transport Package：Plastic Foam
• Specification：CE SGS ROHS FCC ISO
• Trademark：DX (Dingxin)
• Origin：China
• HS Code：54094090
• Production Capacity：50000PCS,Month

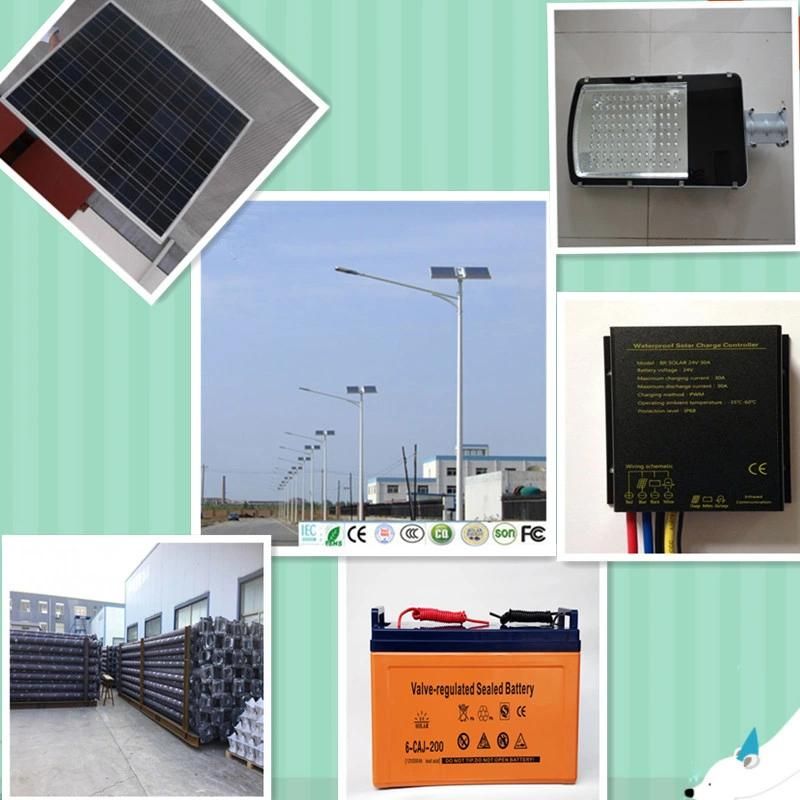

      Detailed Specification for 10M pole 80W Solar Street Light

Part Name and Lifespan

Technical Specification

Solar Panel:

Lifespan:20-25 years

160W*2PC Polycrystalline. High Efficiency. A-class

Adding Aluminum Frame, Tempered Glass.

Gelled Battery

Lifespan:5-8 years

180Ah/12V*2PC, Gelled battery, Sealed Type.

Deep cycle. Maintenance Free

Intelligent Solar Controller

Lifespan:5-10 years

15A/24V,IP68. Automatic Light and Time Control

Over-charging/discharging Protection

Reverse-connection Protection

Switch on Automatically with Light Sensor;

Switch off after designed Hours later.(11-12 Hrs)

Light source: High Power LED

Lifespan: More than 50000-100000Hrs

80W LED, White Color, 10400LM/PC,6500K,IP65,

High Power, High Brightness.

Lamp Housing:

Lifespan: More than 20 years

Die-casted Aluminum, IP65

High transmittance & Density toughened glass,

Battery Box:

Engineer Steel, hang on the pole.

GI Pole System:

Lifespan: More than 20 years

10M Height, tapered Pole, Steel,

Hot-Dip Galvanized. Plastic Coated, Rust Proof,

With Arm, Bracket, Flange, Fittings, Cable, Etc

Resistant to Wind: ≥150KM/H

Delivery Time

Generally 20 working days for 100 galvanized steel light poles.

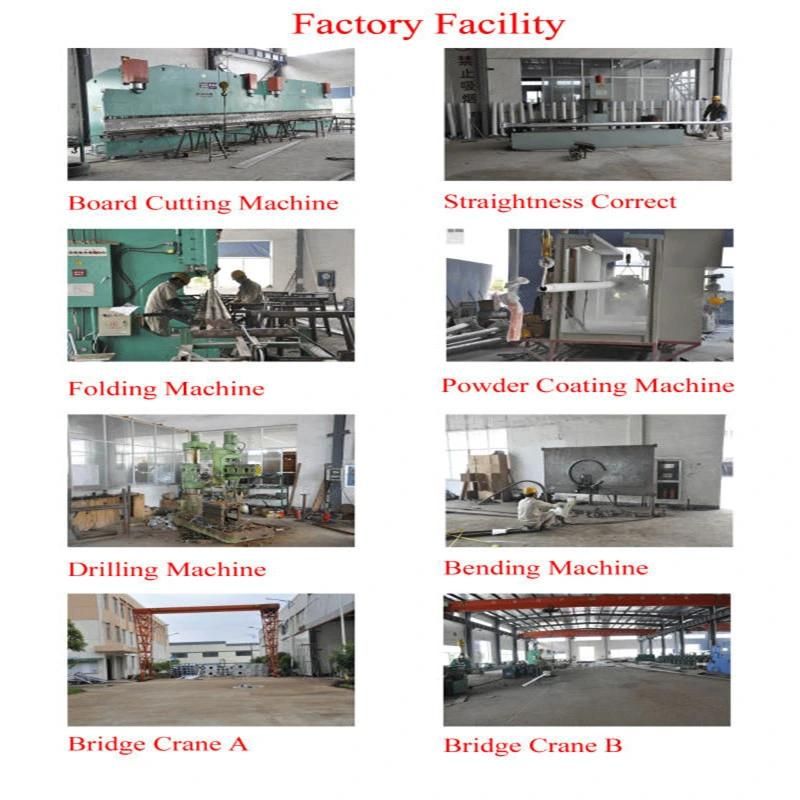

We have plate cutting line--plate bending line-- auto. welding line--polishing line--spray painting line--packaging line
