• Model NO.：SNSTY-215
• Power：6W-10W
• Technics：Chrome-plating
• Illumination Time：8h
• Cell Type：Lithium Battery
• Charging Time (H)：8
• Usage：Garden, Street
• IP Rating：IP65
• Certification：CE, RoHS
• Voltage：12,24V
• With Light Source：With Light Source
• Transport Package：Strong Carton
• Specification：SNSTY-215
• Trademark：SINOLTECH
• Origin：China
• HS Code：9405500000
• Production Capacity：China

Basic Info.

Model NO. SNSTY-215 Power 6W-10W Technics Chrome-plating Illumination Time 8h Cell Type Lithium Battery Charging Time (H) 8 Usage Garden, Street IP Rating IP65 Certification CE, RoHS Voltage 12/24V With Light Source With Light Source Transport Package Strong Carton Specification SNSTY-215 Trademark SINOLTECH Origin China HS Code 9405500000 Production Capacity China

Product Description

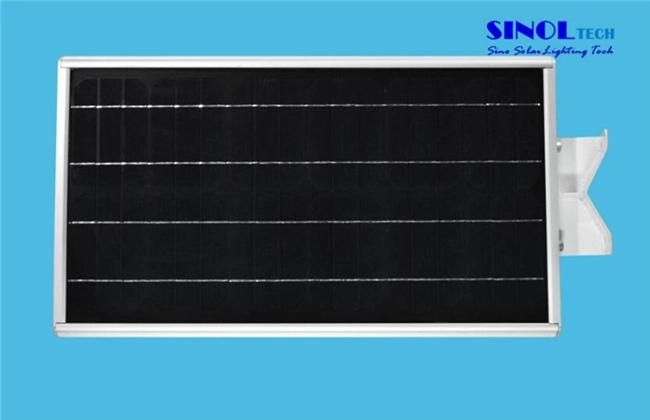

15W ALL IN ONE SOLAR STREET LIGHT(SNSTY-215)

---Our products & Services:
We offer customized solution to meet clients' different project and budget requirement:
1. Customized shell material:
High quality Aluminum alloy frame, light weight, anti-corrosion and visual good looking;
Galvanized iron frame, lower cost to reduce total budget, 3 -years corrosion resistance guarantee. Accept customized shell color.

2. Customized working method
Motion sensor, LED full power lighting when there is people/vehicle passing-by, LED 1/3 power
Lighting when there is no people/vehicle passing. Induction time: 60s, sensing distance: 9-10m.
Timing control: Customize time period for different working power.
Recommended"3+4+5", first 3 hrs full power lighting, second 4 hrs 1/2 power lighting, last 5 hrs 1/3 power lighting.

3. Customized brand of components:
Solar panel: USA SUNPOWER brand solar panel(19-23% efficiency) or normal monocrystalline solar panel(17-18% efficiency).
LED lamp: High quality USA bridgelux LED chip or TAIWAN EPISTAR LED chip
Customzied color temperature (3500-7000K) upon request.
Lithium battery with 5 years life time guarantee, accept customized capacity to increase lighting time or reduce product cost.
4. Accept OEM logo printing.

---General specification:

Solar Panel	Max Power	18V30W(High efficiency monocrystalline silicon)
	Life time	25 years
Battery	Type	Lithium battery 13AH
	Life time	5 years
LED Lamp	Max power	12V15W
(With sensor)	Led chip brand	Bridgelux
	Lumen(LM)	1500-1580LM
	Life time	50000hours
	Viewing angle	120 degree
Charge time	By sun	7-8 hours
Discharge time	Full power	10 hours
	Half power	20 hours
Working temp.	range(C)	-20C~+60C
Color temp.	range(k)	6000-6500k
Mounting height	range(m)	4-5m
Space between light	range(m)	10-15m
Main lamp materials		Aluminum alloy
Certificate		CE/ROHS/IP65
Warranty period		3 years

---Other shape:

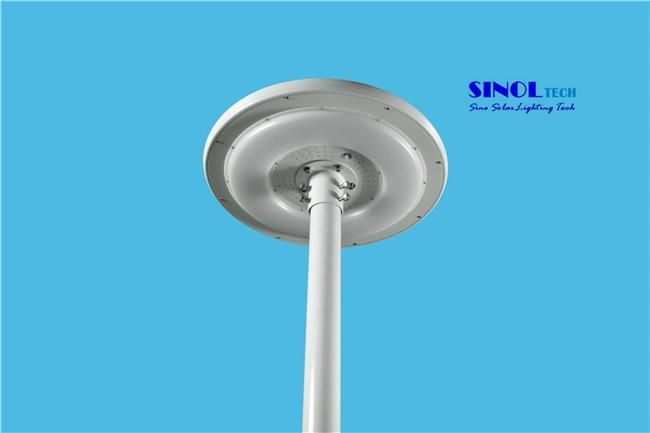

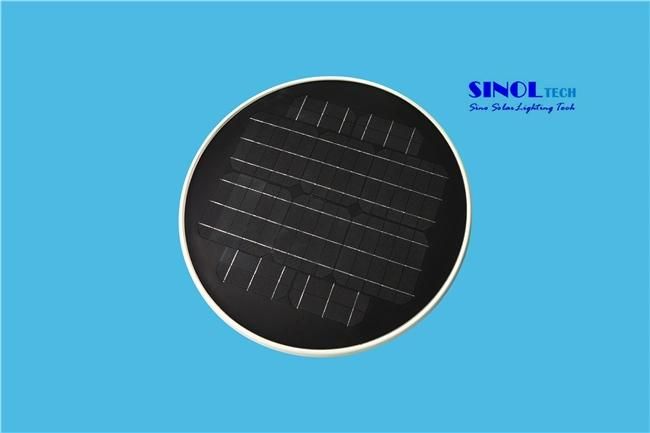

ROUND-

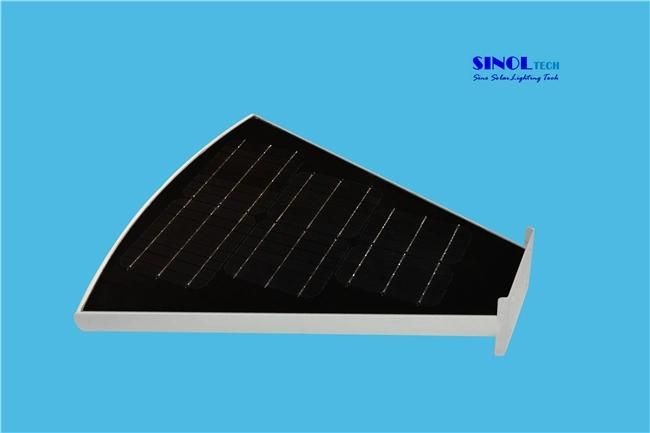

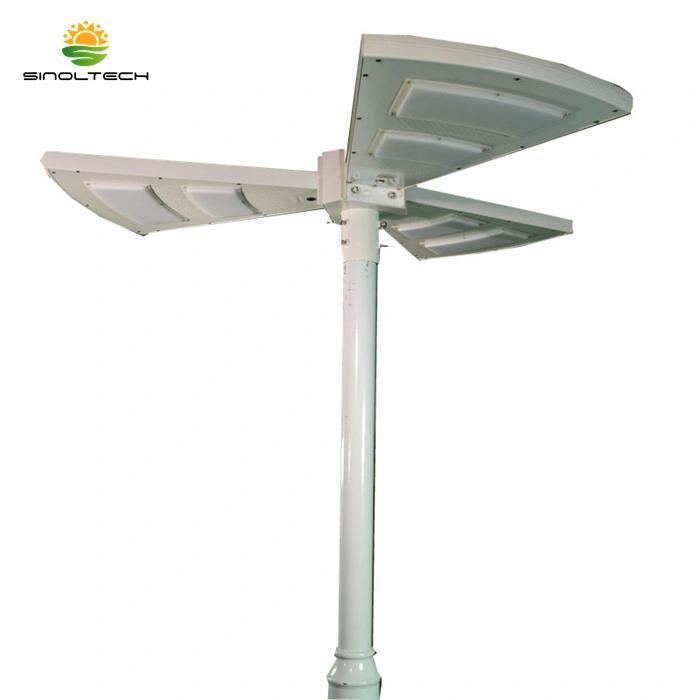

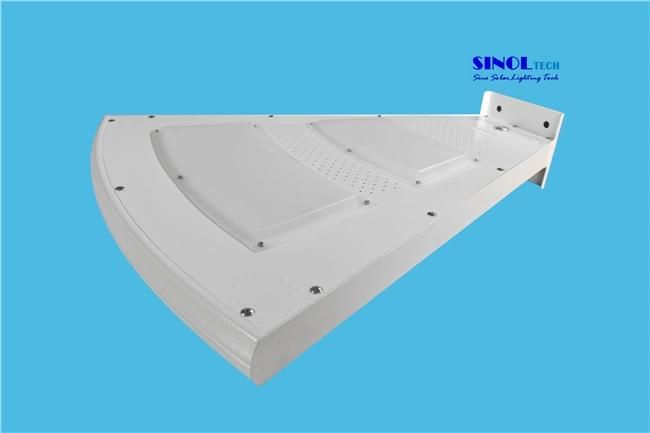

FAN SHAPED-
