• Model NO.：SNSTY-220
• Cell Type：Lithium Battery
• Charging Time (H)：7-8 Hours
• Usage：Garden, Street
• IP Rating：IP65
• Certification：CE, RoHS
• Voltage：12,24V
• With Light Source：With Light Source
• Product/Packing Size：1150*330*140mm,1190*400*220mm
• Product/Packing Weight：16kg,17.8kg
• Carton Size：1190*400*220mm
• Qty/CTN：1 Sets,CTN
• Gw for Carton：17.80kg
• Loading Qty for 20gp：270PCS
• Loading Qty for 40gp：550PCS
• Transport Package：Strong Carton
• Specification：20W LED 45W Solar Panel
• Trademark：SINOLTECH
• Origin：China
• Production Capacity：China

Basic Info.

Model NO. SNSTY-220 Cell Type Lithium Battery Charging Time (H) 7-8 Hours Usage Garden, Street IP Rating IP65 Certification CE, RoHS Voltage 12/24V With Light Source With Light Source Product/Packing Size 1150*330*140mm/1190*400*220mm Product/Packing Weight 16kg/17.8kg Carton Size 1190*400*220mm Qty/CTN 1 Sets/CTN Gw for Carton 17.80kg Loading Qty for 20gp 270PCS Loading Qty for 40gp 550PCS Transport Package Strong Carton Specification 20W LED 45W Solar Panel Trademark SINOLTECH Origin China Production Capacity China

Product Description

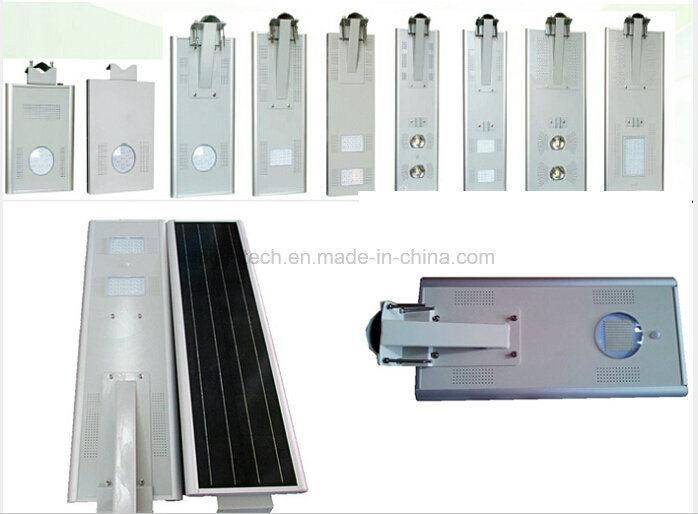

20W LED street lighting integrated with SUNPOWER solar panel and lithium battery

Our integrated solar street light which integrates the green-energy parts solar Panel, LED lamp and the Li-Fe battery into a single product, is with human Intelligence induction system to gain the solution of low-energy, long-time, High-luminance and free maintenance. And the same time, it's convenient in the Shipment and installation.
Purpose:
To be installed in the garden, residential area, courtyard, road, mine area or Parking area or provide the light in roads where it's necessary, the battery provide The energy for lighting, and the solar panel charge for the battery.

Product parts:
The product is made up with the integrated parts (solar panel, Li-Fe battery, LED, MPPT controller and human intelligence induction system) and the light pole.

Working characters:
The solar panel converts sunlight into electricity and stored in Li-Fe battery via Controller, the LED light will work in night automatically by light sensor control, and Provide light for the darkness area, the human intelligence induction system can Save the energy when the lighting is not necessary
 Features:1) Integrity design, no cabling, easy to install, various mounting methods (pole, wall or fence) Pole material could be iron, wood, bamboo, plastic etc, low construction cost.2) Adopting solar panel as power source, LED as light source, a perfect combination for energy saving.3) Adopting high capacity long service life Lithium lron Phosphate Battery, theory life time over 5 years, excellent high temperature performance, long life time can ensure the service life of whole product.4) Waterproof structure, safe and reliable.5) Adopting aluminum alloy as main body material, with excellent rust-proof and corrosion-proof function.6) With segmented power control function, during late half night, brightness reduce in order to save energy and increase practicality.
 Advantage:This product is composed of high efficiency monocrystalline silicone solar panel, 5 years extra long service life lithium battery( same with the drive batteries of hybrid cars), high light efficiency LED lamp and intelligent controller.PIR motion sensor module.Theft-resistant mounting bracket.The most advantage of integrated solar street light is easy installation, light-weight, under general normal condition, only 1 or 2 workers using a wrench could finish the installation within 5 minutes.
Specification for 20W LED street lighting integrated with SUNPOWER solar panel and lithium battery:

Solar Panel	Max Power	18V45W Sunpower solar panel
	Life time	25 years
Battery	Type	Lithium battery 21AH
	Life time	5 years
LED Lamp	Max power	12V 20W
(With sensor)	Led chip brand	Bridgelux from USA with high brightness
	Lumen(LM)	2100-2200LM
	Life time	50000hours
	Viewing angle	120 degree
Charge time	By sun	7 hours
Discharge time	Saving power	more than 24 hours
	Full power	more than 12 hours
Working temp.	range(C)	-20C~+60C
Color temp.	range(k)	6000k
Mounting height	range(m)	5-6m
Space between light	range(m)	18-20m
Main lamp materials		Aluminum alloy
Certificate		CE/ROHS/IP65
Warranty period		2 years

 Customized Service & OEM Brand1. Customized shell material: High quality Aluminum alloy frame, light weight, anti-corrosion and visual good looking;Galvanized iron frame, lower cost to reduce total budget, 3 -years corrosion resistance guarantee.
Accept customized shell color.2. Customized working method:Motion sensor:LED full power lighting when there is people/vehicle passing-by, LED 1/3 power lighting when there is no people/vehicle passing. Induction time: 60s, sensing distance: 9-10m.Timing control: Customizedtime period withdifferent working power.Recommended"3+4+5", first 3 hrs full power lighting, second 4 hrs 1/2 power lighting, last 5 hrs 1/3 power lighting.New intelligent timer control: LED lamp will adjust working power automaticallly according to the sunshine duration and battery remaining capacity, to ensure the lamp will keep lighting full 12 hours at night, by adopting this method, the LED lamp could sustain up to 5-7 rainy days.
3. Customized brand of components:Solar panel: USA SUNPOWER brand solar panel(19-23% efficiency) or normal monocrystalline solar panel(17-18% efficiency).LED lamp: High quality USA bridgelux LED chip or TAIWAN EPISTAR LED chipCustomized color temperature (2700-6500K) upon request.Lithium battery with 5 years life time guarantee, accept customized capacity to increase lighting time.4. Accept OEM logo printing(Qty above 50 units free of charge). 5. Mounting method: Screw and bracket fixing or Mounting tube.6. Additional function: Camera supported, AC charge supported, Remote control etc.
