IEC Certified 5m 30W Cheap LED Solar Outdoor Light, Solar Lamp for Rural Areas
Jiangsu Inlux Solar Lighting Co., Ltd.- Light Source：Energy-saving Lamps
- Lamp Body Material：Aluminum
- Light Type：Solar
- Color Temperature：Cool White
- Power：≥30W
- Illumination Time：12h
Base Info
- Model NO.：INL-AIT1
- Cell Type：LiFePO4
- Charging Time (H)：6
- Usage：Garden, Street
- IP Rating：IP67
- Certification：CE, ISO9001
- Voltage：12,24V
- With Light Source：With Light Source
- Application：Street, Road, Highway, Pathway, Sidewalk, Park
- Color：Grey
- Design：LiFePO4 Battery Is Built in Lamp Fixture
- Transport Package：720*340*135mm
- Specification：20W ~120W
- Trademark：INLUX SOLAR
- Origin：China
- HS Code：9405500000
- Production Capacity：200000 Sets, Year
Description
Lighting ParametersLamp Power 5W-20W Luminous Flux Up to 2400 lumens Color Temperature 3000K~ 6000K Optical Distribution Bat Wing, TypeII Beam Angle 120° CRI >70 Lithium Battery Parameters Lithium Battery Types lithium iron phosphate (LiFePO4) battery / Soft Pack Li-ion Battery LiFePO4 Lithium Battery 307WH (LiFePO4 Lithium Battery) / 333WH (Li-ion Lithium battery) Life Span > 10 years (LiFePO4 Lithium Battery) / > 6 years (Li-ion Lithium battery) Controller Parameters Controller MPPT controller/ PWM controller System Voltage 3.2V Max. Charging Current 5A/10A PIR Sensor Optional Protection Functions Short-circuit Protection, Reverse Discharging Protection, Polarity Protection, Lightning Protection, Low Voltage load cut-off protection, Over-charge Protection Physical Parameters Lamp Fixture High-Pressure Die-Casting Aluminum. Corrosion Resistant Lamp Arm Adaptor Diameter 55-65mm Dimension of Product 404*224*74mm Working Mode Working Hours per Night From Dusk to Dawn (adjustable) Continues Rainy Days Backup >3 days (adjustable) Environment Requirements Charge Temperature 0-55ºC Discharge Temperature -20-55ºC Storage Temperature 0-50ºC Installation Recommendations Installation Height 2-4Meters Spacing Distance 6-16 meters

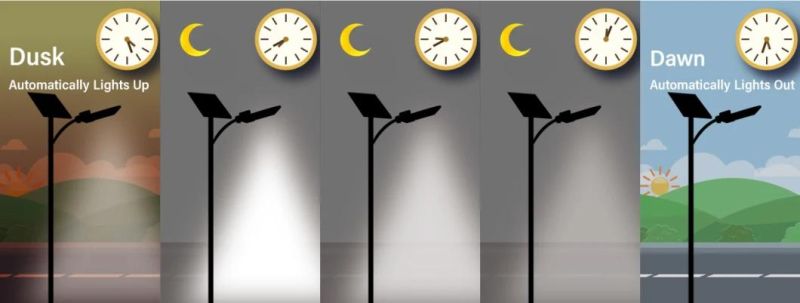

12 Lighting hours/Night + Automatic Time Control.
The lights turn on automatically at dusk, automatic brightness adjustment at night,the lights turn off automatically at dawn.

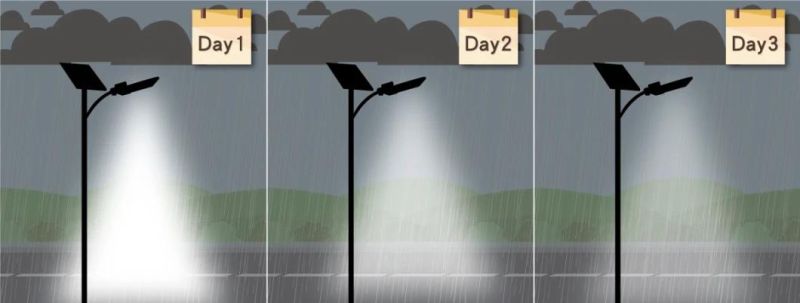

>3 Consecutive Rainy & Cloudy Days
Due to perfect power management system, the solar light can still work after more than 3 consecutive rainy and cloudy days
WORKING MODE
12 Lighting hours/Night + Automatic Time Control.
The lights turn on automatically at dusk, automatic brightness adjustment at night,the lights turn off automatically at dawn.
>3 Consecutive Rainy & Cloudy Days
Due to perfect power management system, the solar light can still work after more than 3 consecutive rainy and cloudy days
