Made in China 8m 60W Solar Interaction Wall Lamp with Wireless Control Campus
Jiangsu Inlux Solar Lighting Co., Ltd.- Light Source：Energy-saving Lamps
- Lamp Body Material：Aluminum
- Light Type：Solar
- Color Temperature：Cool White
- Power：≥30W
- Technics：Chrome-plating
Base Info
- Model NO.：AIO2
- Illumination Time：12h
- Cell Type：LiFePO4
- Charging Time (H)：6
- Usage：Garden, Street
- IP Rating：IP67
- Certification：CE, ISO9001
- Voltage：12,24V
- With Light Source：With Light Source
- Application：Street, Road, Highway, Pathway, Sidewalk, Park
- Color：Grey
- Design：LiFePO4 Battery Is Built in Lamp Fixture
- PIR Sensor：Optional
- Transport Package：720*340*135mm
- Specification：20W ~120W
- Trademark：INLUX SOLAR
- Origin：China
- HS Code：9405500000
- Production Capacity：200000 Sets, Year
Description
Lighting ParametersLamp Power 30W 40W 60W 80W 100W 120W Luminous Flux 4625 lumens 5400 lumens 7200 lumens 9250 lumens 10800 lumens 12250 lumens Color Temperature 3000K~ 6000K Optical Distribution Bat Wing, TypeII Beam Angle 140° CRI >70 Physical Parameters LED Lighting Source Led module design Mono Solar Panel 40W/18V 60W/18V 70W/18V 80W/18V 100W/18V 120W/18V LiFePO4 Lithium Battery 18AH/12.8V
(230WH) 24AH/12.8V
(307WH) 30AH/12.8V
(384WH) 36AH/12.8V
(461WH) 48AH/12.8V
(614WH) 63AH/12.8V
(806WH) Controller MPPT controller PIR Sensor included Charging Time 5 hours Discharging Time 36 hours IP Rate IP 65 Lamp Fixture High-Pressure Die-Casting Aluminum. Corrosion Resistant Lamp Arm Adaptor Diameter 60-85mm Dimension of Product 343*780*60mm 343*1020*60mm 343*1250*60mm 505*950*60mm 505*1170*60mm 505*1320*60mm Net Weight of Product 11.3kg 15.3kg 16.9kg 19.2kg 22kg 24.8kg Working Mode Time Control or PIR Motion Sensor Control Environment Requirements Charge Temperature -5-55ºC Discharge Temperature -20-55ºC Storage Temperature 0-50ºC
MODE B : 12 Lighting hours/Night + Automatic Time Control.
The lights turn on automatically at dusk, automatic brightness adjustment at night,the lights turn off automatically at dawn.
>3 Consecutive Rainy & Cloudy Days
Due to perfect power management system, the solar light can still work after more than 3 consecutive rainy and cloudy days

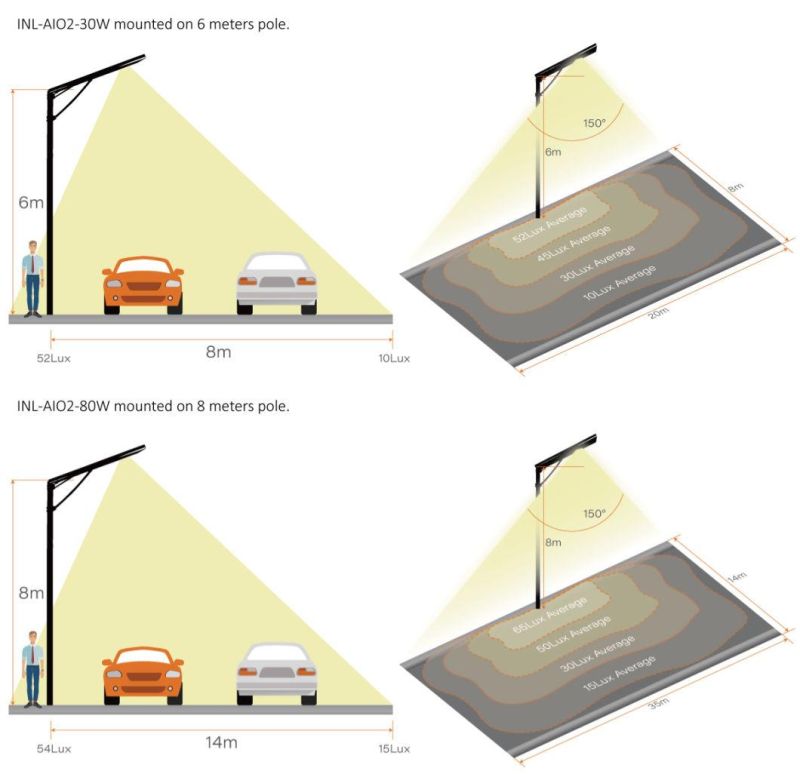

LIGHTING EFFECT
(230WH)
(307WH)
(384WH)
(461WH)
(614WH)
(806WH)
WORKING MODE
MODE A : 12 Lighting Hours/Night +PIR Motion Sensor Control
It is 100% power working when human being detected, and 25% power default setting when no human being detected.

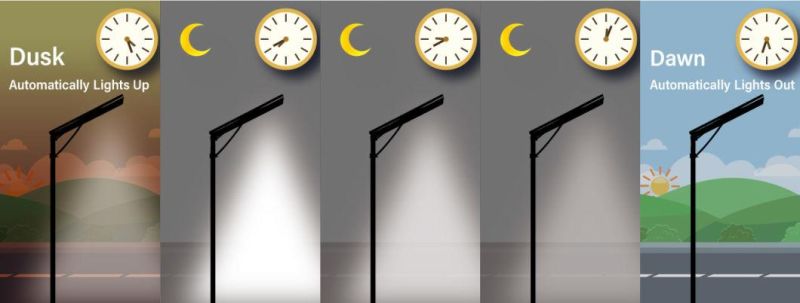

MODE B : 12 Lighting hours/Night + Automatic Time Control.
The lights turn on automatically at dusk, automatic brightness adjustment at night,the lights turn off automatically at dawn.

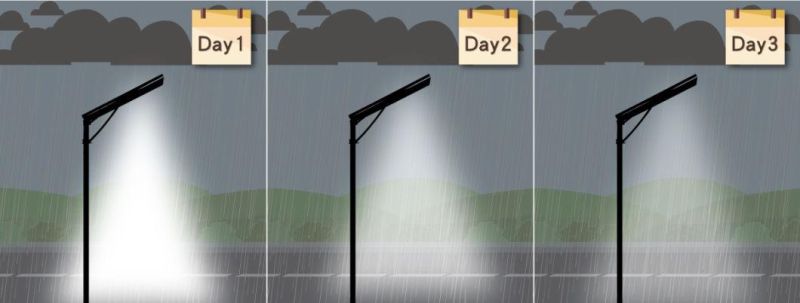

>3 Consecutive Rainy & Cloudy Days
Due to perfect power management system, the solar light can still work after more than 3 consecutive rainy and cloudy days
LIGHTING EFFECT
