• Model NO.：ELITE-080
• Application：Highway, Square, Garden
• IP Rating：IP65
• Certification：CE, RoHS
• Voltage：12V
• Product Name：80W LED All in One Solar LED Street Lighting
• Model No.：Elite-080
• LED Power：80W
• Solar PV：47W
• Lithium Battery：341.9wh,11.1V
• Lumen：6000-6500lm
• Mounting Height：8-10m
• Working Mode：Timer, Motion Sensor, APP
• Brand：Sinoltech
• Warranty：5 Years
• Transport Package：Strong Carton
• Specification：ISO 9001
• Trademark：SINOLTECH
• Origin：China
• HS Code：9405500000
• Production Capacity：10000PCS,Month

Basic Info.

Model NO. ELITE-080 Application Highway, Square, Garden IP Rating IP65 Certification CE, RoHS Voltage 12V Product Name 80W LED All in One Solar LED Street Lighting Model No. Elite-080 LED Power 80W Solar PV 47W Lithium Battery 341.9wh/11.1V Lumen 6000-6500lm Mounting Height 8-10m Working Mode Timer, Motion Sensor, APP Brand Sinoltech Warranty 5 Years Transport Package Strong Carton Specification ISO 9001 Trademark SINOLTECH Origin China HS Code 9405500000 Production Capacity 10000PCS/Month

Product Description

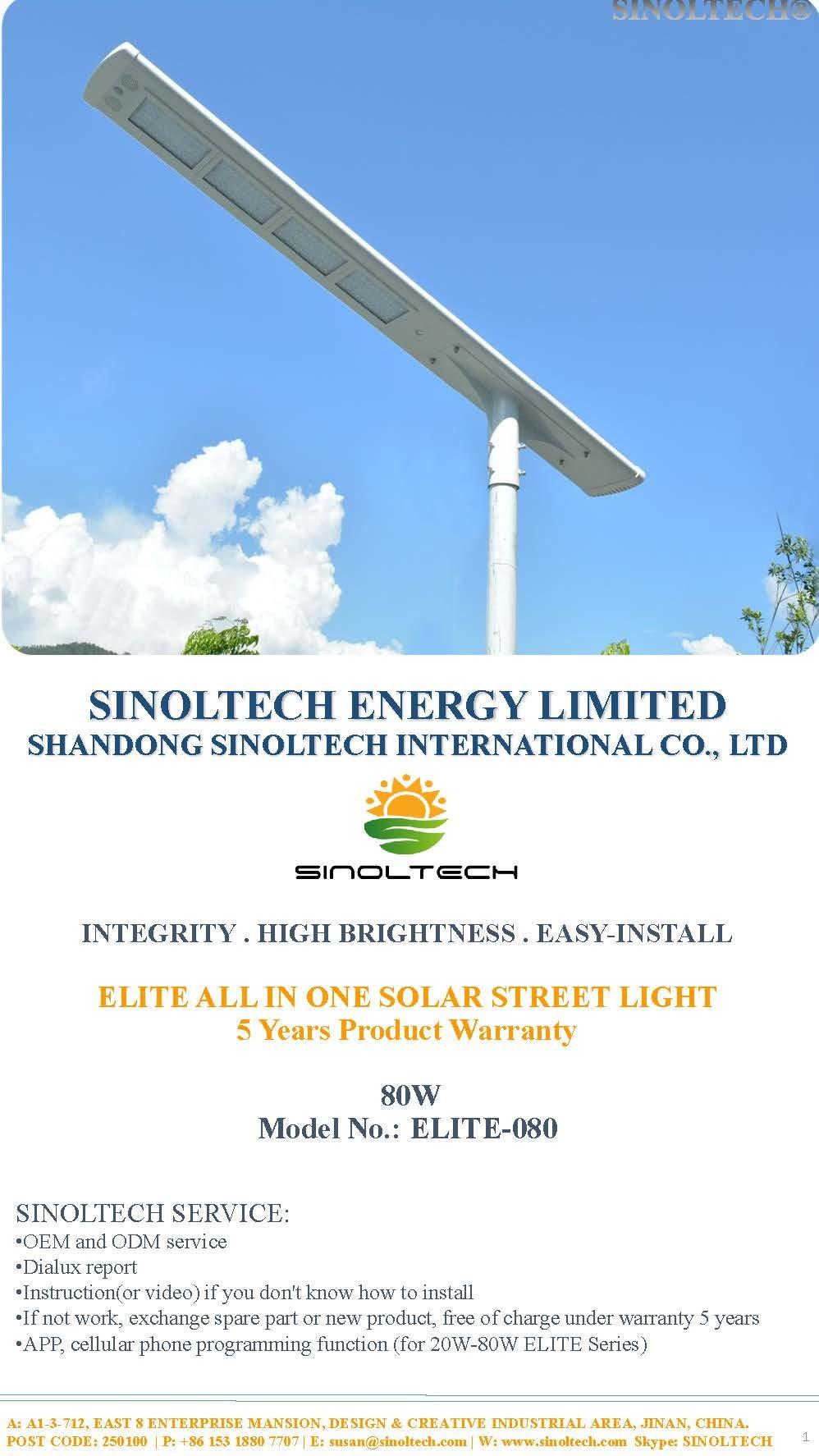

80W ELITE ALL IN ONE SOLAR Powered  LIGHT(ELITE-080)

Material List:

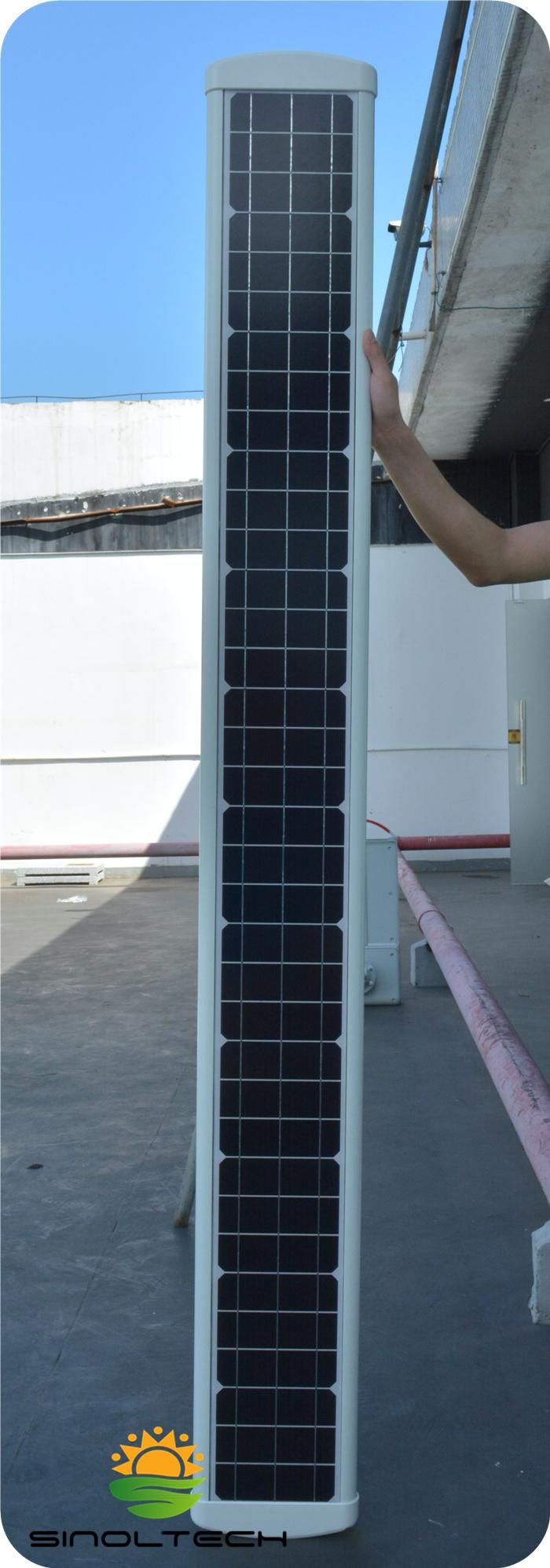

SOLAR PV MODULE
Adopting high quality SOLARWORLD cell Germany or SUNPOWER cell USA, efficiency up to 17%-19%.
Top A grade cell, with 5 years warranty, 25 years guarantee.

SOLAR CONTROLLER
MPPT technology, with a wide range function of light sensing, timer, motion sensing, APP etc.
Discharging efficiency from lithium battery to LED lamp ≥97%.
Metal frame, IP68 waterproof degree.
Warranty 5 years, life span 10 years.

LITHIUM BATTERY
Adopting A class lithium battery (LiCoO2), compact & light weight, cycling life time over 2000 times.
Warranty 5 years, life time 5-8 years.

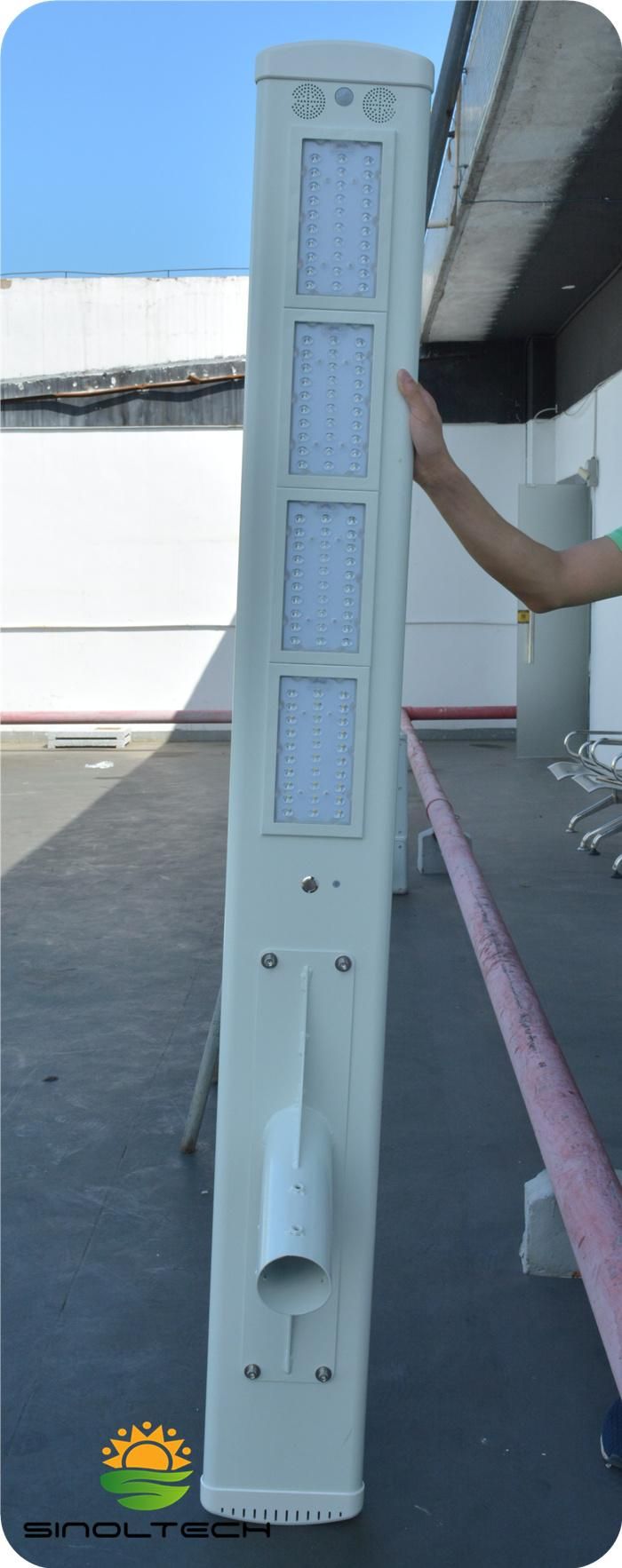

LED LAMP
Adopting USA Bridgelux chip, including lens, low power consumption, with the protection of acrylic cover, life time can reach 50000 hrs, warranty 5 years.

Lighting Principle:
SENSOR
Optional PIR and Microwave sensor, according to client's request.

ALUMINUM ALLOY FRAME
Anti corrosion and rustproof aluminum alloy frame, warranty 5 years, life time over 10 years.

LIGHT CONTROL
LED lamp automatic ON when sunset, automatic OFF when sunrise.
In daytime, solar panel output voltage to battery, charging battery>5V, LED lamp stays OFF.
At night, sunlight is weak, charging battery<5V, LED lamp stays ON.

SENSOR
After LED lighting, when people passes by, the luminance of LED increases, when people leaves, the luminance of LED reduces.

CELLPHONE APP
Suitable for SNSTY series models above 20W, lamp and software connected by bluetooth.
APP main settings include:
1. ON and OFF
2. Setting rainy days in order to adjust the luminance of LED
3. Default setting
4. Power saving checking
5. Troubleshooting
6. Timer setting
     etc
---General specification:

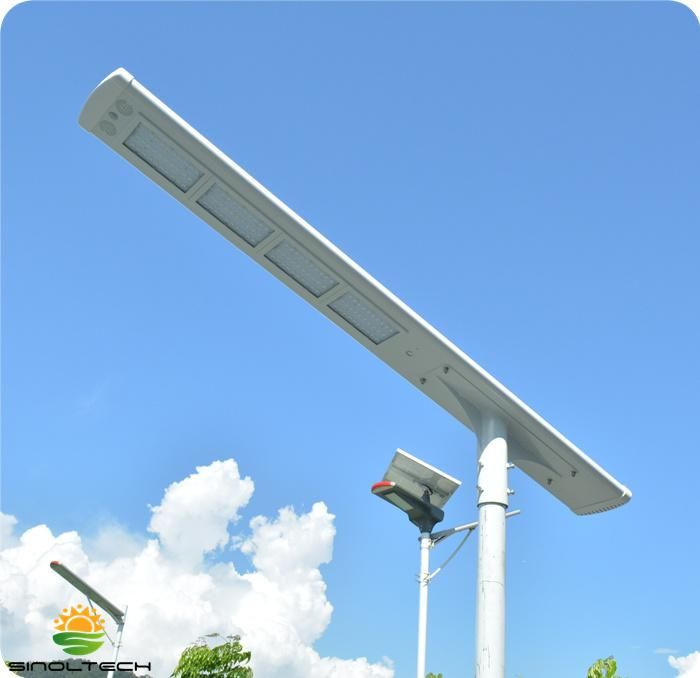

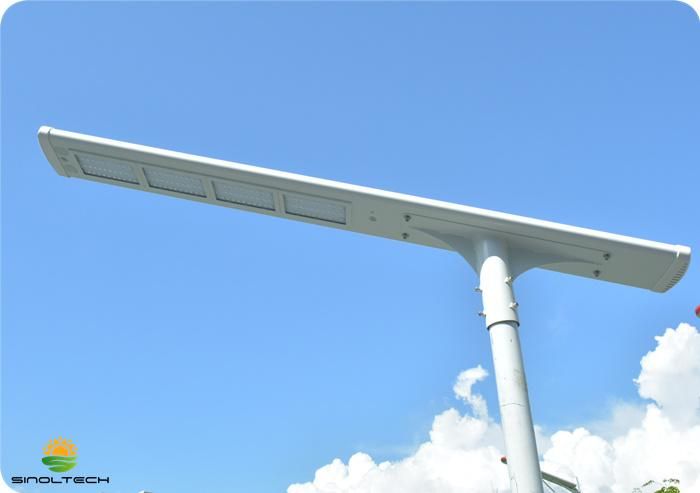

---Products display:



Successful cases:
