• Model NO.：SNSTY-208
• Cell Type：Lithium Battery
• Charging Time (H)：8
• Usage：Garden, Street
• IP Rating：IP65
• Certification：CE, RoHS
• Voltage：12,24V
• With Light Source：With Light Source
• Product Size：480*440*50mm
• Gross Weight：7kg
• Carton Size：550*400*150mm
• Install Height：2-3.5m
• Lumen(Lm)：900-950lm
• Model No.：Snsty-208
• Product Name：8W LED Integrated Solar Garden Light
• LED Power：8W
• Solar Panel：20W
• Lithium Battery Capacity：9ah
• Transport Package：Strong Carton
• Specification：8W LED 20W Solar Panel
• Trademark：SINOLTECH
• Origin：China
• HS Code：9405500000
• Production Capacity：China

Basic Info.

Model NO. SNSTY-208 Cell Type Lithium Battery Charging Time (H) 8 Usage Garden, Street IP Rating IP65 Certification CE, RoHS Voltage 12/24V With Light Source With Light Source Product Size 480*440*50mm Gross Weight 7kg Carton Size 550*400*150mm Install Height 2-3.5m Lumen(Lm) 900-950lm Model No. Snsty-208 Product Name 8W LED Integrated Solar Garden Light LED Power 8W Solar Panel 20W Lithium Battery Capacity 9ah Transport Package Strong Carton Specification 8W LED 20W Solar Panel Trademark SINOLTECH Origin China HS Code 9405500000 Production Capacity China

Product Description

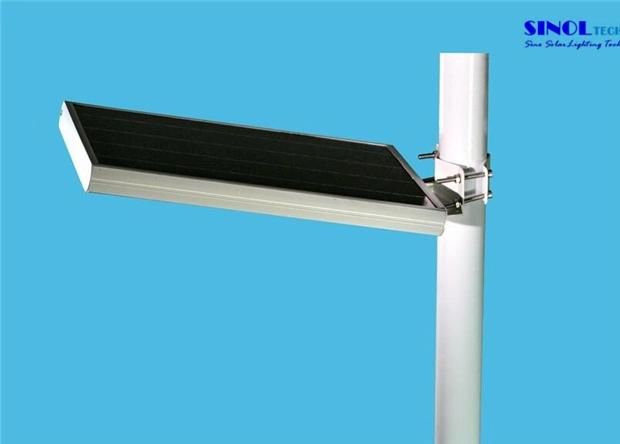

All in One 8W LED Integrated Solar Garden Light - Motion Sensor Solar Light (SNSTY-208)
Our integrated solar street light which integrates the green-energy parts solarpanel, LED lamp and the Li-Fe battery into a single product, is with human intelligence induction system to gain the solution of low-energy, long-time, high-luminance and free maintenance. And the same time, it's convenient in the shipment and installation.

---Purpose:
To be installed in the garden, residential area, courtyard, road, mine area or
Parking area or provide the light in roads where it's necessary, the battery provide
The energy for lighting, and the solar panel charge for the battery.
Product parts:
The product is made up with the integrated parts (solar panel, Li-Fe battery, LED,
MPPT controller and human intelligence induction system) and the light pole.
Working characters:
The solar panel converts sunlight into electricity and stored in Li-Fe battery via
Controller, the LED light will work in night automatically by light sensor control,

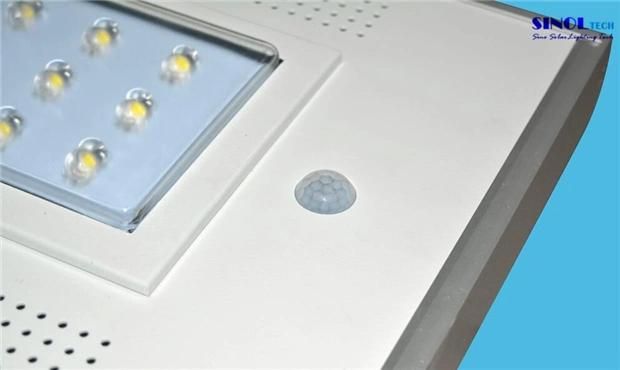

And provide light for the darkness area, the human intelligence induction system can save the energy when the lighting is not necessary.

---General specification:

Solar Panel	Max Power	18V25W(High efficiency monocrystalline silicon)
	Life time	25 years
Battery	Type	Lithium battery 6AH standard(extend 9AH)
	Life time	5 years
LED Lamp	Max power	12V 8W
(With sensor)	Led chip brand	Epistar from Taiwan with high brightness
	Lumen(LM)	800-880LM
	Life time	50000hours
	Viewing angle	120 degree
Charge time	By sun	6hours
Discharge time	Full power	12 hours
	Half power	24 hours
Working temp.	range(C)	-20C~+60C
Color temp.	range(k)	6000k
Mounting height	range(m)	3-4m
Space between light	range(m)	8-10m
Main lamp materials		Aluminum alloy
Certificate		CE/ROHS/IP65
Warranty period		3 years
