• Model NO.：SNSTY-212
• Voltage：12V
• Certification：CE
• Main Material：Aluminum Alloy
• Solar Panel：25W 18V
• LED Lamp：12W
• Solar Panel Brand：Sunpower
• LED Chip Brand：Bridgelux
• Lumen：1300 Lm
• CCT：CCT2700-7000K
• Working Method：Timer, Motion Sensor
• Install Height：3.5-4.5m
• Key Word：Integrated Solar Light for Fence Lighting
• Transport Package：Strong Carton
• Specification：ISO 9001
• Trademark：SINOLTECH
• Origin：China
• HS Code：94054090
• Production Capacity：10000PCS,Month

Basic Info.

Model NO. SNSTY-212 Voltage 12V Certification CE Main Material Aluminum Alloy Solar Panel 25W 18V LED Lamp 12W Solar Panel Brand Sunpower LED Chip Brand Bridgelux Lumen 1300 Lm CCT CCT2700-7000K Working Method Timer, Motion Sensor Install Height 3.5-4.5m Key Word Integrated Solar Light for Fence Lighting Transport Package Strong Carton Specification ISO 9001 Trademark SINOLTECH Origin China HS Code 94054090 Production Capacity 10000PCS/Month

Product Description

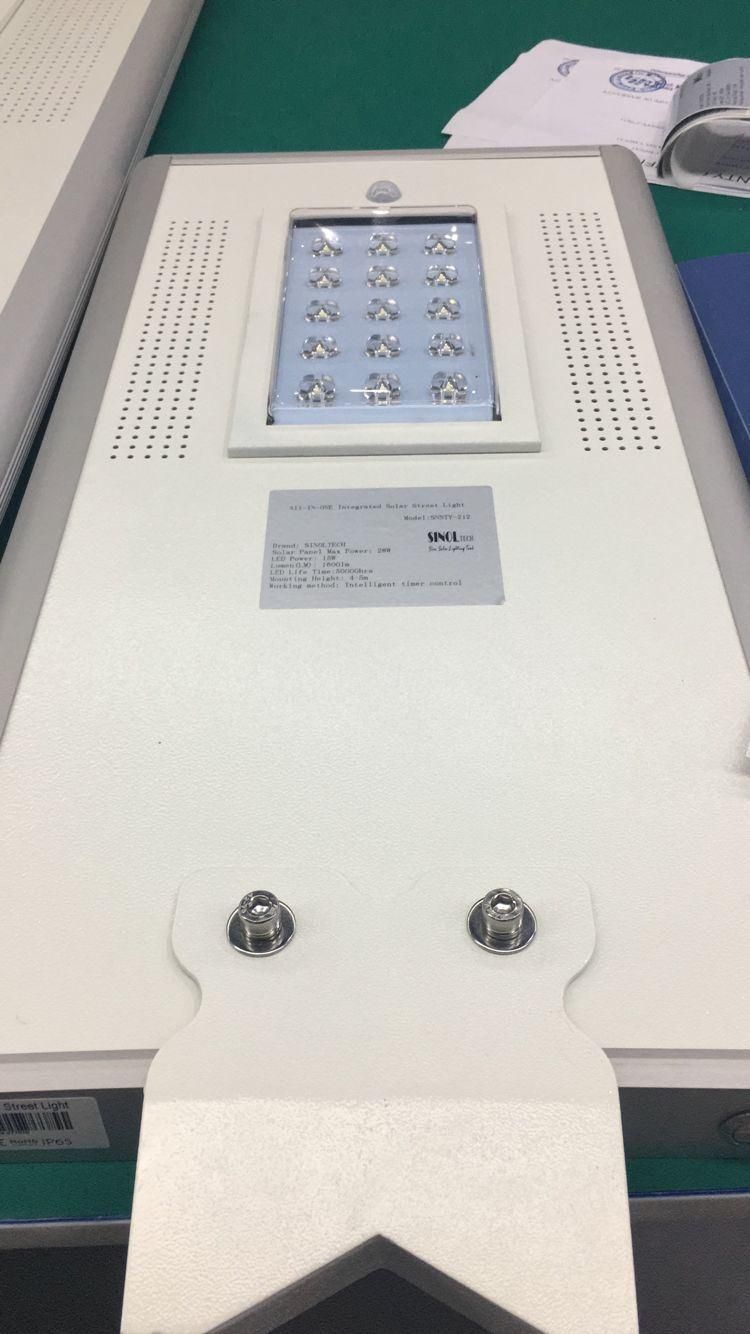

ALL IN ONE PV Integrated 12W LED Solar Garden Lamp for park lighting (SNSTY-212)

6W-120W All in one integrated solar garden and street light for public square, plaza, courtyard, garden, park, street, roadway, pathway, parking lot, private road, sidewalk, campus, airfield, farm & ranch, perimeter security, wildlife area, military base etc.

The integrated solar street light is an intelligent outdoor lighting system that integrates the best energy saving parts---solar panel, led lamp ,sensor, controller and lithium battery all in one box.
During the day the highly efficient solar panel collects energy from the sun and stores the power in the advanced lithium battery.
At night the powerful Led would automatically be turned on providing light. When motion is detected,the Led would increase in brightness to provide an abundance of extra lighting for anyone in the area.
After 20 seconds or when motion is no longer detected, the light drops down in brightness to conserve power.
This intelligent feature allows the solar powered street light to save power when no one is in range or utilizing the light, meaning a much longer run time than you would expect from a similar size solar lighting.
Features:
a. Integrated design, integrated light source, the new high-capacity lithium batteries, integrated solar modules and automatic controller,motion sensor.
b. Easy to install and maintain, without cables,without equipped with special poles, functional components of a modular design, installation, maintenance,more convenient and   more quick.
c. Using solar power systems, pure green energy, inexhaustible,optimal energy for environment.
d. High-capacity lithium-ion batteries, high energy, long life, light weight, green environmental production, does not produce any harmful substances.
e. Using LED light source, no diffuse effect, with a high light efficiency, coupled with a unique secondary optical design, exposure to the wider region, to improve the efficiency of light once again. And the LED light source has a long life, high luminous efficiency, light color uniform and other advantages, also the best blue green products.
f. Shell is made of aluminum material with light weight, corrosion resistance, abrasion
resistance and other characteristics, to ensure that products meet moist, hydroelectric
acid environment.
g. Control system uses industrial-grade components manufacturing, adapt to harsh environments, and ensure to bright all the night.

Main component:
The integrated solar street light is composed of built-in: high efficiency solar module/panel, high capacity LiFePO4 battery, controller with micro-computer MPPT function, Bridgelux Led and infrared body sensor.(light pole is not included)

We offer 3 years product warranty for integrated solar garden/street light(including components), starting from the date of sales.

Defect component will be replaced free of charge under the condition that this defect is not caused by any human factors, including but not limited to: rough operation during transportation and installation, improper way of mounting.
Regarding the products which have exceeded warranty period, we will provide replaced components at cost price.
Replacement parts include: LED lamp, Solar controller, Battery, Sensor, Solar panel, Screws & Cable, etc.

Material Description:
Solar Panel: SUNPOWER solar cell, 5 years product warranty, 25 years 80% power output guarantee;
LED lamp: LED chip brand-USA Bridgelux, 50000 hours life time;
MPPT solar controller: 2 years warranty;
Lithium iron phosphate power battery with extra long service life 5 years.

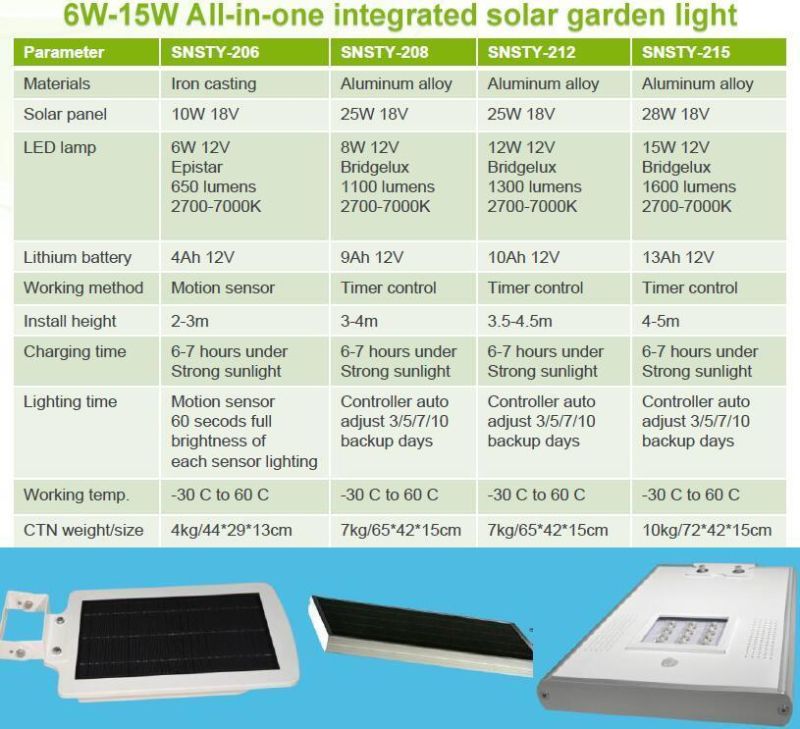

Specification Date for ALL IN ONE design solar LED garden lamp

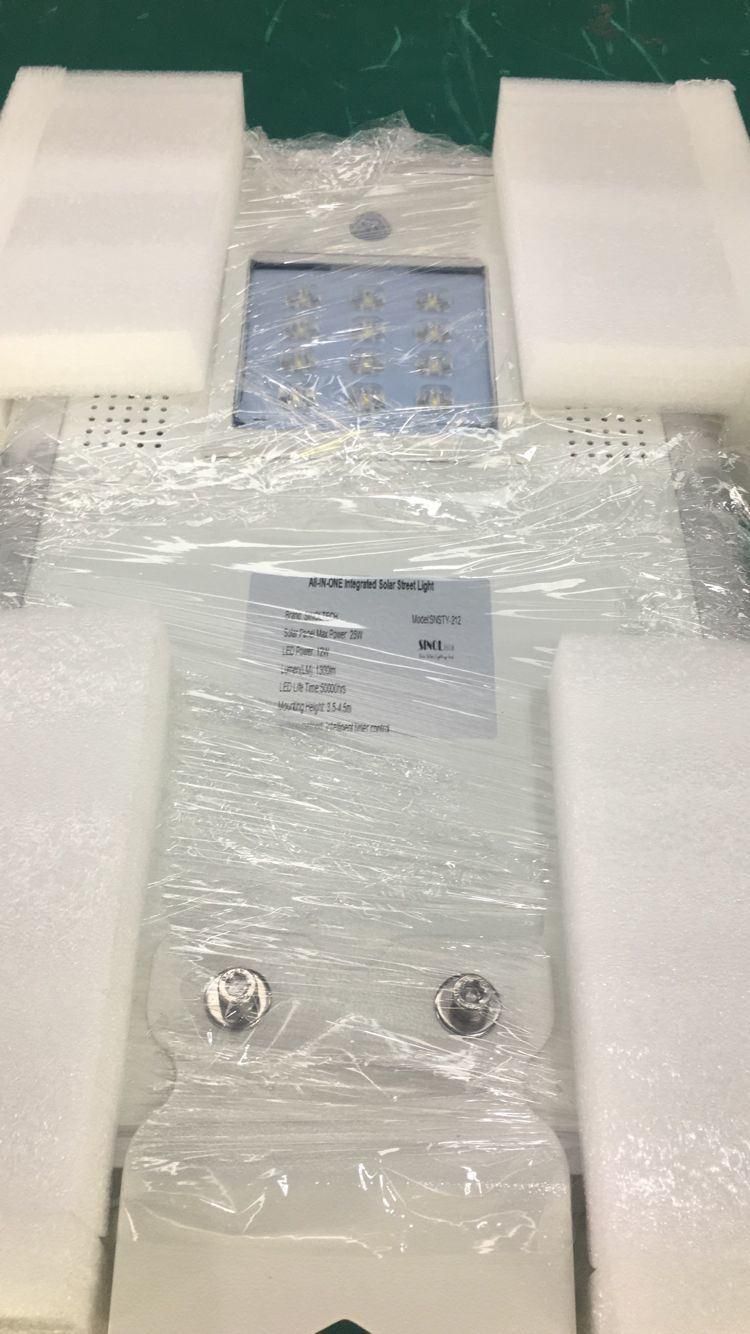

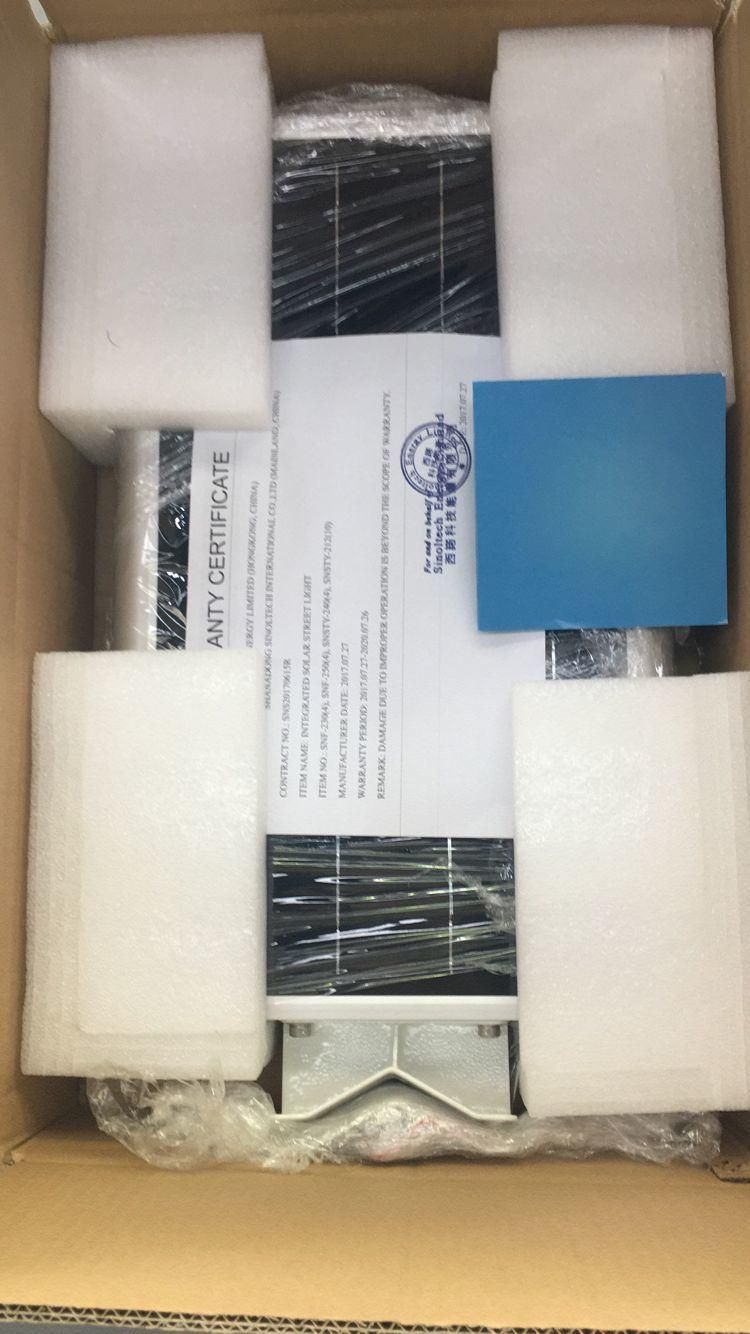

--PACKING & DELIVERY

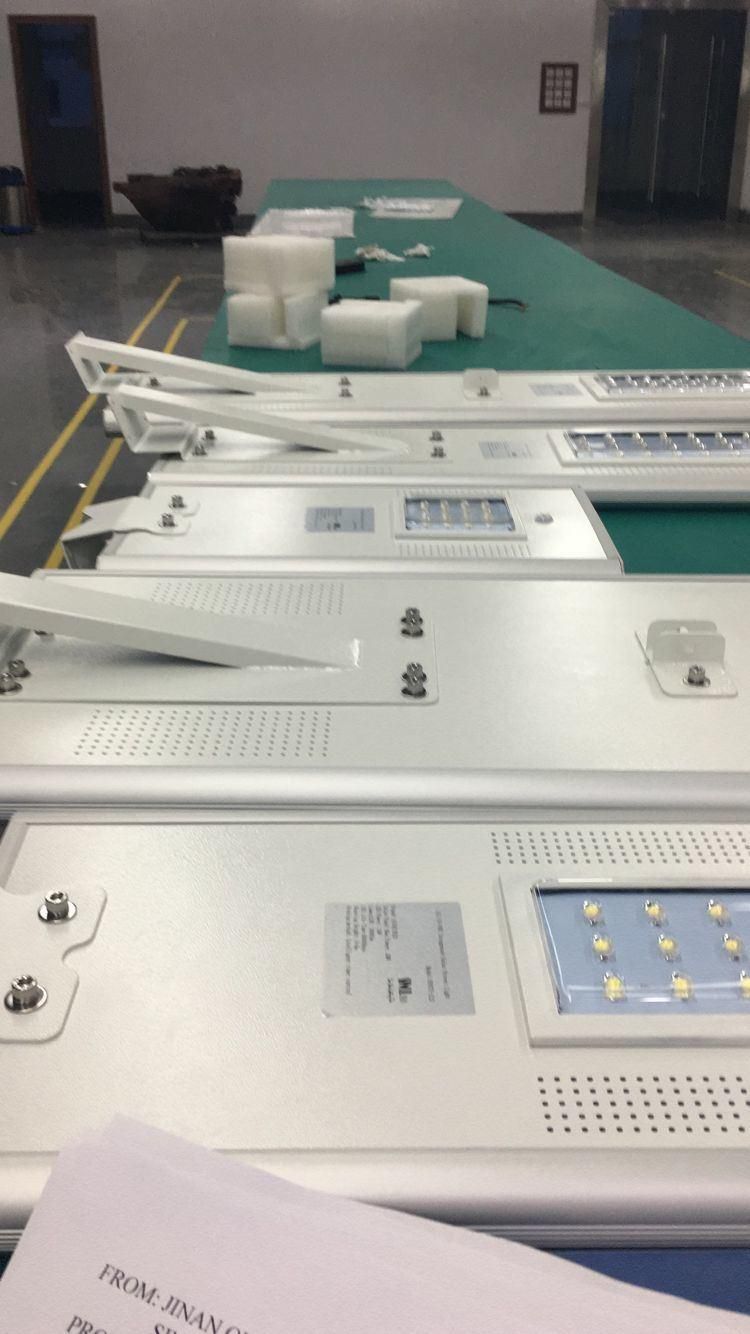

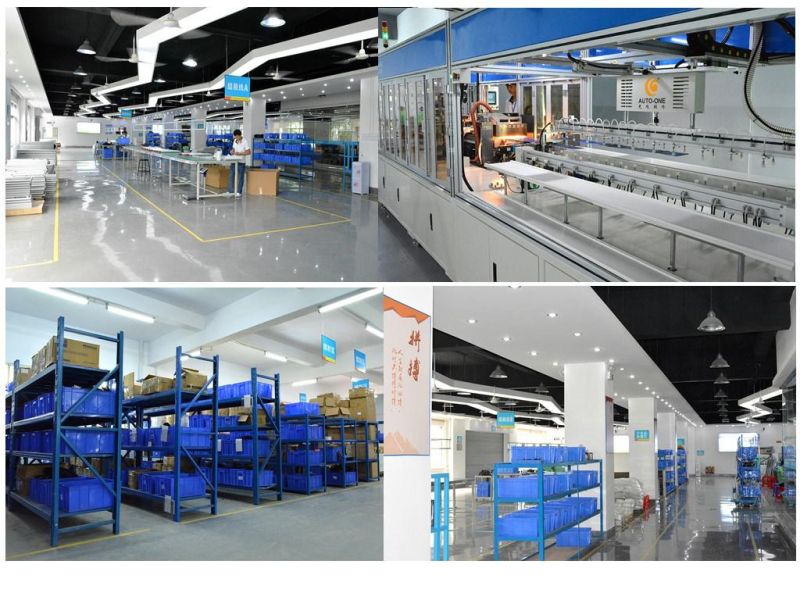

--WORKSHOP
