• Model NO.：ISSL-DLX-120C-0303V
• Illumination Time：>12h
• Cell Type：LiFePO4 Lithium Battery
• Charging Time (H)：6
• Usage：Garden, Street
• IP Rating：IP66
• Certification：CE, RoHS
• Voltage：12V
• With Light Source：With Light Source
• Lamp Luminous Flux(Lm)：13200~15600lm
• Lamp Choosing：20W,30W,40W,50W,60W,80W,100W,120W
• Solar Panel：High Efficiency Monocrystalline
• Charge Controller：MPPT
• Smart Function：Remote Control,Motion Sensor,Light Sensor,Timer
• Lighting Time：2-3 Rainy Days
• Working Temperature(ºC)：-20 - 65
• OEM ODM：Available
• Warranty：3 Years, 5 Years
• Mounting Height：10m-12m
• Certificate：ISO 9001,14001,TUV-Sud ,Ce,RoHS,IP66
• Lamp Pole Distance：45m-50m
• Transport Package：Carton, Pallet, Bubble
• Specification：10-12M pole 120W Street LED Light
• Trademark：ESAVIOR
• Origin：China
• HS Code：9405409000
• Production Capacity：10000 Piece, Per Month

DELUXE (GOLDEN) SeriesMODEL NO. ISSL-DLX-120CSolar PanelPower36V/160Wp (SUNPOWER, Cell Efficiency: 22.5%)Life-span25 yearsBatteriesCapacity/Type25.6V/45AH (1152.00WH) / LiFePO4 LithiumLife-span8+ years (2,000 circles)ControllerTypeMPPT / Waterproof class: IP68SensorMicrowave Radar (PIR & Timing as optional)LED Light SourceRated Power24V/ 120W (30Wx4 modules)LED BrandCREE X-Lamp (LED Lumen: 178lm/W)Lumens(LM)13200-15600lmLife-span60,000 hoursViewing Angle140°Full Charge TimeBy Solar7 hours  (STC: 1000W/m², 25ºC )Discharge TimeBright Mode>9 hoursDim Mode>45 hoursWorking Temp.-30ºC~+80ºCColor Temp.Cool White 6000K (6000~6500k) / (Warm White 3000K, 4000K available)Mounting Height10~12 mSpace Between Lights45~50mMaterialsaluminium alloyCertificateCE / ROHS / IP65Warranty3 yearsPacking & WeightProduct Size1560*535*160mmNet Weight40.0kg (Light: 36kg, bracket: 4kg)Carton TypeCustomary Carton/ OEM AcceptableCarton sizeLight: 1620*600*200mm/ Bracket: 600*500*300mmQty/ctn1 Carton for 1 light/ 1 Carton for 2 bracketGW. per Carton42.0kgPCS per Container20' GP12540' GP260

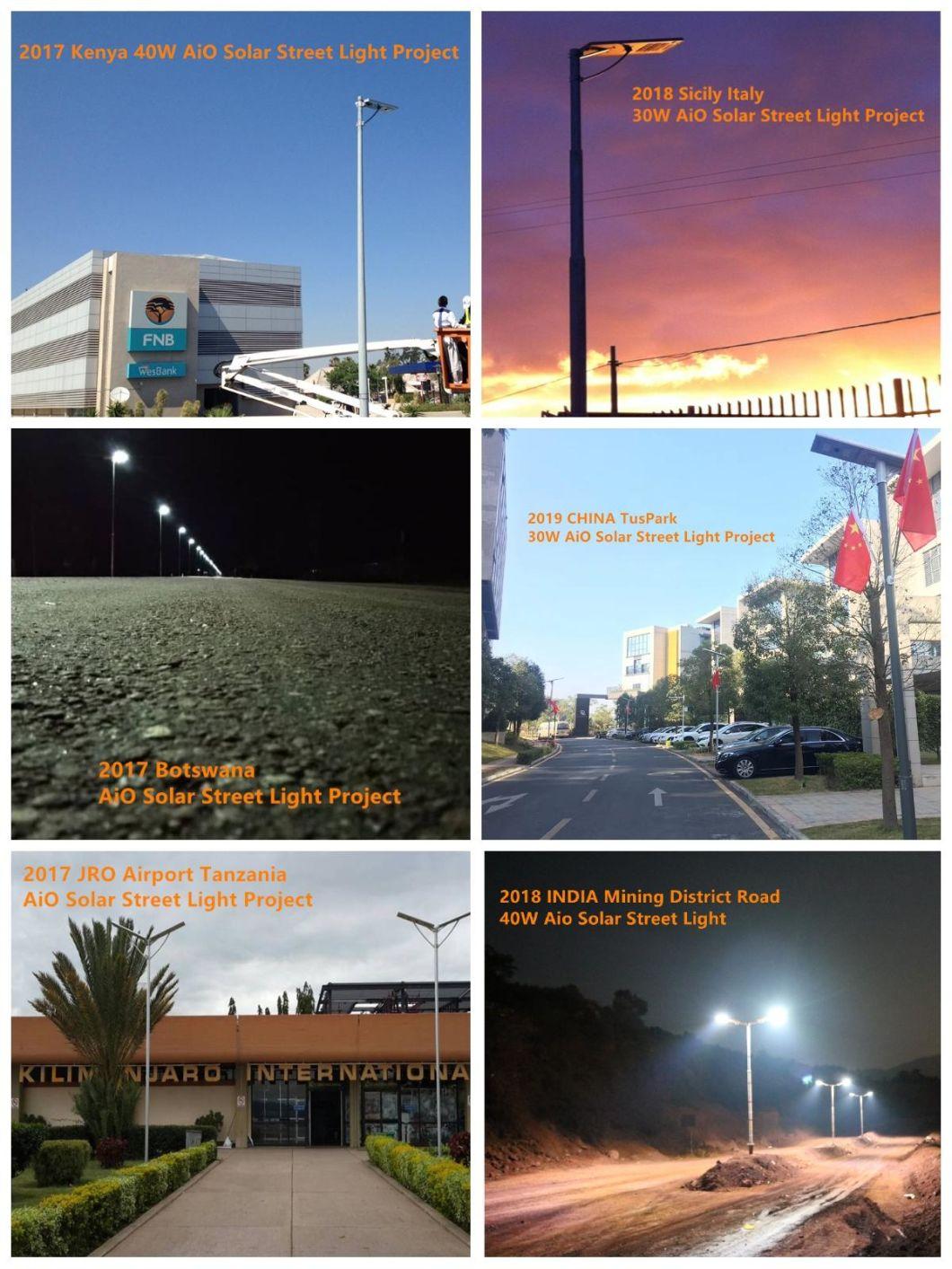

PROJECTS  SHOW


WHY ESAVIOR?

1. 10 years' experience in with global successful project reference on the Solar Lighting field.

2. 13 patents core technologies were awarded to our Solar Street Lights and IoT online Monitoring System for Solar Street Light.

3. ISO 9001/14001, IEC 60598/ IES TM-21 / IES RP-27.3-07 reports were awarded by TUV-SUD besides our existing CE/RoHs/IP66 certificates.

4. More than 90 countries' clients enjoy our solar street led lights, highly praised by UNDP, UNHCR, UNOPS, Red Cross, The World Bank and government.

5. Provides a modern manufacturing base which meets international global solar RD & Inspection Center ,has the most advanced inspection equipment and faultless QA system.

CERTIFICATES SHOW

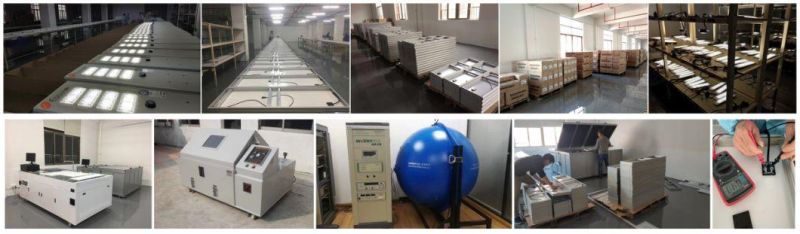

WORKSHOP SHOW


OVERSEAS EXHIBITIONS




RFQ:

Q1:Does the lamp light on automatically?

A:Yes, it will light on automatically at darkness no matter which mode except "OFF".

Q2:Can I order a samples for solar street light?

A:Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.

Q3:What about the lead time?

A:3 workdays for sample, 7-15workdays for batch order(more than 100pcs).

Q4:Do you offer guarantee for the products?

A:Yes, we offer 3-5 years warranty to our products.

Q5:Can the lamp be used in strong wind environment?

A:Of course yes, as we take Aluminum-alloy holder, solid and firm, Zinc plated, anti- rust corrosion.

Q6:What's the difference between Motion sensor and PIR sensor?

A:Motion sensor also called radar sensor, works by emitting high frequency electric wave and detecting people movement.PIR sensor works by detecting environment temperature changing, which usually is 3-5 meters sensor distance.But motion sensor can reach 10 meters distance and be more accurate and sensitive.

Q7:How to deal with the faulty?

A:Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.05%.Secondly, during the guarantee period, we will send replacements with new order for small quantity.
