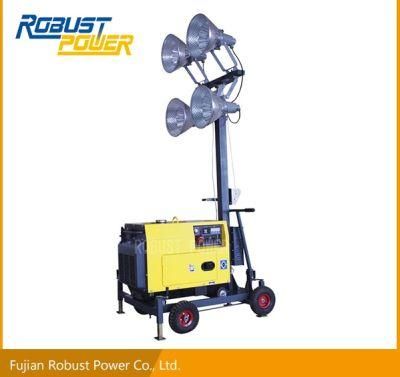

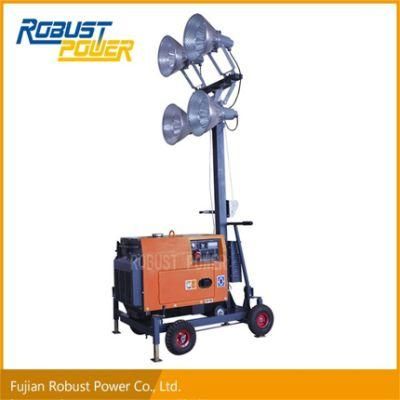

IP54 Diesel Engine Trailer Mobile Light Tower

Fujian Robust Power Co., Ltd.
  • Product Name：Mobile Metal Halide Light Tower
  • Engine Brand：Kubota D1105-Bg 3 Cyclinders,in Line Water Cooled
  • Prime Power：50Hz,60Hz
  • Engine Speed：1500rpm,1800rpm
  • Warranty：5000hours
  • Voltage：DC 48V

Base Info

  • Model NO.：RPLT-6000
  • Fuel Consumption：2.0L,Hr)(100litres,Tank
  • Total Power of Lamps：4X1000W Metal Halide Lamps
  • Control Panel：Gu3303 Digital Controller
  • Certificate：ISO9001,Ce,SGS
  • Transport Package：Plywood Pallet,Plwood Case,Cartons
  • Specification：4500X1350X1700mm
  • Trademark：Robust Power
  • Origin：China
  • HS Code：94054090
  • Production Capacity：300set,Month

Description

Technical specificationsGENERATOR EngineKubota D1105-BG DieselEngine Type 3 cylinders,in line,water cooledPrime Power6.7kW / 50Hz     8.4kW/60HzEngine AspirationNaturalAlternatorStamford PI044F/4pole,Brushless,excitationVoltage120,220,230,240VInsulationHFuel Tank Capicity(L)100 LFuel Consumption2.0 L/hMaximum Working Hours50Control systemGU3303 Digital controllerEngine Shutdown ProtectionLow oil press,over speed,over current,high temperature  detection,low fuel levelAyxiliary Sockets2Lighting Total Power Of Lamps4x1000W or 4x1500WType Of LampMetal halide lampHousing MaterialsGalvanization Reflector HousingLumen4*110,000Lifetime Of Lamp5000 hoursWorking Temperature≤85°CConnection Protection IndexIP65Mast Type6-Sections Telescoping mast 8MTotal HeightTop 8MRotation360 degrees Operate For ElevationHydraulicTrailer  Tow HitchRing/ball hitchStabilier Supports4*Manual 4*HydraulicTire Size13 inchBrakesManualDIMENSION & WEIGHTDry/Net Weight930/890 kgExtended Dimension(LxWxH)4500*1350*1700mmShipping PackageIron Pallet 2100*1300*2400mm Carton 520*520*400mmContainer Load(20GP/40HQ)6/12 setsColorWhite/Yellow/Optional
