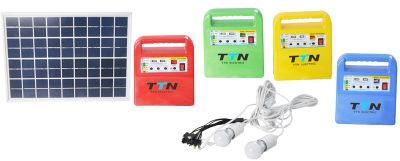

Home Solar Lighting System 10W

Zhejiang TTN Electric Co., Ltd.
  • Light Source：LED Lamp
  • Lamp Body Material：Aluminum Alloy
  • Light Type：Solar
  • Color Temperature：Warm White
  • Power：6W-10W
  • Technics：Hollow-carved

Base Info

  • Model NO.：Home Solar Lighting System 10W
  • Illumination Time：8h
  • Cell Type：Ni-MH Battery
  • Charging Time (H)：8
  • Usage：Garden, Street
  • IP Rating：IP65
  • Voltage：12,24V
  • With Light Source：With Light Source
  • Input Charging Voltage：Voltageof Solar Panel≤25V,AC Charger 15-16V
  • Max Charing Current：2A
  • Rated Output Voltage：3A
  • Current Value for Overload Protection：4A
  • Time for Restart：Auomatic Release After 30s or Turn off The Power S
  • Output Currect for USB：1A
  • Voltage Point for Over-Discharge Protect：11.0V
  • Voltage Point for Over Voltage Recovery：12.6V
  • Voltage for Float Charge：13.8V
  • Charging Mode：PWM Available
  • Transport Package：Standard Export Packing
  • Specification：CE ISO: 9001
  • Trademark：TTN
  • Origin：Zhejiang China
  • Production Capacity：20000pieces Per Month

Description

Voltageof solar panel≤25v/ac charger 15-16VMax charing current2A2ARated output voltage3A3ACurrent value for overload protection
4ATime for restartAuomatic release after 30S or turn off the power switch deirectlyOutput currect for USB1AVoltage point for over-discharge protection11.0VVoltage point for over voltage recovery12.6VVoltage for float charge13.8VOver voltage value for protection15.5VCharging modePWM availableAudio format avaiable-MP3Frequency range of the radio-FM88-108MHZPower of loud speaker-4Ω -3WInput port-SD card,USBWorking temperature-25ºC--+60ºCDimension180*81*209(mm)Net weight2.55kg
