• Model NO.：SMLN-100W

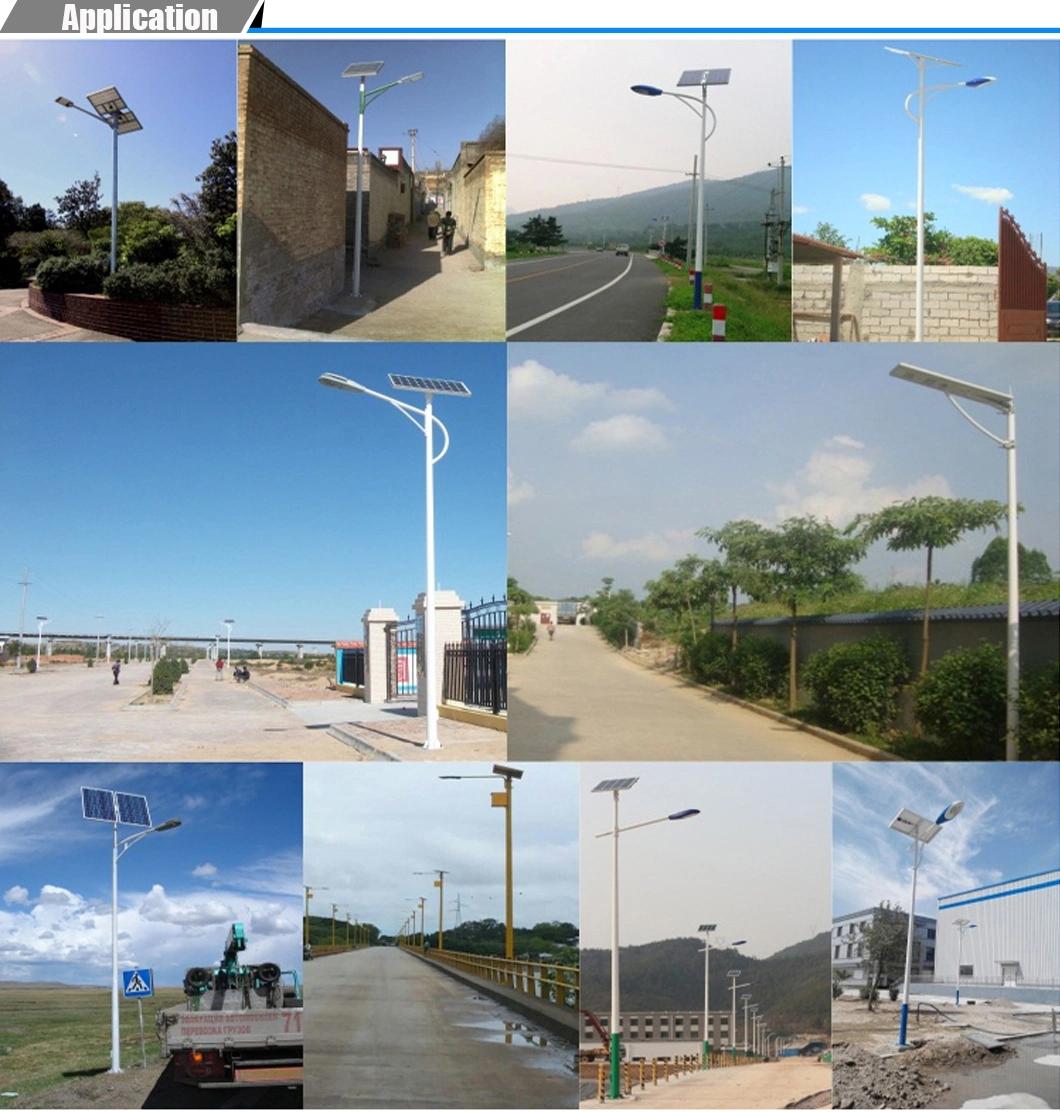

• Application：Highway, Square, Garden
• IP Rating：IP66
• Certification：CE, RoHS, ISO, FCC, EMC, GS, TUV
• Voltage：12V
• Back up Days：4 Days
• Maintenance：10 Years Free Maintenance
• Mounting Height：3m 4m 5m 6m 7m
• Controller：MPPT
• LED Chip Brand：USA Bridgelux 210lm,W
• Working Lifetime(Hour)：50000
• Lamp Luminous Efficiency(Lm/W)：180lm,W
• Distance Between Poles：10-15m
• Pole Height：7m From 5m-12m
• Solar Cells：Mono or Poly High Efficiency A Grade
• Dim/Non-Dim：Both Can Do
• Approval：Ce,RoHS,Coc,IEC Soncap
• OEM/ODM/Customized：Available
• Warranty(Year)：10 Years
• Input Voltage(V)：DC12,24V
• Transport Package：Carten
• Specification：1593X450X45mm
• Trademark：sunmaster
• Origin：Zhejiang, China
• HS Code：9405409000
• Production Capacity：1000PCS,Week

Basic Info.

Model NO. SMLN-100W Application Highway, Square, Garden IP Rating IP66 Certification CE, RoHS, ISO, FCC, EMC, GS, TUV Voltage 12V Back up Days 4 Days Maintenance 10 Years Free Maintenance Mounting Height 3m 4m 5m 6m 7m Controller MPPT LED Chip Brand USA Bridgelux 210lm/W Working Lifetime(Hour) 50000 Lamp Luminous Efficiency(Lm/W) 180lm/W Distance Between Poles 10-15m Pole Height 7m From 5m-12m Solar Cells Mono or Poly High Efficiency A Grade Dim/Non-Dim Both Can Do Approval Ce/RoHS/Coc/IEC Soncap OEM/ODM/Customized Available Warranty(Year) 10 Years Input Voltage(V) DC12/24V Transport Package Carten Specification 1593X450X45mm Trademark sunmaster Origin Zhejiang, China HS Code 9405409000 Production Capacity 1000PCS/Week

Product Description

1.3-5 rainy /cloudy days backup 2.Dusk-to-Dawn 12 hours with dim energy saving mode 3.Lighting times can be individually adjusted with program switch. 4.Illuminance in operation depending on local site conditions (average daylight available) and customer-specific lighting times.

Model NO.	SMLN-100W	Battery Type:	LiFePO4 30Ah/25.6V
Power:	100W	Charging Time:	6-10 hours
Color Temperature:	6000-6500K	Discharging Time:	10-12 hours
Certificate:	CE/ROHS/IP65	Product Dimension:	1593*450*45mm
Viewing Angle:	120	Packing Dimension:	1640*505*150mm
Working temperature :	,-20 ~ +70	Product Weight	28.74kg
Lamp Efficiency:	170 lm/w	Material:	Aluminum Alloy
Led chip brand:	USA  Bridgelux LED chip	Install Height:	9-12 m
Solar Panel:	18V 130W Mono-crystalalline	Warranty:	3 years
