• Model NO.：LD-360
• Lamp Body Material：Aluminum Alloy
• Light Type：Solar
• Color Temperature：Cool White
• Power：≥30W
• Technics：Electroplating
• Illumination Time：12h
• Cell Type：Lithium
• Charging Time (H)：8
• Usage：Street
• IP Rating：IP65
• Certification：CE, RoHS
• Voltage：12,24V
• With Light Source：With Light Source
• Name：Motion Sensor All in One Solar Street Light
• Certificate：CE, RoHS, IP65
• Lumen：5000-5500lm
• Mounting Height：8-9m
• Cool Temperature：6000-6500K
• Body Material：Aluminium Alloy
• Work Mode：Motion Sensor+Dim Light or Constant+Dim Light
• LED Light：90W
• Solar Panel：18V,80W, Mono
• Lighting Time：3-4rainy Days
• Transport Package：Carton
• Specification：1180*450*44
• Trademark：Newsky Power
• Origin：China
• HS Code：9405409000
• Production Capacity：10000sets Per Month
• Package size per unit product：52.00cm * 15.00cm * 40.00cm
• Gross weight per unit product：6.000kg

Basic Info.

Model NO. LD-360 Lamp Body Material Aluminum Alloy Light Type Solar Color Temperature Cool White Power ≥30W Technics Electroplating Illumination Time 12h Cell Type Lithium Charging Time (H) 8 Usage Street IP Rating IP65 Certification CE, RoHS Voltage 12/24V With Light Source With Light Source Name Motion Sensor All in One Solar Street Light Certificate CE, RoHS, IP65 Lumen 5000-5500lm Mounting Height 8-9m Cool Temperature 6000-6500K Body Material Aluminium Alloy Work Mode Motion Sensor+Dim Light or Constant+Dim Light LED Light 90W Solar Panel 18V/80W, Mono Lighting Time 3-4rainy Days Transport Package Carton Specification 1180*450*44 Trademark Newsky Power Origin China HS Code 9405409000 Production Capacity 10000sets Per Month

Packaging & Delivery

Package size per unit product 52.00cm * 15.00cm * 40.00cm Gross weight per unit product 6.000kg

Product Description

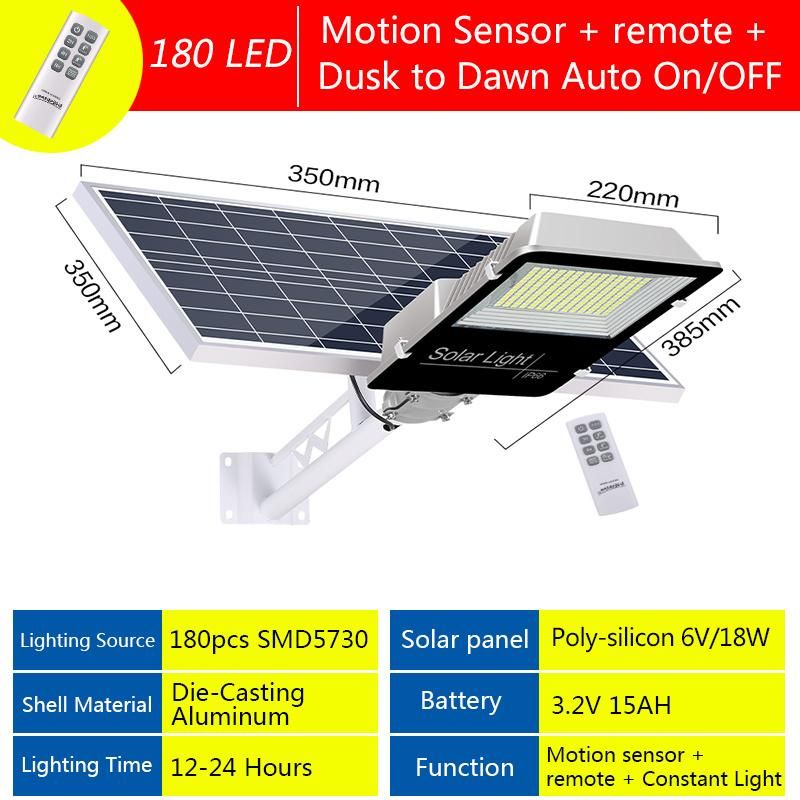

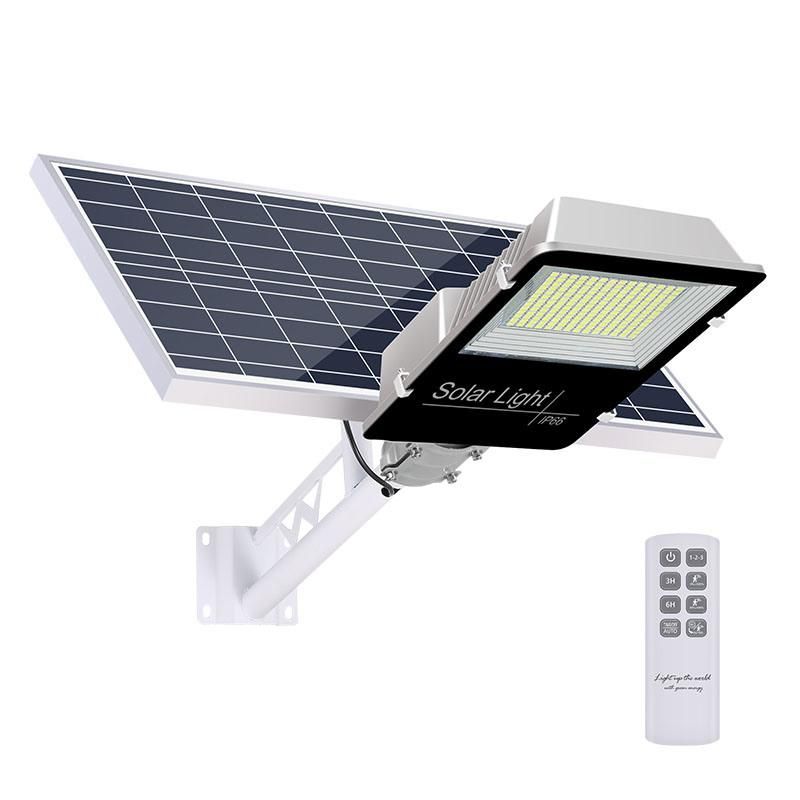

90w 150w Split solar panel Led Street light with remote control

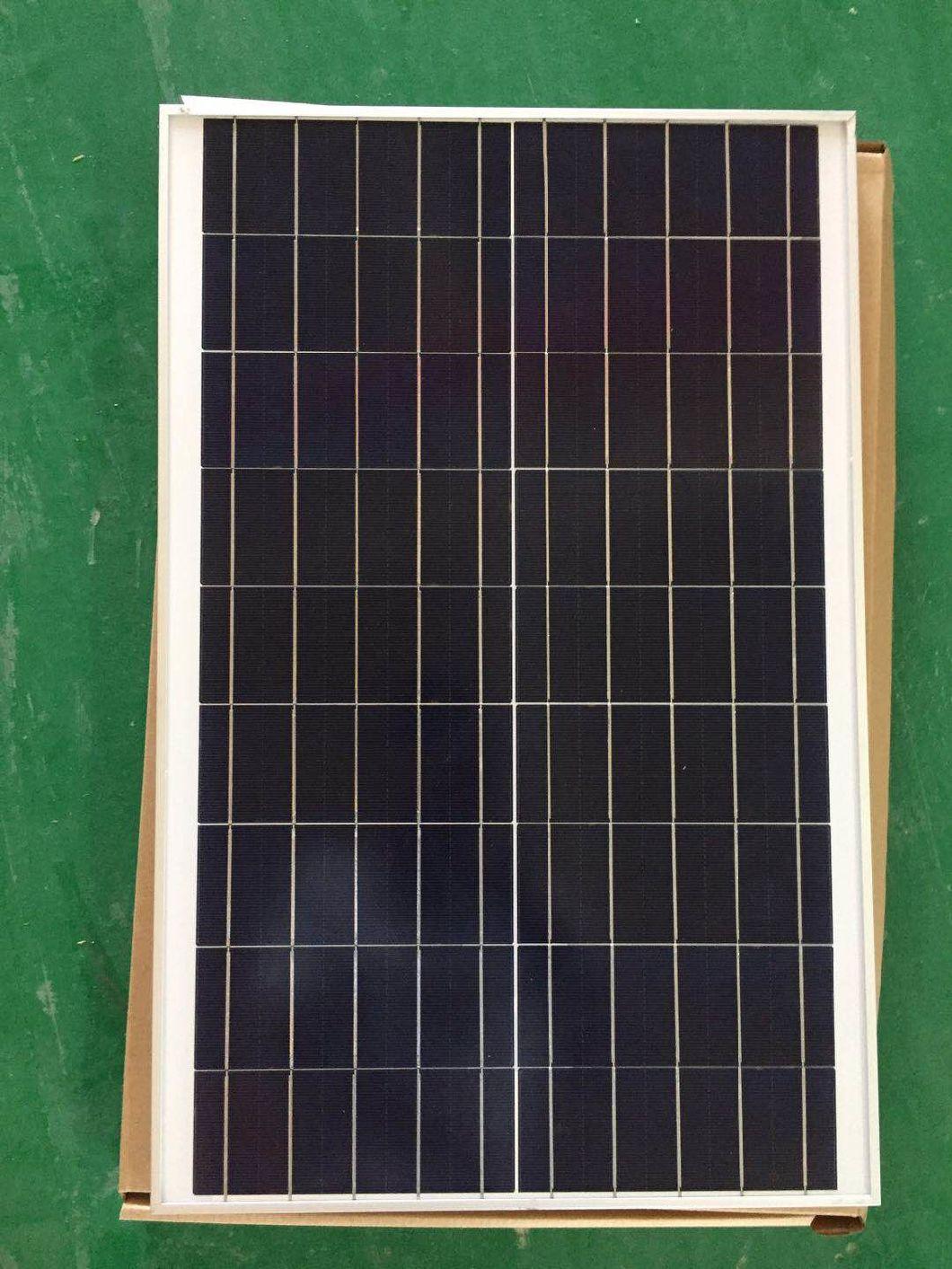

Solar panel	6V/18W, POLY
Battery	3.2V/15000mAh , LiFePO4,32650
Light source	White, 150pcs SMD5730
Power	90W
Lumen	1800LM
Lighting area	260
Material	Cast aluminium
Lighting time	14-28H
CCT.	6500K
Material	Die-casting aluminum

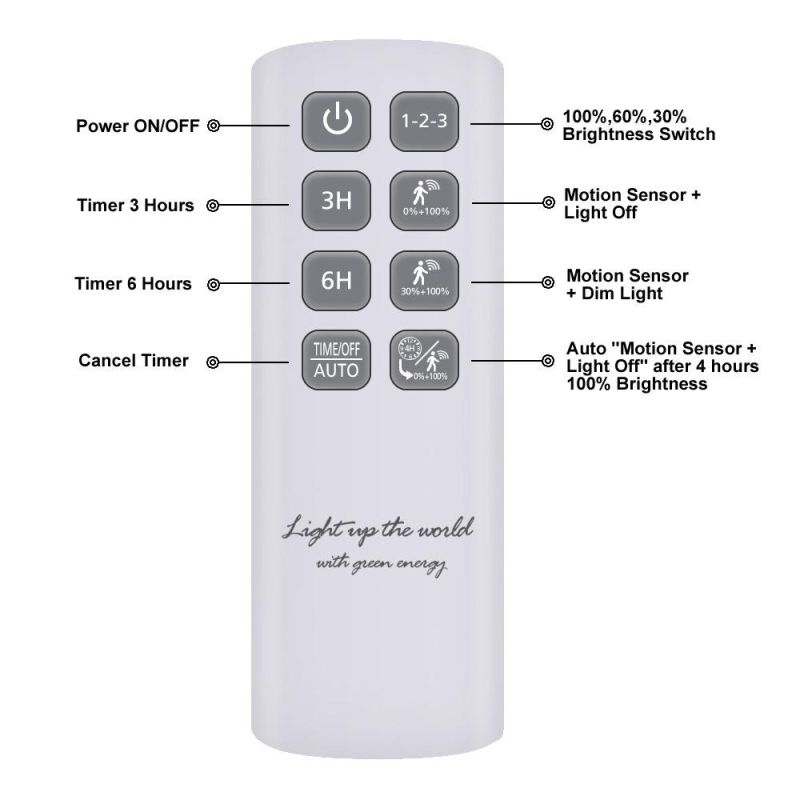

Remote control	Available/4work modes with Timing
Carton G.W	5.5KG
Carton size	525*150*395mm

90w 150w Split solar panel Led Street light with remote control

Unique Design:  All-in-one Solar Street Light

• This integrated solar light puts a solar panel, LED lamp, battery, smart sensor and controller all in one box, simply and artfully.
• The all-in-one design makes the lights lighter and smaller than the split type of solar street light.
• This design allows for easy installation and shipment.
• Easy to maintain and replace.

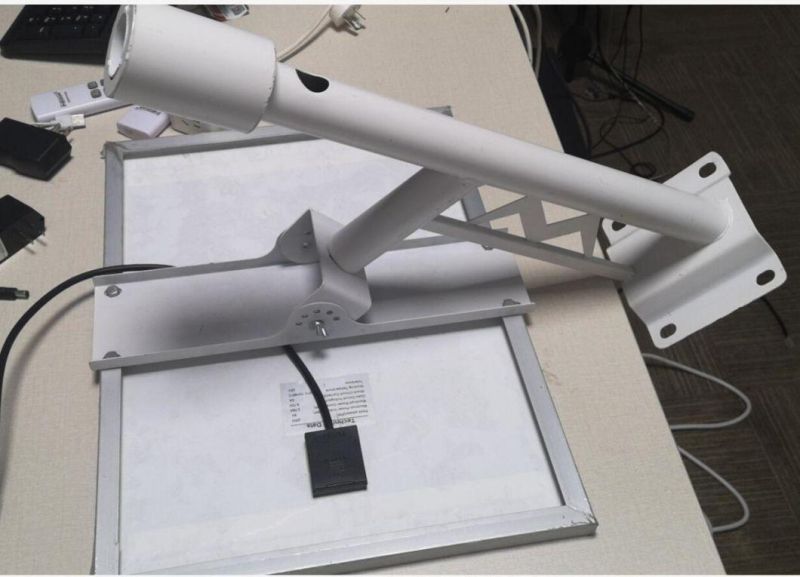

Easy Installation

• There is no need to wire; everything is integrated in one box.
• Very easy to install: just fix the support bracket and tailstock on the light pole.
• No special pole is required; any cylindrical pillar with a diameter between 50-90mm can be used.

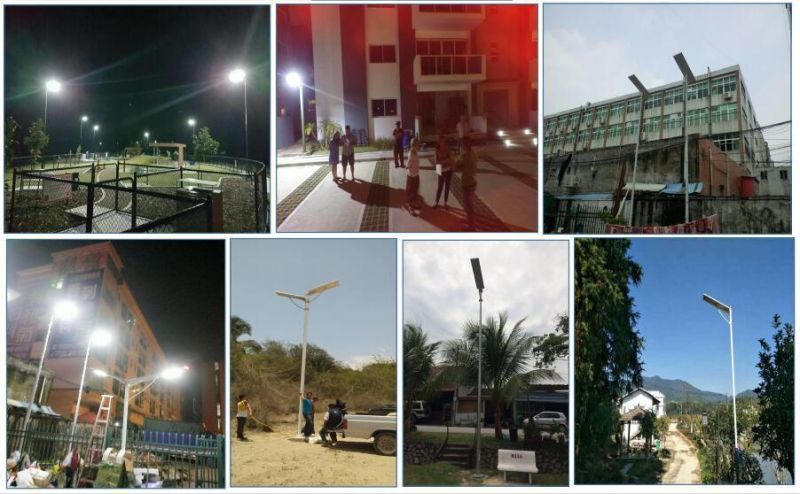

 Projects:


Applications:

• Street Lighting
• Park Lighting
• Roadway Lighting
• Fence Lighting
• Pathway Lighting
• Campus Lighting
• Parking Lot Lighting
• Boat Dock Lighting
• Yard Lighting
• Remote Area Lighting

• Sidewalk Lighting
• Shopping Mall Parking Lighting
• Private Road Lighting
• Factory Yard Lighting
• Roundabout Lighting
• Ramp Lighting
• Monument Lighting
• Farm and Ranch Lighting
• Wildlife Area Lighting
• Countryside Projects

FAQ

1.   can the lamp  work  in marine environment?

Yes, it is suitable for marine. The shell material is Aluminium alloy , the inside components has anti-corrosion treatment. The waterproof is IP65.

2.   how many day will work in  continuously rainy days?
it can work continuously in 3-4 rainy days.

3.   light on time and working mode?
Light-control(light on at dusk, light off at dawn auto)

4. What's the color temperature you can make?
The temperature is 6000-6500K, it canbe customized according customer's request.

5. can you accept OEM, is it free?
Yes, we supply OEM service.

6. what't the life span and how to change?
The lifespan of battery is 5years. It is very easy to replace it..

7. Do you accept customized production?
Yes, we accept ODM for bulk order. The power of solar panel, LED light, capcity of battery canbe customized.

8. can the lamp work in cold place?
Charging:0ºC~+60ºC,discharging: -20ºC~+60ºC storage:0ºC~+45ºC
work condition:
temperature during the day should be higher than 0ºC
temperature in night should be higher than -20ºC.

Warranty    3 years warranty time for the all in one solar street light.


Shipment :
1. By EMS,DHL,FEDEX,TNT,UPS Or other expresses ( door to door)

2. By Air ,By sea
