• Model NO.：SNSTY-250
• Illumination Time：8h
• Cell Type：Lithium Battery
• Charging Time (H)：8
• Usage：Garden, Street
• IP Rating：IP65
• Certification：CE, RoHS
• Voltage：12,24V
• With Light Source：With Light Source
• Main Materials：Aluminum Alloy
• Solar Panel：85W 18V
• LED Lamp：50W 12V
• Lithium Battery：44ah 12V
• Working Method：Motion Sensor,Timer Control,APP Function
• Working Temp.：-30c to 60c
• CTN Weight：24kg
• CTN Size：132*52*21cm
• Keyword 1：Solar Street Light
• Keyword 2：Solar LED Street Lighting
• Transport Package：Strong Carton
• Specification：50W LED 85W Solar Panel
• Trademark：SINOLTECH
• Origin：China
• HS Code：9405500000
• Production Capacity：China

Basic Info.

Model NO. SNSTY-250 Illumination Time 8h Cell Type Lithium Battery Charging Time (H) 8 Usage Garden, Street IP Rating IP65 Certification CE, RoHS Voltage 12/24V With Light Source With Light Source Main Materials Aluminum Alloy Solar Panel 85W 18V LED Lamp 50W 12V Lithium Battery 44ah 12V Working Method Motion Sensor/Timer Control/APP Function Working Temp. -30c to 60c CTN Weight 24kg CTN Size 132*52*21cm Keyword 1 Solar Street Light Keyword 2 Solar LED Street Lighting Transport Package Strong Carton Specification 50W LED 85W Solar Panel Trademark SINOLTECH Origin China HS Code 9405500000 Production Capacity China

Product Description

50W LED ALL IN ONE SOLAR LIGHT(SNSTY-250)

Our integrated solar street light which integrates the green-energy parts solarpanel, LED lamp and the Li-Fe battery into a single product, is with human intelligence induction system to gain the solution of low-energy, long-time, high-luminance and free maintenance. And the same time, it's convenient in the shipment and installation.

---Purpose:
To be installed in the garden, residential area, courtyard, road, mine area or Parking area or provide the light in roads where it's necessary, the battery provide The energy for lighting, and the solar panel charge for the battery.

Product parts:
The product is made up with the integrated parts (solar panel, Li-Fe battery, LED, MPPT controller and human intelligence induction system) and the light pole.

Working characters:
The solar panel converts sunlight into electricity and stored in Li-Fe battery via Controller, the LED light will work in night automatically by light sensor control,
And provide light for the darkness area, the human intelligence induction system can save the energy when the lighting is not necessary.

---Advantage:
1) Integrity design, no calbing, easy to install
Suitable for any kinds of pole material, such as iron, wood, bamboo, plastic, etc, reducing construction cost.
2) Adopting solar panel as power source, LED lamp as light source, perfect combination for energy saving.
3) Adopting lithium iron phosphate battery as power back-up, with high capacity, long service life over 5 years,
Excellent high temperature peformance.
4) Waterproof design
5) Adopting aluminum alloy as main body material, with feaures of rust-proof, corrosion-proof.
6) Motion sensor design, segmented power control function, during late half night, brightness reduce in order to save Energy and increase practicality.

---General specification:
Our integrated solar street light which integrates the green-energy parts solarpanel, LED lamp and the Li-Fe battery into a single product, is with human intelligence induction system to gain the solution of low-energy, long-time, high-luminance and free maintenance. And the same time, it's convenient in the shipment and installation.

---Purpose:
To be installed in the garden, residential area, courtyard, road, mine area or Parking area or provide the light in roads where it's necessary, the battery provide The energy for lighting, and the solar panel charge for the battery.

Product parts:
The product is made up with the integrated parts (solar panel, Li-Fe battery, LED, MPPT controller and human intelligence induction system) and the light pole.

Working characters:
The solar panel converts sunlight into electricity and stored in Li-Fe battery via Controller, the LED light will work in night automatically by light sensor control,
And provide light for the darkness area, the human intelligence induction system can save the energy when the lighting is not necessary.

---Advantage:
1) Integrity design, no calbing, easy to install
Suitable for any kinds of pole material, such as iron, wood, bamboo, plastic, etc, reducing construction cost.
2) Adopting solar panel as power source, LED lamp as light source, perfect combination for energy saving.
3) Adopting lithium iron phosphate battery as power back-up, with high capacity, long service life over 5 years,
Excellent high temperature peformance.
4) Waterproof design
5) Adopting aluminum alloy as main body material, with feaures of rust-proof, corrosion-proof.
6) Motion sensor design, segmented power control function, during late half night, brightness reduce in order to save Energy and increase practicality.

---General specification:

Solar Panel	Max Power	18V85W(High efficiency monocrystalline silicon)
	Life time	25 years
Battery	Type	Lithium battery 44AH
	Life time	5 years
LED Lamp	Max power	12V 50W
(With sensor)	Led chip brand	Bridgelux from USA with high brightness
	Lumen(LM)	5000-5500LM
	Life time	50000hours
	Viewing angle	120 degree
Charge time	By sun	7 hours
Discharge time	Saving power	more than 24 hours
	Full power	more than 10 hours
Working temp.	range(C)	-20C~+60C
Color temp.	range(k)	6500k-7000k
Mounting height	range(m)	7-8m
Space between light	range(m)	25-30m
Main lamp materials		Aluminum alloy
Certificate		CE/ROHS/IP65
Warranty period		3 years

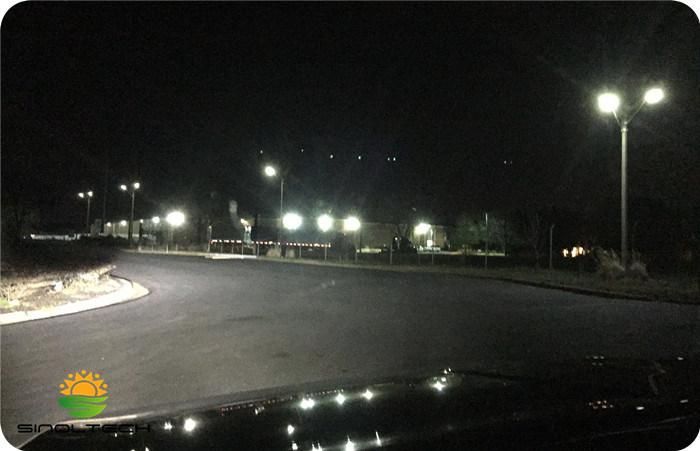

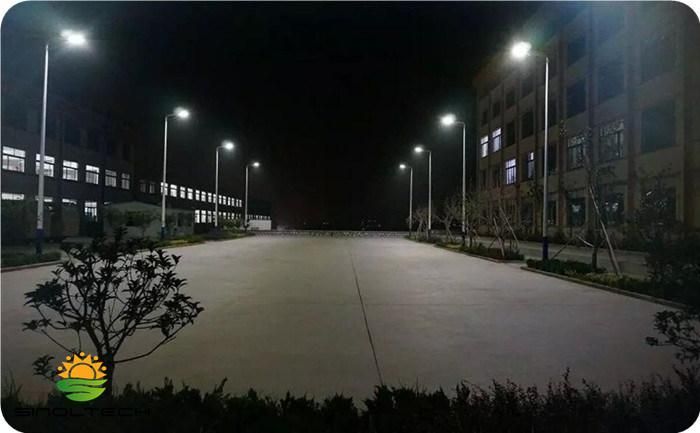

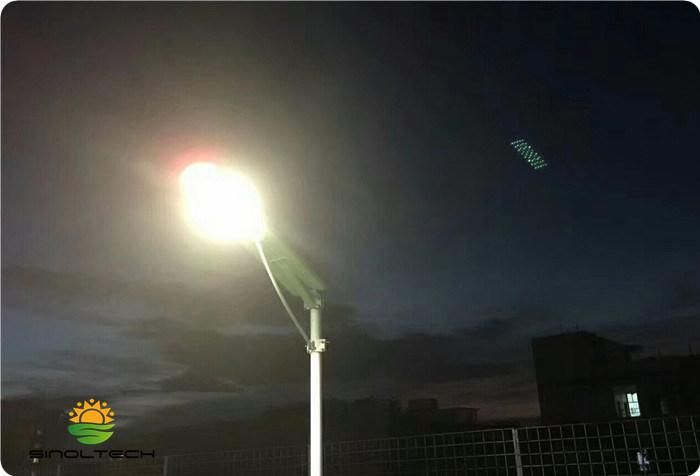

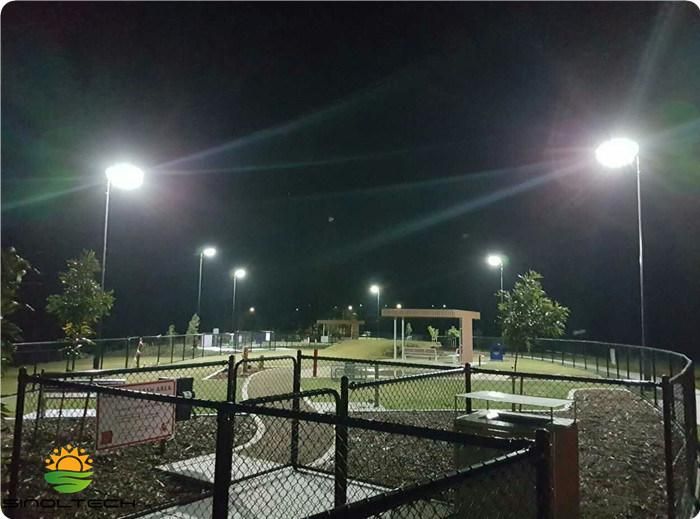

Solar street light for residential lighting:
