• Model NO.：CS-TYHYS-200
• Illumination Time：12-16 Hours(Cloudy and Rainy Days : 3days)
• Cell Type：32650 6.4V 25ah , 3.2V 50ah
• Charging Time (H)：5-8 Hours
• Usage：Street
• IP Rating：IP65
• Certification：CE, RoHS
• With Light Source：With Light Source
• LED Chips：Sanan′ 5730*240PCS
• Solar Panel：10V 50W
• Battery：32650 6.4V 25ah , 3.2V 50ah
• Lamp Size：L500W210h70mm
• Lumens：3600lm, CRI > 75

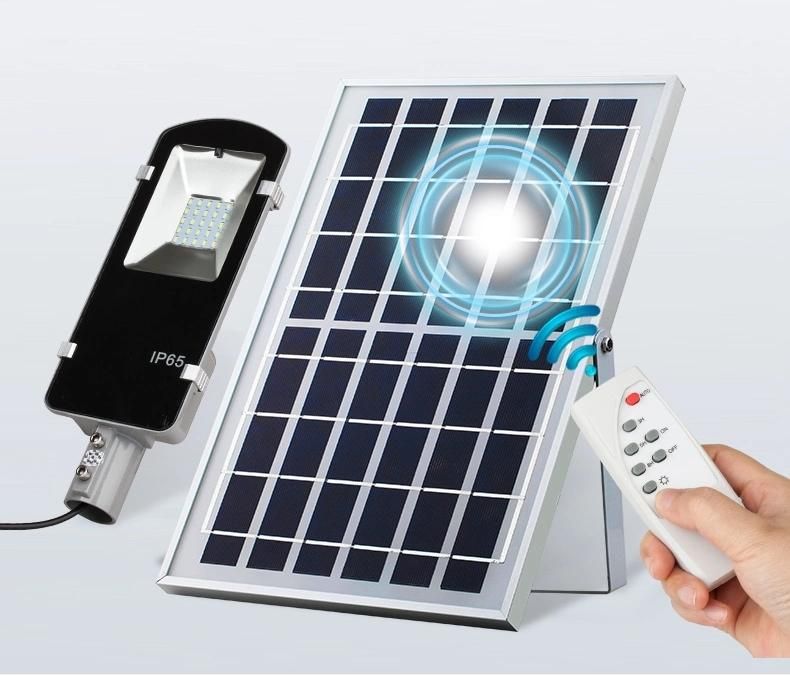

• Control Mode：Remote +Light Control
• Warranty：2years
• Light Source or Not：Light Source
• Warranty Option：3years,5years,7years
• CRI：CRI > 75
• Transport Package：Good for Exporting, Carton, Pallets
• Specification：L500W210H70mm
• Trademark：Capson
• Origin：Guangdong, China
• HS Code：9405409080
• Production Capacity：10000pieces,Month

Basic Info.

Model NO. CS-TYHYS-200 Illumination Time 12-16 Hours(Cloudy and Rainy Days : 3days) Cell Type 32650 6.4V 25ah / 3.2V 50ah Charging Time (H) 5-8 Hours Usage Street IP Rating IP65 Certification CE, RoHS With Light Source With Light Source LED Chips Sanan′ 5730*240PCS Solar Panel 10V 50W Battery 32650 6.4V 25ah / 3.2V 50ah Lamp Size L500W210h70mm Lumens 3600lm, CRI > 75 Control Mode Remote +Light Control Warranty 2years Light Source or Not Light Source Warranty Option 3years/5years/7years CRI CRI > 75 Transport Package Good for Exporting, Carton, Pallets Specification L500W210H70mm Trademark Capson Origin Guangdong, China HS Code 9405409080 Production Capacity 10000pieces/Month

Product Description

Topic:Capson 200W Solar LED Street Light 2 Years Warranty IP65 Chinese Manufacturer

Data sheet

Lighting Time	10-14hrs/day(adjustable),3-7 rainy days back-up
Solar Panel	Poly solar panel 90w(optional)*1pcs,high efficiency,life span >25years 80% rated output power
Battery	Lithium battery 1pcs,free maintenance,better weather-ability(-30ºC to +70ºC),Deep cycle 3500 times @ 20% DOD,low self discharge rate,life span>8 years
Solar Controller	MPPT/PWM,intelligent output power control,light on/off+time off,remote control,waterproof IP65,over-charge/discharge/over heat/over load/short circuit/anti-reverse protections,life span:>10 years
LED Lamp	LED power 30w,CN Sanan LED chip efficiency 200lm/w,Whole LED lamp efficiency 180lm/w,IP65 or higher,CRI>70Ra,C.T.3000-6500k(optional),life span>100,000hrs

SOLAR STREET LIGHT FAQ:
Q1: How to make a reasonable solar street light design?

1. What's your wanted LED POWER? (We can do the LED From 9W to 120W single or double design)
2. What's the Height of the Pole?
3. How about the Lighting time, 11-12hrs/day will be ok?

If you have above idea, pls let us know, we will offer you based on local solar and weather condition.

Q2: Sample is available?
Yes, we welcome sample order to test and check quality firstly., and we will return your sample cost in your formal order.

Q3: How do you ship the goods and how long does it take to arrive?
Airline and sea shipping also optional. Shipping time depends on distance.

Q4: Is it OK to print my logo on LED light product?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q5: Do you offer guarantee for the products?
Yes, we offer 2-5 years warranty to our products, and we will do "Warranty Statement" for you after confirmed the order.

Q6: How to deal with the faulty?
1), Our products are produced in strict quality control system, but in case any damage in shiping, we will provide you more free 1% as spare parts.
2), during the guarantee period, we will provide maintance free and replacement service.
