• Model NO.：SNSTY-212
• Illumination Time：10h
• Cell Type：Lithium Battery
• Charging Time (H)：10
• Usage：Garden, Street
• IP Rating：IP65
• Certification：CE, RoHS
• Voltage：12,24V
• With Light Source：With Light Source
• Keyword：All in One Solar LED Garden Lamps
• Model No.：Snsty-212
• Main Specs：12W LED 25W PV 10ah Battery
• Solar PV：Solarworld 25W
• Lithium Battery：10ah
• Lumen：1200-1300lm
• Mounting Height：3-4m
• Mounting Distance：12-18m
• CCT：3000-6000K
• Working Temp.：-30~+60c
• Transport Package：Strong Carton
• Specification：12W LED 25W Solar Panel
• Trademark：SINOLTECH
• Origin：China
• HS Code：9405409000
• Production Capacity：China

Basic Info.

Model NO. SNSTY-212 Illumination Time 10h Cell Type Lithium Battery Charging Time (H) 10 Usage Garden, Street IP Rating IP65 Certification CE, RoHS Voltage 12/24V With Light Source With Light Source Keyword All in One Solar LED Garden Lamps Model No. Snsty-212 Main Specs 12W LED 25W PV 10ah Battery Solar PV Solarworld 25W Lithium Battery 10ah Lumen 1200-1300lm Mounting Height 3-4m Mounting Distance 12-18m CCT 3000-6000K Working Temp. -30~+60c Transport Package Strong Carton Specification 12W LED 25W Solar Panel Trademark SINOLTECH Origin China HS Code 9405409000 Production Capacity China

Product Description

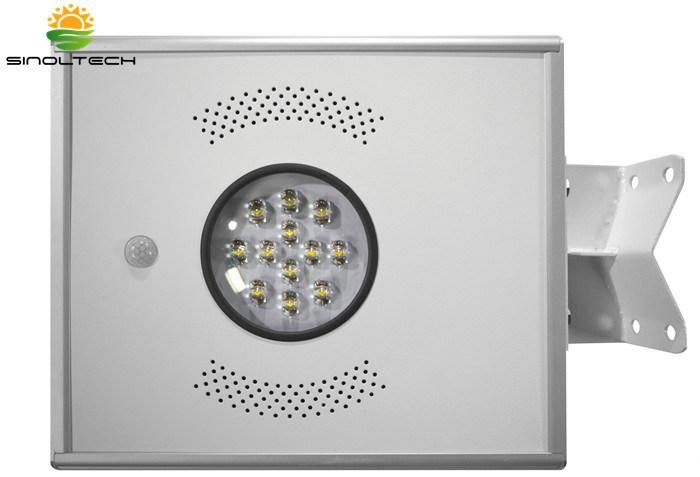

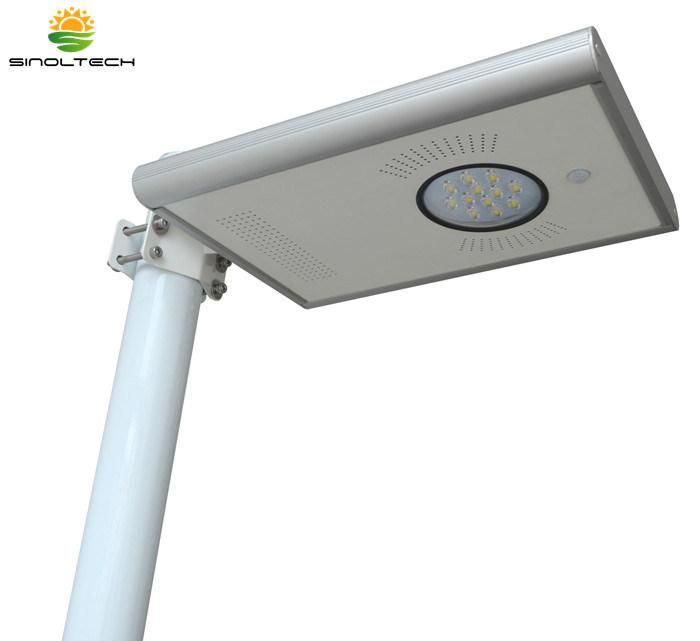

12W LED ALL IN ONE Solar LED Garden Lamps with integrated PV and Lithium Battery

Our integrated solar street light which integrates the green-energy parts solarpanel, LED lamp and the Li-Fe battery into a single product, is with human intelligence induction system to gain the solution of low-energy, long-time, high-luminance and free maintenance. And the same time, it's convenient in the shipment and installation.

Application:
Public square, plaza, courtyard, garden, park, street, roadway, pathway, parking lot, private road, sidewark, campus, airfield, farm & ranch, perimeter security, wildlife area, military base ets.

Purpose:
To be installed in the garden, residential area, courtyard, road, mine area or Parking area or provide the light in roads where it's necessary, the battery provide The energy for lighting, and the solar panel charge for the battery.
Product parts:
The product is made up with the integrated parts (solar panel, Li-Fe battery, LED, MPPT controller and human intelligence induction system) and the light pole.
Working characters:
The solar panel converts sunlight into electricity and stored in Li-Fe battery via
Controller, the LED light will work in night automatically by light sensor control,
And provide light for the darkness area, the human intelligence induction system can save the energy when the lighting is not necessary.
General specification:

Solar Panel	Max Power	18V25W(High efficiency monocrystalline silicon)
	Life time	25 years
Battery	Type	Lithium battery 10AH
	Life time	5 years
LED Lamp	Max power	12V 12W
(With sensor)	Led chip brand	Epistar from Taiwan with high brightness
	Lumen(LM)	1300LM
	Life time	50000hours
	Viewing angle	120 degree
Charge time	By sun	5-6hours
Discharge time	Half power	20 hours
Working temp.	range(C)	-20C~+60C
Color temp.	range(k)	6000k
Mounting height	range(m)	3-4m
Space between light	range(m)	8-10m
Main lamp materials		Aluminum alloy
Certificate		CE/ROHS/IP65
Warranty period		3 years
