Modular 150W SMD LED Tennis Court Flood Light with Ce Certificate

Rayborn Lighting Co., Ltd.
  • Projection Distance:12-18m
  • Color Temperature(CCT):Cool White
  • Body Material:Aluminum Alloy
  • IP Rating:IP65
  • Average Life:50000 Hours
  • Application:Square, Garden, Park, Factory

Base Info

  • Model NO.:RB-FLL-96P-150W
  • Operating Voltage:110V
  • Certification:CE, RoHS, UL
  • Driver:Meanwell
  • LED Chip:Samsung
  • Warranty:5 Year
  • Cct:3000k,4000k,5000k,6000k
  • CRI:80
  • Transport Package:1PCS,Carton
  • Specification:CE. ROHS, UL
  • Trademark:Rayborn
  • Origin:China
  • HS Code:94054090
  • Production Capacity:40000PCS,Month

Description

Item No.:RB-FLL-150WMInput Voltage:AC 85-265VFreqency Range:50Hz~60HzPower Factor:>0.95Power Efficiency:>90%LED Power150WLED ChipSamsungLED QTY:300 pcsLED Working Voltage:DC 30~36VSystem Consumption:153WLED Luminous FluxWarm White12200LMPure White13000LMCool White13500LMCenter Illuminance4 Meter363 lux4.5 Meter286lux6 Meter161luxViewing Angle:120 degreeIlluminance Uniformity:>0.6Color TemperatureWarm White3000K~3300KPure White4000K~4500KCool White6000K~6500KColor Rendering IndexRa>80

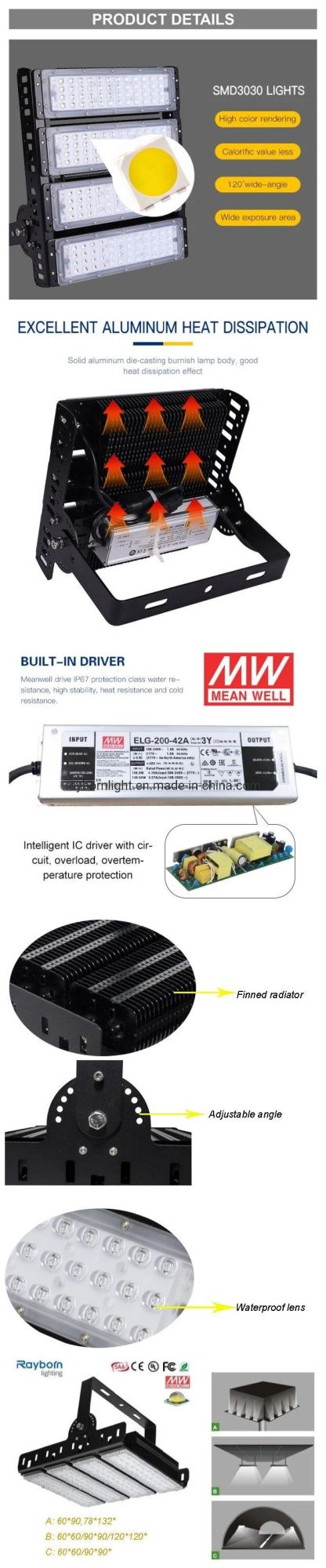

LED Floodlight Features:
LED flood lighting adopted optical light distribution, that is no glare, no light pollution, highly directional light and more even luminous beam.

1, High bright imported single integrated(COB) LED chip as light source:
Led flood light with good heat dissipation, low light depreciation, pure light color, no double-shadow High intensity, high resistance of shock or vibration etc.

2, Universally wide range voltage(85-265V):
Led flood light advanced constant-current driver be used which can start quickly, be high safety and reliability.

3, Unique heat sink design:
Led flood light perfectly combine with power box, effectively transmit the heat, thereby lowering the body's temperature, ensure the life of LED chip and power driver.

4, Surface treatment:
Led flood light static sprayed leading to better heat-resisting, high weather resistance, corrosion resistant, water proof and dust proof.

5, All the leakage screw material is 304 stainless steel, and frame is hex screws.

6, waterproof and dust proof:
Led floodlight Sealed by reliable silicone rubber, can bear heat above 150, no aging, good sealing of lamp, waterproof and dust proof.

7, Energy saving:
Led floodlight use high power LED and it is equipped with imported high efficient power, save more than 70% energy compare with sodium lamp.
Modular 150W SMD LED Tennis Court Flood Light with Ce Certificate

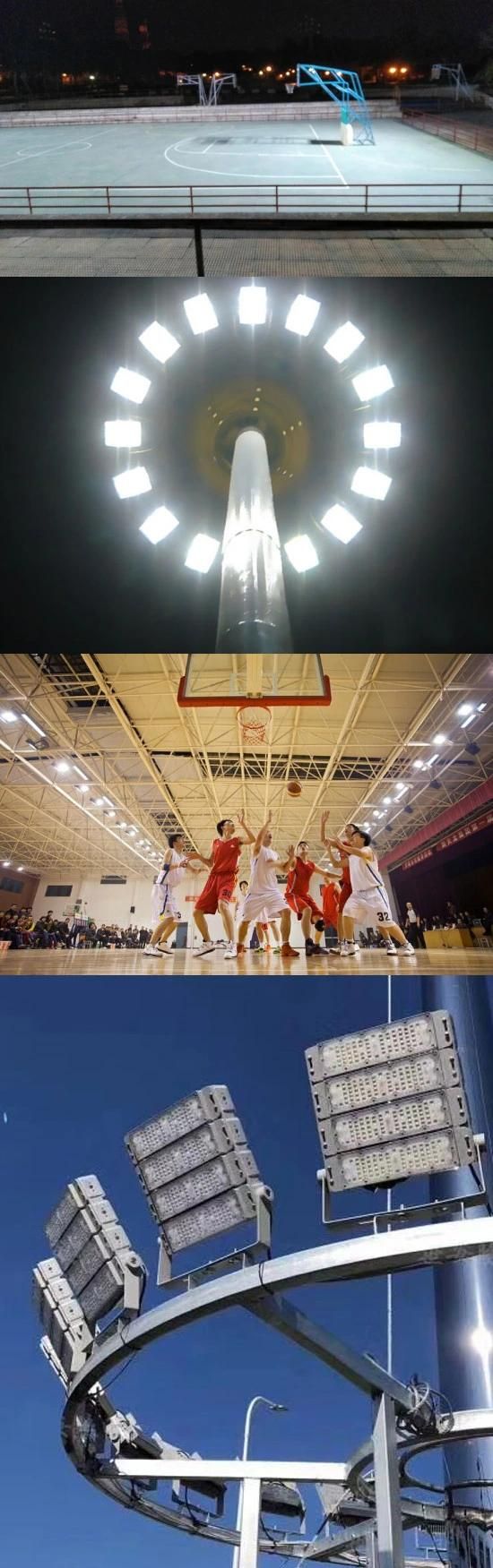

 Applications:
Tunnel, Factories, gyms, docks, bill boards, lawns, garden designs and other places where floodlight and decoration lighting are needed.
