Australia Standard 4X350W LED Hydraulic Telescopic Mast Light Tower
Fujian Robust Power Co., Ltd.- Engine：Kubota D1105
- Alternator：Chiese Brand Copy Stamford
- Fuel Capacity：0.8L,Hr(100 Litres,Tank)
- Engine Speed：1500rpm,1800rpm
- Power Generation：7.2kw, 8kw Continuous
- Voltage：AC220V, 230V, 240V for Option
Base Info
- Model NO.：RPLT-3800
- Light Power：4*350W CE UL Certificates
- IP Grade：IP54
- Lumen Output：4*49,000lm
- Guarantee：3 Years
- Transport Package：Plywood Tray,Plywood Cases,Cartons
- Specification：1540*1400*2000mm
- Trademark：Robuster Lighting
- Origin：China
- HS Code：9405409000
- Production Capacity：250sets,Month
Description
Basic Info.
Model NO. RPLT-3800 Light Power 4*350W CE UL Certificates IP Grade IP54 Lumen Output 4*49,000lm Guarantee 3 Years Transport Package Plywood Tray/Plywood Cases/Cartons Specification 1540*1400*2000mm Trademark Robuster Lighting Origin China HS Code 9405409000 Production Capacity 250sets/MonthProduct Description

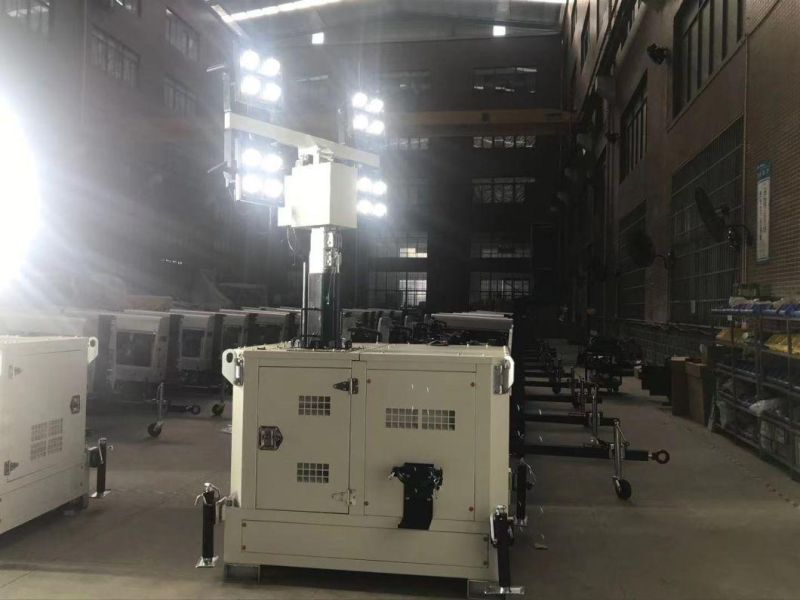

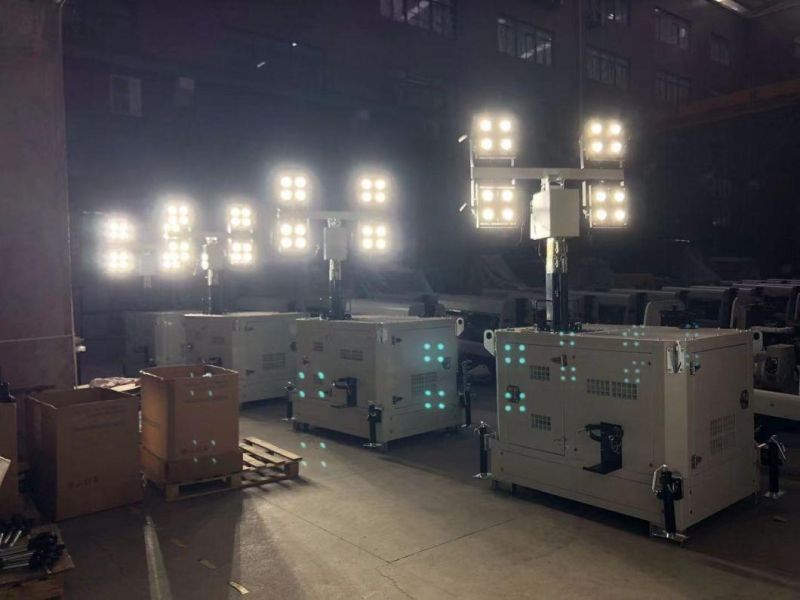

Australia Standard 4x350W LED Hydraulic Telescopic Mast Light TowerKey Features Include:
7m hydraulical operated telescopic mast
340 mast rotation
Available in 4 x 480W SAA Certified Robust Power LED lamp
Galvanized mast and powder coated canopy
Electronic controlled hydraulic system with sustaining valves and hydraulic locks
Fault protection
Heavy-duty, weather-protective enclosure
Fully bunded
| Light | |
| Housing Material | Aluminium die cast |
| Type of lights | LED Lamp |
| Power of lights | 4*480W SAA certified Robust Power LED lamps |
| Lumen Output | 4*62,400lm ( total ) |
| Voltage | AC 110V-240V, DC 48V |
| Frequency | 50/60Hz |
| Longevity | 3 years |
| Waterproof grade | IP65 |
| Color temperature | 2100K-5700K |
| Mast | |
| Material of mast | Galvanized iron |
| Mast lifting type | Hydraulic mast |
| Mast section | 4-section telescopic |
| Mast rotation system | 340° manual operation |
| Max. height of mast | 7meters |
| Engine | |
| Engine model | Kubota D905 3 cylinder or Z482 2 cylinder |
| Start system | Electric (Battery start) |
| Alternator | Sinocox |
| Engine speed | 2200rmp |
| Rated power | 4kW continuous (DC) |
| Insulation | H |
| Fuel tank capacity | 150L |
| Fuel consumption | 0.75L/hr |
| Maximum Working Hours | 200H |
| Controller system | Digital control panel HGM1790N |
| Waterproof grade | IP54 |
| Engine shutdown protection | Low oil pressure, over speed, over current, high-temperature detection, low fuel level |
| Trailer | |
| Stabiliser Supports | 4*Manual |
| Packing | |
| Net weight | 1800/1700 kg |
| Dimension | 1540X1400X2000 MM |

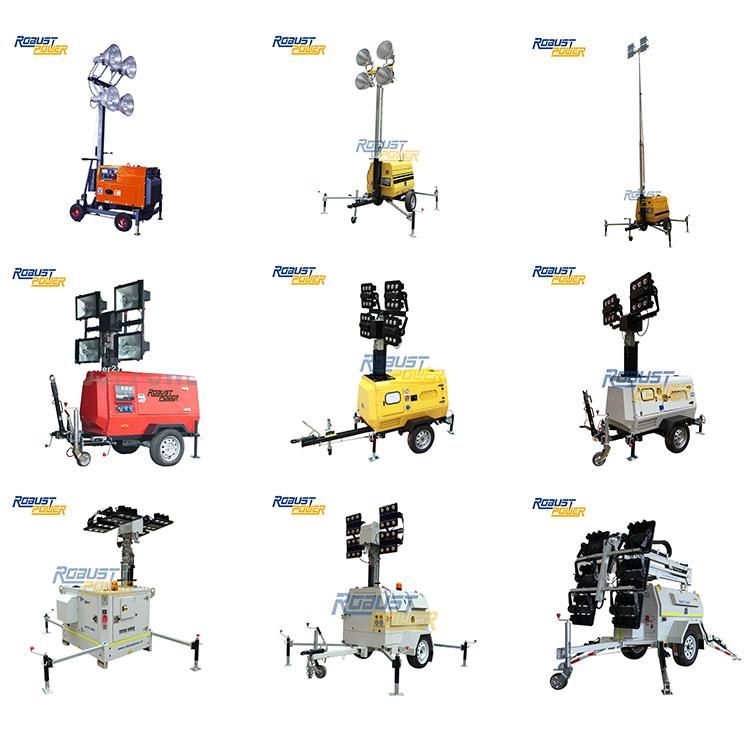

Robust Power Models:
| No. | Model | Mast | Power of Lamps | Engine Model |
| 1 | RPLT1600 | 4.8M Manual | 4*400W Metal Halide Lamp | RP186FA |
| 2 | RPLT1600 | 4.8M Manual | 4*160W LED | RP186FA |
| 3 | RPLT1600 | 4.8M Manual | 2*1000W Metal Halide Lamp | RP186FA |
| 4 | RPLT6000 | 9M Manual | 4*1000W Metal Halide Lamp | Kubota D1105 (Japan) |
| 5 | RPLT6000 | 9M Manual | 4*240W LED | Kubota D905 (Japan) |
| 6 | RPLT6800 | 8.6M Hydraulic | 4*1000W Metal Halide Lamp | Kubota D1105 (Japan) |
| 7 | RPLT6800 | 8.6M Hydraulic | 4*1500W Metal Halide Lamp | Kubota D1105 (Japan) |
| 8 | RPLT6800 | 8.6M Hydraulic | 4*480W LED | Kubota D905 (Japan) |
| 9 | RPLT3800 | 7M Hydraulic | 4*480W LED | Kubota Z482 (Japan) |
| 10 | RPLT6900 | 8.5M Hydraulic | 4*480W LED | Kubota D1105 (Japan) |
| 11 | RPLT7200 | 10M Hydraulic | 6*480W LED | Kubota D1105 (Japan) |
| 12 | RPLT7200 | 10M Hydraulic | 4*720W LED | Kubota D1105 (Japan) |
| 13 | RPLT7600 | 9M Hydraulic | 6*480W LED | Kubota D1105 (Japan) |
| 14 | RPLT7600 | 9M Hydraulic | 4*720W LED | Kubota D1105 (Japan) |
