• Model NO.：SF-30W
• Illumination Time：3-5 Rainy Days
• Cell Type：Lithium Battery
• Charging Time (H)：8
• Usage：Garden, Street
• IP Rating：IP65
• Certification：CE, RoHS
• Voltage：12,24V
• With Light Source：With Light Source
• LED Light：30W (Bridgelux, USA)
• Battery：24ah,12V, Lithium Battery

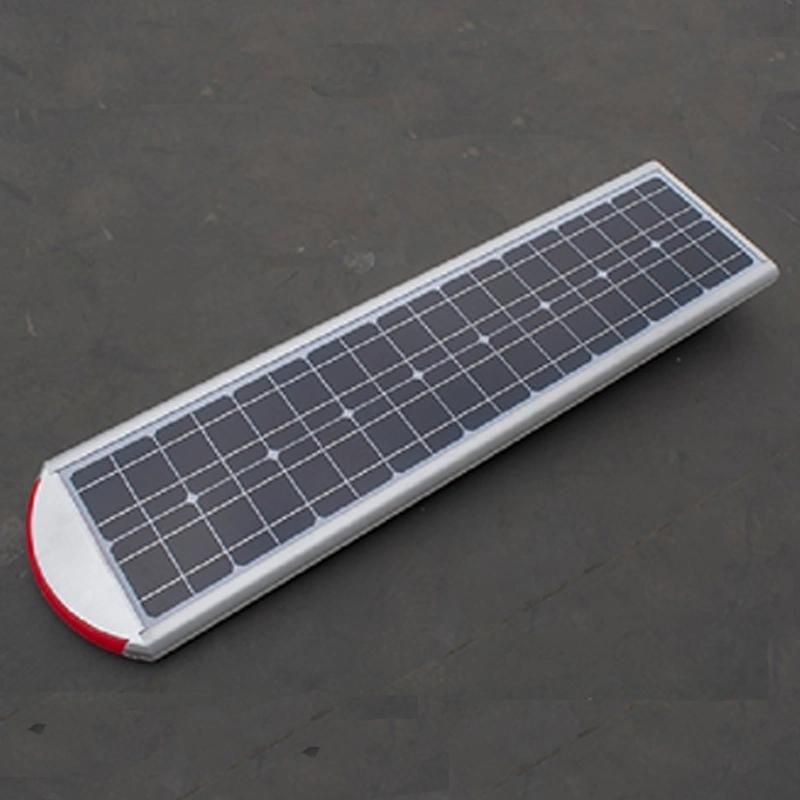

• Solar Panel：38W,18V, Mono
• Controller：MPPT
• Work Mode：Motion Sensor+Dim Light or Constant

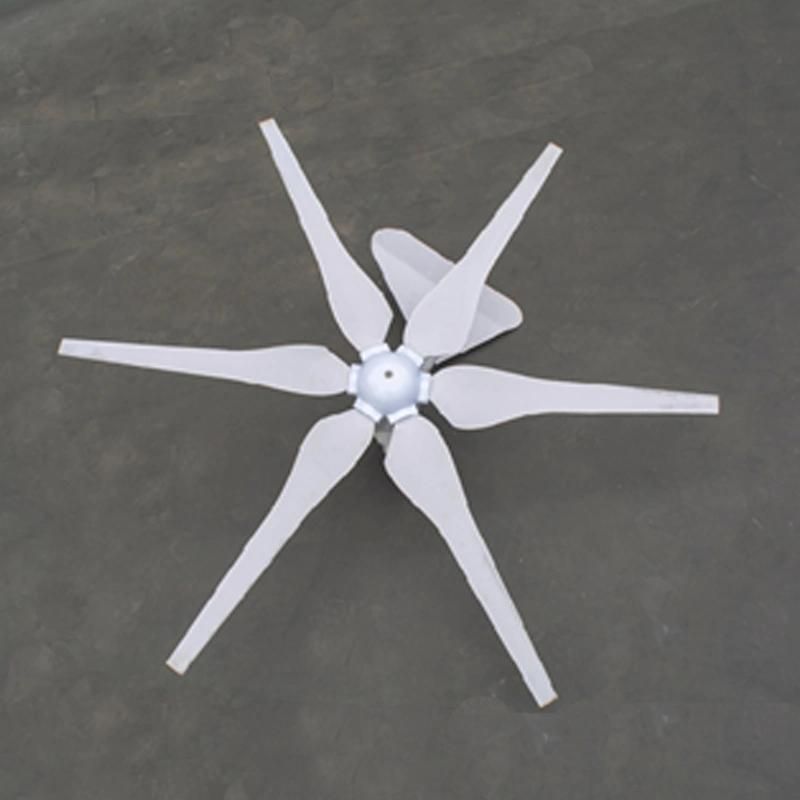

• Wind Turbine：300W
• Lumen：3900lm
• Mounting Height：6-7 Meter
• Spacing：20-25m
• Warranty：5 Year
• Working Temperture：-20 ~ +60 Degree
• Remote Control：Available
• Sensor：PIR Sensor
• Net Weight：14kg
• Battery Heater：Available
• Transport Package：Carton
• Specification：outdoor led street light
• Trademark：Newsky Power
• Origin：China
• HS Code：9405409000
• Production Capacity：10000pieces,Month

Basic Info.

Model NO. SF-30W Illumination Time 3-5 Rainy Days Cell Type Lithium Battery Charging Time (H) 8 Usage Garden, Street IP Rating IP65 Certification CE, RoHS Voltage 12/24V With Light Source With Light Source LED Light 30W (Bridgelux, USA) Battery 24ah/12V, Lithium Battery Solar Panel 38W/18V, Mono Controller MPPT Work Mode Motion Sensor+Dim Light or Constant Wind Turbine 300W Lumen 3900lm Mounting Height 6-7 Meter Spacing 20-25m Warranty 5 Year Working Temperture -20 ~ +60 Degree Remote Control Available Sensor PIR Sensor Net Weight 14kg Battery Heater Available Transport Package Carton Specification outdoor led street light Trademark Newsky Power Origin China HS Code 9405409000 Production Capacity 10000pieces/Month

Product Description

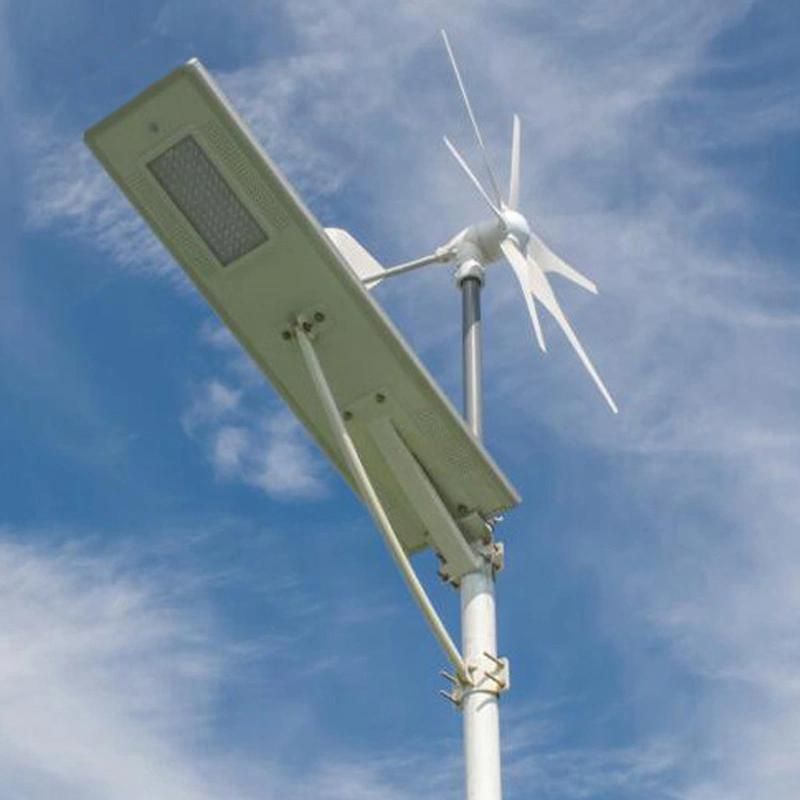

30W Wind Turbine Integrated LED Lamps Solar Street Light


Product descriptions:
Based on smart solar street light, the INF series is a new model which can utilize the natural resources - wind energy & solar energy better.
With wind turbine system, this light can be charged daytime and night time whenever there is wind, which can widen the applications, also to meet the Philosophy of our company - Safety, Eco-friendly and Intelligence.

The solar & wind street Light is a revolutionary product by utilizing Photovoltaic effect and wind power. It is designed to constantly absorb solar energy in daylight, wind energy all the day and convert to electricity, the intelligent controller could precisely control the charge, discharge and well preserve electricity into the lithium battery. And start to illuminate, which is powered by the lithium battery, once the illuminance of ground reduced to 15 lux in night time, or solar panel voltage drop to 5V below. The intelligent controller not only protects the battery from over-charging, over-discharging, but also can control the light switch-on, the time of switch-on and optimize the brightness effectively according to the real-time environment.










Product features:

1. Automatic battery heating in low temperature

The heater starts to work when it is under 0 °C and stop working when it is up to 10°C.

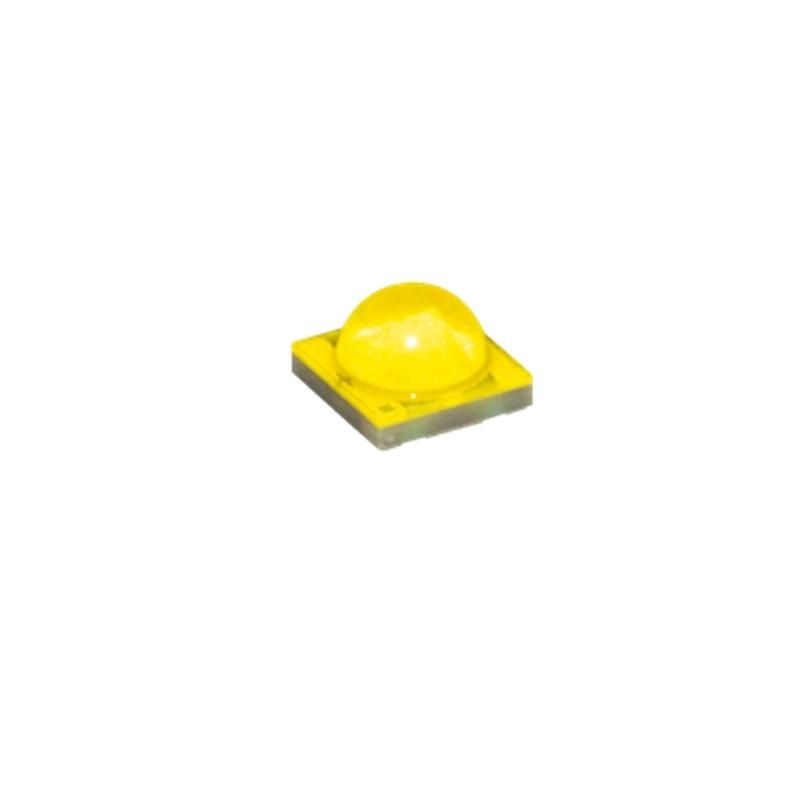

1. LED lighting module

Utilize high efficient LED, with integrated optical lens.
PIR motion sensor: enter energy-saving mode when nobody to prolong backup days.
With RED pathway indicator, for warning effect and decoration at night.

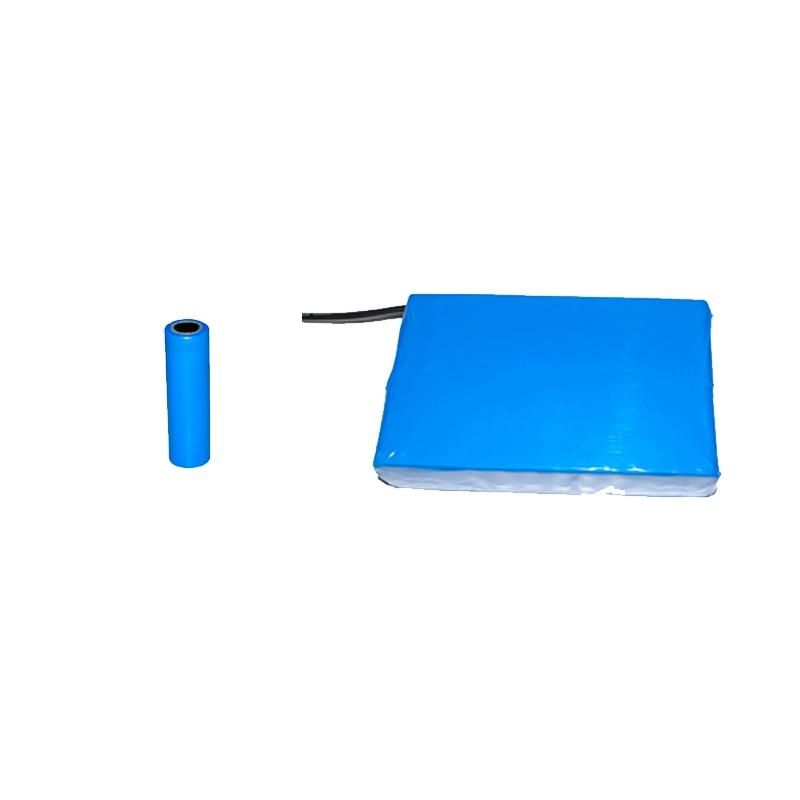

1. Battery energy storage

Inside there is a cell baffle to protect the battery, NTC temperature sensor and heater band.
Real-time detection of the voltage and currency to avoid the overcharging, over discharging and overcurrent.
Real-time detection of battery temperature to start the battery heating when extremely low temperature, and stop heating when up to 10 degrees.

1. Bluetooth communication

Support troubleshooting, read light data and control the light switch on/off by smartphone Bluetooth APP

1. Waterproof level IP65.

Street light application:

1. Courtyard / Garden / Park / Street / Roadway

2. Pathway / Parking Lot / Private Road / Sidewalk / Public Square

3. Plaza / Campus / Airfield / Farm & Ranch / Perimeter Security, Front yard, Back yard

4. Wildlife Area / Remote Area / Camping, and much more


Our company:

NEWSKY POWER(by Commercial Energy) is a global solar lighting company with a head office in Hong Kong and sales office in Qingdao, China.

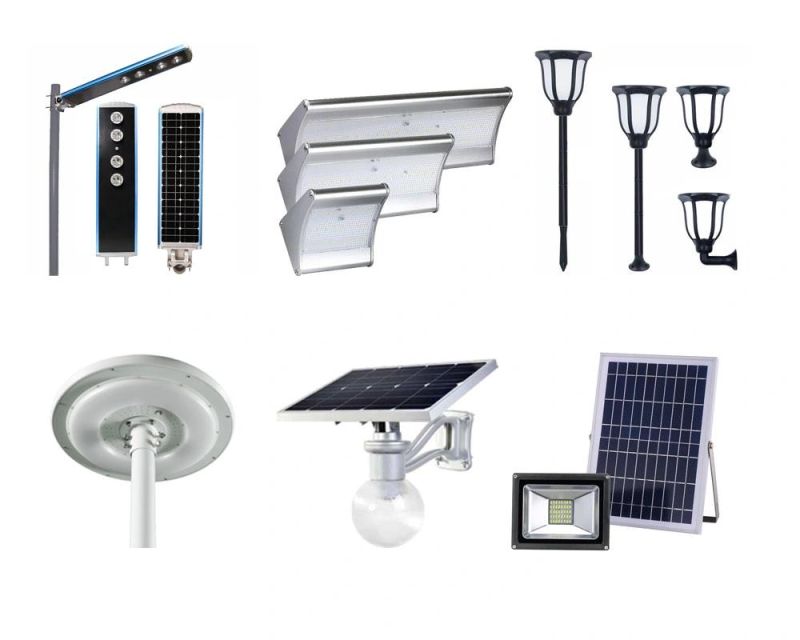

NEWSKY POWER was founded in 2008, with line of products including solar street lighting, solar garden lighting, solar wall lighting, solar lawn lighting, solar flood lighting and others.
NEWSKY POWER owns 3 factories on 40,000 square meters with 30 engineers and 400 highly trained workers.
NEWSKY POWER is certified ISO9001 and also has certifications for many countries including CE, ROHS, GS, FCC.

Welcome to visit our factory!

LED light	30W (Bridgelux,USA)
Battery	24AH/12V, Lithium battery
Solar panel	38W/18V,MONO
Controller	MPPT
Work mode	Motion sensor+dim light or Constant
Wind turbine	300W
Lumen	3900Lm
Material	Aluminium alloy
Installation height	6-7m
Spacing	20-25m
