250W SMD3030 Waterproof IP66 LED Street Light for Streetlamp
Rayborn Lighting Co., Ltd.- Light Source：LED Light
- Color Temperature(CCT)：Pure White
- Lamp Body Material：Aluminum Alloy
- Lamp Power：250W
- Power Supply：AC
- Average Life：50000hours
Base Info
- Model NO.：RB-STC-250W
- Application：Highway, Square, Garden
- IP Rating：IP65
- Certification：CE, RoHS, UL, EMC
- Voltage：100-277V
- Chip：CREE
- Driver：Meanwell Street Lights Wall Mounting
- Warranty：5 Year Public Parks Lights
- Transport Package：in Carton and Foam
- Specification：CE, EMC, UL
- Trademark：Rayborn
- Origin：China Pathway Outdoor Pole LED Lights
- HS Code：94054090
- Production Capacity：40000PCS,Month
Description
200W LED Industrial Light Main Technical ParametersItem No.: RB-STC-250W Input Voltage: AC 100~277V Freqency Range: 50Hz~60Hz Driver: Meanwell HLG Led Chip: CREE Xpe Power Factor: > 0.98 Power Efficiency: >90% LED Power 250W LED QTY: 120pcs LED Working Voltage: DC 36~42V System Consumption: 205W LED Luminous Flux Warm White 23500LM Pure White 24500LM Cool White 24500LM Viewing Angle: 140/80 degree Center Illuminance Height 9M 49.4LUX Height 12M 27.7LUX Height 15M 17.8LUX Illuminance Area Height 9M Dia.1649CM points visible Height 12M Dia.2199CM points visible Height 15M Dia.2749CM points visible Illuminance Uniformity: > 0.6 Color Temperature Warm White 3000K~3500K Pure White 5000K~5700K Cool White 6000K~6500K Color Rendering Index Ra > 80 Light Distribution: LED points visible Light Design: LED+ LED Junction Temperature: ≤115 Working Temperature: -30 ~55 IP Grade: IP65 Working Life-span: 50000 H Power Line: 1.0 m m three line Connect Wire Brown L Blue N Yellow / Green G Certificate CE/UL/ROHS Producs Size: 771*292*98mm
Lamp body design: Unique diecasted aluminum shell structure, realizing excellent heat dissipation.
Led power: Taiwan Meanwell driver
Imported led chip: US Cree led chip, high illumination efficiency.
Waterproof design: IP65 guard level, highly resistant from water and dust.
250W LED Street Light Features:
1. Higher efficiency and energy-saving compared to conventional fluorescents with equal bright.
2. No RF interference, no buzzing noise, no UV radiation.
3. No fluorescent flickering.
4. No hazard of mercury or lead entering the environment.
5. Maintenance free, easy installation.
6. Solid- state, high shock/ vibration resistant
7. Adopting low- pressure constant current power supply, no glare,
8. Milky glass cover or PC cover with transmission rate at 92%.

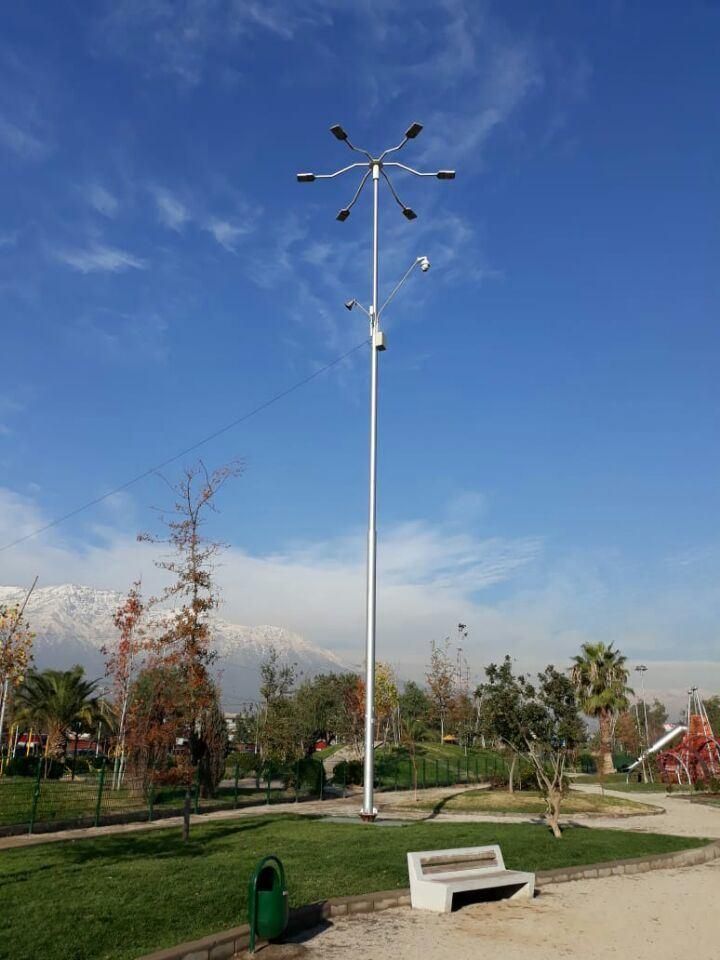

LED Street Lights Fixtures Applications:
Apply to the main road, slip road, fast lane, residential road, Park Road, Industrial Park Road, highways, local roads, municipal roads, gas stations and car parks lighting places
